Pressure Gauge Siphons: Complete Guide to U-Shape and O-Shape Protection Systems

A pressure gauge siphon is a curved piping component installed between the pressure source and the gauge that traps liquid to create a protective barrier, preventing hot steam or gases from directly reaching the gauge while maintaining accurate pressure transmission and dampening pressure pulsations. Available in U-shape (compact, cost-effective) and O-shape (enhanced protection) configurations, manufactured from black steel Schedule 40 (general applications) or 316 stainless steel (corrosive environments), siphons are essential for UAE industrial applications across Dubai, Abu Dhabi, and the Emirates including steam boilers, chemical processing, oil & gas operations, and any high-temperature pressure measurement where thermal protection extends gauge life and ensures reliable readings.

What is a pressure gauge siphon and when do you need one in UAE applications?

A pressure gauge siphon is a protective device that creates a liquid seal between hot process media and the pressure gauge, acting as both a thermal barrier and pressure dampener. The operating principle is elegantly simple: when first installed, the siphon fills with process fluid or condensate (in steam applications, steam condenses in the curved section creating a liquid seal). This trapped liquid absorbs and dissipates heat from hot process media, preventing thermal damage to the gauge mechanism. System pressure is transmitted through the liquid column to the gauge, maintaining accurate pressure readings while providing thermal isolation. The liquid mass naturally dampens pressure pulsations and surges, reducing gauge needle flutter and mechanical stress. You need a siphon in any UAE application with steam systems (boilers, process heating, sterilization), hot gases or liquids above 100°C that would damage gauge internals, pressure pulsations that cause needle flutter, or critical measurements requiring both thermal protection and pulsation dampening. In Dubai's power generation facilities, Abu Dhabi's chemical plants, and Emirates' food processing operations, siphons are essential protection that prevents gauge failure from thermal damage and extends equipment life from months to years.

Siphon configurations: U-shape vs O-shape for UAE applications

U-Shape Siphons:

U-shape siphons feature a simple, curved design resembling the letter "U" and offer several advantages for UAE applications:

Design Characteristics:

• Single curved bend creating a liquid trap
• Compact vertical profile for tight spaces
• Simple construction with fewer joints
• Easy installation and maintenance access

Applications in UAE:

• Steam boiler pressure measurement in Dubai facilities
• Hot water systems in commercial buildings
• Low to medium pressure applications
• Installations with limited horizontal space

Advantages:

• Cost-effective solution for general UAE applications
• Minimal pressure drop
• Easy to drain and service
• Suitable for most standard steam and hot water applications

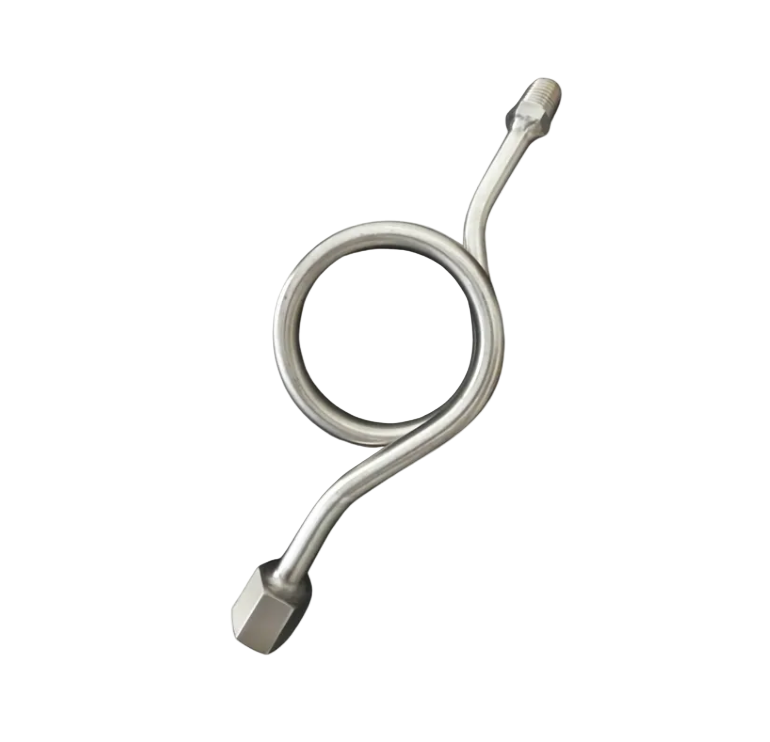

O-Shape Siphons:

O-shape siphons feature a complete loop configuration, providing enhanced protection for demanding UAE applications:

Design Characteristics:

• Complete circular or oval loop design
• Larger liquid capacity for superior thermal mass
• Multiple curves for enhanced protection
• More robust construction for high-pressure applications

Applications in UAE:

• High-pressure steam systems in Abu Dhabi power plants
• Superheated steam applications in industrial facilities
• Critical process measurements in oil & gas
• Severe service conditions across Emirates

Advantages:

• Superior thermal protection for extreme UAE temperatures
• Enhanced pressure pulsation dampening
• Greater liquid retention capacity
• Improved gauge protection in extreme conditions

Material selection: Black steel Sch40 vs 316 stainless steel

Black Steel Schedule 40:

Black steel Sch40 siphons offer reliable performance for many UAE industrial applications:

Material Properties:

• Carbon steel construction with black oxide finish
• Schedule 40 wall thickness for standard pressure ratings (up to 2000 PSI)
• Good mechanical strength and durability
• Cost-effective solution for general applications
• Temperature range: -20°F to 650°F (-29°C to 343°C)

Ideal UAE Applications:

• Steam boiler systems in Dubai commercial buildings
• Non-corrosive process fluids
• Standard industrial environments
• Budget-conscious installations

Considerations for UAE:

• Susceptible to corrosion in aggressive environments and coastal humidity
• Requires protective coatings in outdoor UAE installations
• Not suitable for food-grade or sanitary applications
• Regular inspection needed in corrosive conditions

316 Stainless Steel:

316 stainless steel siphons provide superior corrosion resistance and versatility for UAE applications:

Material Properties:

• Austenitic stainless steel with molybdenum addition
• Excellent corrosion resistance to chlorides and acids (critical for UAE coastal areas)
• High temperature stability and strength (up to 3000 PSI)
• Hygienic, non-contaminating surface
• Temperature range: -325°F to 1500°F (-198°C to 816°C)

Ideal UAE Applications:

• Chemical processing plants in UAE industrial zones
• Food and pharmaceutical industries requiring sanitary conditions
• Marine and coastal environments (Abu Dhabi, Dubai ports)
• Corrosive process media in oil & gas facilities
• High-purity applications across Emirates

Advantages for UAE:

• Superior corrosion resistance in coastal humidity and saltwater exposure
• Suitable for sanitary food processing applications
• Long service life in harsh UAE environments
• Minimal maintenance requirements
• Excellent temperature performance for extreme conditions

Installation best practices for UAE applications

Positioning Guidelines:

• Install siphon as close to the gauge as possible for maximum protection
• Ensure proper orientation with the loop at the bottom to maintain liquid seal
• Provide adequate clearance for thermal expansion in UAE heat
• Support heavy siphons to prevent stress on connections

Initial Startup Procedures:

• Fill siphon with appropriate liquid before operation (water for steam applications)
• Slowly introduce system pressure to avoid shock to gauge
• Verify proper liquid seal formation in siphon loop
• Check for leaks at all connections

Maintenance Requirements in UAE Climate:

• Periodically verify liquid level in siphon (more frequent in UAE heat)
• Inspect for corrosion or mechanical damage (especially in coastal areas)
• Drain and refill if contamination occurs
• Check connection tightness during routine maintenance

Common applications across UAE industries

Power Generation:

• Steam boiler pressure monitoring in Dubai and Abu Dhabi facilities
• Turbine inlet pressure measurement
• Feedwater system protection

Chemical Processing:

• Reactor pressure measurement in UAE industrial zones
• Distillation column monitoring
• Heat exchanger pressure tracking

Oil and Gas:

• Refinery process monitoring in Abu Dhabi
• Pipeline pressure measurement
• Separator vessel applications

Food and Beverage:

• Steam sterilization systems (316SS required)
• Cooking vessel pressure monitoring
• Sanitary process applications across UAE

HVAC Systems:

• Boiler systems in Dubai commercial buildings
• Steam heating applications
• District cooling network monitoring

Technical specifications

Specification	Black Steel Sch40	316 Stainless Steel
Pressure Rating	Up to 2000 PSI	Up to 3000 PSI
Temperature Range	-20°F to 650°F (-29°C to 343°C)	-325°F to 1500°F (-198°C to 816°C)
Corrosion Resistance	Moderate (requires coating in harsh environments)	Excellent (ideal for UAE coastal areas)
Connection Sizes	1/4", 1/2", 3/4" NPT	1/4", 1/2", 3/4" NPT
Configurations	U-shape, O-shape	U-shape, O-shape
Applications	General steam, non-corrosive	Corrosive, sanitary, marine, high-temp
Cost	Cost-effective	Premium (longer life in harsh conditions)
Region	UAE (Dubai, Abu Dhabi, Emirates)

Troubleshooting common issues in UAE applications

Gauge Reading Fluctuations:

• Check for air bubbles in siphon (common during initial startup)
• Verify proper liquid seal formation
• Inspect for partial blockages from scale or debris

Slow Gauge Response:

• Examine siphon for complete blockage
• Verify proper sizing for UAE application
• Check for excessive liquid viscosity in cold conditions

Temperature-Related Problems:

• Ensure adequate thermal mass in siphon for UAE heat
• Verify proper material selection (316SS for extreme temps)
• Check for thermal expansion issues in connections

Selection criteria for optimal UAE performance

Process Conditions:

• Operating pressure and temperature ranges in UAE facility
• Process fluid characteristics and corrosivity
• Pressure fluctuation severity
• Environmental conditions (coastal humidity, heat, dust)

Configuration Selection:

• U-Shape: Standard steam applications, limited space, cost-effective
• O-Shape: High-pressure steam, severe pulsation, critical measurements

Material Selection:

• Black Steel Sch40: General steam, non-corrosive, budget-conscious
• 316 Stainless Steel: Corrosive media, coastal UAE areas, sanitary applications, long-term reliability

Quality and reliability for UAE applications

When selecting pressure gauge siphons for UAE facilities, quality construction and proper material selection ensure:

• Extended pressure gauge life (years instead of months)
• Accurate, stable pressure readings in high-temperature applications
• Reduced maintenance costs and downtime
• Improved system reliability in harsh UAE conditions
• Enhanced safety in critical steam and process applications

Conclusion

Understanding the differences between U-shape and O-shape configurations, along with black steel Sch40 and 316 stainless steel material properties, enables you to select the optimal siphon solution for your specific UAE pressure measurement needs. Whether you're protecting gauges in Dubai's steam boilers, Abu Dhabi's chemical plants, or Emirates' food processing facilities, proper siphon selection prevents costly gauge failures from thermal damage and ensures reliable process monitoring.

Invest in quality pressure gauge siphons to protect your measurement equipment and ensure reliable operation across UAE's demanding industrial environments. The right siphon selection today prevents costly gauge failures and measurement inaccuracies tomorrow.

For technical specifications, material selection guidance, or application support for your UAE facility, contact our team of experts who can help you select the right siphon configuration and material for your specific requirements across Dubai, Abu Dhabi, and the Emirates.
