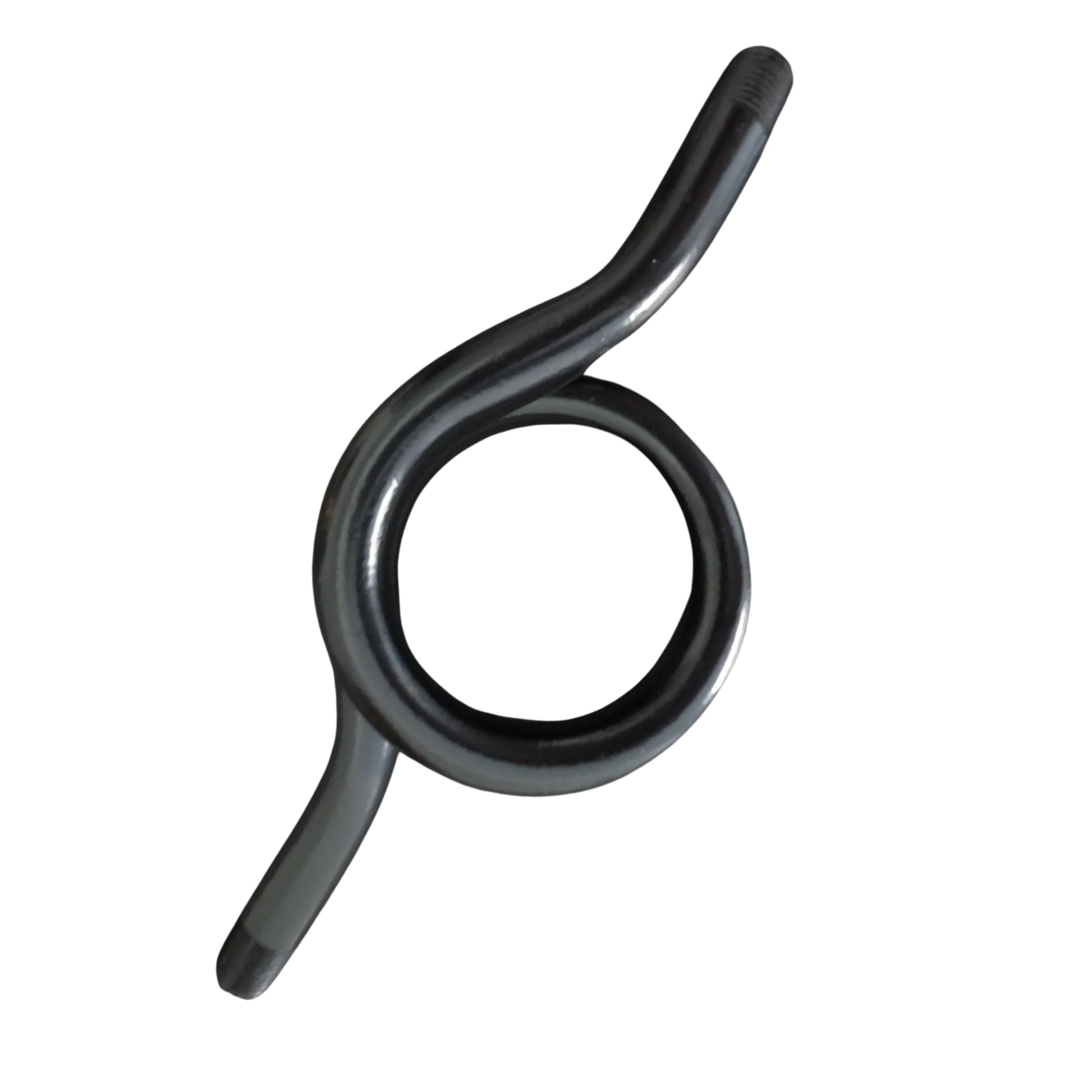

Siphon - O-Type - SCH40 Black Steel - Pressure Gauge Protection 1/2" NPT

An O-type siphon (also called a pigtail siphon or gauge siphon) is a heavy-duty SCH40 black steel cooling loop with 1/2" NPT connections that protects pressure gauges from damage in steam and high-temperature applications by creating a condensate trap that prevents direct steam contact with the gauge. This industrial-grade siphon features an O-shape design that provides superior cooling efficiency, designed for UAE's steam systems, boiler monitoring, and demanding industrial processes across Dubai and the Emirates where maximum gauge protection from high temperatures is essential for reliable operation and safety.

What is an O-type SCH40 siphon and why do I need one in the UAE?

Pressure gauges are designed for liquid or gas measurement, not direct steam contact. Steam's high temperature (100°C+) will damage gauge internals, cause inaccurate readings, and drastically shorten gauge life. A siphon creates a cooling loop between the steam source and gauge—steam enters the loop, condenses into water as it cools, and this condensate fills the loop creating a liquid barrier that protects the gauge while still transmitting pressure accurately. The O-shape (also called coil or pigtail shape) provides the most efficient cooling due to its longer loop length and larger surface area compared to U-shape siphons. The SCH40 (Schedule 40) black steel construction provides heavy-duty strength for UAE's harsh industrial conditions. In Dubai's steam systems, boilers, chemical processing, and industrial applications, O-type siphons are the preferred choice for maximum thermal protection.

What are the key features of this O-type SCH40 siphon?

- O-Type Efficient Design: Superior cooling loop for maximum thermal protection in UAE applications
- SCH40 Black Steel Construction: Heavy-duty, heat-resistant material for Dubai's harsh industrial conditions
- 1/2" NPT Connections: Standard threading for easy installation in Emirates facilities
- Steam Protection: Prevents gauge damage from high-temperature steam contact
- Condensate Loop: Steam condenses efficiently, creating robust liquid barrier to protect gauge
- Industrial Grade: Built for continuous operation in UAE's demanding facilities
- Maximum Cooling Efficiency: Longer loop length provides superior thermal protection
- Accurate Pressure Transmission: Maintains gauge accuracy while providing maximum thermal protection

What industries and applications use O-type SCH40 siphons in the UAE?

- Steam boiler systems in Dubai commercial and industrial buildings
- HVAC equipment using high-temperature steam for heating across UAE
- Chemical processing plants with demanding steam applications
- Industrial steam processes in manufacturing facilities
- Food & beverage production using high-temperature steam sterilization
- Petrochemical facilities with critical steam pressure monitoring
- Any high-temperature steam system requiring maximum gauge protection in Dubai

Installation Guidelines

Install siphon vertically with O-loop positioned above the connection point. Thread connections to steam source and pressure gauge using 1/2" NPT threading. Fill siphon with water before startup to accelerate condensate formation. During operation, steam will condense in the efficient O-loop, maintaining a robust liquid barrier that protects the gauge while transmitting pressure accurately. The O-shape design provides maximum cooling efficiency for demanding applications.

Technical Specifications

| Specification | Details |
|--------------|---------|
| Shape | O-type (pigtail/coil design - maximum efficiency) |
| Connection Type | 1/2" NPT (both ends) |
| Material | SCH40 Black Steel (heavy-duty) |
| Application | Steam and high-temperature pressure measurement |
| Function | Gauge thermal protection via condensate trap |
| Installation | Vertical mounting above connection point |
| Design Advantage | Superior cooling efficiency for demanding applications |
| Region | UAE (Dubai, Abu Dhabi, Emirates) |

Perfect for UAE's steam systems, boiler monitoring, HVAC equipment, chemical processing, and industrial applications requiring maximum pressure gauge protection from high temperatures. The O-shape design provides superior cooling efficiency for Dubai's demanding environments. Trusted by Emirates' industrial contractors, maintenance teams, and facility managers. Available for same-day delivery in Dubai with fast shipping across UAE.
