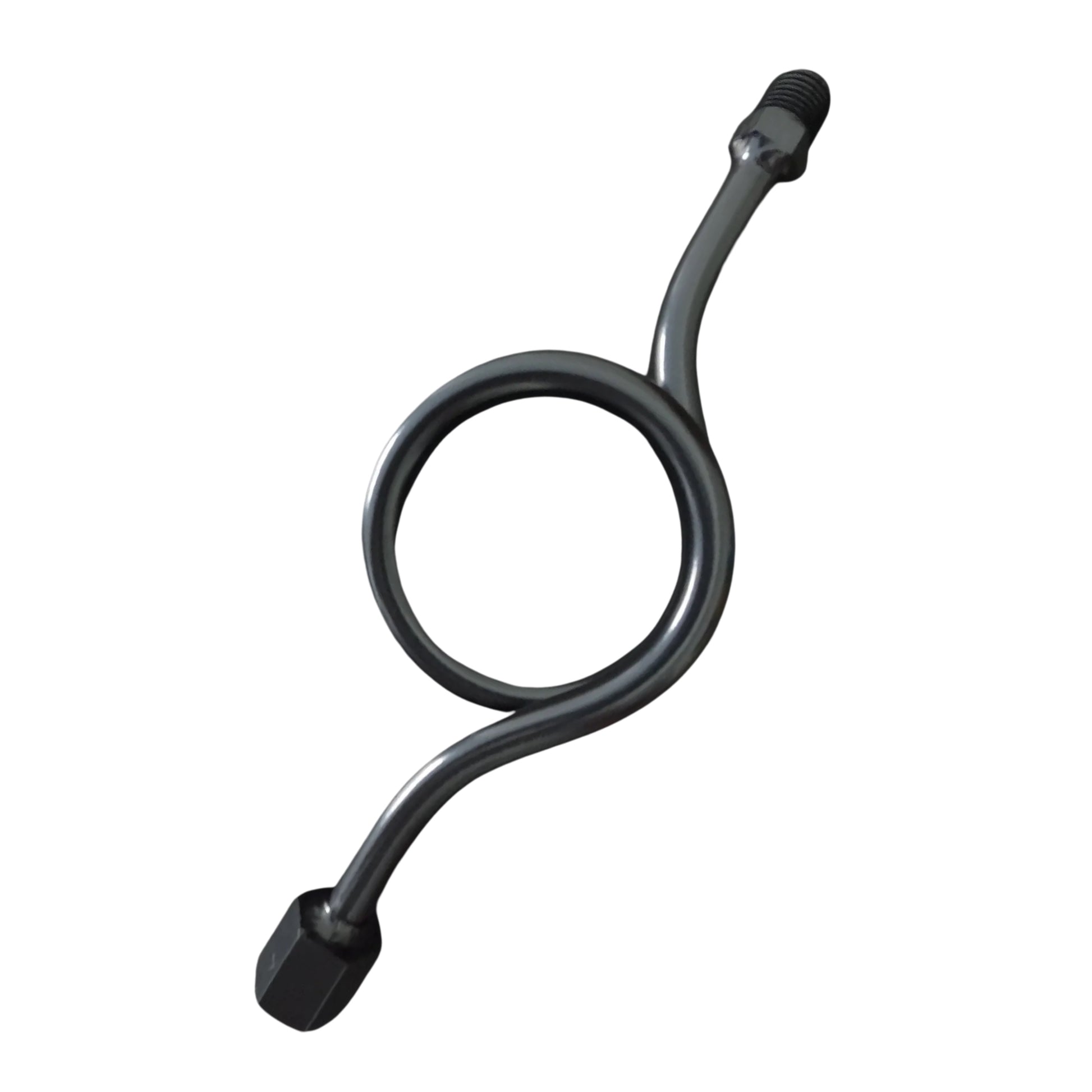

Siphon - O-Shape - Black Steel - Male x Female 1/2" NPT

An O-shape siphon (also called a pigtail siphon or gauge siphon) is a black steel cooling loop with male x female 1/2" NPT connections that protects pressure gauges from damage in steam and high-temperature applications by creating a condensate trap that prevents direct steam contact with the gauge. This professional-grade siphon allows steam to condense in the loop before reaching the gauge, designed for UAE's steam systems, boiler applications, and industrial processes across Dubai and the Emirates where gauge protection from high temperatures is essential for reliable operation and safety.

What is an O-shape siphon and why do I need one in the UAE?

Pressure gauges are designed for liquid or gas measurement, not direct steam contact. Steam's high temperature (100°C+) will damage gauge internals, cause inaccurate readings, and drastically shorten gauge life. A siphon creates a cooling loop between the steam source and gauge—steam enters the loop, condenses into water as it cools, and this condensate fills the loop creating a liquid barrier that protects the gauge while still transmitting pressure accurately. The O-shape (also called coil or pigtail shape) provides efficient cooling in a compact form. In UAE's steam systems, boilers, HVAC equipment, and industrial processes across Dubai, siphons are mandatory safety equipment for any pressure gauge on steam service to prevent gauge failure and ensure accurate, reliable pressure monitoring.

What are the key features of this O-shape black steel siphon?

- O-Shape Cooling Loop: Efficient steam condensation in compact, professional design
- Black Steel Construction: Durable, heat-resistant material for UAE's demanding conditions
- Male x Female 1/2" NPT: Standard connections for easy installation in Emirates facilities
- Gauge Protection: Prevents damage from high-temperature steam contact
- Condensate Trap: Steam condenses in loop, creating liquid barrier to protect gauge
- Professional Grade: Built for continuous operation in Dubai's industrial steam systems
- Accurate Pressure Transmission: Maintains gauge accuracy while providing thermal protection
- Mandatory Safety Equipment: Required for all pressure gauges on steam service

What industries and applications use O-shape siphons in the UAE?

- Steam boiler systems in Dubai commercial and industrial buildings
- HVAC equipment using steam for heating across UAE
- Industrial steam processes in manufacturing facilities
- Food & beverage production using steam sterilization
- Laundry and hospitality steam systems throughout Emirates
- Petrochemical and chemical processing steam applications
- Any steam system requiring pressure gauge monitoring in Dubai

Installation Guidelines

Install siphon vertically with O-loop positioned above the connection point. Thread male end into steam source (female NPT port). Thread pressure gauge (male NPT connection) into female end of siphon. Fill siphon with water before startup to accelerate condensate formation. During operation, steam will condense in the loop, maintaining a liquid barrier that protects the gauge while transmitting pressure accurately.

Technical Specifications

| Specification | Details |
|--------------|---------|
| Shape | O-shape (pigtail/coil design) |
| Connection Type | Male x Female NPT |
| Size | 1/2 inch |
| Material | Black steel (heat-resistant) |
| Application | Steam and high-temperature pressure measurement |
| Function | Gauge thermal protection via condensate trap |
| Installation | Vertical mounting above connection point |
| Region | UAE (Dubai, Abu Dhabi, Emirates) |

Essential for reliable gauge operation in steam environments across Dubai and the Emirates. Mandatory safety equipment for UAE's steam systems, boiler applications, HVAC equipment, and industrial processes requiring pressure gauge protection from high temperatures. Trusted by UAE's industrial maintenance teams. Available for same-day delivery in Dubai with fast shipping across UAE.
