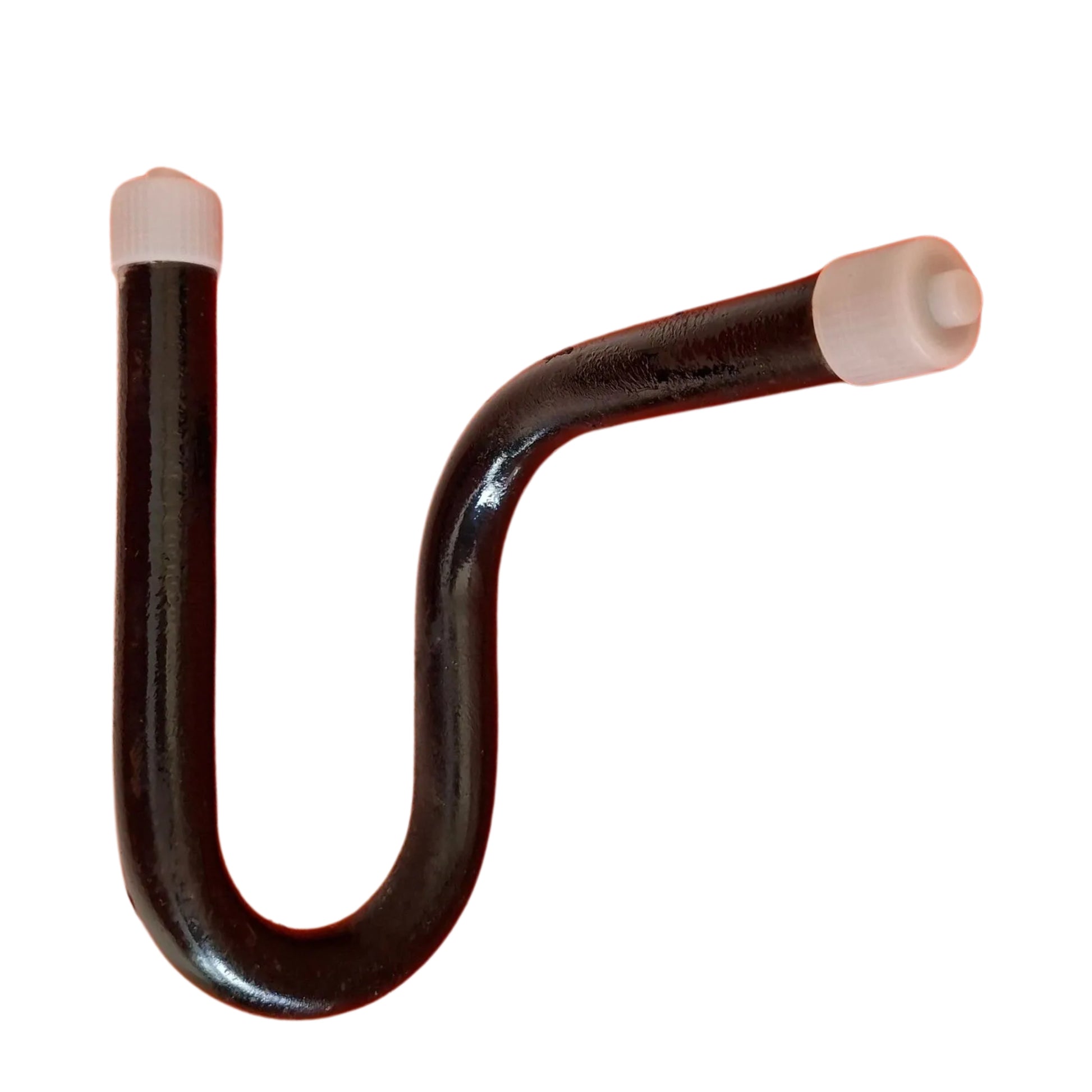

Siphon - U-Type - SCH40 Black Steel - Pressure Gauge Protection 1/2" NPT

A U-type siphon (also called a pigtail siphon or gauge siphon) is a heavy-duty SCH40 black steel cooling loop with 1/2" NPT connections that protects pressure gauges from damage in steam and high-temperature applications by creating a condensate trap that prevents direct steam contact with the gauge. This professional-grade siphon features a compact U-shape design ideal for space-constrained installations, designed for UAE's steam systems, boiler monitoring, and industrial processes across Dubai and the Emirates where gauge protection from high temperatures is essential for reliable operation and safety.

What is a U-type siphon and why do I need one in the UAE?

Pressure gauges are designed for liquid or gas measurement, not direct steam contact. Steam's high temperature (100°C+) will damage gauge internals, cause inaccurate readings, and drastically shorten gauge life. A siphon creates a cooling loop between the steam source and gauge—steam enters the loop, condenses into water as it cools, and this condensate fills the loop creating a liquid barrier that protects the gauge while still transmitting pressure accurately. The U-shape design provides effective cooling in a more compact footprint than O-shape siphons, making it ideal for space-constrained installations in Dubai facilities. The SCH40 (Schedule 40) black steel construction provides heavy-duty strength for demanding industrial environments. In UAE's steam systems, boilers, and industrial processes, siphons are mandatory safety equipment for any pressure gauge on steam service.

What are the key features of this U-type SCH40 siphon?

- U-Type Compact Design: Effective cooling in space-constrained UAE installations
- SCH40 Black Steel Construction: Heavy-duty, heat-resistant material for Dubai's demanding environments
- 1/2" NPT Connections: Standard threading for easy installation in Emirates facilities
- Steam Protection: Prevents gauge damage from high-temperature steam contact
- Condensate Collection: Steam condenses in loop, creating liquid barrier to protect gauge
- Professional Grade: Built for continuous operation in Dubai's industrial steam systems
- Space-Efficient: Compact U-shape for tight installations and equipment mounting
- Accurate Pressure Transmission: Maintains gauge accuracy while providing thermal protection

What industries and applications use U-type siphons in the UAE?

- Steam boiler systems in Dubai commercial and industrial buildings
- Space-constrained HVAC equipment using steam for heating across UAE
- Industrial steam processes in manufacturing facilities with limited space
- Food & beverage production using steam sterilization
- Compact equipment installations requiring steam pressure monitoring
- Petrochemical and chemical processing steam applications
- Any steam system with space limitations requiring pressure gauge monitoring in Dubai

Installation Guidelines

Install siphon vertically with U-loop positioned above the connection point. Thread connections to steam source and pressure gauge using 1/2" NPT threading. Fill siphon with water before startup to accelerate condensate formation. During operation, steam will condense in the compact U-loop, maintaining a liquid barrier that protects the gauge while transmitting pressure accurately. The U-shape design requires less vertical space than O-shape siphons.

Technical Specifications

| Specification | Details |
|--------------|---------|
| Shape | U-type (compact pigtail design) |
| Connection Type | 1/2" NPT (both ends) |
| Material | SCH40 Black Steel (heavy-duty) |
| Application | Steam and high-temperature pressure measurement |
| Function | Gauge thermal protection via condensate trap |
| Installation | Vertical mounting above connection point |
| Design Advantage | Space-efficient for constrained installations |
| Region | UAE (Dubai, Abu Dhabi, Emirates) |

Ideal for UAE's steam systems, boiler monitoring, HVAC equipment, and industrial processes where pressure gauge protection from high temperatures is critical. The U-shape design is perfect for space-constrained installations in Dubai facilities. Trusted by Emirates' industrial contractors and maintenance teams. Available for same-day delivery in Dubai with fast shipping across UAE.
