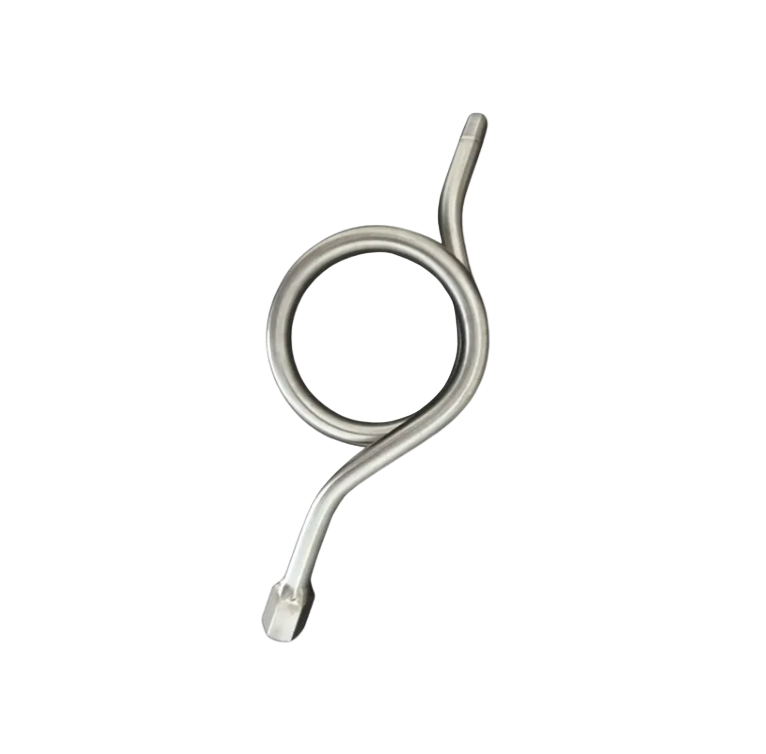

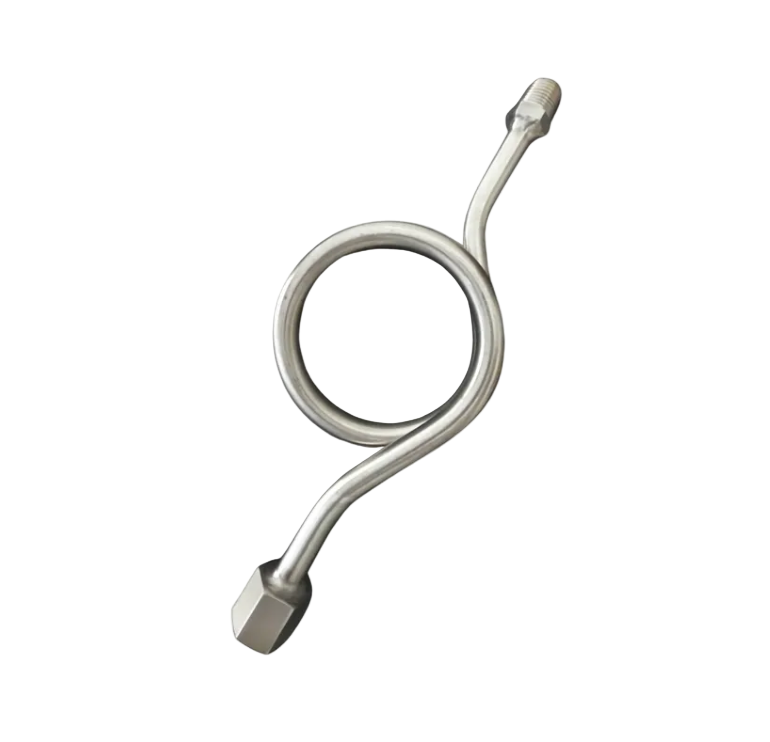

Siphon - O-Type - SS316 Stainless Steel - Pressure Gauge Protection 1/4" & 1/2"

An O-type siphon (also called a pigtail siphon or gauge siphon) is a marine-grade SS316 stainless steel cooling loop with 1/4" and 1/2" NPT connections that protects pressure gauges from damage in steam and high-temperature applications by creating a condensate trap that prevents direct steam contact with the gauge. This premium siphon features superior corrosion resistance and efficient O-shape design, designed for UAE's coastal facilities, chemical processing, marine applications, and demanding industrial processes across Dubai and the Emirates where both maximum thermal protection and corrosion resistance are essential for reliable operation and safety.

What is an SS316 O-type siphon and when do I need one in the UAE?

Pressure gauges are designed for liquid or gas measurement, not direct steam contact. Steam's high temperature (100°C+) will damage gauge internals, cause inaccurate readings, and drastically shorten gauge life. A siphon creates a cooling loop between the steam source and gauge—steam enters the loop, condenses into water as it cools, and this condensate fills the loop creating a liquid barrier that protects the gauge while still transmitting pressure accurately. The O-shape provides superior cooling efficiency, while SS316 stainless steel offers marine-grade corrosion resistance far superior to black steel—essential for UAE's coastal facilities, chemical processing plants, and corrosive environments in Dubai. When your steam application involves saltwater, chemicals, or corrosive conditions where black steel siphons would fail, SS316 is the premium solution.

What are the key features of this SS316 O-type siphon?

- Marine-Grade SS316 Construction: Superior corrosion resistance for UAE's coastal and chemical facilities
- O-Type Efficient Design: Superior cooling loop for maximum thermal protection
- Dual Size Options: 1/4" and 1/2" NPT available for various Dubai installations
- High-Temperature Protection: Prevents gauge damage from direct steam contact
- Condensate Collection: Steam condenses efficiently, creating robust liquid barrier
- Professional Grade: Built for continuous operation in Emirates' harsh conditions
- Corrosion Resistance: Withstands saltwater, chemicals, and corrosive media
- Long Service Life: SS316 outlasts black steel in demanding UAE environments

What industries and applications use SS316 O-type siphons in the UAE?

- Coastal and marine facilities in Dubai and Emirates requiring corrosion resistance
- Chemical processing plants with corrosive steam applications
- Offshore oil & gas installations with saltwater exposure
- Food & beverage production requiring sanitary-grade materials
- Pharmaceutical and cleanroom steam systems
- Desalination plants and water treatment facilities across UAE
- Any steam system in corrosive environments where black steel would fail

Installation Guidelines

Install siphon vertically with O-loop positioned above the connection point. Thread connections to steam source and pressure gauge using 1/4" or 1/2" NPT threading. Fill siphon with water before startup to accelerate condensate formation. During operation, steam will condense in the efficient O-loop, maintaining a robust liquid barrier that protects the gauge while transmitting pressure accurately. SS316 construction ensures long service life in corrosive UAE environments.

Technical Specifications

| Specification | Details |
|--------------|---------|
| Shape | O-type (pigtail/coil design - maximum efficiency) |
| Connection Sizes | 1/4" NPT, 1/2" NPT |
| Material | SS316 Stainless Steel (marine-grade) |
| Application | Steam and high-temperature in corrosive environments |
| Function | Gauge thermal protection via condensate trap |
| Installation | Vertical mounting above connection point |
| Corrosion Resistance | Superior - coastal, chemical, marine applications |
| Region | UAE (Dubai, Abu Dhabi, Emirates) |

Perfect for UAE's steam systems, boiler monitoring, HVAC equipment, chemical processing, and marine applications where both corrosion resistance and high-temperature protection are critical. The SS316 construction provides superior durability in Dubai's coastal and chemical environments. Trusted by Emirates' industrial contractors, marine facilities, and maintenance teams. Available for same-day delivery in Dubai with fast shipping across UAE.
