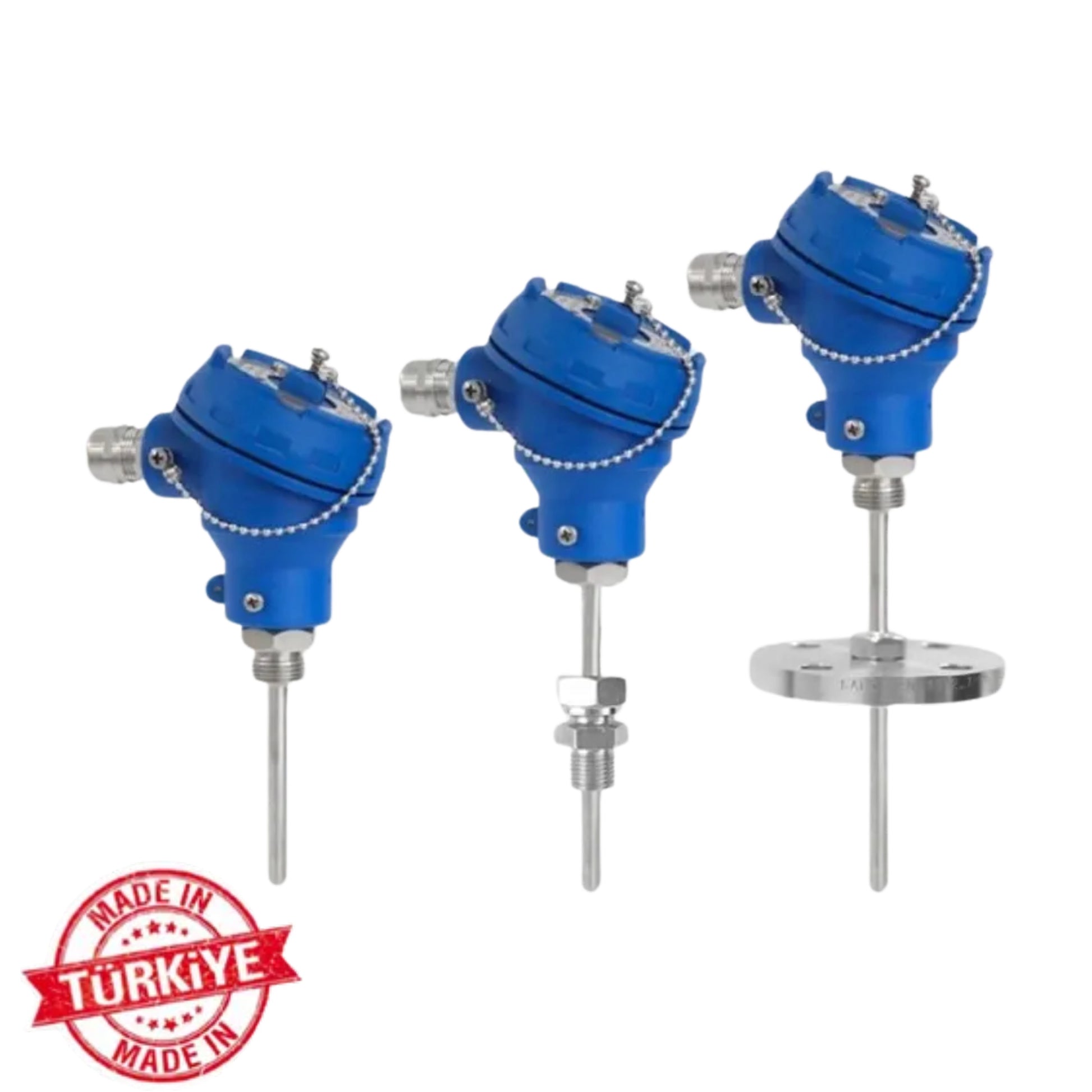

RTD Temperature Transmitter – Precision Industrial Measurement

High-accuracy RTD temperature transmitter with programmable 4-20 mA output for industrial process control. Hot-swappable sensor insert allows maintenance without process shutdown.

Key Features

• Wide Temperature Range: -50°C to +600°C measurement capability
• Hot-Swappable Sensor: Change insert without stopping the process – zero downtime
• Multiple Sensor Options: PT100, PT500, PT1000, Ni100, Cu100, Thermocouple (B, E, J, K, N, R, S, T, C, D)
• Flexible Outputs: 4-20 mA, 4-20 mA + HART, 0-10V, RTD pass-through (2/3/4-wire)
• Rugged Construction: IP68 DIN B cast aluminum head for harsh environments
• Programmable Terminal: Field-configurable 4-20 mA analog output

Sensor Configurations

RTD Sensors: PT100, PT500, PT1000, Ni100, Cu100
Thermocouple Types: B, E, J, K, N, R, S, T, C, D
Probe Diameters: 6mm, 8mm, 10mm, 12mm
Plunge Lengths: 50mm, 100mm, 120mm, 150mm, 160mm, 200mm (custom available)
Cooling Length: Optional

Process Connections

G1/2", G1", Clamp, Flange, Dynamic, Immersion, Custom

Output Options

• 4-20 mA (standard)
• 4-20 mA + HART protocol
• 0-10 V
• RTD 2-wire, 3-wire, 4-wire pass-through
• Thermocouple (TC) output
• Dual TC or dual RTD configurations
• Wired or custom outputs

Technical Specifications

Measuring Range: -50°C to +600°C
Protection Class: IP68 DIN B
Head Material: Cast aluminum
Terminal: Programmable with 2, 3, 4, or 6-wire connections
Sensor Insert: Field-replaceable without process interruption

Ordering Example

ETRANS-T01-0-6-100-0-00 = PT100, 6mm diameter, 100mm length, G1/2" connection, 4-20mA output
ETRANS-T01-K-10-150-1-36 = K-type TC, 10mm diameter, 150mm length, G1" connection, 4-20mA+HART

Applications

Process industries, HVAC systems, oil & gas, chemical plants, food & beverage, pharmaceutical manufacturing, power generation, and industrial automation requiring accurate temperature monitoring.
