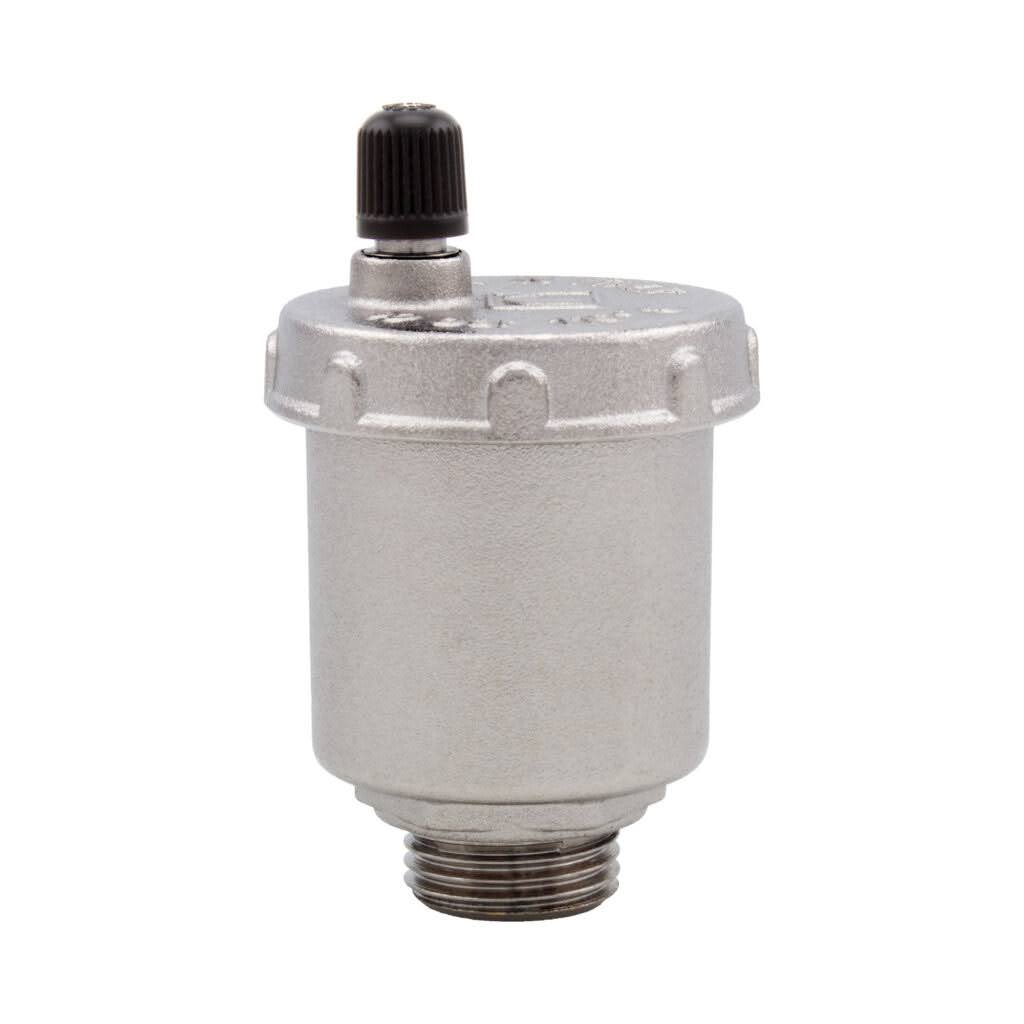

Automatic Air Vent Valve 1/2" - Nickel Plated Brass - ISO 228

Automatic Air Vent Valve – Eliminate Air Pockets & Optimize System Performance

Designed for heating and air conditioning systems, this automatic air vent valve continuously removes accumulated air without manual intervention, protecting your system from corrosion, cavitation, and performance loss.

Key Benefits

• Prevents Galvanic Corrosion: Eliminates excess oxygen that causes pipe degradation
• Stops Cavitation: Protects pumps and components from damaging air bubbles
• Maximizes Heating/Cooling Efficiency: Removes air pockets from radiators and fan-coil units for optimal heat transfer
• Automatic Operation: No manual venting required – works continuously under system pressure
• Optimized Flow Rate: Air discharge increases with system pressure up to 6 bar maximum

Installation Guidelines

Install vertically at the highest points of your system, including distribution manifolds, riser pipes, and wherever air pockets typically form. For normal operation, leave the cap loose to allow automatic venting.

Technical Specifications

• Body Material: Nickel-plated brass for corrosion resistance
• Float Material: Polyethylene resin
• Maximum Working Temperature: 110°C
• Maximum Discharge Pressure: 6 bar
• Thread Standard: ISO 228 (DIN EN ISO 228 / BS EN ISO 228 compliant)
• Available Threads: BSP and NPT in 1/2" size

Applications

Ideal for residential and commercial heating systems, chilled water systems, hydronic heating, radiant floor heating, and air conditioning installations where air accumulation compromises performance.
