Pressure Transmitter UAE | 4-20mA HART | 2000 BAR | Enelsan Dubai

Industrial Pressure Transmitter – High Accuracy Measurement

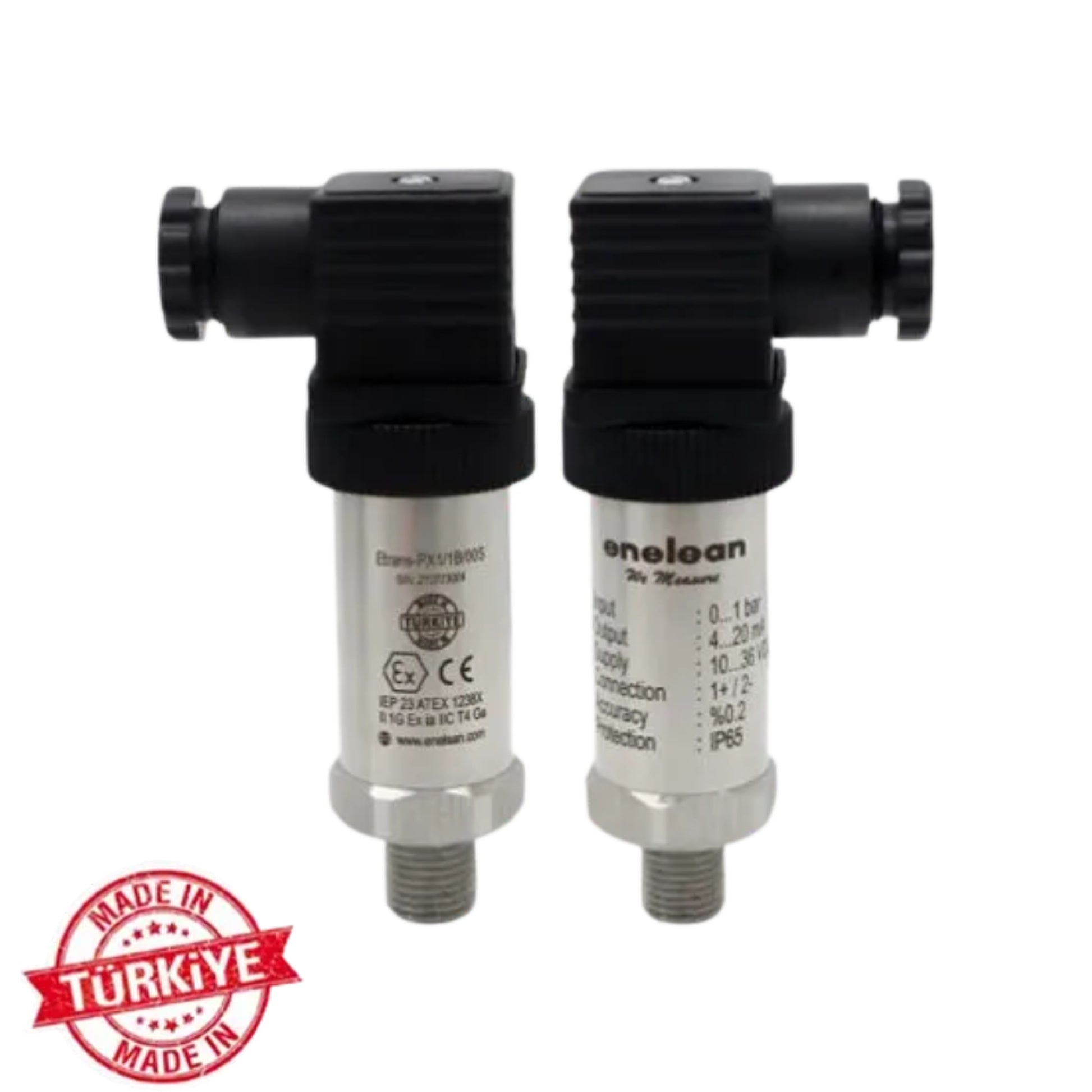

Precision piezoresistive pressure transmitter for demanding industrial applications. Measures relative and absolute pressure up to 2000 BAR with exceptional accuracy and reliability.

Key Features

• Wide Pressure Range: -1 to 2000 BAR with 2x full-scale overload protection
• High Accuracy: ±0.2% full scale precision for critical measurements
• Multiple Output Options: 4-20 mA, 4-20 mA + HART protocol, optional 0-10 V
• Extreme Temperature Performance: Operating range -40°C to +135°C
• Robust Construction: Stainless steel 316L sensor and housing, ceramic measuring cell
• IP65 Protection: Sealed against dust and water ingress

Technical Specifications

Measuring Principle: Piezoresistive measuring cell
Measuring Range: Maximum 2000 BAR
Accuracy: ±0.2% FS (zero point and full scale)
Temperature Effect: 0.02% FS/K (zero drift)
Power Supply: 10-36 VDC
Current Output Load: (U~10V)/0.02A

Materials of Construction

• Sensor: Stainless Steel 316L, Ceramic
• Process Connection: SS 316L, Hastelloy C, custom materials available
• O-Ring: Viton (standard)
• Housing: Stainless Steel 316L
• Terminal: Plastic

Process Connections Available

G1/4", G1/2", G1/2" flush mount, Clamp, Flange, and custom connections

Physical Specifications

Dimensions: Ø 27 x 112 mm
Weight: Approximately 0.25 kg
Ambient Temperature: -25°C to +85°C

Applications

Ideal for hydraulic systems, process control, oil & gas, water treatment, HVAC, and industrial automation requiring precise pressure monitoring in harsh environments.
