V-Shape Thermometers: The Ultimate Guide to Angstrom's Precision Temperature Measurement Solutions

Understanding V-Shape Thermometers

When precision temperature measurement meets practical design, you get the V-shape thermometer – a specialized instrument that's become indispensable across industries. Unlike traditional straight-stem thermometers, V-shape thermometers feature an angled design that allows for easier reading and installation in tight spaces while maintaining exceptional accuracy.

The unique V-configuration provides several advantages: better visibility of the dial face, reduced risk of damage from overhead obstacles, and improved accessibility for maintenance personnel. This makes them particularly valuable in industrial settings where space is at a premium and safety is paramount.

Why Choose Angstrom V-Shape Thermometers?

Angstrom has engineered these thermometers with meticulous attention to detail, combining robust construction with precise calibration. Our V-shape thermometers are designed to withstand harsh industrial environments while delivering consistent, reliable temperature readings that professionals depend on.

Premium Aluminum Case Construction

The heart of every Angstrom V-shape thermometer is its durable aluminum case. This material choice isn't accidental – aluminum offers the perfect balance of strength, corrosion resistance, and thermal conductivity. Here's why our aluminum cases stand out:

• Lightweight yet Durable: Aluminum provides excellent protection without adding unnecessary weight to your installation
• Corrosion Resistance: Natural oxide layer protects against environmental factors
• Heat Dissipation: Superior thermal properties ensure accurate temperature transfer
• Professional Appearance: Clean, industrial aesthetic that looks professional in any setting

Available Case Lengths for Every Application

Understanding that different applications require different specifications, Angstrom offers V-shape thermometers in multiple case lengths to suit your specific needs:

100mm Case Length

Perfect for compact installations where space is limited but accuracy cannot be compromised. The 100mm case length is ideal for:

• Small machinery monitoring
• Residential heating systems
• Laboratory equipment
• Automotive applications

150mm Case Length

The most versatile option, offering excellent readability while maintaining a compact footprint. Common applications include:

• HVAC systems
• Food processing equipment
• Chemical processing
• Marine applications

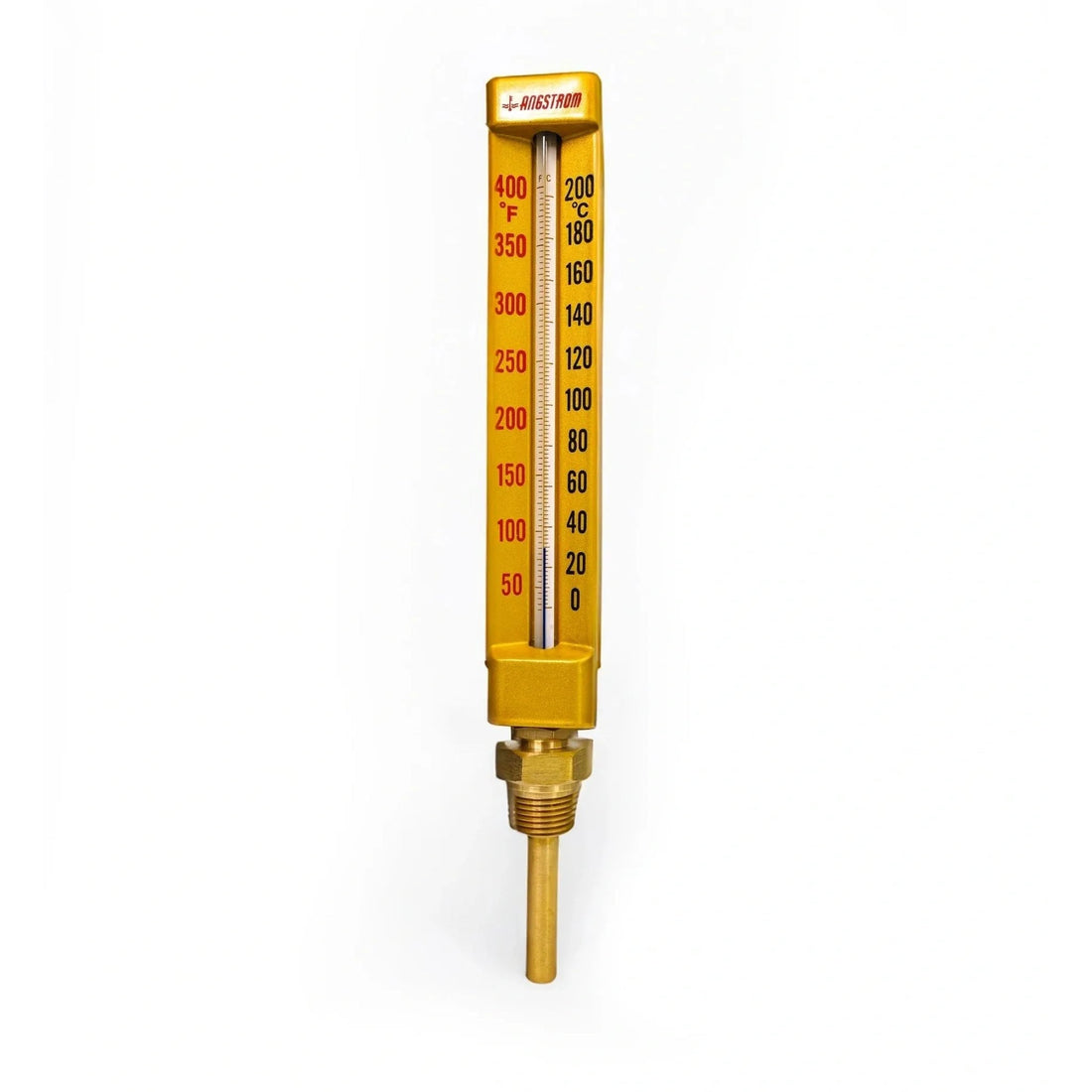

200mm Case Length

When maximum visibility and precision are required, the 200mm case length delivers. Ideal for:

• Large industrial processes
• Power generation facilities
• Oil and gas operations
• Critical monitoring applications

Flexible Mounting Options: Lower Mount and Lower Back Mount

Angstrom V-shape thermometers are available in two mounting configurations to accommodate different installation requirements and space constraints:

Lower Mount Configuration

The lower mount option positions the connection point at the bottom of the thermometer case, providing:

• Vertical Installation: Perfect for mounting on horizontal pipes or surfaces
• Space Efficiency: Minimizes horizontal space requirements
• Easy Reading: Dial face remains clearly visible from the front
• Standard Applications: Most common choice for general industrial use

Lower Back Mount Configuration

The lower back mount positions the connection at the rear bottom of the case, offering:

• Panel Mounting: Ideal for mounting through panels or walls
• Clean Appearance: Connection hidden from view for aesthetic installations
• Reduced Projection: Minimizes how far the thermometer extends from the mounting surface
• Specialized Applications: Perfect for control panels and dashboard installations

Brass Stem Connections: Built for Reliability

The connection between your thermometer and the system being monitored is crucial for accurate readings. That's why Angstrom uses high-quality brass for all stem connections. Brass offers superior threading characteristics, excellent corrosion resistance, and reliable sealing properties that ensure long-term performance.

Available Stem Connection Lengths

63mm Brass Stem Connection

The shortest option, perfect for thin-walled vessels or applications where minimal penetration is desired. This length works well for:

• Thin pipe walls
• Surface temperature monitoring
• Quick-response applications

100mm Brass Stem Connection

A balanced choice that provides good thermal contact while accommodating standard wall thicknesses. Commonly used in:

• Standard piping systems
• Tank monitoring
• General industrial applications

150mm Brass Stem Connection

Extended reach for thicker walls or when you need to measure temperature at the center of larger vessels. Ideal for:

• Thick-walled pressure vessels
• Large diameter pipes
• Deep immersion applications

200mm Brass Stem Connection

Maximum penetration depth for specialized applications requiring deep temperature sensing. Perfect for:

• Large storage tanks
• Reactor vessels
• Deep well monitoring
• Heavy-duty industrial processes

Wide Temperature Range: -20°C to 200°C

One of the standout features of Angstrom V-shape thermometers is their impressive temperature range. Calibrated to accurately measure from -20°C to 200°C, these instruments handle everything from freezing applications to high-temperature processes.

Low Temperature Applications (-20°C to 0°C)

• Refrigeration systems
• Cold storage monitoring
• Cryogenic applications
• Winter outdoor installations

Standard Temperature Range (0°C to 100°C)

• HVAC systems
• Water heating applications
• Food processing
• General industrial monitoring

High Temperature Applications (100°C to 200°C)

• Steam systems
• Industrial ovens
• Chemical processing
• Power generation equipment

Installation and Setup Guide

Pre-Installation Considerations

Before installing your Angstrom V-shape thermometer, consider these factors:

• Mounting Type: Choose between lower mount or lower back mount based on your installation requirements
• Location: Select a spot that provides representative temperature readings
• Accessibility: Ensure the dial face will be easily readable
• Vibration: Minimize exposure to excessive vibration that could affect accuracy
• Ambient Conditions: Consider environmental factors that might impact performance

Installation Steps

1. Select Mounting Configuration: Choose lower mount or lower back mount based on your application
2. Prepare the Connection Point: Ensure threads are clean and properly sized
3. Apply Thread Sealant: Use appropriate sealant for your application
4. Install Thermometer: Thread in carefully, avoiding cross-threading
5. Position for Readability: Orient the V-shape for optimal viewing angle
6. Test and Calibrate: Verify readings against known temperature standards

Maintenance and Care

Proper maintenance ensures your Angstrom V-shape thermometer continues to provide accurate readings throughout its service life:

Regular Maintenance Tasks

• Visual Inspection: Check for damage, corrosion, or loose connections monthly
• Calibration Verification: Compare readings with reference standards quarterly
• Cleaning: Keep dial face clean for easy reading
• Connection Check: Ensure brass stem connection remains tight and leak-free
• Mounting Verification: Check that mounting remains secure for both lower mount and lower back mount configurations

Troubleshooting Common Issues

Inaccurate Readings:

• Check for proper thermal contact
• Verify calibration against known standards
• Ensure adequate immersion depth

Difficult to Read Dial:

• Clean dial face with appropriate cleaner
• Check lighting conditions
• Verify proper installation angle

Industry Applications

Angstrom V-shape thermometers excel across diverse industries:

Manufacturing and Processing

• Quality control in production lines
• Process optimization
• Equipment monitoring
• Safety compliance

HVAC and Building Systems

• Boiler monitoring
• Chiller performance tracking
• Energy efficiency optimization
• Comfort control systems

Food and Beverage

• Pasteurization monitoring
• Storage temperature control
• Brewing and fermentation
• Food safety compliance

Selecting the Right Configuration

Choosing the perfect Angstrom V-shape thermometer depends on your specific requirements:

For Compact Installations

Consider: 100mm case length with 63mm brass stem connection and lower mount

For Panel Mounting

Recommended: 150mm case length with 100mm brass stem connection and lower back mount

For Heavy-Duty Industrial Use

Optimal: 200mm case length with 150mm or 200mm brass stem connection and lower mount

For Control Room Applications

Best Choice: Any case length with appropriate stem length and lower back mount for clean appearance

Quality Assurance and Standards

Every Angstrom V-shape thermometer undergoes rigorous quality control testing to ensure accuracy and reliability. Our manufacturing processes adhere to international standards, and each unit is individually calibrated before shipping, regardless of mounting configuration.

Technical Support and Service

When you choose Angstrom V-shape thermometers, you're not just buying a product – you're gaining access to our technical expertise. Our team can help with:

• Application-specific recommendations
• Mounting configuration selection
• Installation guidance
• Calibration services
• Troubleshooting support

Conclusion

Angstrom V-shape thermometers represent the perfect fusion of innovative design, quality construction, and practical functionality. With aluminum cases available in 100mm, 150mm, and 200mm lengths, brass stem connections in 63mm, 100mm, 150mm, and 200mm options, flexible mounting choices (lower mount and lower back mount), and a comprehensive temperature range of -20°C to 200°C, these instruments are engineered to meet the demanding requirements of modern industrial applications.

Whether you're monitoring a compact system with a lower mount configuration or managing a large industrial process with a lower back mount setup, Angstrom V-shape thermometers deliver the accuracy, durability, and reliability you need. Contact our technical team today to discuss your specific requirements and discover how our V-shape thermometers can enhance your temperature monitoring capabilities.
