Thermowell Selection Guide: 316 Stainless Steel Solutions for Accurate Temperature Measurement

Temperature measurement is critical in industrial processes, but direct sensor exposure to harsh environments can lead to premature failure and costly downtime. This is where thermowells become indispensable – providing robust protection while maintaining measurement accuracy. Understanding the right thermowell specifications for your application ensures reliable temperature monitoring and extends sensor life significantly.

What is a Thermowell and Why Do You Need One?

A thermowell is a protective tube that houses temperature sensors like thermocouples or RTDs, shielding them from corrosive media, high pressures, and mechanical damage while allowing accurate temperature transfer. Think of it as armor for your temperature sensor – essential protection that doesn't compromise performance.

Without proper thermowell protection, temperature sensors face:

• Chemical corrosion from process fluids
• Mechanical damage from flow turbulence
• Pressure-induced stress and failure
• Contamination that affects accuracy
• Frequent replacement costs and process interruptions

Angstrom Thermowells: Engineered for Excellence

At Angstrom, we understand that reliable temperature measurement forms the backbone of process control. Our thermowells are precision-engineered to provide maximum protection while ensuring fast, accurate temperature response. Each unit is manufactured to exacting standards, delivering the performance your critical applications demand.

316 Stainless Steel: The Material of Choice

Our thermowells are constructed from premium 316 stainless steel, selected for its exceptional properties in demanding industrial environments:

Superior Corrosion Resistance

316 stainless steel contains molybdenum, providing enhanced resistance to chlorides, acids, and aggressive chemicals commonly found in industrial processes.

High Temperature Performance

Maintains structural integrity and corrosion resistance at elevated temperatures, making it ideal for high-heat applications.

Mechanical Strength

Excellent tensile strength and durability ensure long service life even under challenging mechanical stress.

Hygienic Properties

Non-porous surface resists bacterial growth, making it perfect for food, pharmaceutical, and sanitary applications.

Precision Stem Dimensions for Optimal Performance

Angstrom thermowells feature carefully engineered stem dimensions that balance strength, thermal response, and sensor compatibility:

Stem Inner Diameter: 10.5mm

The 10.5mm inner diameter provides:

• Optimal clearance for standard temperature sensors
• Adequate space for thermal transfer medium if required
• Easy sensor insertion and removal for maintenance
• Minimal thermal mass for faster response times

Stem Outer Diameter: 12mm

The 12mm outer diameter ensures:

• Sufficient wall thickness for pressure resistance
• Structural integrity in high-flow applications
• Excellent thermal conductivity to the sensor
• Minimal flow disruption in piping systems

Flexible Insertion Lengths for Every Application

Angstrom thermowells are available in six standard stem insertion lengths, allowing you to select the perfect fit for your specific application:

63mm Insertion Length

Ideal for shallow vessels, small pipes, and applications where minimal intrusion is required. Perfect for compact installations and tight spaces.

100mm Insertion Length

The most versatile length for general industrial applications. Provides good immersion depth while maintaining structural strength.

150mm Insertion Length

Excellent for medium-sized vessels and pipes where deeper immersion ensures accurate temperature measurement away from wall effects.

200mm Insertion Length

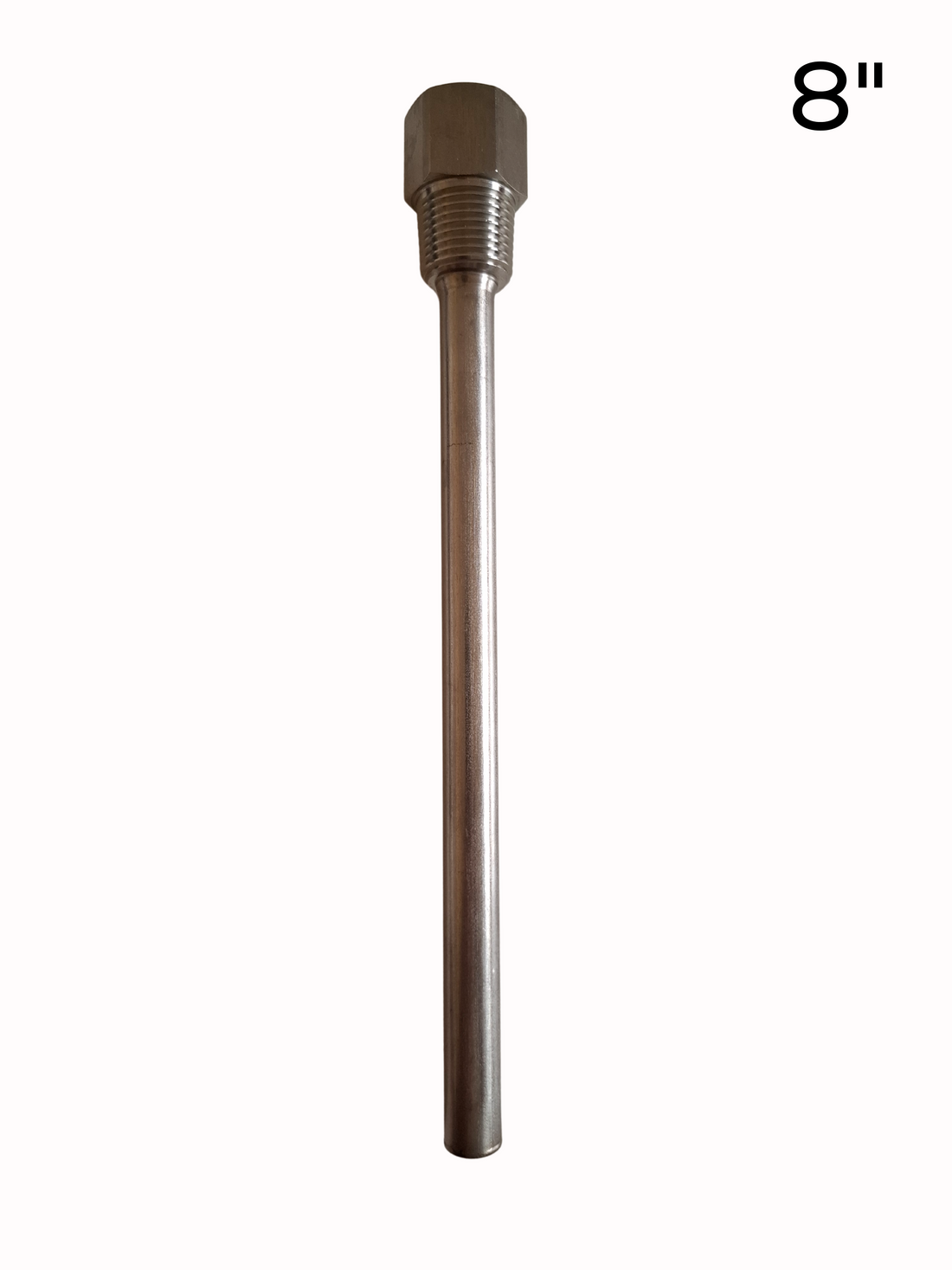

Designed for larger vessels and applications requiring measurement at the process centerline for maximum accuracy.

250mm Insertion Length

Perfect for large tanks, reactors, and vessels where deep immersion is critical for representative temperature measurement.

300mm Insertion Length

The longest standard option for very large vessels, storage tanks, and applications requiring measurement at significant depths.

Connection Options: Male and Female 1/2" NPT

Understanding that different installations require different connection types, Angstrom thermowells are available with both male and female 1/2" NPT connections:

Male 1/2" NPT Connection

Features external threads that screw into female-threaded fittings or vessel connections. Ideal for:

• Direct mounting into threaded vessel ports
• Connection to female NPT couplings
• Applications where the thermowell threads into the system
• Retrofit installations with existing female connections

Female 1/2" NPT Connection

Features internal threads that accept male-threaded fittings or mounting studs. Perfect for:

• Mounting on male-threaded vessel connections
• Connection to male NPT fittings
• Applications requiring the thermowell to thread onto existing studs
• Systems with male connection points

Installation Best Practices

Proper installation maximizes thermowell performance and longevity:

Positioning Guidelines

• Install perpendicular to flow for optimal heat transfer
• Ensure adequate immersion depth (typically 10-15 times the stem diameter)
• Avoid installation near inlet/outlet disturbances
• Consider vibration and flow-induced stress

Thread Sealing

• Use appropriate thread sealant compatible with process conditions
• Avoid over-tightening which can damage threads
• Ensure proper thread engagement for pressure integrity

Selecting the Right Thermowell Configuration

Choosing the optimal Angstrom thermowell involves considering several factors:

Process Conditions

• Operating temperature and pressure ranges
• Chemical compatibility with 316 stainless steel
• Flow velocity and potential for vibration
• Cleaning and maintenance requirements

Installation Requirements

• Available space and vessel geometry
• Existing connection types (male or female NPT)
• Required immersion depth for accurate measurement
• Accessibility for sensor maintenance

Maintenance and Longevity

Angstrom thermowells are designed for long service life with minimal maintenance:

• Periodic visual inspection for corrosion or damage
• Verification of secure mounting and thread integrity
• Cleaning as required by process conditions
• Sensor replacement without thermowell removal

Quality You Can Trust

When you choose Angstrom thermowells, you're investing in:

• Premium 316 stainless steel construction
• Precision-machined dimensions for optimal fit
• Multiple insertion lengths for application flexibility
• Both male and female NPT connection options
• Rigorous quality control and testing
• Expert technical support and application guidance

Don't compromise on temperature measurement accuracy or sensor protection. Choose Angstrom thermowells with 316 stainless steel construction, available in insertion lengths from 63mm to 300mm, with both male and female 1/2" NPT connections to meet your specific application needs.

Contact our technical team today to discuss your thermowell requirements and ensure optimal temperature measurement performance in your critical processes.
