Understanding Bimetallic Thermometers: Precision Temperature Measurement
Bimetallic thermometers are essential instruments for accurate temperature measurement across industrial, commercial, and laboratory applications. At Angstrom, we manufacture high-quality bimetallic thermometers that combine precision engineering with robust construction for reliable performance in demanding environments.
How Bimetallic Thermometers Work
The operating principle of bimetallic thermometers is based on the differential thermal expansion of two different metals bonded together. Here's how the technology works:
The Bimetallic Strip Mechanism
A bimetallic thermometer contains a coiled strip made of two different metals with varying coefficients of thermal expansion. When temperature changes occur:
- Heating: The metal with higher expansion coefficient expands more than the other, causing the strip to bend or coil
- Cooling: The strip moves in the opposite direction as the metals contract at different rates
- Mechanical Translation: This movement is mechanically linked to a pointer that indicates temperature on a calibrated dial
Key Components
The thermometer consists of several critical components working together:
- Bimetallic Element: The sensing element that responds to temperature changes
- Stem: Houses the bimetallic element and provides insertion into the measured medium
- Case: Protects the dial and mechanism
- Dial: Displays temperature readings with clear markings
- Pointer: Indicates the current temperature reading
Angstrom Bimetallic Thermometer Specifications
Temperature Range
Our bimetallic thermometers offer exceptional temperature measurement capabilities:
- Operating Range: -20°C to 650°C (0°F to 1200°F)
- Wide range suitable for diverse industrial applications
- Accurate readings across the entire temperature spectrum
Dial Size Options
Available in three standard dial sizes to meet various application requirements:
- 2.5 inches (63 mm): Compact design for space-constrained installations
- 4 inches (100 mm): Standard size offering excellent readability
- 6 inches (160 mm): Large dial for enhanced visibility and precision reading
Stem Length Variations
Flexible stem options to accommodate different installation depths:
- 2.5 inches (63 mm): Minimum length for shallow applications
- 4 inches (100 mm): Standard short stem
- 6 inches (150 mm): Medium length stem
- 8 inches (200 mm): Extended reach capability
- 10 inches (250 mm): Long stem for deep installations
- 12 inches (300 mm): Maximum length for specialized applications
Mounting Options
Angstrom bimetallic thermometers feature versatile mounting configurations:

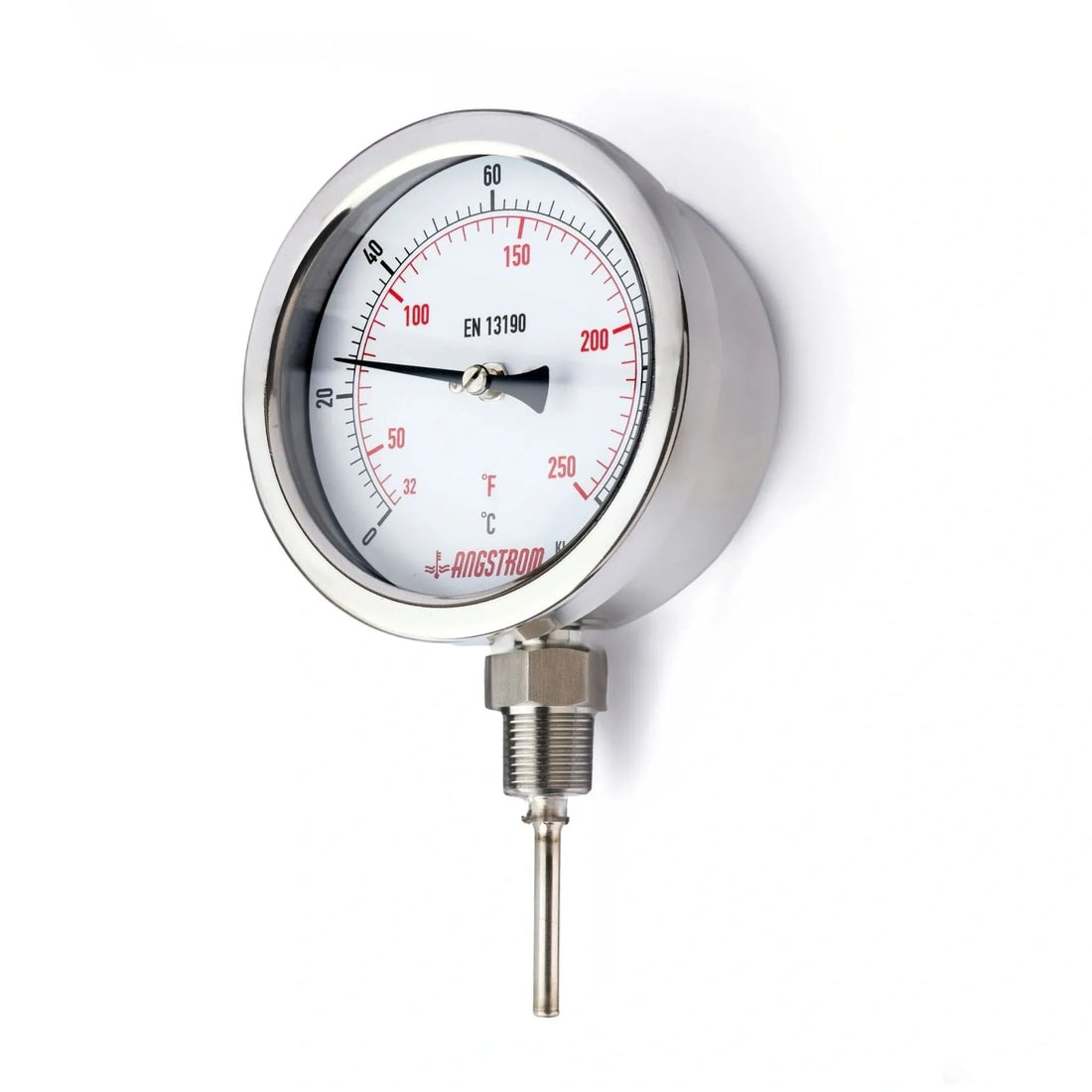

Lower Mount
- Connection at the bottom of the case
- Ideal for vertical pipe installations
- Easy reading from above
Center Back Mount
- Connection at the rear center of the case
- Perfect for panel mounting applications
- Clean, professional appearance
Adjustable Angle Mount
- Variable angle positioning capability
- Optimal dial orientation for any installation
- Enhanced readability in challenging locations
Premium Construction Materials
High-Grade Stainless Steel Construction
All Angstrom bimetallic thermometers feature superior materials:
- Case Material: High-grade stainless steel for corrosion resistance and durability
- Stem Material: Premium stainless steel construction ensuring longevity
- Corrosion Resistance: Suitable for harsh industrial environments
- Hygienic Design: Easy to clean and maintain
- Temperature Stability: Materials maintain accuracy across operating range
Applications and Benefits
Industrial Applications
- Process control and monitoring
- HVAC systems
- Food and beverage processing
- Chemical and petrochemical industries
- Power generation facilities
Key Advantages
- No External Power Required: Mechanical operation ensures reliability
- Instant Response: Quick temperature indication
- Robust Design: Withstands vibration and harsh conditions
- Easy Installation: Multiple mounting options for versatility
- Cost-Effective: Low maintenance requirements
Why Choose Angstrom Bimetallic Thermometers
Angstrom's commitment to quality ensures that every bimetallic thermometer meets the highest standards of accuracy, durability, and performance. Our comprehensive range of sizes, mounting options, and temperature ranges makes us your ideal partner for temperature measurement solutions.
From compact 2.5-inch (63 mm) dials for tight spaces to large 6-inch (150 mm) displays for enhanced visibility, and stem lengths from 2.5 inches (63 mm) to 12 inches (300 mm), we provide the perfect thermometer for your specific application.
Contact Angstrom today to discuss your temperature measurement requirements and discover how our bimetallic thermometers can enhance your process control and monitoring capabilities.
