Pressure Gauge Siphons: Complete Guide to U-Shape and O-Shape Protection Systems

In industrial pressure measurement systems, protecting sensitive gauges from extreme temperatures and pressure pulsations is crucial for accurate readings and equipment longevity. Pressure gauge siphons serve as essential protective devices, creating a liquid seal that shields gauges from steam, hot gases, and pressure fluctuations. Understanding the different types, materials, and applications of siphons ensures optimal pressure measurement performance in demanding industrial environments.

What is a Pressure Gauge Siphon?

A pressure gauge siphon is a curved piping component installed between the pressure source and the gauge, designed to trap liquid and create a protective barrier. This liquid seal prevents hot steam or gases from directly reaching the gauge while maintaining accurate pressure transmission. The siphon essentially acts as a thermal barrier and pressure dampener, extending gauge life and improving measurement reliability.

How Pressure Gauge Siphons Work

The operating principle of a siphon is elegantly simple yet highly effective:

Initial Filling Process

When first installed, the siphon fills with the process fluid or condensate. In steam applications, steam condenses in the curved section, creating a liquid seal.

Thermal Protection

The liquid trapped in the siphon's curve absorbs and dissipates heat from hot process media, preventing thermal damage to the gauge mechanism.

Pressure Transmission

System pressure is transmitted through the liquid column to the gauge, maintaining accurate pressure readings while providing thermal isolation.

Pulsation Dampening

The liquid mass in the siphon naturally dampens pressure pulsations and surges, reducing gauge needle flutter and mechanical stress.

Siphon Configurations: U-Shape vs O-Shape

Pressure gauge siphons are available in two primary configurations, each optimized for specific applications and installation requirements:

U-Shape Siphons

U-shape siphons feature a simple, curved design resembling the letter "U" and offer several advantages:

Design Characteristics

• Single curved bend creating a liquid trap
• Compact vertical profile
• Simple construction with fewer joints
• Easy installation and maintenance access

Applications

• Steam boiler pressure measurement
• Hot water systems
• Low to medium pressure applications
• Installations with limited horizontal space

Advantages

• Cost-effective solution
• Minimal pressure drop
• Easy to drain and service
• Suitable for most standard applications

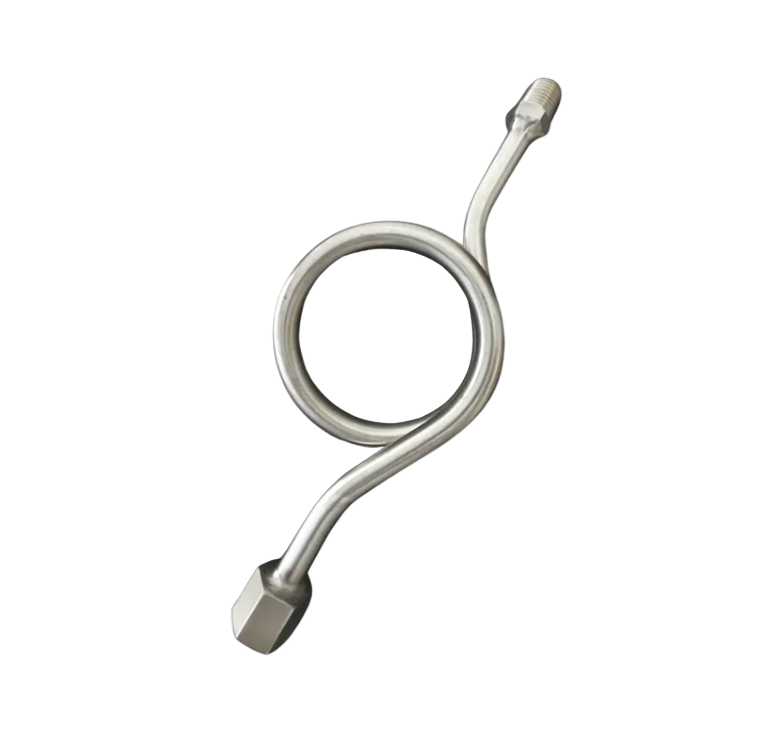

O-Shape Siphons

O-shape siphons feature a complete loop configuration, providing enhanced protection for demanding applications:

Design Characteristics

• Complete circular or oval loop design
• Larger liquid capacity for superior thermal mass
• Multiple curves for enhanced protection
• More robust construction for high-pressure applications

Applications

• High-pressure steam systems
• Superheated steam applications
• Critical process measurements
• Severe service conditions

Advantages

• Superior thermal protection
• Enhanced pressure pulsation dampening
• Greater liquid retention capacity
• Improved gauge protection in extreme conditions

Material Selection: Black Steel Sch40 vs 316 Stainless Steel

The choice of siphon material significantly impacts performance, longevity, and application suitability:

Black Steel Schedule 40

Black steel Sch40 siphons offer reliable performance for many industrial applications:

Material Properties

• Carbon steel construction with black oxide finish
• Schedule 40 wall thickness for standard pressure ratings
• Good mechanical strength and durability
• Cost-effective solution for general applications

Ideal Applications

• Steam boiler systems
• Non-corrosive process fluids
• Standard industrial environments
• Budget-conscious installations

Considerations

• Susceptible to corrosion in aggressive environments
• Requires protective coatings in outdoor installations
• Not suitable for food-grade or sanitary applications
• Regular inspection needed in corrosive conditions

316 Stainless Steel

316 stainless steel siphons provide superior corrosion resistance and versatility:

Material Properties

• Austenitic stainless steel with molybdenum addition
• Excellent corrosion resistance to chlorides and acids
• High temperature stability and strength
• Hygienic, non-contaminating surface

Ideal Applications

• Chemical processing plants
• Food and pharmaceutical industries
• Marine and coastal environments
• Corrosive process media
• High-purity applications

Advantages

• Superior corrosion resistance
• Suitable for sanitary applications
• Long service life in harsh environments
• Minimal maintenance requirements
• Excellent temperature performance

Technical Specifications and Sizing

Pressure Ratings

• Black Steel Sch40: Up to 2000 PSI depending on size and temperature
• 316 Stainless Steel: Up to 3000 PSI with excellent pressure retention

Temperature Ranges

• Black Steel: -20°F to 650°F (-29°C to 343°C)
• 316 Stainless Steel: -325°F to 1500°F (-198°C to 816°C)

Connection Sizes

Standard siphons are available in common NPT sizes:

• 1/4" NPT for small gauge applications
• 1/2" NPT for standard industrial gauges
• 3/4" NPT for large gauge installations

Installation Best Practices

Positioning Guidelines

• Install siphon as close to the gauge as possible
• Ensure proper orientation with the loop at the bottom
• Provide adequate clearance for thermal expansion
• Support heavy siphons to prevent stress on connections

Initial Startup Procedures

• Fill siphon with appropriate liquid before operation
• Slowly introduce system pressure to avoid shock
• Verify proper liquid seal formation
• Check for leaks at all connections

Maintenance Requirements

• Periodically verify liquid level in siphon
• Inspect for corrosion or mechanical damage
• Drain and refill if contamination occurs
• Check connection tightness during routine maintenance

Common Applications Across Industries

Power Generation

• Steam boiler pressure monitoring
• Turbine inlet pressure measurement
• Feedwater system protection

Chemical Processing

• Reactor pressure measurement
• Distillation column monitoring
• Heat exchanger pressure tracking

Oil and Gas

• Refinery process monitoring
• Pipeline pressure measurement
• Separator vessel applications

Food and Beverage

• Steam sterilization systems
• Cooking vessel pressure monitoring
• Sanitary process applications

Troubleshooting Common Issues

Gauge Reading Fluctuations

• Check for air bubbles in siphon
• Verify proper liquid seal
• Inspect for partial blockages

Slow Gauge Response

• Examine siphon for complete blockage
• Verify proper sizing for application
• Check for excessive liquid viscosity

Temperature-Related Problems

• Ensure adequate thermal mass in siphon
• Verify proper material selection
• Check for thermal expansion issues

Selection Criteria for Optimal Performance

Choosing the right siphon configuration and material involves evaluating several key factors:

Process Conditions

• Operating pressure and temperature ranges
• Process fluid characteristics and corrosivity
• Pressure fluctuation severity
• Environmental conditions

Installation Requirements

• Available space and mounting constraints
• Accessibility for maintenance
• Connection size and type requirements
• Support structure availability

Economic Considerations

• Initial cost vs. long-term reliability
• Maintenance requirements and costs
• Expected service life
• Replacement and downtime costs

Quality and Reliability You Can Trust

When selecting pressure gauge siphons, quality construction and proper material selection are essential for reliable performance. Whether you choose black steel Sch40 for cost-effective general applications or 316 stainless steel for demanding corrosive environments, proper siphon selection ensures:

• Extended pressure gauge life
• Accurate, stable pressure readings
• Reduced maintenance costs
• Improved system reliability
• Enhanced safety in critical applications

Understanding the differences between U-shape and O-shape configurations, along with material properties and application requirements, enables you to select the optimal siphon solution for your specific pressure measurement needs.

Invest in quality pressure gauge siphons to protect your measurement equipment and ensure reliable process monitoring. The right siphon selection today prevents costly gauge failures and measurement inaccuracies tomorrow.
