Complete Guide to Gauge Valves: How They Work and Why You Need Them
What is a Gauge Valve?
A gauge valve, also known as a gauge cock, is a critical component in pressure measurement systems. It serves as an isolation valve between the pressure source and the pressure gauge, allowing operators to safely connect, disconnect, or isolate gauges for maintenance without depressurizing the entire system.
How Gauge Valves Work
Gauge valves operate on a simple quarter-turn mechanism:
- Open Position: When the handle is parallel to the valve body, the internal ball or plug allows full flow from the pressure source to the gauge
- Closed Position: When rotated 90 degrees (handle perpendicular to body), the valve blocks flow completely
- Gradual Opening: The valve can be slowly opened to prevent gauge damage from sudden pressure surges
Key Benefits of Using Gauge Valves
Safety Protection
Gauge valves protect both equipment and personnel by:
- Preventing sudden pressure spikes that could damage sensitive gauges
- Allowing safe gauge removal without system shutdown
- Providing emergency isolation capability
Maintenance Efficiency
With gauge valves, you can:
- Replace or calibrate gauges without stopping operations
- Isolate gauges during system cleaning or flushing
- Extend gauge life through controlled pressure application
Angstrom Gauge Valves: Premium Brass Construction
Angstrom gauge valves are manufactured from high-quality brass, offering superior performance in demanding applications. Our brass construction provides:
Material Advantages
- Corrosion Resistance: Brass naturally resists corrosion from water, steam, and many chemicals
- Durability: Long-lasting performance in industrial environments
- Temperature Tolerance: Suitable for both high and low temperature applications
- Machinability: Precise threading and smooth operation
Available Sizes and Configurations
1/4" Gauge Valves
Male x Female (1/4" M x F):
- Perfect for compact installations
- Ideal for small pressure gauges
- Common in pneumatic systems
- Easy installation in tight spaces
Female x Female (1/4" F x F):
- Versatile connection option
- Suitable for custom piping configurations
- Allows for flexible gauge positioning
1/2" Gauge Valves

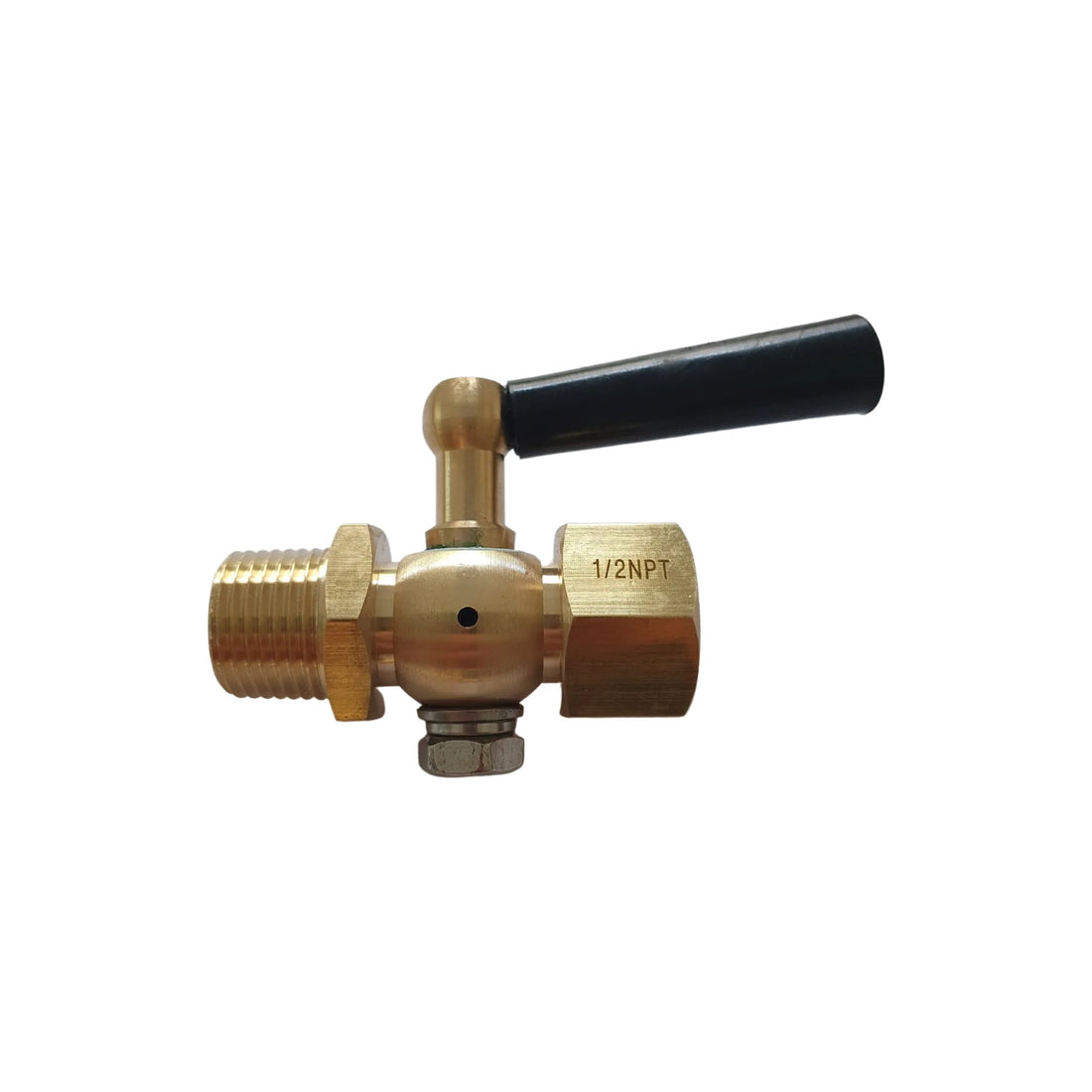

Male x Female (1/2" M x F):
- Higher flow capacity
- Suitable for larger pressure gauges
- Common in industrial applications
- Robust construction for heavy-duty use
Female x Female (1/2" F x F):
- Maximum installation flexibility
- Professional-grade applications
- Compatible with various fitting types
Installation Guidelines
Pre-Installation Checklist
- Verify thread compatibility (NPT threading standard)
- Check pressure rating matches system requirements
- Ensure proper thread sealant or tape is available
- Confirm gauge valve orientation for easy operation
Installation Steps
- System Preparation: Depressurize the system completely
- Thread Preparation: Apply appropriate thread sealant
- Hand Tightening: Thread the valve hand-tight first
- Final Tightening: Use wrenches to achieve proper seal (typically 1-2 turns past hand-tight)
- Gauge Connection: Install pressure gauge to valve outlet
- Testing: Gradually pressurize system and check for leaks
Operating Procedures
Opening the Valve
- Ensure gauge is properly connected
- Slowly turn handle counterclockwise
- Open gradually to prevent gauge shock
- Fully open for normal operation
Closing the Valve
- Turn handle clockwise 90 degrees
- Ensure complete closure
- Do not over-tighten to avoid damage
Maintenance and Care
Regular Maintenance
- Visual Inspection: Check for leaks, corrosion, or damage monthly
- Operation Test: Cycle valve open/closed quarterly
- Thread Inspection: Examine threads for wear or damage
- Handle Check: Ensure smooth operation without binding
Troubleshooting Common Issues
Valve Won't Turn:
- Check for debris or corrosion
- Apply penetrating oil if needed
- Never force - may damage internal components
Leaking at Connections:
- Check thread sealant condition
- Verify proper tightening torque
- Inspect threads for damage
Applications and Industries
Angstrom gauge valves are essential in:
- Oil & Gas: Pipeline pressure monitoring
- Chemical Processing: Reactor and vessel pressure control
- Water Treatment: System pressure management
- HVAC Systems: Boiler and chiller monitoring
- Manufacturing: Compressed air systems
- Marine Applications: Engine room instrumentation
Why Choose Angstrom Gauge Valves?
- Quality Materials: Premium brass construction for longevity
- Precision Manufacturing: Tight tolerances for reliable sealing
- Comprehensive Range: Multiple sizes and configurations available
- Technical Support: Expert guidance for proper selection and installation
- Competitive Pricing: Professional quality at reasonable cost
Conclusion
Gauge valves are indispensable components in any pressure measurement system. Angstrom's brass gauge valves in 1/4" and 1/2" sizes, available in both male x female and female x female configurations, provide the reliability and performance your applications demand. Whether you're monitoring pipeline pressure or maintaining HVAC systems, our gauge valves ensure safe, accurate, and efficient pressure measurement.
For technical specifications, pricing, or application guidance, contact our team of experts who can help you select the right gauge valve for your specific requirements.
