Angstrom Bourdon Tube Pressure Gauges: Precision Measurement Solutions

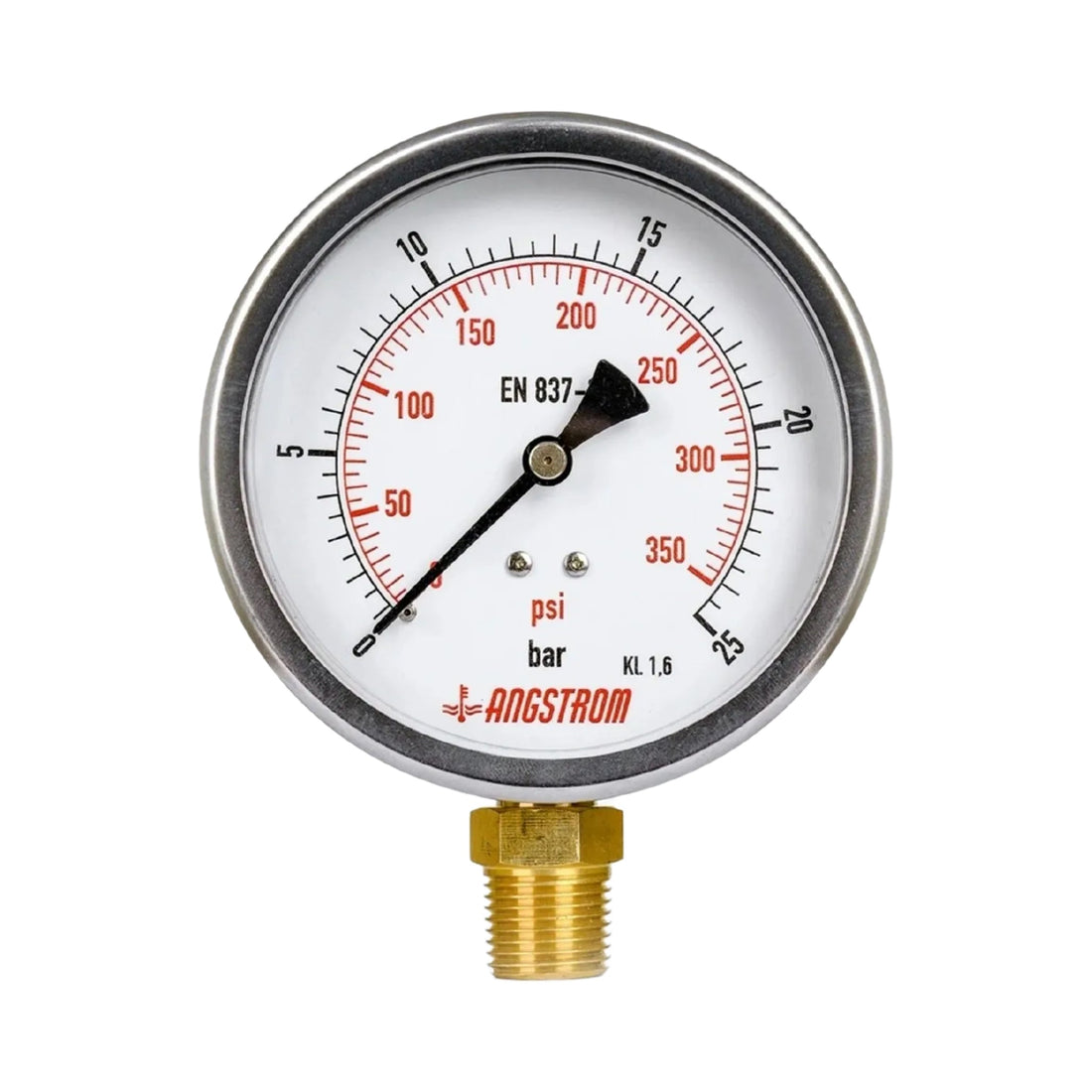

Standard Angstrom Bourdon Tube Pressure Gauges

Angstrom's standard bourdon tube pressure gauges are engineered for liquid or gaseous media applications, provided they are not highly viscous or crystallizing, and compatible with copper alloy components. Our measuring range spans from 1.0 to 1,000 bar (15 to 15,000 psi), delivering reliable pressure measurement across diverse industrial applications.

Enhanced Corrosion Resistance with Angstrom Stainless Steel Gauges

Angstrom's bourdon tube pressure gauges with increased corrosion resistance are manufactured entirely from premium stainless steel. These robust instruments are designed for pressure measurement from 0…0.6 up to 0…1,000 bar (0...8.7 up to 0...15,000 psi) in gaseous and liquid, non-viscous and non-crystallizing media - even in the most aggressive environments.

Advanced Bourdon Tube Technology

Angstrom bourdon tubes feature radially formed tubes with precision oval cross-sections. The pressure of the measuring medium acts on the tube's interior, producing controlled motion in the non-clamped end. This motion directly correlates to pressure levels and is accurately indicated through our precision movement systems.

Our C-shaped bourdon tubes, formed at approximately 250°, handle pressures up to 60 bar with exceptional accuracy. For higher pressure applications, Angstrom utilizes bourdon tubes with multiple superimposed windings (helical tubes) or spiral coils in a single plane (spiral tubes).

Quality Manufacturing Standards

All Angstrom bourdon tube pressure gauges are developed, qualified, and manufactured to EN 837-1 standards. We produce gauges with various internationally recognized measuring ranges, process connections, approvals, and nominal sizes to meet global requirements.

Specialized Applications

For critical applications, Angstrom offers bourdon tube pressure gauges with liquid filling. The case liquid ensures precise readability even under high dynamic pressure loads, dampening moving parts to prevent damage and reduce wear.

Our safety pressure gauges feature solid baffle walls between the dial and measuring system, plus blow-out backs for operator protection. These safety features make Angstrom gauges ideal for high-risk environments.

Precision Movement Systems

Angstrom's precision movements deliver Swiss-quality accuracy while maintaining exceptional robustness and durability. Our movement systems ensure reliable measured value display across all operating conditions.

Choose Angstrom bourdon tube pressure gauges for uncompromising accuracy, durability, and safety in your pressure measurement applications.
