Complete Guide to Gauge Valves: How They Work and Why You Need Them
A gauge valve (also called a gauge cock) is a quarter-turn isolation valve made from brass that sits between the pressure source and pressure gauge, allowing operators to safely connect, disconnect, or isolate gauges for maintenance without depressurizing the entire system. These critical components protect gauges from sudden pressure surges, enable gauge replacement during live operations, and extend gauge life through controlled pressure application in UAE industrial facilities across Dubai, Abu Dhabi, and the Emirates including oil & gas pipelines, chemical processing, water treatment, HVAC systems, and manufacturing operations.
What is a gauge valve and when do you need one in UAE applications?
A gauge valve is an isolation valve that provides a shut-off point between your pressure system and the pressure gauge, operating on a simple quarter-turn mechanism. When the handle is parallel to the valve body, the internal ball or plug allows full flow from the pressure source to the gauge. When rotated 90 degrees (handle perpendicular to body), the valve blocks flow completely. The valve can be slowly opened to prevent gauge damage from sudden pressure surges—critical in UAE's high-pressure industrial systems. You need a gauge valve in any application where you want to replace or calibrate gauges without shutting down operations, protect gauges from sudden pressure spikes during system startup, isolate gauges during system cleaning or flushing, or provide emergency isolation capability for safety. In Dubai's oil and gas facilities, Abu Dhabi's chemical plants, and Emirates' water treatment operations, gauge valves are essential for maintaining continuous operations while ensuring safe gauge maintenance and extending equipment life.
What are the key benefits of using gauge valves?
Safety Protection:
- Prevents sudden pressure spikes that could damage sensitive gauges or cause gauge failure
- Allows safe gauge removal without system shutdown or depressurization
- Provides emergency isolation capability for personnel safety
- Enables gradual pressure application to protect gauge mechanisms
Maintenance Efficiency:
- Replace or calibrate gauges without stopping UAE operations
- Isolate gauges during system cleaning or flushing procedures
- Extend gauge life through controlled pressure application
- Reduce downtime and maintenance costs in industrial facilities
Operational Flexibility:
- Quarter-turn operation for quick isolation
- Compatible with various gauge sizes and pressure ranges
- Suitable for multiple industries and applications across UAE
Angstrom gauge valves: Premium brass construction for UAE applications
Angstrom gauge valves are manufactured from high-quality brass, offering superior performance in demanding UAE applications. Our brass construction provides:
Material Advantages for UAE Climate:
- Corrosion Resistance: Brass naturally resists corrosion from water, steam, and many chemicals common in Emirates industries
- Durability: Long-lasting performance in UAE's harsh industrial environments and coastal humidity
- Temperature Tolerance: Suitable for both high and low temperature applications (UAE heat to refrigeration)
- Machinability: Precise threading and smooth quarter-turn operation
- Cost-Effective: Professional quality at reasonable cost for UAE operations
Available sizes and configurations for UAE applications
1/4" Gauge Valves (NPT Threading):
- Perfect for compact installations in tight spaces
- Ideal for small pressure gauges (63mm/2.5" dials)
- Common in pneumatic systems and control panels
- Easy installation in UAE industrial equipment
- Versatile connection option for custom configurations
- Suitable for custom piping in UAE facilities
- Allows for flexible gauge positioning

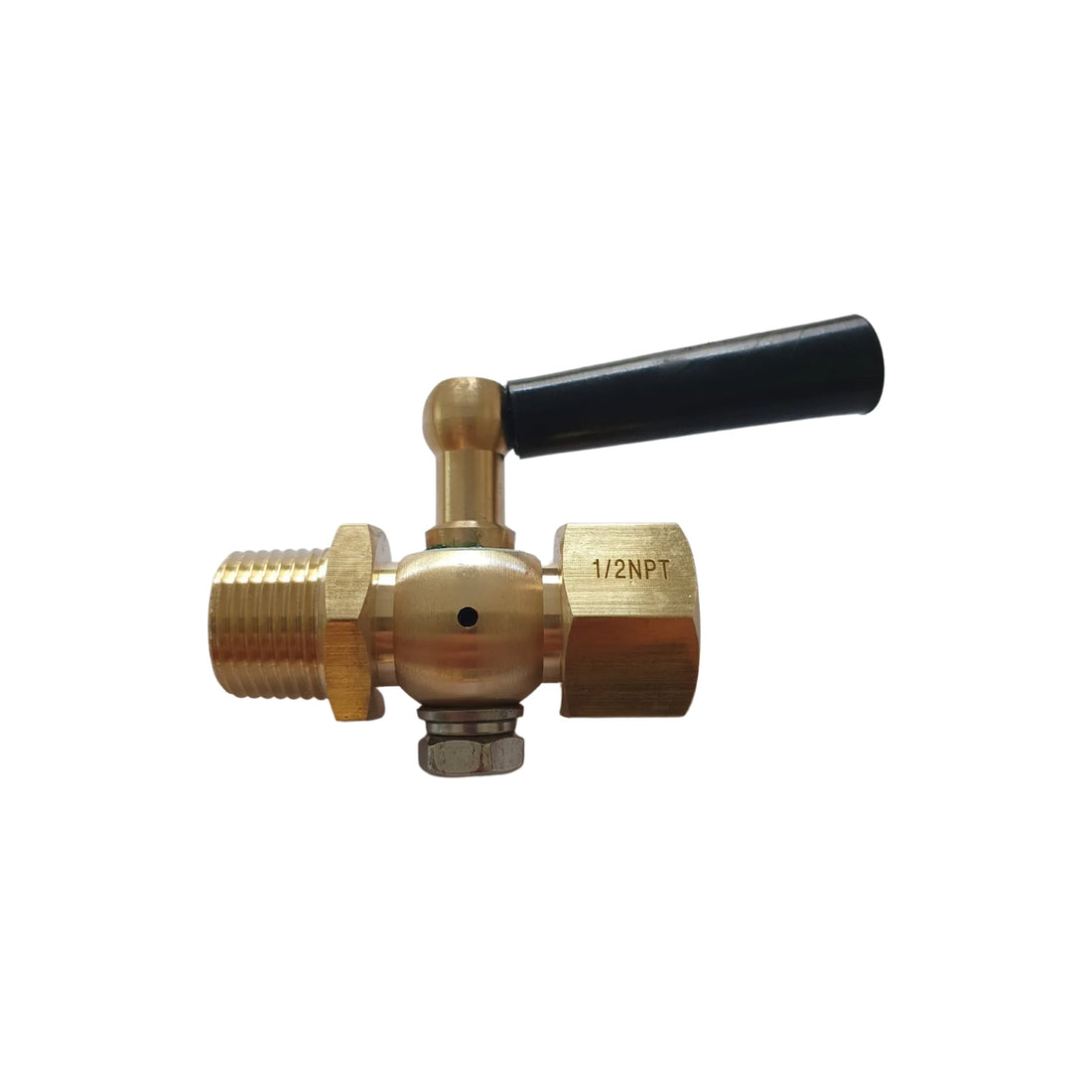

1/2" Gauge Valves (NPT Threading):
- Higher flow capacity for larger systems
- Suitable for larger pressure gauges (100mm/4" and 150mm/6" dials)
- Common in UAE oil & gas and industrial applications
- Robust construction for heavy-duty use
- Maximum installation flexibility in UAE facilities
- Professional-grade applications
- Compatible with various fitting types and configurations
Installation guidelines for UAE applications
Pre-Installation Checklist:
- Verify thread compatibility (NPT threading standard)
- Check pressure rating matches UAE system requirements
- Ensure proper thread sealant or tape is available
- Confirm gauge valve orientation for easy operation and accessibility
Installation Steps:
- System Preparation: Depressurize the system completely before installation
- Thread Preparation: Apply appropriate thread sealant (PTFE tape or pipe dope)
- Hand Tightening: Thread the valve hand-tight first to ensure proper alignment
- Final Tightening: Use wrenches to achieve proper seal (typically 1-2 turns past hand-tight, do not overtighten)
- Gauge Connection: Install pressure gauge to valve outlet
- Testing: Gradually pressurize system and check for leaks at all connections
Operating procedures for safe gauge valve use
Opening the Valve:
- Ensure gauge is properly connected and secured
- Slowly turn handle counterclockwise (quarter-turn)
- Open gradually to prevent gauge shock from sudden pressure
- Fully open for normal operation (handle parallel to valve body)
Closing the Valve:
- Turn handle clockwise 90 degrees (quarter-turn)
- Ensure complete closure (handle perpendicular to valve body)
- Do not over-tighten to avoid damage to internal components
Maintenance and care in UAE climate
Regular Maintenance Schedule:
- Visual Inspection: Check for leaks, corrosion, or damage monthly (more frequently in UAE coastal areas)
- Operation Test: Cycle valve open/closed quarterly to ensure smooth operation
- Thread Inspection: Examine threads for wear or damage during gauge calibration
- Handle Check: Ensure smooth quarter-turn operation without binding
Troubleshooting Common Issues:
Valve Won't Turn:
- Check for debris, sand, or corrosion (common in UAE dusty environments)
- Apply penetrating oil if needed
- Never force—may damage internal ball or plug components
Leaking at Connections:
- Check thread sealant condition (may degrade in UAE heat)
- Verify proper tightening torque
- Inspect threads for damage or cross-threading
Applications and industries across UAE
Angstrom gauge valves are essential in:
- Oil & Gas: Pipeline pressure monitoring in Abu Dhabi and offshore platforms
- Chemical Processing: Reactor and vessel pressure control in UAE industrial zones
- Water Treatment: Desalination and municipal system pressure management
- HVAC Systems: Boiler and chiller monitoring in Dubai commercial buildings
- Manufacturing: Compressed air systems in Sharjah and Ajman facilities
- Marine Applications: Engine room instrumentation in UAE ports and vessels
Technical specifications
| Specification | Details |
|---|---|
| Material | Premium brass construction |
| Operation | Quarter-turn (90 degrees) |
| Thread Standard | NPT (National Pipe Thread) |
| Available Sizes | 1/4" and 1/2" |
| Configurations | Male x Female (M x F), Female x Female (F x F) |
| Temperature Range | Suitable for high and low temperature applications |
| Corrosion Resistance | Excellent (brass construction) |
| Application | Gauge isolation, maintenance, safety protection |
| Region | UAE (Dubai, Abu Dhabi, Emirates) |
Why choose Angstrom gauge valves for UAE applications?
- Quality Materials: Premium brass construction for longevity in UAE climate
- Precision Manufacturing: Tight tolerances for reliable sealing and smooth operation
- Comprehensive Range: Multiple sizes (1/4", 1/2") and configurations (M x F, F x F) available
- Technical Support: Dubai-based expert guidance for proper selection and installation
- Competitive Pricing: Professional quality at reasonable cost for UAE operations
- Fast Delivery: Same-day delivery in Dubai, fast shipping across Emirates
Conclusion
Gauge valves are indispensable components in any pressure measurement system across UAE industrial facilities. Angstrom's brass gauge valves in 1/4" and 1/2" sizes, available in both male x female and female x female configurations, provide the reliability and performance your Dubai, Abu Dhabi, and Emirates applications demand. Whether you're monitoring pipeline pressure in oil & gas operations, maintaining HVAC systems in commercial buildings, or managing water treatment facilities, our gauge valves ensure safe, accurate, and efficient pressure measurement with the flexibility to perform maintenance without system shutdown.
For technical specifications, pricing, or application guidance for your UAE facility, contact our team of experts who can help you select the right gauge valve for your specific requirements.
