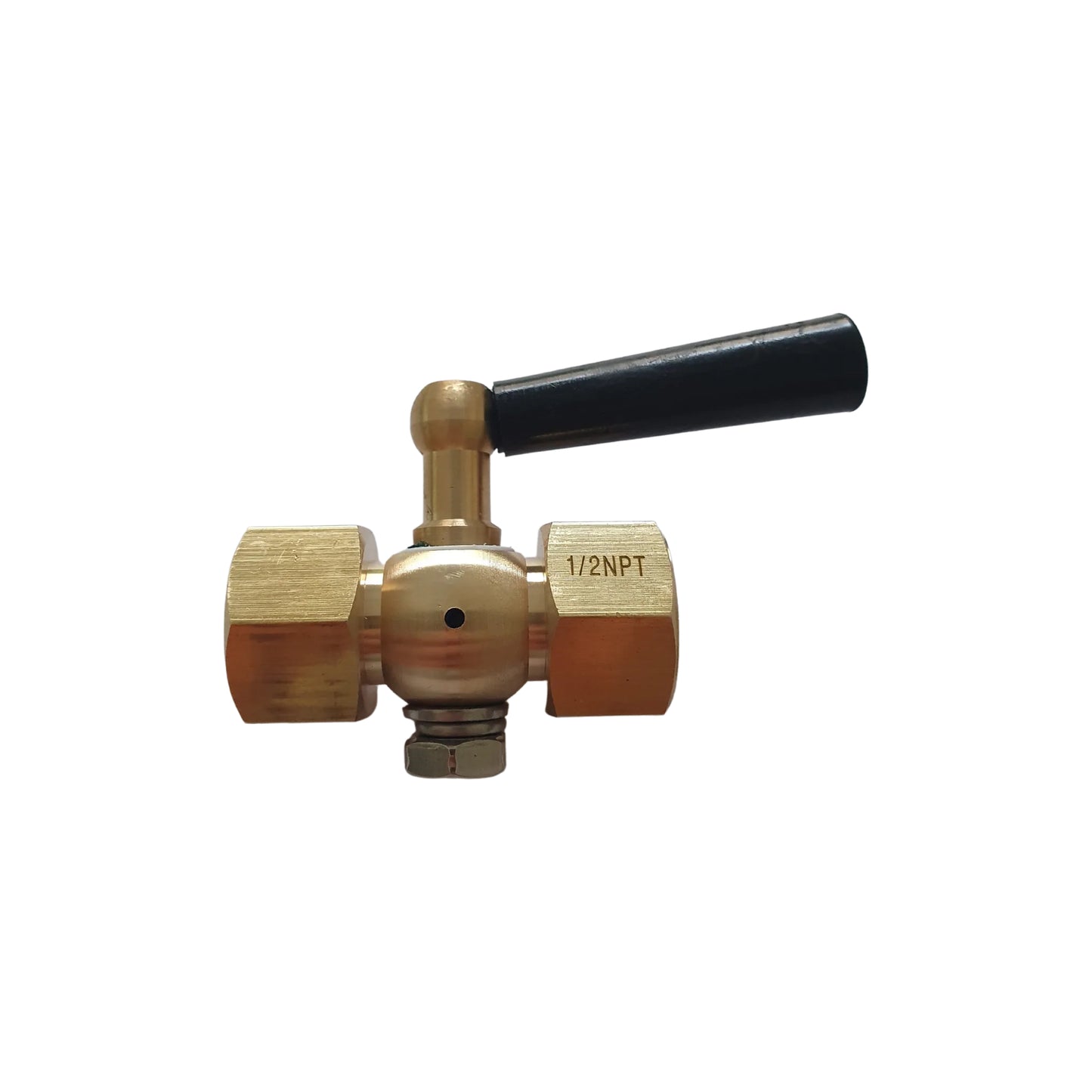

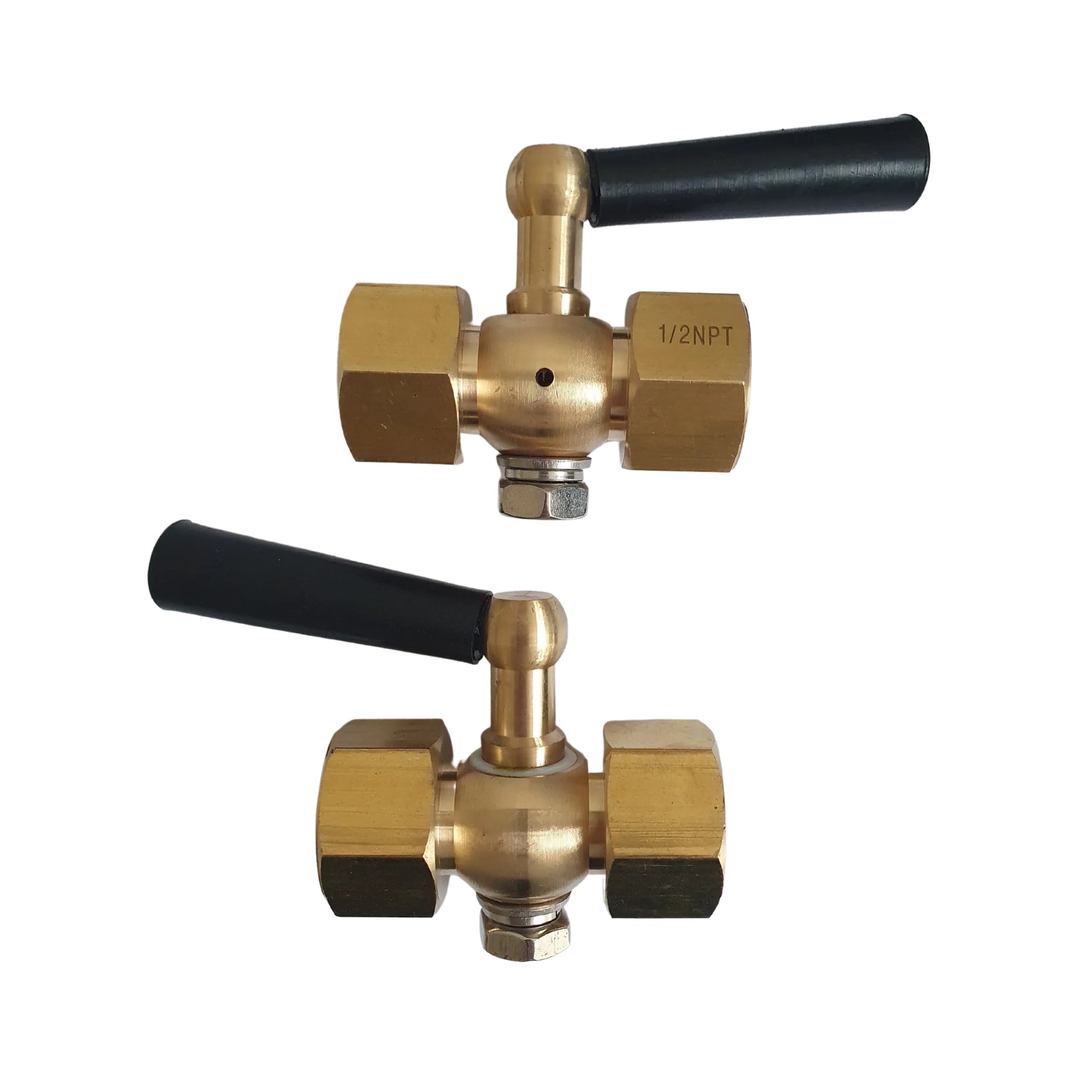

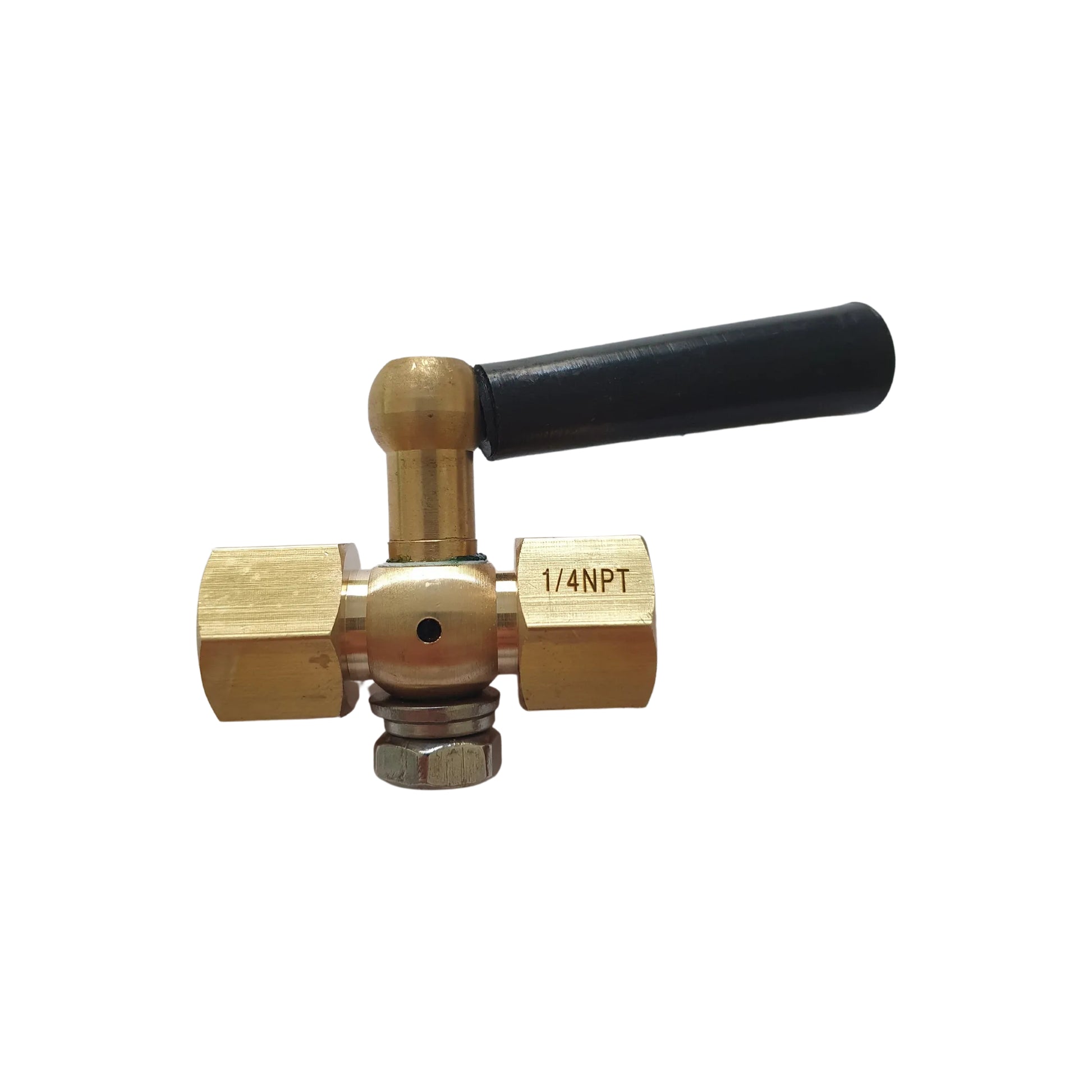

Gauge Valve - Brass - Female x Female - NPT Thread 1/4" & 1/2"

A gauge valve (also called a gauge isolator or gauge cock) is a brass isolation valve with female x female NPT connections that allows safe pressure gauge removal, replacement, or maintenance without depressurizing the system or shutting down operations. This heavy-duty valve features full port design for accurate readings and smooth quarter-turn operation, available in 1/4" and 1/2" sizes for UAE's hydraulic, pneumatic, and process control systems across Dubai and the Emirates where safe gauge maintenance and system uptime are essential.

What is a gauge valve and why do I need one in the UAE?

A gauge valve installs between the pressure source and the gauge, allowing technicians to isolate the gauge for removal, replacement, calibration, or maintenance without shutting down the entire system or releasing system pressure. This is critical in UAE's industrial facilities where system downtime is costly and depressurizing large systems is impractical. The valve also protects gauges from pressure spikes during startup and allows controlled pressurization. The female x female NPT configuration connects directly to male NPT pipe threads and gauge connections. When your Dubai facility has pressure gauges on critical systems that require periodic maintenance, calibration, or replacement—especially in hydraulic, pneumatic, or process control applications—gauge valves are essential safety and maintenance equipment.

What are the key features of this female x female gauge valve?

- Female x Female NPT: Versatile connection for direct installation between pipe and gauge
- Dual Size Options: 1/4" and 1/2" available for various Dubai applications
- Brass Construction: Corrosion-resistant material for Emirates' industrial conditions
- Isolation Function: Safely isolate gauges for maintenance without system shutdown
- Full Port Design: Minimal pressure drop ensures accurate gauge readings
- Quarter-Turn Operation: Smooth, easy operation for UAE technicians
- Safety Feature: Protects gauges from pressure spikes and allows controlled pressurization
- Maintenance Enabler: Remove and replace gauges without depressurizing system

What industries and applications use gauge valves in the UAE?

- Hydraulic systems requiring periodic gauge maintenance across UAE
- Pneumatic equipment and compressed air systems in Dubai facilities
- Process control systems in oil & gas and petrochemical plants
- Pressure testing equipment and calibration applications
- Water treatment and pumping stations throughout Emirates
- Manufacturing equipment with critical pressure monitoring
- Any industrial system where gauge maintenance without shutdown is required

Installation and Operation

Install valve between pressure source (male NPT pipe thread) and pressure gauge (male NPT gauge connection). Ensure valve is fully open during normal operation for accurate gauge readings. To service gauge: close valve (quarter-turn), relieve trapped pressure between valve and gauge, remove gauge safely. Install new or calibrated gauge, open valve slowly to pressurize gauge gradually.

Technical Specifications

| Specification | Details |
|--------------|---------|
| Connection Type | Female x Female NPT |
| Available Sizes | 1/4 inch, 1/2 inch |
| Material | Brass (corrosion-resistant) |
| Port Design | Full port (minimal pressure drop) |
| Operation | Quarter-turn valve |
| Function | Gauge isolation and protection |
| Application | Hydraulic, pneumatic, process control systems |
| Region | UAE (Dubai, Abu Dhabi, Emirates) |

Essential for UAE's hydraulic systems, pneumatic equipment, process control, and pressure testing applications. Allows safe gauge removal and replacement without depressurizing the system, protecting equipment and maintaining uptime. Trusted by Dubai's industrial contractors and maintenance teams across the Emirates. Available for same-day delivery in Dubai with fast shipping across UAE.
