Water Hammer Arrestors Kwang Woon WHB: Essential Protection for Plumbing Systems

A water hammer arrestor is a pre-charged stainless steel shock absorber with 1/2" male IPS thread that eliminates pipe banging and protects plumbing systems from pressure surges caused by quick-closing valves, preventing damage to pipes, fittings, and appliances. This Kwang Woon WHB Series arrestor features stainless steel bellows construction rated up to 350 PSI and 250°F (121°C), designed for UAE's domestic and commercial plumbing installations across Dubai, Abu Dhabi, and the Emirates where reliable water hammer protection, extreme temperature performance, and maintenance-free operation are essential.

What is water hammer and why do I need an arrestor in the UAE?

Water hammer is the loud banging noise and pressure surge that occurs when a valve closes quickly in a plumbing system—common with washing machines, dishwashers, solenoid valves, and quick-closing fixtures. When flowing water suddenly stops, its momentum creates a shock wave that travels through pipes at the speed of sound, causing that familiar banging sound. Over time, these repeated pressure spikes damage pipes, loosen fittings, stress joints, and shorten the life of appliances and fixtures. In the UAE's extreme climate conditions, with temperatures reaching over 50°C in summer and high-pressure water distribution systems in Dubai and Abu Dhabi's high-rise buildings, plumbing systems face additional stress that makes water hammer protection even more critical. A water hammer arrestor absorbs these pressure surges using a stainless steel bellows and pre-charged air chamber that cushions the shock instantly. In UAE's residential towers, commercial buildings, hotels, shopping malls, and industrial facilities across the Emirates, water hammer arrestors are essential protection that eliminates noise, prevents damage, extends plumbing system life, and ensures compliance with Dubai Municipality and Abu Dhabi building regulations.

What are the key features of the Kwang Woon WHB Series water hammer arrestor?

• Stainless Steel Bellows Construction: Superior durability and corrosion resistance for UAE water conditions and coastal humidity
• Pre-Charged Design: Ready to install, no field charging required for immediate protection
• 1/2" Male IPS Thread: Standard connection for easy installation in UAE plumbing systems
• Compact Design: Can be installed in concealed locations without access panels in tight spaces
• Factory Sealed: Permanently charged, non-rechargeable for maintenance-free operation
• Wide Operating Range: Rated up to 350 PSI for domestic and commercial applications across Emirates
• High Temperature Rated: Maximum working temperature of 250°F (121°C) for UAE's extreme heat
• Versatile Installation: Works vertically, horizontally, or at any angle using standard pipe tee
• UAE Climate Optimized: Designed to withstand Emirates' high temperatures, sand, dust, and humidity
• Compliance Ready: Meets Dubai Municipality, Abu Dhabi Department of Urban Planning, UAE Fire and Life Safety Code, and ESMA standards

What applications and installations use water hammer arrestors in the UAE?

Residential Applications Across UAE:

• Washing machine connections in Dubai villas, Abu Dhabi apartments, and residential towers
• Dishwasher supply lines in UAE homes and commercial kitchens
• Ice makers and refrigerator water lines in Emirates households
• Quick-closing fixtures and automatic shut-off valves in bathrooms

Commercial Applications in Dubai & Abu Dhabi:

• High-rise buildings and Burj Khalifa-style towers requiring specialized pressure protection
• Hotels and hospitality sector needing quiet, efficient plumbing systems
• Shopping malls and large commercial complexes requiring comprehensive protection
• Office buildings with automated plumbing systems and solenoid valves

Industrial Applications Across Emirates:

• Oil and gas facilities in Abu Dhabi requiring heavy-duty pressure control
• Manufacturing zones in Sharjah, Ajman, and Dubai's JAFZA with high-volume water flow
• Petrochemical plants and industrial facilities with automated valve systems
• Any plumbing installation where quick valve closure causes banging or pressure spikes

Installation guidelines for UAE climate conditions

Install arrestor as close to the shock source as possible on both hot and cold water lines for best results. Use a standard pipe tee to connect arrestor to supply line. The arrestor works in any orientation—vertically, horizontally, or at any angle. No field charging or maintenance required—factory sealed and permanently charged for immediate, maintenance-free operation.

UAE-Specific Installation Considerations:

• Location: Install as close as possible to the source, considering UAE's high ambient temperatures (up to 50°C+)
• Sizing: Choose correct size based on UAE building codes and local water pressure standards
• Orientation: Account for thermal expansion in UAE heat when positioning arrestors
• Accessibility: Ensure easy access for inspection in UAE's dusty environment
• Multiple Units: Large UAE facilities may require multiple arrestors at different locations
• Temperature Rating: Verify units can handle extreme UAE temperatures and high-pressure systems

Maintenance in UAE desert environment

The Kwang Woon WHB Series arrestor is factory sealed and permanently charged, requiring no maintenance or recharging. However, regular inspection ensures optimal performance in the Emirates' challenging conditions:

• Inspect arrestors quarterly due to UAE's harsh environmental conditions
• Check for signs of corrosion from UAE's coastal humidity and salt air
• Monitor system pressure regularly during peak summer months
• Clean external components to remove sand and dust accumulation
• Replace units showing signs of wear, corrosion, or reduced effectiveness

Technical specifications

Specification	Details
Size	1/2" Male IPS Thread
Material	Stainless Steel Bellows
Operating Pressure	Up to 350 PSI
Maximum Temperature	250°F (121°C)
Connection Type	Male threaded
Charge Type	Pre-charged (factory sealed)
Maintenance	Maintenance-free (non-rechargeable)
Installation	Any angle (vertical, horizontal, or angled)
Application	Domestic and commercial plumbing
Compliance	Dubai Municipality, Abu Dhabi regulations, UAE Fire and Life Safety Code, ESMA standards
Region	UAE (Dubai, Abu Dhabi, Emirates)

UAE building code compliance

Water hammer arrestors in the UAE must comply with:

• Dubai Municipality building regulations and plumbing codes
• Abu Dhabi Department of Urban Planning requirements
• UAE Fire and Life Safety Code for commercial and residential buildings
• Emirates Authority for Standardization and Metrology (ESMA) standards

How water hammer arrestors work in Middle East applications

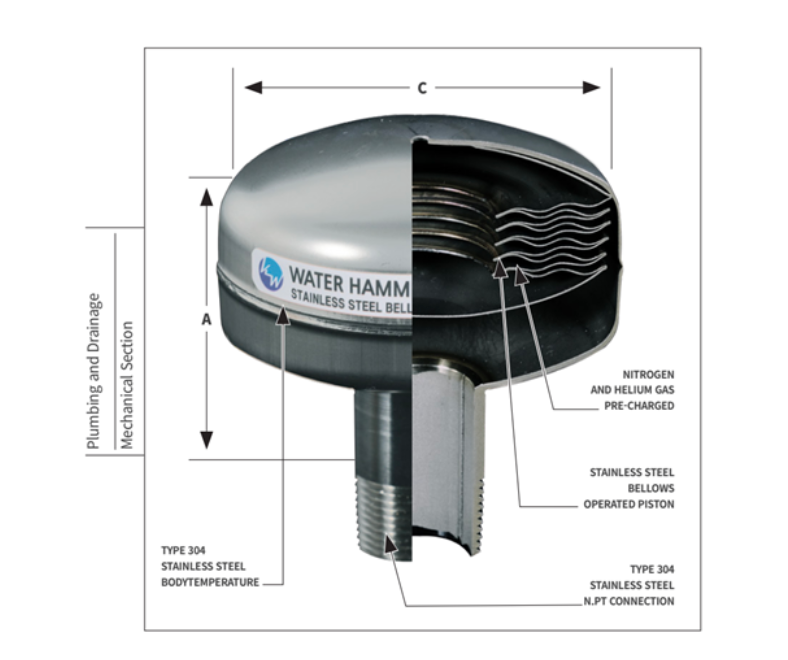

Water hammer arrestors function as shock absorbers for your plumbing system, designed to withstand the UAE's unique operating conditions. They contain a sealed air chamber separated from the water by a stainless steel bellows. When a pressure surge occurs:

1. The sudden pressure spike forces water into the arrestor
2. The stainless steel bellows compresses the air chamber
3. The compressed air absorbs the energy from the pressure wave
4. The system pressure is gradually released back to normal levels

This process happens in milliseconds, effectively cushioning the shock and preventing damage to your system—crucial for UAE's high-pressure water distribution systems in high-rise buildings and industrial facilities.

Manufactured by Kwang Woon Co., Ltd.—a trusted name in plumbing components with proven reliability in UAE installations. Essential for eliminating annoying pipe banging and protecting plumbing systems from pressure surge damage across Dubai, Abu Dhabi, and the Emirates. Available at Angstrom Trading with fast UAE delivery and local technical support.
