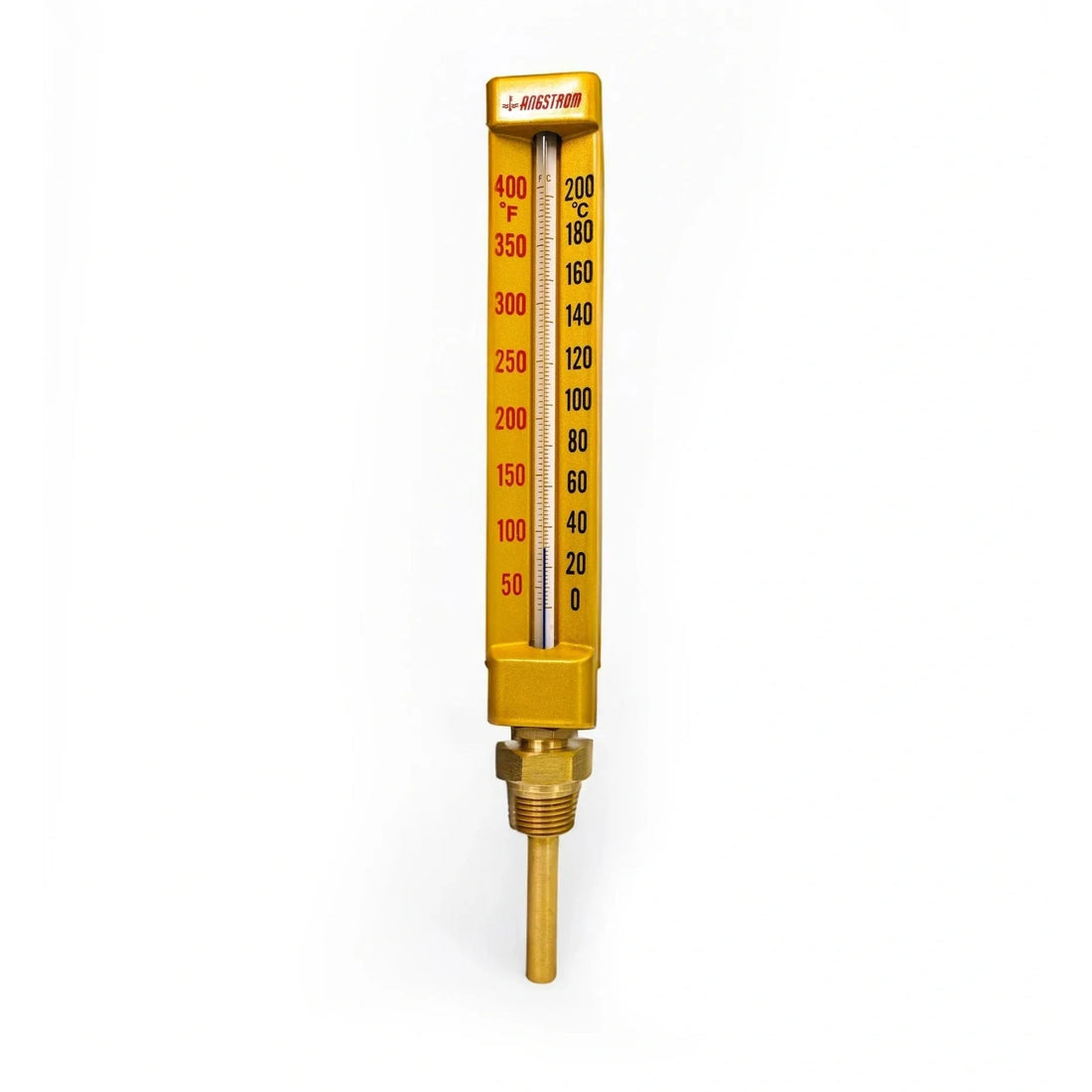

V-Shape Thermometer, case 200, stem 63mm, white background

V-Shape Thermometers: The Ultimate Guide to Angstrom's Precision Temperature Measurement Solutions

V-shape thermometers are precision temperature measurement instruments featuring an angled design with a bent glass stem that allows the sensing bulb to be immersed into tanks, vessels, or process equipment while keeping the scale visible and accessible outside the vessel, measuring temperatures from -20°C to 200°C. Angstrom V-shape thermometers feature aluminum case construction in 100mm, 150mm, and 200mm lengths, brass stem connections in 63mm, 100mm, 150mm, and 200mm options, and flexible mounting (lower mount and lower back mount) for UAE industrial applications across Dubai, Abu Dhabi, and the Emirates including HVAC systems, refrigeration, water treatment, food processing, and industrial process monitoring.

What is a V-shape thermometer and when do you need one in UAE applications?

A V-shape thermometer (also called V-type or angle thermometer) is a specialized temperature measurement instrument that features a bent glass stem creating a V-angle configuration. This unique design allows the sensing bulb to be immersed deep into tanks, vessels, or process equipment while keeping the dial face visible and accessible outside the vessel for easy reading. Unlike traditional straight-stem thermometers, the V-shape provides several critical advantages: better visibility of the dial face even in deep immersion applications, reduced risk of damage from overhead obstacles, improved accessibility for maintenance personnel in tight spaces, and the ability to mount on vessel walls or flanges while maintaining readable dial orientation. The angled design is particularly valuable in UAE industrial settings where space is at a premium, safety is paramount, and equipment must be readable without requiring personnel to reach into dangerous areas. You need a V-shape thermometer when measuring temperature in deep vessels or tanks where straight thermometers would be impractical, when the dial must remain accessible and visible outside the vessel, in applications requiring wall or flange mounting with readable dial orientation, or in tight spaces where the V-angle provides better clearance and visibility than straight configurations.

What are the key features and benefits of Angstrom V-shape thermometers?

Premium Aluminum Case Construction:

The heart of every Angstrom V-shape thermometer is its durable aluminum case. This material choice provides:

  • Lightweight yet Durable: Excellent protection without adding unnecessary weight to UAE installations
  • Corrosion Resistance: Natural oxide layer protects against environmental factors in Emirates climate
  • Heat Dissipation: Superior thermal properties ensure accurate temperature transfer
  • Professional Appearance: Clean, industrial aesthetic for UAE facilities

Brass Stem Connections - Built for Reliability:

The connection between your thermometer and the system being monitored is crucial for accurate readings. Angstrom uses high-quality brass for all stem connections, offering:

  • Superior Threading: Excellent threading characteristics for secure installation
  • Corrosion Resistance: Handles UAE water, steam, and chemical applications
  • Reliable Sealing: Long-term performance without leaks
  • Multiple Lengths: 63mm, 100mm, 150mm, 200mm for various immersion depths

Wide Temperature Range (-20°C to 200°C):

Angstrom V-shape thermometers handle everything from freezing applications to high-temperature processes:

  • Low Temperature (-20°C to 0°C): Refrigeration, cold storage, cryogenic applications
  • Standard Range (0°C to 120°C): HVAC, water heating, food processing, general industrial
  • High Temperature (100°C to 200°C): Steam systems, industrial ovens, chemical processing

Available case lengths for every UAE application

100mm Case Length:

Perfect for compact installations where space is limited but accuracy cannot be compromised. Ideal for:

  • Small machinery monitoring in Dubai facilities
  • Residential heating systems
  • Laboratory equipment
  • Automotive applications

150mm Case Length:

The most versatile option, offering excellent readability while maintaining a compact footprint. Common UAE applications:

  • HVAC systems in commercial buildings
  • Food processing equipment
  • Chemical processing in industrial zones
  • Marine applications in UAE ports

200mm Case Length:

When maximum visibility and precision are required in UAE operations. Ideal for:

  • Large industrial processes in Abu Dhabi
  • Power generation facilities
  • Oil and gas operations
  • Critical monitoring applications across Emirates

Flexible mounting options: Lower mount and lower back mount

Lower Mount Configuration:

The lower mount option positions the connection point at the bottom of the thermometer case, providing:

  • Vertical Installation: Perfect for mounting on horizontal pipes or surfaces
  • Space Efficiency: Minimizes horizontal space requirements in UAE facilities
  • Easy Reading: Dial face remains clearly visible from the front
  • Standard Applications: Most common choice for general industrial use

Lower Back Mount Configuration:

The lower back mount positions the connection at the rear bottom of the case, offering:

  • Panel Mounting: Ideal for mounting through panels or walls in control rooms
  • Clean Appearance: Connection hidden from view for aesthetic UAE installations
  • Reduced Projection: Minimizes how far the thermometer extends from mounting surface
  • Specialized Applications: Perfect for control panels and dashboard installations

Brass stem connection lengths for various immersion depths

63mm Brass Stem Connection:

The shortest option, perfect for thin-walled vessels or applications where minimal penetration is desired:

  • Thin pipe walls in UAE plumbing systems
  • Surface temperature monitoring
  • Quick-response applications

100mm Brass Stem Connection:

A balanced choice that provides good thermal contact while accommodating standard wall thicknesses:

  • Standard piping systems across UAE
  • Tank monitoring in industrial facilities
  • General industrial applications

150mm Brass Stem Connection:

Extended reach for thicker walls or when you need to measure temperature at the center of larger vessels:

  • Thick-walled pressure vessels in UAE oil & gas
  • Large diameter pipes
  • Deep immersion applications

200mm Brass Stem Connection:

Maximum penetration depth for specialized applications requiring deep temperature sensing:

  • Large storage tanks in UAE facilities
  • Reactor vessels in chemical processing
  • Deep well monitoring
  • Heavy-duty industrial processes

Installation and setup guide for UAE applications

Pre-Installation Considerations:

  • Mounting Type: Choose between lower mount or lower back mount based on UAE installation requirements
  • Location: Select a spot that provides representative temperature readings
  • Accessibility: Ensure the dial face will be easily readable in UAE facilities
  • Vibration: Minimize exposure to excessive vibration that could affect accuracy
  • Ambient Conditions: Consider UAE heat, humidity, and dust factors

Installation Steps:

  1. Select Mounting Configuration: Choose lower mount or lower back mount based on your application
  2. Prepare the Connection Point: Ensure threads are clean and properly sized
  3. Apply Thread Sealant: Use appropriate sealant for your UAE application
  4. Install Thermometer: Thread in carefully, avoiding cross-threading
  5. Position for Readability: Orient the V-shape for optimal viewing angle
  6. Test and Calibrate: Verify readings against known temperature standards

Industry applications across UAE

Manufacturing and Processing:

  • Quality control in production lines across Dubai and Sharjah
  • Process optimization in UAE industrial zones
  • Equipment monitoring and safety compliance

HVAC and Building Systems:

  • Boiler monitoring in commercial buildings
  • Chiller performance tracking in UAE hotels and malls
  • Energy efficiency optimization
  • Comfort control systems in Emirates towers

Food and Beverage:

  • Pasteurization monitoring in UAE food processing
  • Storage temperature control for food safety
  • Brewing and fermentation applications
  • Food safety compliance across Emirates

Water Treatment & Desalination:

  • Desalination plant temperature monitoring
  • Municipal water system management
  • Wastewater treatment operations

Oil & Gas:

  • Process temperature monitoring in Abu Dhabi facilities
  • Pipeline temperature control
  • Refinery operations across UAE

Selecting the right configuration for your UAE application

For Compact Installations:

Consider: 100mm case length with 63mm brass stem connection and lower mount

For Panel Mounting in Control Rooms:

Recommended: 150mm case length with 100mm brass stem connection and lower back mount

For Heavy-Duty Industrial Use:

Optimal: 200mm case length with 150mm or 200mm brass stem connection and lower mount

For Deep Vessel Applications:

Best Choice: Any case length with 200mm brass stem connection for maximum immersion depth

Maintenance and care in UAE climate

Regular Maintenance Tasks:

  • Visual Inspection: Check for damage, corrosion, or loose connections monthly (more frequently in UAE coastal areas)
  • Calibration Verification: Compare readings with reference standards quarterly
  • Cleaning: Keep dial face clean for easy reading (important in UAE dusty conditions)
  • Connection Check: Ensure brass stem connection remains tight and leak-free
  • Mounting Verification: Check that mounting remains secure for both lower mount and lower back mount configurations

Troubleshooting Common Issues:

Inaccurate Readings:

  • Check for proper thermal contact and adequate immersion depth
  • Verify calibration against known standards
  • Ensure stem is fully inserted into process

Difficult to Read Dial:

  • Clean dial face with appropriate cleaner (UAE dust accumulation)
  • Check lighting conditions in facility
  • Verify proper installation angle for V-shape visibility

Technical specifications

Specification Details
Design Type V-shape (angle thermometer)
Case Material Premium aluminum construction
Case Lengths 100mm, 150mm, 200mm
Stem Material High-quality brass
Stem Lengths 63mm, 100mm, 150mm, 200mm
Temperature Range -20°C to 200°C (comprehensive coverage)
Mounting Options Lower mount, Lower back mount
Thread Standard NPT, BSP, metric options
Applications HVAC, refrigeration, industrial process, food processing, water treatment
Region UAE (Dubai, Abu Dhabi, Emirates)

Why choose Angstrom V-shape thermometers for UAE applications?

  • Innovative Design: V-angle configuration for better visibility and accessibility in UAE facilities
  • Quality Construction: Aluminum cases and brass stems for durability in Emirates climate
  • Comprehensive Range: Multiple case lengths (100-200mm) and stem lengths (63-200mm)
  • Flexible Mounting: Lower mount and lower back mount options for various UAE installations
  • Wide Temperature Range: -20°C to 200°C covers refrigeration to high-temperature processes
  • Corrosion Resistance: Aluminum and brass construction handles UAE humidity and conditions
  • Technical Support: Dubai-based expert guidance for selection and installation
  • Fast Delivery: Same-day delivery in Dubai, fast shipping across Emirates

Conclusion

Angstrom V-shape thermometers represent the perfect fusion of innovative design, quality construction, and practical functionality for UAE industrial applications. With aluminum cases available in 100mm, 150mm, and 200mm lengths, brass stem connections in 63mm, 100mm, 150mm, and 200mm options, flexible mounting choices (lower mount and lower back mount), and a comprehensive temperature range of -20°C to 200°C, these instruments are engineered to meet the demanding requirements of modern industrial applications across Dubai, Abu Dhabi, and the Emirates.

Whether you're monitoring a compact HVAC system with a lower mount configuration, managing a large industrial process with a lower back mount setup, measuring deep vessel temperatures with extended stem lengths, or controlling refrigeration systems in UAE food processing facilities, Angstrom V-shape thermometers deliver the accuracy, durability, and reliability you need.

Contact our technical team today to discuss your specific UAE requirements and discover how our V-shape thermometers can enhance your temperature monitoring capabilities across the Emirates.
