Angstrom Bimetallic Thermometers: How They Work and Complete Specifications

Bimetallic thermometers are mechanical temperature measurement instruments that use a coiled strip made of two different metals with varying coefficients of thermal expansion to convert temperature changes into mechanical movement, rotating a pointer across a calibrated dial to indicate temperature from -20°C to 650°C without requiring external power. Angstrom bimetallic thermometers feature high-grade stainless steel construction, available in dial sizes of 63mm (2.5"), 100mm (4"), and 160mm (6"), stem lengths from 63mm to 300mm (2.5" to 12"), and mounting options including lower mount, center back mount, and adjustable angle for UAE industrial applications across Dubai, Abu Dhabi, and the Emirates including HVAC systems, food processing, chemical plants, and process control.

What is a bimetallic thermometer and how does it work?

A bimetallic thermometer is a mechanical temperature measurement instrument based on the differential thermal expansion of two different metals bonded together. The sensing element consists of a coiled strip made of two metals with different coefficients of thermal expansion. When temperature changes occur, the metal with higher expansion coefficient expands more than the other during heating, causing the strip to bend or coil. During cooling, the strip moves in the opposite direction as the metals contract at different rates. This mechanical movement is directly linked to a pointer that rotates across a calibrated dial, providing an instant visual indication of temperature. The beauty of this design is its simplicity and reliability—no external power required, no electronics to fail, and instant response to temperature changes. In UAE's industrial facilities across Dubai, Abu Dhabi, and the Emirates, bimetallic thermometers provide robust, maintenance-free temperature monitoring in HVAC systems, process equipment, food processing, and any application requiring reliable temperature measurement from -20°C to 650°C.

What are the key components of Angstrom bimetallic thermometers?

Critical Components:

• Bimetallic Element: The sensing element (coiled strip of two bonded metals) that responds to temperature changes
• Stem: Stainless steel housing that contains the bimetallic element and provides insertion into the measured medium
• Case: High-grade stainless steel case that protects the dial and mechanism from UAE environmental conditions
• Dial: Calibrated temperature scale with clear markings for easy reading
• Pointer: Mechanically linked to bimetallic element to indicate current temperature
• Connection: Threaded mounting connection (NPT, BSP, or metric) for installation

What are the specifications and features of Angstrom bimetallic thermometers?

Temperature Range:

Angstrom bimetallic thermometers offer exceptional temperature measurement capabilities:

• Operating Range: -20°C to 650°C (0°F to 1200°F)
• Wide range suitable for diverse UAE industrial applications
• Accurate readings across the entire temperature spectrum
• Covers refrigeration (-20°C) to high-temperature processes (650°C)

Dial Size Options:

Available in three standard dial sizes to meet various UAE application requirements:

• 63mm (2.5 inches): Compact design for space-constrained installations in Dubai facilities
• 100mm (4 inches): Standard size offering excellent readability for general industrial use
• 160mm (6 inches): Large dial for enhanced visibility and precision reading in control rooms

Stem Length Variations:

Flexible stem options to accommodate different installation depths in UAE applications:

• 63mm (2.5 inches): Minimum length for shallow applications and thin-walled vessels
• 100mm (4 inches): Standard short stem for general installations
• 150mm (6 inches): Medium length stem for standard pipe walls
• 200mm (8 inches): Extended reach capability for thicker walls
• 250mm (10 inches): Long stem for deep installations and large vessels
• 300mm (12 inches): Maximum length for specialized deep immersion applications

Mounting options for UAE installations

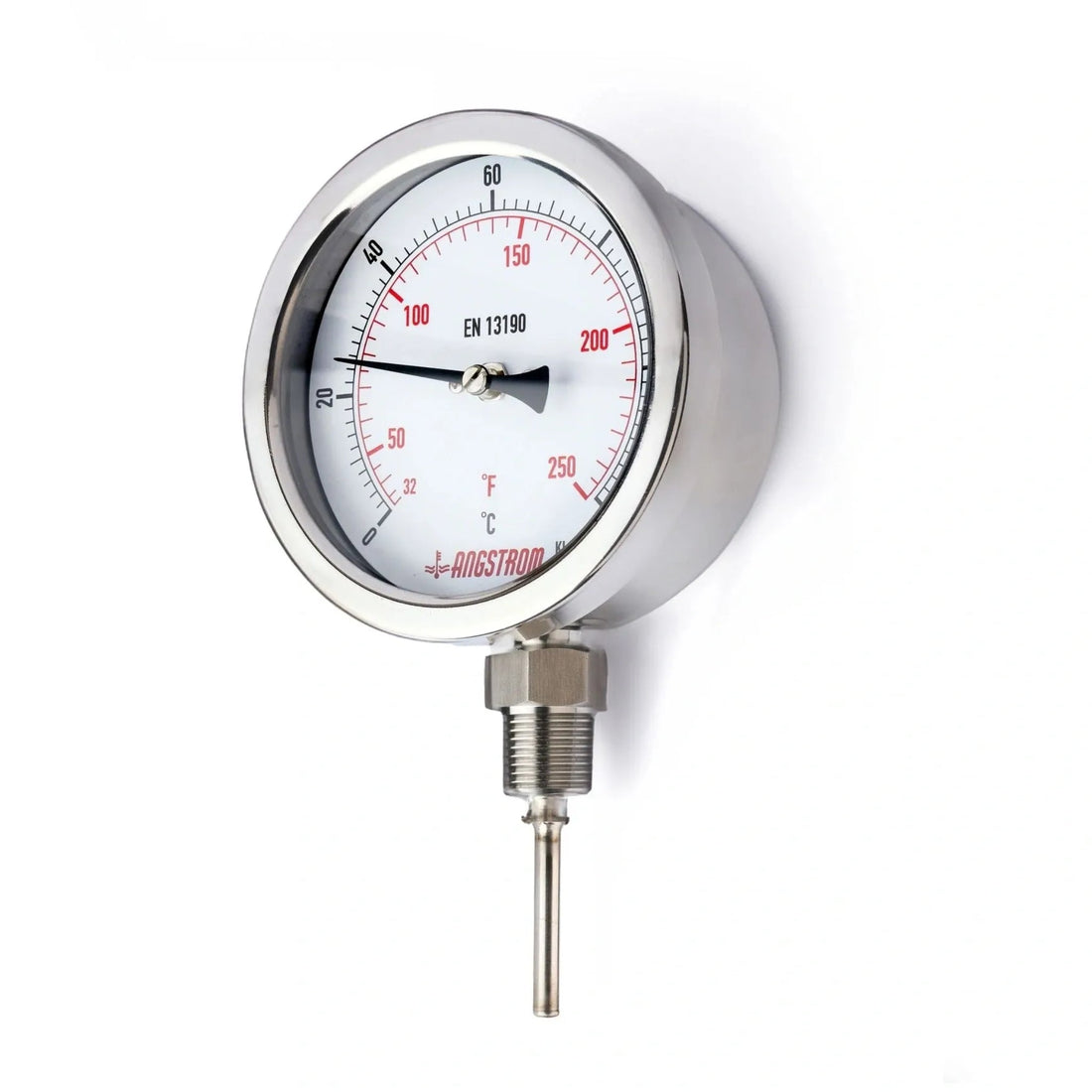

Lower Mount:

• Connection at the bottom of the case
• Ideal for vertical pipe installations in UAE facilities
• Easy reading from above
• Most common configuration for industrial applications

Center Back Mount:

• Connection at the rear center of the case
• Perfect for panel mounting applications in Dubai control rooms
• Clean, professional appearance
• Flush mounting capability

Adjustable Angle Mount:

• Variable angle positioning capability (typically 90° adjustment)
• Optimal dial orientation for any installation in UAE facilities
• Enhanced readability in challenging locations
• Flexibility for difficult mounting situations

Premium construction materials for UAE climate

High-Grade Stainless Steel Construction:

All Angstrom bimetallic thermometers feature superior materials for UAE applications:

• Case Material: High-grade stainless steel for corrosion resistance and durability in Emirates climate
• Stem Material: Premium stainless steel construction ensuring longevity in harsh conditions
• Corrosion Resistance: Suitable for UAE's coastal humidity and industrial environments
• Hygienic Design: Easy to clean and maintain for food processing applications
• Temperature Stability: Materials maintain accuracy across -20°C to 650°C operating range
• Robust Construction: Withstands vibration and harsh UAE industrial conditions

Applications and industries across UAE

HVAC Systems:

• Boiler temperature monitoring in Dubai commercial buildings
• Chiller performance tracking
• Hot water system control
• District cooling network monitoring across Emirates

Food and Beverage Processing:

• Cooking vessel temperature monitoring (stainless steel for sanitary applications)
• Pasteurization process control
• Storage temperature verification
• Brewing and fermentation monitoring in UAE facilities

Chemical and Petrochemical Industries:

• Process control and monitoring in Abu Dhabi facilities
• Reactor temperature measurement
• Pipeline temperature tracking
• Storage tank monitoring

Power Generation:

• Turbine temperature monitoring
• Cooling system control
• Generator temperature tracking

Manufacturing & Industrial:

• Process equipment monitoring across UAE
• Quality control applications
• Equipment protection and safety
• General industrial temperature measurement

Key advantages of bimetallic thermometers for UAE applications

• No External Power Required: Mechanical operation ensures reliability even during power outages in UAE facilities
• Instant Response: Quick temperature indication without warm-up time
• Robust Design: Withstands vibration and harsh UAE industrial conditions
• Easy Installation: Multiple mounting options (lower mount, center back, adjustable angle) for versatility
• Cost-Effective: Low maintenance requirements and long service life
• Wide Temperature Range: -20°C to 650°C covers most UAE applications
• Accurate and Reliable: Mechanical design provides consistent readings
• Corrosion Resistant: Stainless steel construction handles UAE climate

Technical specifications

Specification	Details
Operating Principle	Bimetallic strip differential thermal expansion
Temperature Range	-20°C to 650°C (0°F to 1200°F)
Dial Sizes	63mm (2.5"), 100mm (4"), 160mm (6")
Stem Lengths	63mm, 100mm, 150mm, 200mm, 250mm, 300mm (2.5" to 12")
Mounting Options	Lower mount, Center back mount, Adjustable angle
Case Material	High-grade stainless steel
Stem Material	Premium stainless steel
Connection Types	NPT, BSP, metric threads
Power Required	None (mechanical operation)
Accuracy	Typically ±1% of full scale
Applications	HVAC, food processing, chemical, power generation, industrial
Region	UAE (Dubai, Abu Dhabi, Emirates)

Selection guide for UAE applications

Dial Size Selection:

• 63mm (2.5"): Compact installations, space-limited applications, control panels
• 100mm (4"): Standard industrial applications, good balance of size and readability
• 160mm (6"): Control rooms, critical applications requiring high visibility, precision reading

Stem Length Selection:

• 63mm-100mm: Thin-walled pipes, shallow vessels, surface temperature
• 150mm-200mm: Standard pipe walls, general industrial applications
• 250mm-300mm: Thick-walled vessels, deep immersion, large tanks

Mounting Selection:

• Lower Mount: Vertical pipes, general industrial installations
• Center Back Mount: Panel mounting, control rooms, clean appearance
• Adjustable Angle: Difficult mounting locations, optimal dial orientation needed

Why choose Angstrom bimetallic thermometers for UAE applications?

• Quality Construction: High-grade stainless steel for UAE's demanding conditions
• Comprehensive Range: Multiple dial sizes (63-160mm), stem lengths (63-300mm), and mounting options
• Wide Temperature Range: -20°C to 650°C covers refrigeration to high-temperature processes
• Reliable Performance: Mechanical design ensures consistent accuracy without power
• Corrosion Resistant: Stainless steel handles UAE coastal humidity and industrial environments
• Technical Support: Dubai-based expert guidance for selection and installation
• Fast Delivery: Same-day delivery in Dubai, fast shipping across Emirates
• Cost-Effective: Low maintenance, long service life, no power required

Conclusion

Angstrom's commitment to quality ensures that every bimetallic thermometer meets the highest standards of accuracy, durability, and performance for UAE industrial applications. Our comprehensive range of dial sizes (63mm, 100mm, 160mm), stem lengths (63mm to 300mm), mounting options (lower mount, center back mount, adjustable angle), and wide temperature range (-20°C to 650°C) makes us your ideal partner for temperature measurement solutions across Dubai, Abu Dhabi, and the Emirates.

From compact 63mm dials for tight spaces to large 160mm displays for enhanced visibility in control rooms, and stem lengths from 63mm for shallow applications to 300mm for deep immersion, we provide the perfect thermometer for your specific UAE application in HVAC systems, food processing, chemical plants, power generation, and industrial process control.

Contact Angstrom today to discuss your temperature measurement requirements and discover how our bimetallic thermometers can enhance your process control and monitoring capabilities across UAE.
