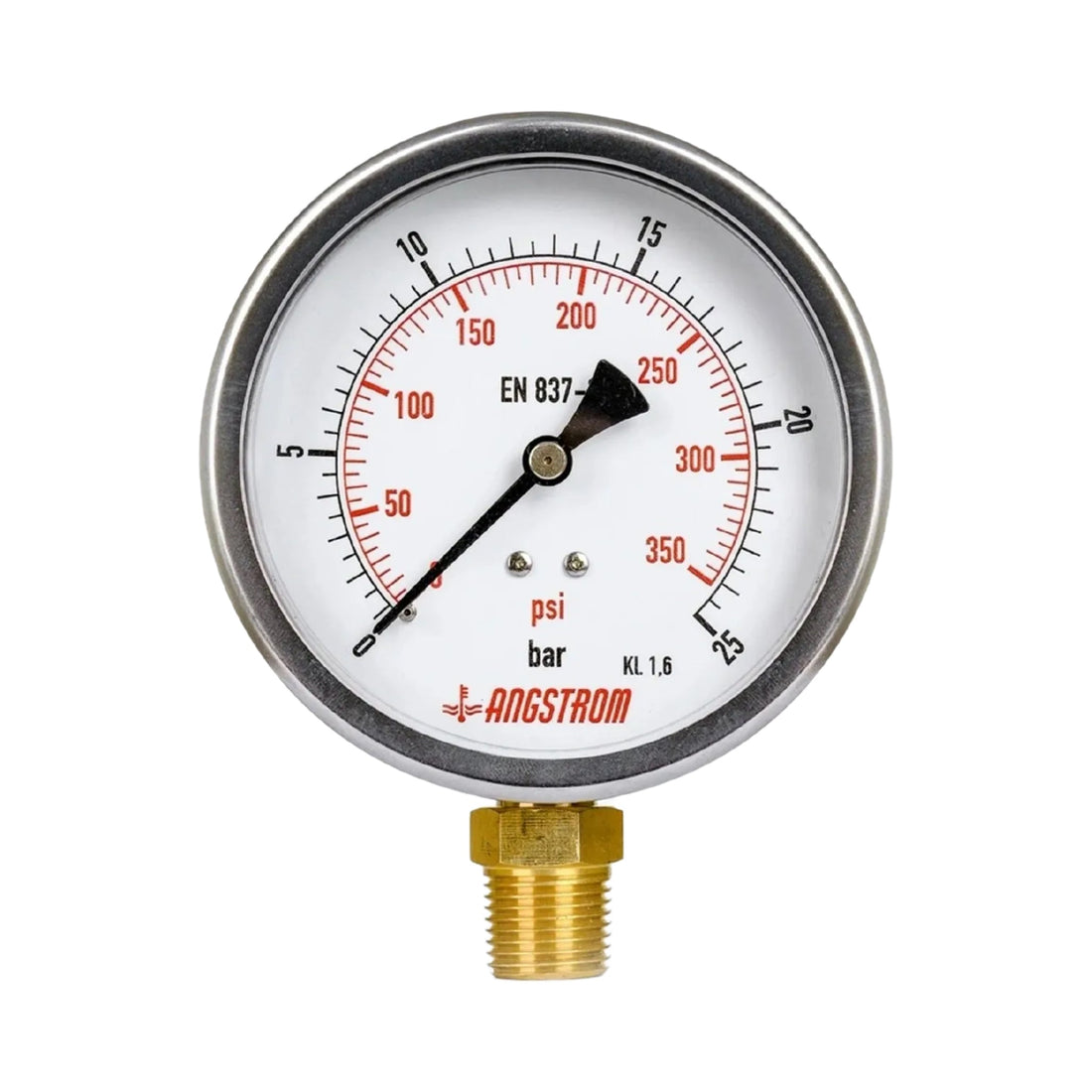

Angstrom Bourdon Tube Pressure Gauges: Precision Measurement Solutions
Share
Bourdon tube pressure gauges are precision mechanical instruments that measure pressure from -1.0 to 1,000 bar using a radially formed tube with an oval cross-section that deflects proportionally to applied pressure, converting this motion into a readable dial indication through a precision movement system. Angstrom offers standard gauges with copper alloy components for general applications and stainless steel gauges (316SS) with increased corrosion resistance for aggressive environments, available in glycerin-filled or dry configurations, manufactured to EN 837-1 standards with dial sizes from 63mm to 150mm for UAE industrial applications across Dubai, Abu Dhabi, and the Emirates including oil & gas, chemical processing, water treatment, HVAC, and manufacturing operations.
What is a bourdon tube pressure gauge and how does it work?
A bourdon tube pressure gauge is a mechanical pressure measurement instrument that uses a curved, flattened tube (the bourdon tube) as its sensing element. The bourdon tube is radially formed with a precision oval cross-section, typically shaped in a C-curve at approximately 250 degrees. When pressure from the measuring medium acts on the tube's interior, the oval cross-section attempts to become circular, causing the non-clamped end of the tube to move. This controlled motion directly correlates to pressure levels and is transmitted through a precision linkage and gear system to rotate a pointer across a calibrated dial, providing an accurate visual indication of pressure. For higher pressure applications beyond 60 bar, Angstrom utilizes bourdon tubes with multiple superimposed windings (helical tubes) or spiral coils in a single plane (spiral tubes) that provide greater deflection and accuracy. This proven technology requires no external power, operates reliably in harsh UAE environments, and provides accurate pressure measurement for gaseous and liquid, non-viscous and non-crystallizing media across industrial applications in Dubai, Abu Dhabi, and the Emirates.
What are the types of Angstrom bourdon tube pressure gauges available?
Standard Bourdon Tube Pressure Gauges:
Angstrom's standard bourdon tube pressure gauges are engineered for liquid or gaseous media applications, provided they are not highly viscous or crystallizing, and compatible with copper alloy components. Key features:
- Measuring Range: -1.0 to 1,000 bar for comprehensive pressure applications
- Construction: Copper alloy bourdon tube and components
- Applications: General industrial use including air, water, oil, and non-corrosive gases
- Cost-Effective: Professional quality for standard UAE applications
- Dial Sizes: 63mm (2.5"), 100mm (4"), 150mm (6")
Stainless Steel Bourdon Tube Pressure Gauges (Enhanced Corrosion Resistance):
Angstrom's bourdon tube pressure gauges with increased corrosion resistance are manufactured entirely from premium 316 stainless steel. These robust instruments are designed for:
- Measuring Range: -1.0 up to 1,000 bar (0...8.7 up to 0...15,000 psi)
- Construction: 316 stainless steel bourdon tube, case, and wetted components
- Media Compatibility: Gaseous and liquid, non-viscous and non-crystallizing media in aggressive environments
- Corrosion Resistance: Handles seawater, chemicals, coastal humidity, and corrosive UAE conditions
- Applications: Oil & gas, chemical processing, marine, desalination, food processing
- Protection: IP65/IP66 rated for dust and water resistance
Glycerin-Filled Bourdon Tube Pressure Gauges:
For critical applications with vibration or pulsation, Angstrom offers bourdon tube pressure gauges with liquid filling (glycerin). The case liquid ensures:
- Vibration Dampening: Precise readability even under high dynamic pressure loads
- Component Protection: Dampens moving parts to prevent damage and reduce wear
- Extended Life: Years of service in high-vibration UAE applications (compressors, pumps)
- Moisture Prevention: No condensation or fogging in humid Emirates conditions
Safety Pressure Gauges:
Angstrom's safety pressure gauges feature:
- Solid Baffle Walls: Between dial and measuring system for operator protection
- Blow-Out Backs: Pressure relief in case of bourdon tube failure
- High-Risk Applications: Ideal for UAE oil & gas and chemical processing
What are the key features and benefits of Angstrom bourdon tube pressure gauges?
Advanced Bourdon Tube Technology:
- Precision Oval Cross-Section: Radially formed tubes for accurate pressure response
- C-Shaped Tubes: Formed at approximately 250°, handle pressures up to 60 bar with exceptional accuracy
- Helical/Spiral Tubes: Multiple windings for higher pressure applications beyond 60 bar
- Direct Correlation: Tube motion directly proportional to pressure for linear accuracy
Precision Movement Systems:
- Swiss-Quality Accuracy: Precision linkage and gear systems for reliable measurement
- Exceptional Robustness: Durable construction for UAE industrial environments
- Reliable Display: Consistent measured value indication across all operating conditions
Quality Manufacturing Standards:
- EN 837-1 Certified: All Angstrom bourdon tube pressure gauges developed, qualified, and manufactured to European standards
- International Ranges: Various globally recognized measuring ranges available
- Multiple Connections: Various process connections (NPT, BSP, metric) for UAE applications
- Global Approvals: Certified for international industrial standards
What industries and applications use bourdon tube pressure gauges in UAE?
Oil & Gas Sector:
- Pipeline pressure monitoring in Abu Dhabi and offshore platforms
- Wellhead pressure measurement and control
- Refinery and processing plant instrumentation
- High-pressure applications requiring stainless steel construction
Chemical Processing:
- Reactor and vessel pressure control in UAE industrial zones
- Corrosive media measurement with 316SS gauges
- Process monitoring and safety systems
Water Treatment & Desalination:
- Desalination plant pressure monitoring (stainless steel for seawater)
- Municipal water system management across Emirates
- Wastewater treatment facility operations
HVAC Systems:
- Boiler and chiller pressure monitoring in Dubai commercial buildings
- Steam system pressure control
- District cooling network monitoring
Manufacturing & Industrial:
- Compressed air systems in Sharjah and Ajman facilities
- Hydraulic systems with glycerin-filled gauges for pulsation dampening
- General industrial process monitoring
Marine Applications:
- Engine room instrumentation in UAE ports and vessels
- Seawater systems requiring 316SS corrosion resistance
- Offshore platform installations
Technical specifications for UAE applications
| Specification | Standard Gauges | Stainless Steel Gauges |
|---|---|---|
| Measuring Range | -1.0 to 1,000 bar | -1.0 to 1,000 bar (0...8.7 to 0...15,000 psi) |
| Bourdon Tube Material | Copper alloy | 316 stainless steel |
| Case Material | Steel or brass | 316 stainless steel |
| Dial Sizes | 63mm (2.5"), 100mm (4"), 150mm (6") | 63mm (2.5"), 100mm (4"), 150mm (6") |
| Fill Options | Dry or glycerin-filled | Dry or glycerin-filled |
| Protection Rating | IP54 (dry), IP65 (glycerin-filled) | IP65/IP66 |
| Mounting | Center back, lower mount, adjustable angle | Center back, lower mount, adjustable angle |
| Connection Types | NPT, BSP, metric threads | NPT, BSP, metric threads |
| Standards | EN 837-1 | EN 837-1 |
| Applications | General industrial (air, water, oil) | Corrosive media, marine, chemical, oil & gas |
| Region | UAE (Dubai, Abu Dhabi, Emirates) | |
Selection guide: Choosing the right bourdon tube pressure gauge for UAE applications
Material Selection:
- Copper Alloy (Standard): Air, water, non-corrosive oils, general industrial use
- 316 Stainless Steel: Seawater, chemicals, corrosive environments, coastal UAE installations, food processing
Fill Selection:
- Dry Case: Climate-controlled environments, minimal vibration, steady pressure
- Glycerin-Filled: Vibration (compressors, pumps), pulsation (hydraulics), outdoor UAE installations, humid conditions
Pressure Range Selection:
- Rule: Normal operating pressure should be in the middle third of gauge range
- Example: For 10 bar operating pressure, use 0-25 or 0-40 bar gauge (not 0-16 bar)
- Benefit: Reduces bourdon tube fatigue, extends life, improves readability
Dial Size Selection:
- 63mm (2.5"): Compact installations, control panels, space-limited applications
- 100mm (4"): Standard industrial applications, good readability
- 150mm (6"): Critical applications requiring high visibility, control rooms
Why choose Angstrom bourdon tube pressure gauges for UAE applications?
- Uncompromising Accuracy: Precision movement systems deliver Swiss-quality measurement
- Exceptional Durability: Robust construction for UAE's harsh industrial environments
- Comprehensive Range: Standard and stainless steel models, multiple sizes and pressure ranges
- EN 837-1 Certified: Manufactured to European quality standards
- Corrosion Resistance: 316SS construction handles UAE coastal humidity and aggressive media
- Safety Features: Baffle walls and blow-out backs for operator protection
- Vibration Protection: Glycerin-filled options for high-vibration UAE applications
- Technical Support: Dubai-based expert guidance for selection and installation
- Fast Delivery: Same-day delivery in Dubai, fast shipping across Emirates
Conclusion
Choose Angstrom bourdon tube pressure gauges for uncompromising accuracy, durability, and safety in your pressure measurement applications across Dubai, Abu Dhabi, and the Emirates. Whether you need standard copper alloy gauges for general industrial use or premium 316 stainless steel gauges for corrosive environments, glycerin-filled gauges for vibration dampening, or safety gauges for high-risk applications, Angstrom's comprehensive range manufactured to EN 837-1 standards delivers reliable performance in UAE's demanding industrial conditions. From oil & gas facilities to chemical processing, water treatment to HVAC systems, Angstrom bourdon tube pressure gauges provide the precision measurement solutions your operations require.
For technical specifications, pressure range selection, or application guidance for your UAE facility, contact our team of experts who can help you select the right bourdon tube pressure gauge for your specific requirements.
