Stainless Steel 316 Thermowell NPT 2.5" to 12" for Temperature Sensor Protection HVAC & Industrial UAE

Overview

This SS316 stainless steel thermowell is designed to protect temperature sensors (RTDs and thermocouples) from harsh industrial conditions while allowing accurate temperature measurement in process systems across the UAE.

Marine-grade SS316 construction provides superior corrosion resistance for coastal, chemical, and high-temperature environments. Available in six insertion lengths from 2.5" (63mm) to 12" (300mm) with NPT threading for direct installation into pipelines, vessels, and HVAC systems.

Widely used across Dubai and the UAE by MEP contractors, instrumentation engineers, and industrial maintenance teams in HVAC, oil & gas, chemical processing, and marine applications.

Key Specifications

• Material: SS316 stainless steel (marine-grade, corrosion-resistant)

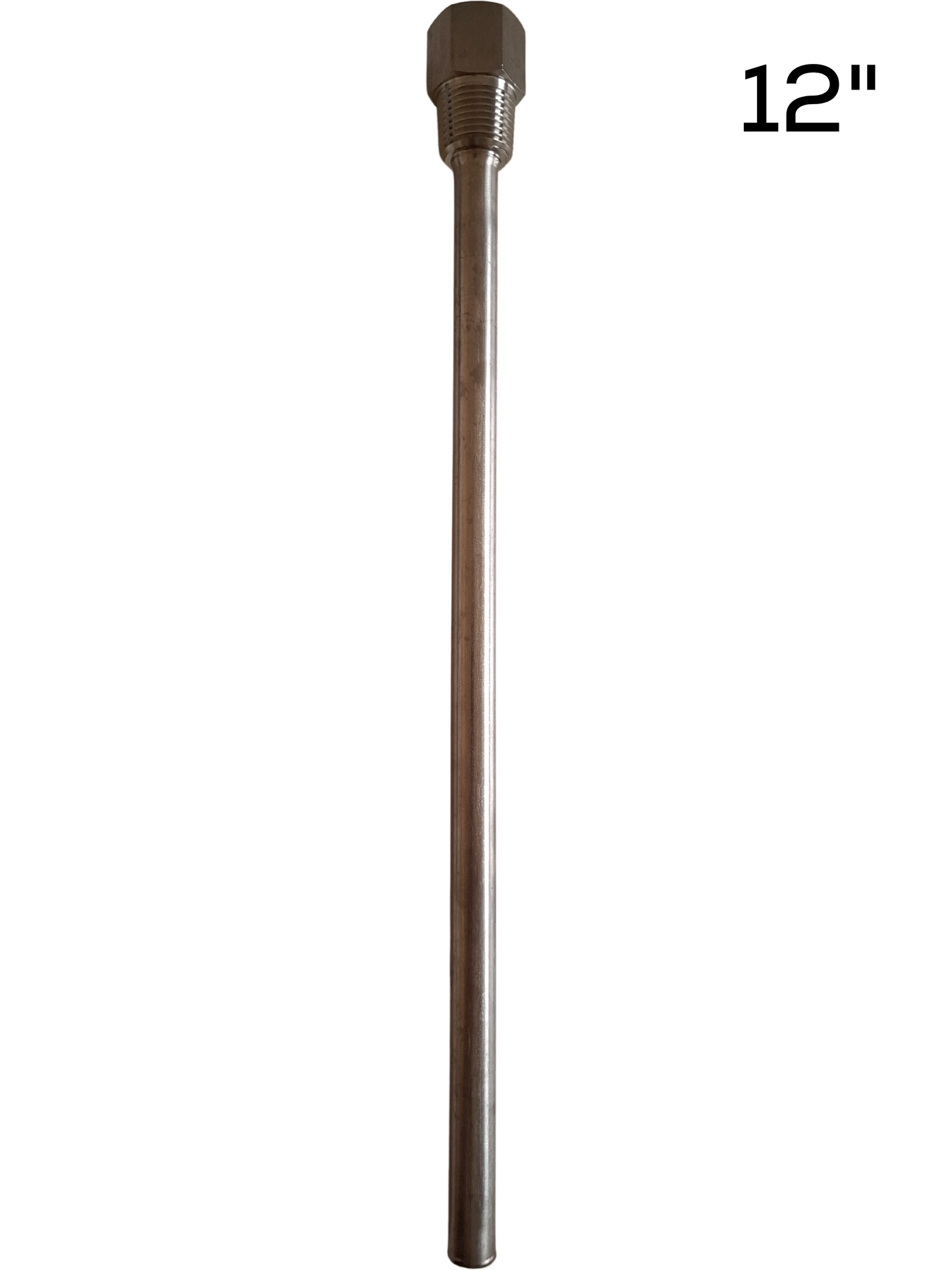

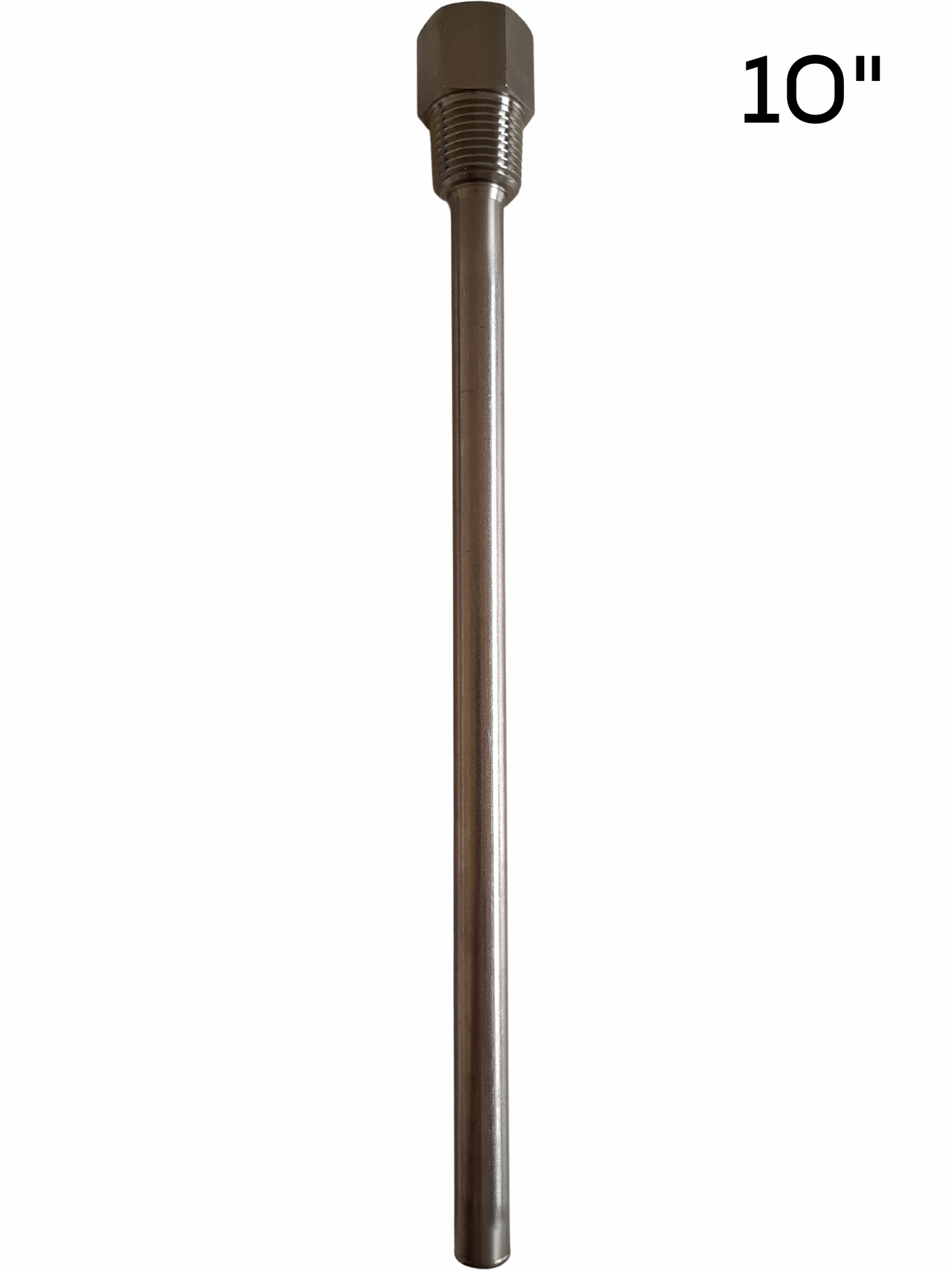

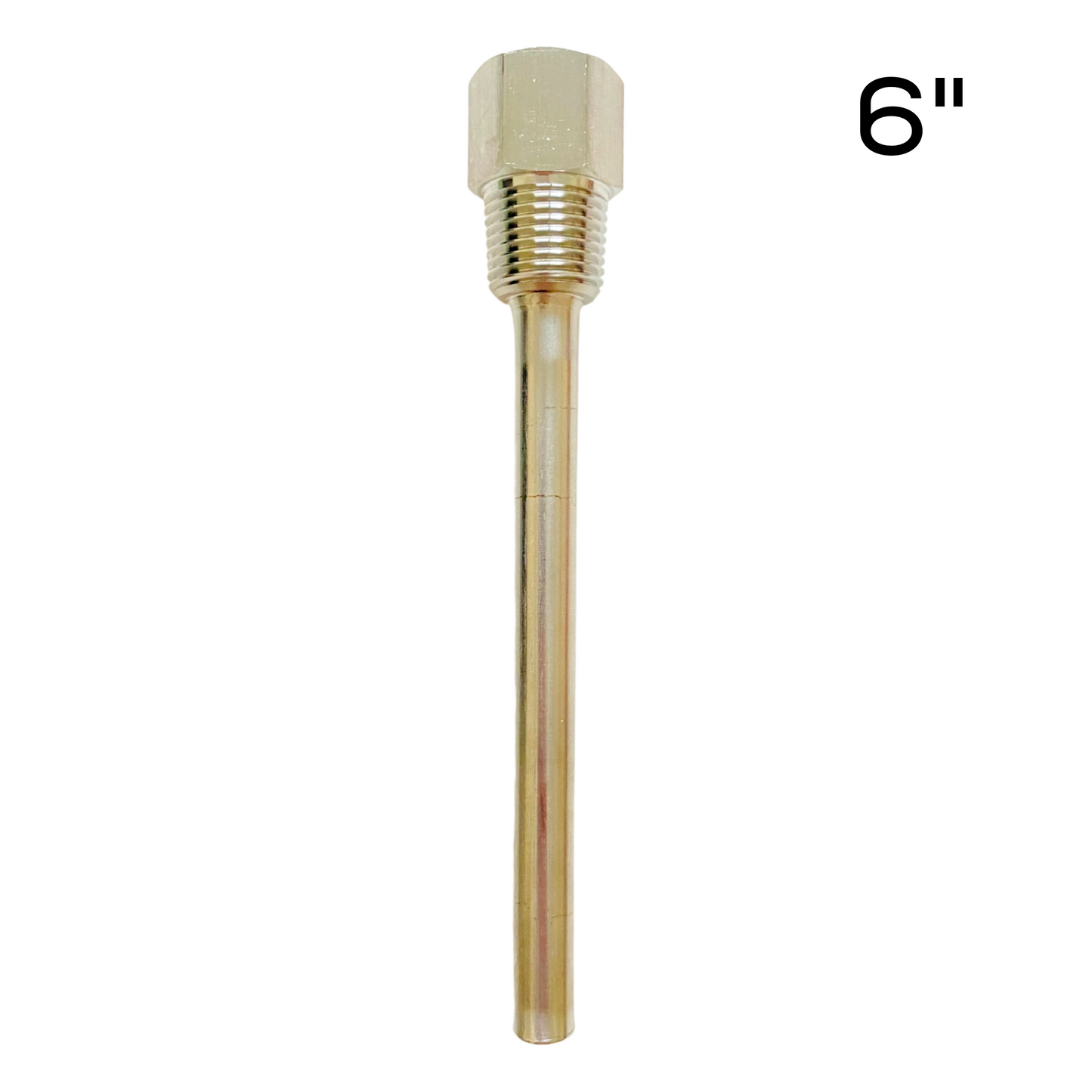

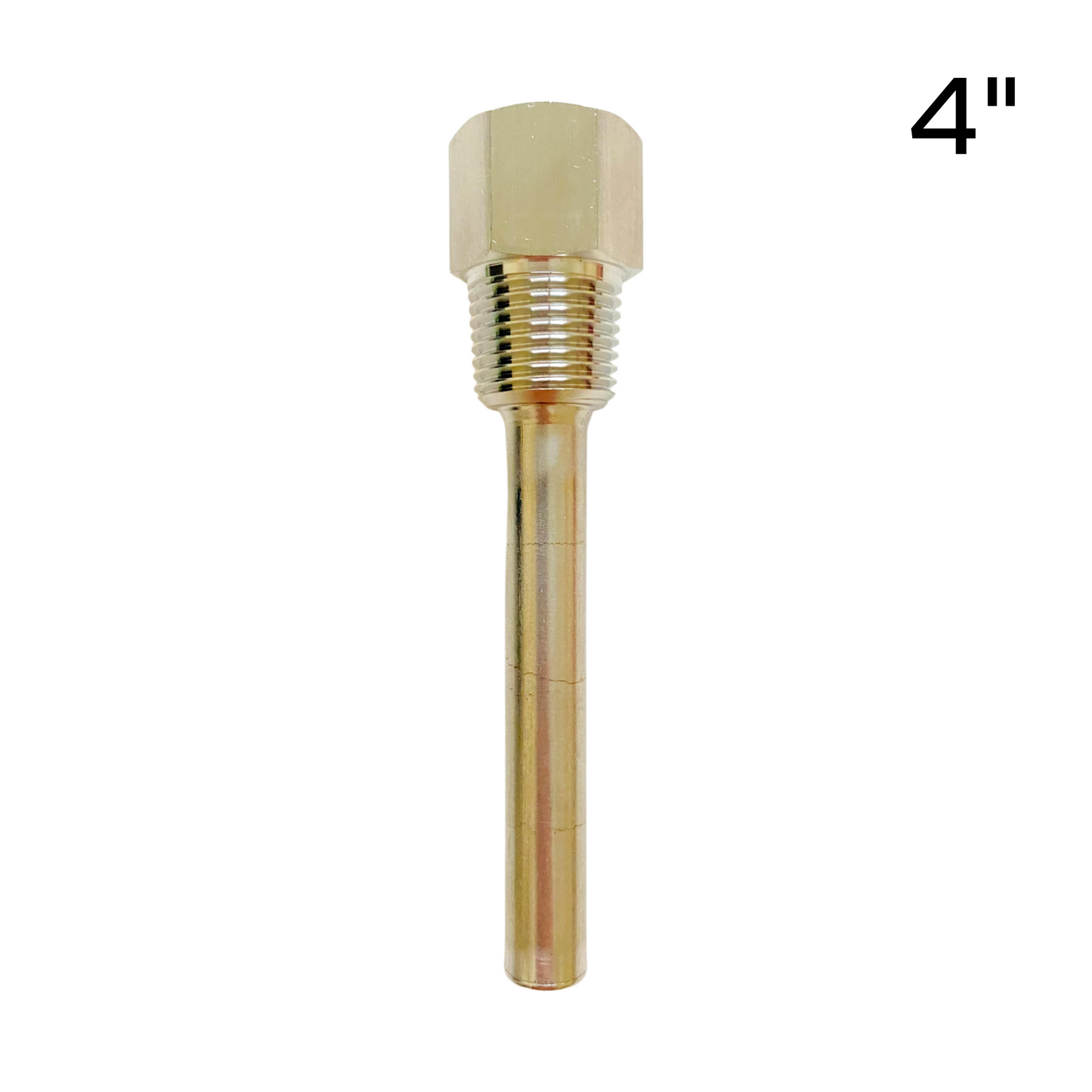

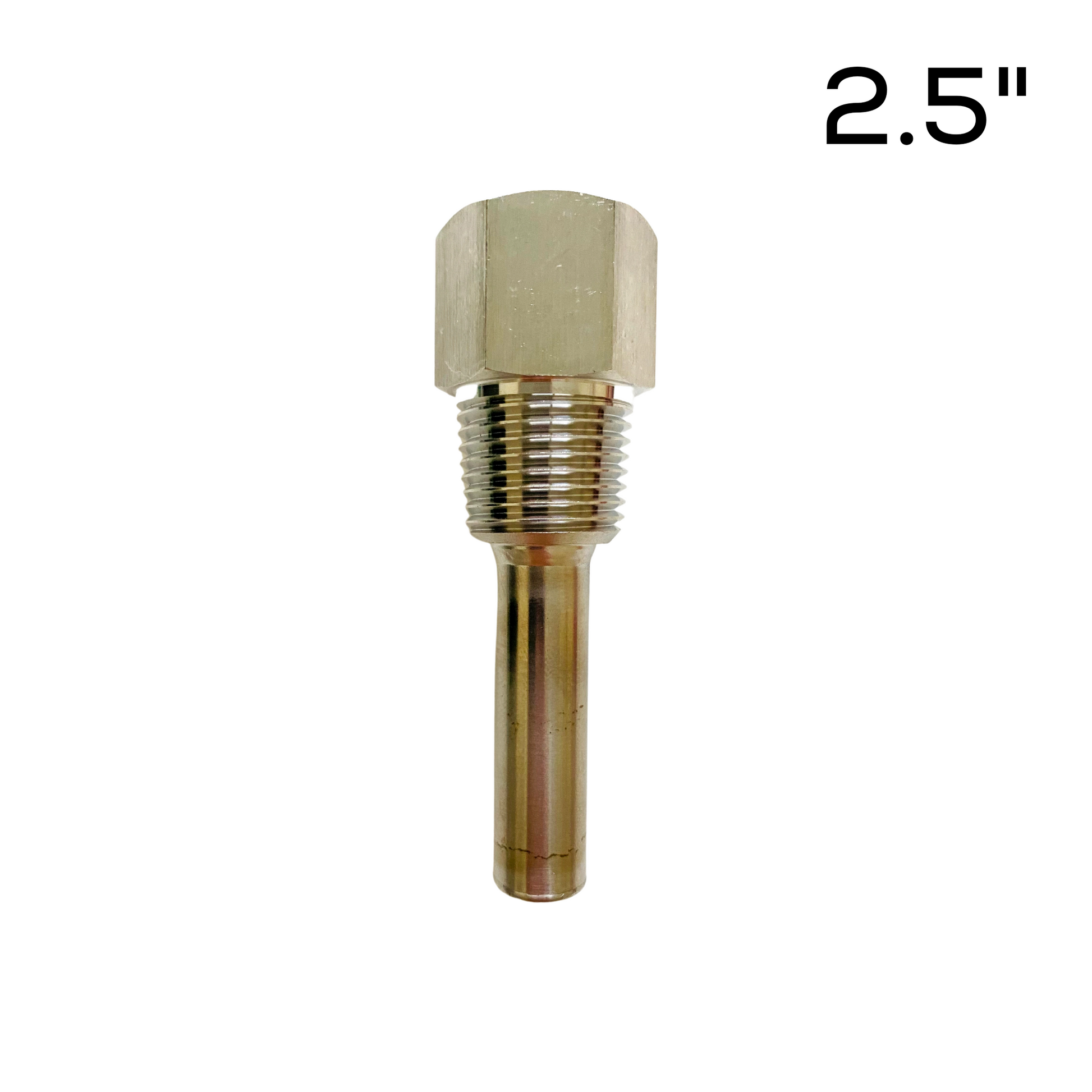

• Available Lengths: 2.5" (63mm), 4" (100mm), 6" (150mm), 8" (200mm), 10" (250mm), 12" (300mm)

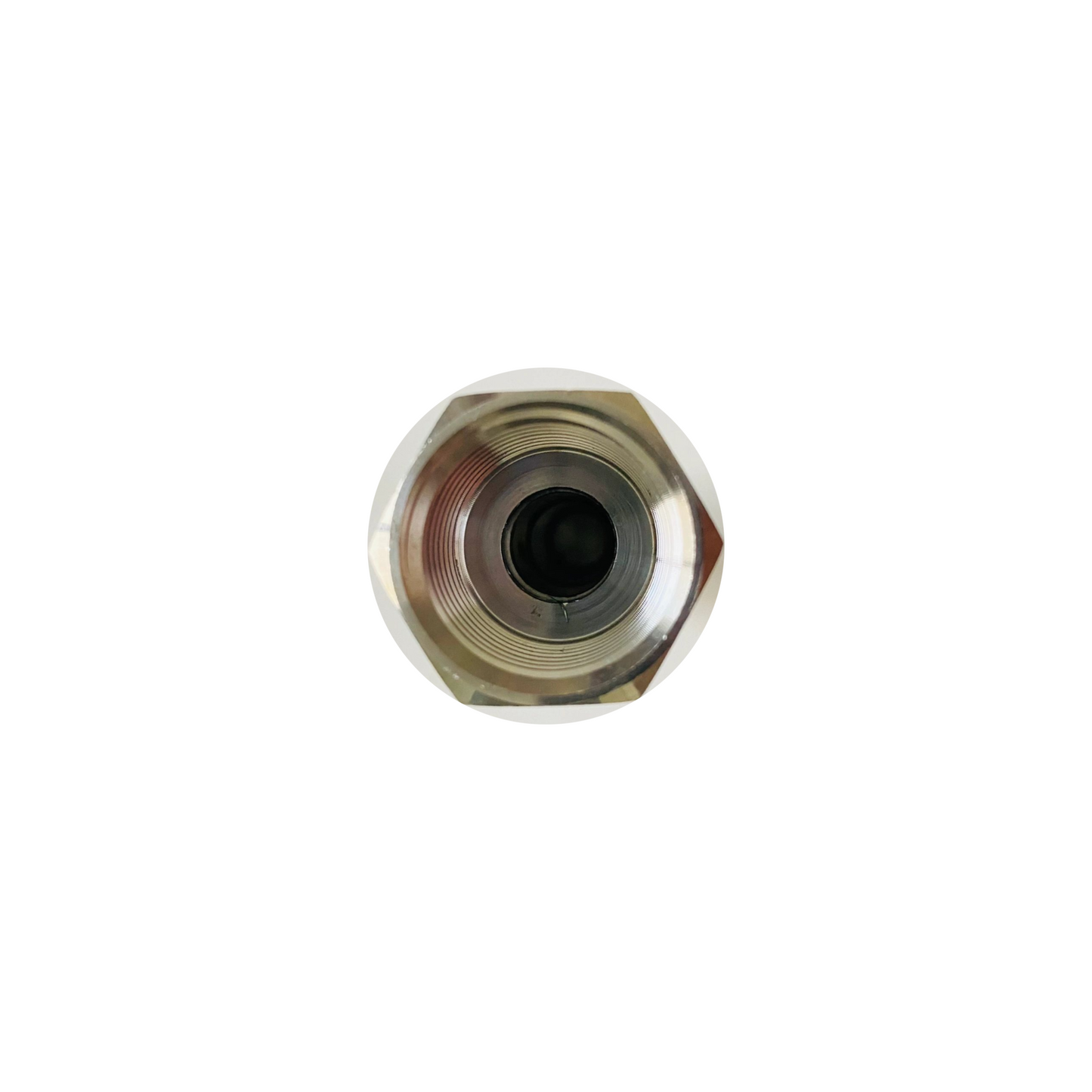

• Connection Type: NPT (National Pipe Thread)
• Sensor Compatibility: RTD and thermocouple temperature sensors
• Application: Industrial process temperature measurement and sensor protection

Applications

• HVAC chilled water and heating systems in commercial buildings
• Oil & gas refineries and petrochemical plants across UAE
• Chemical processing facilities in Dubai and Abu Dhabi industrial zones
• Marine and offshore installations in UAE coastal areas
• Food and beverage processing requiring sanitary-grade materials
• Power generation facilities across UAE

Why Choose This Thermowell

• SS316 marine-grade construction — superior corrosion resistance vs SS304
• Six insertion lengths to match any pipeline diameter or process requirement
• Allows sensor replacement without shutting down the process system
• NPT threading for universal compatibility with UAE industrial installations
• Protects expensive RTD and thermocouple sensors from corrosive media and pressure

How to Select the Right Length

Choose shorter lengths (2.5"–4"):

• Small diameter pipes and compact HVAC installations
• Low-velocity flow applications

Choose medium lengths (6"–8"):

• Standard industrial pipelines and process vessels
• HVAC air handling units and ductwork

Choose longer lengths (10"–12"):

• Large diameter pipelines and tanks
• High-velocity flow requiring deeper immersion for accurate measurement

Commercial Note

Essential temperature measurement accessory for HVAC, oil & gas, and industrial installations across Dubai and the UAE. Stocked locally in all six lengths for immediate dispatch — trusted by UAE MEP contractors, instrumentation engineers, and industrial maintenance teams.
