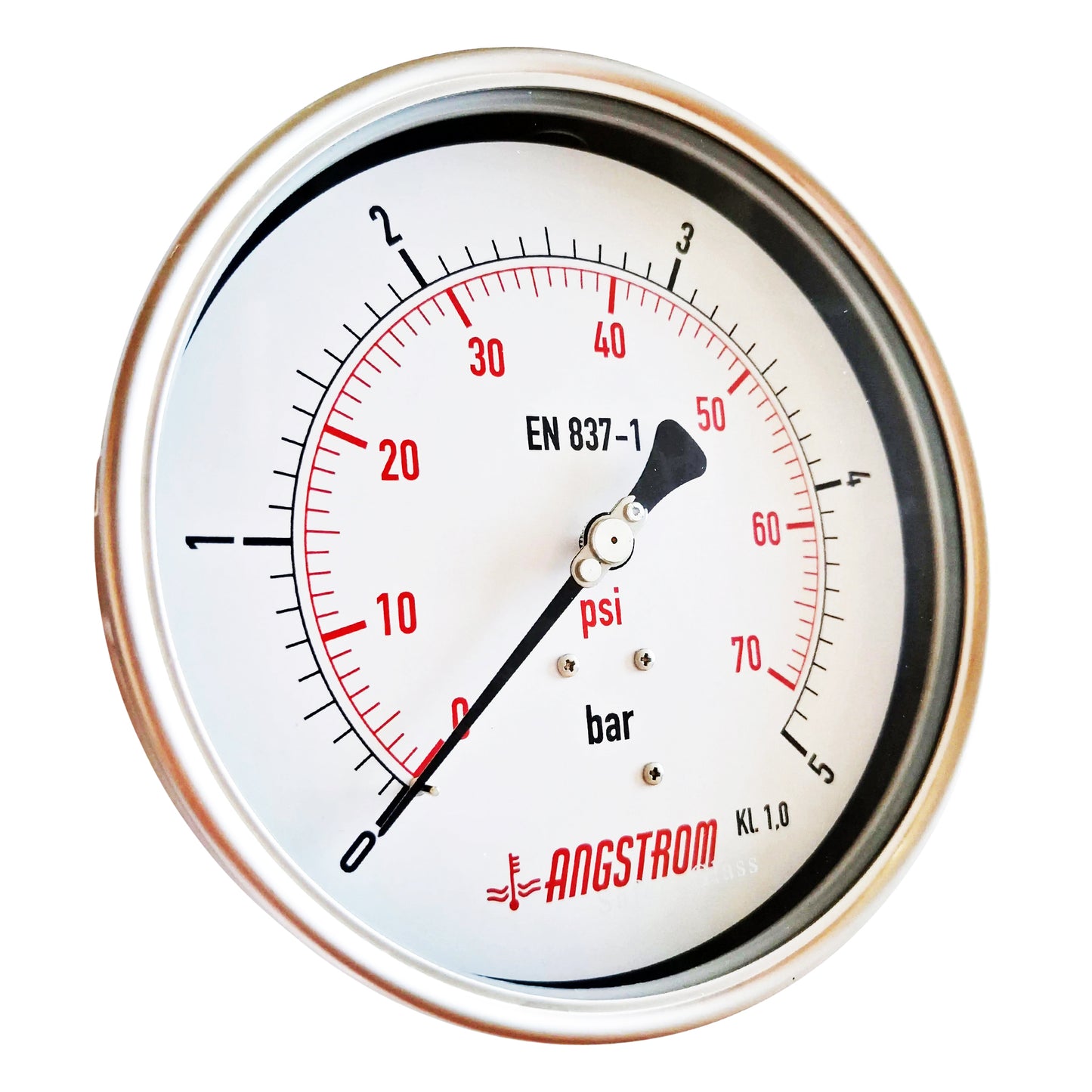

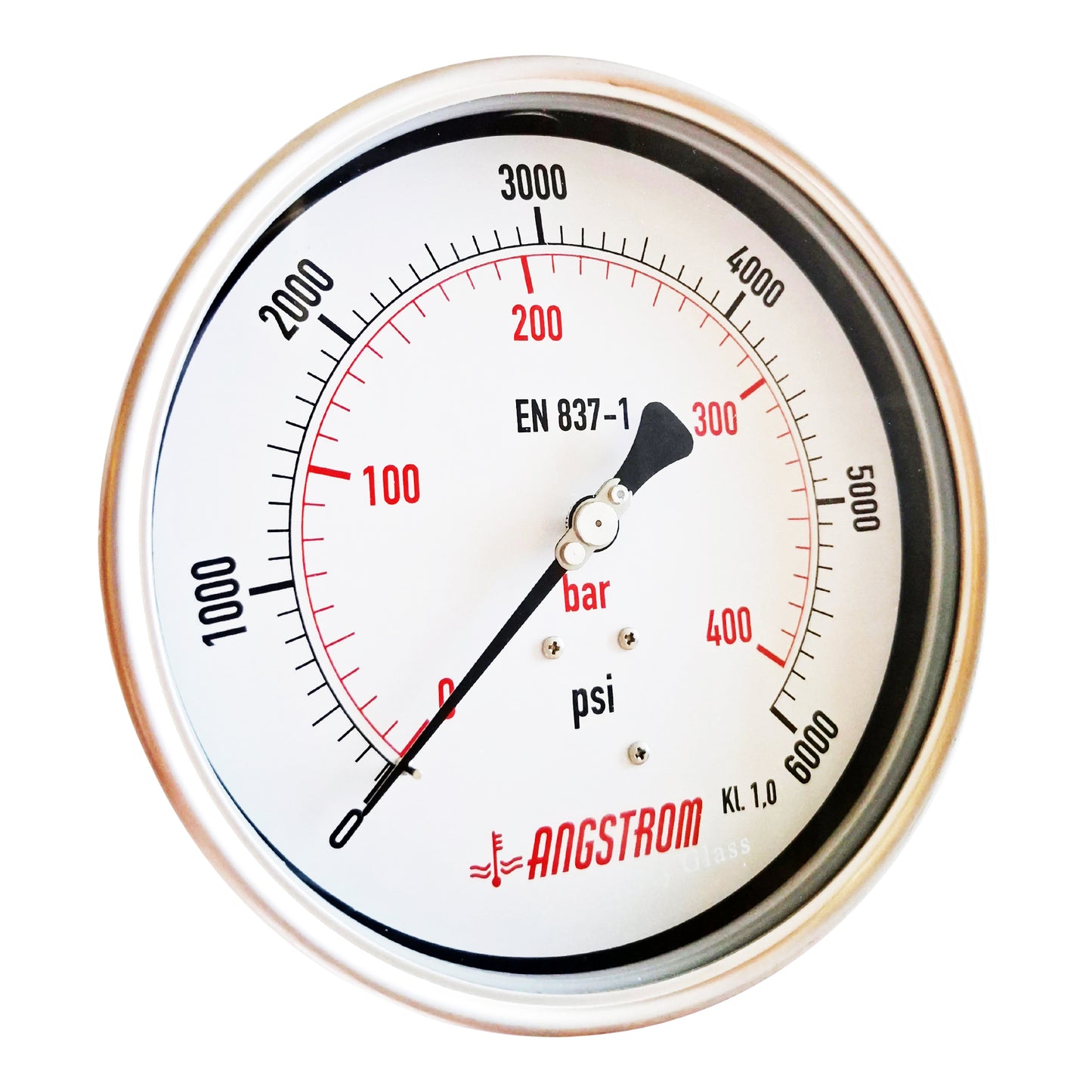

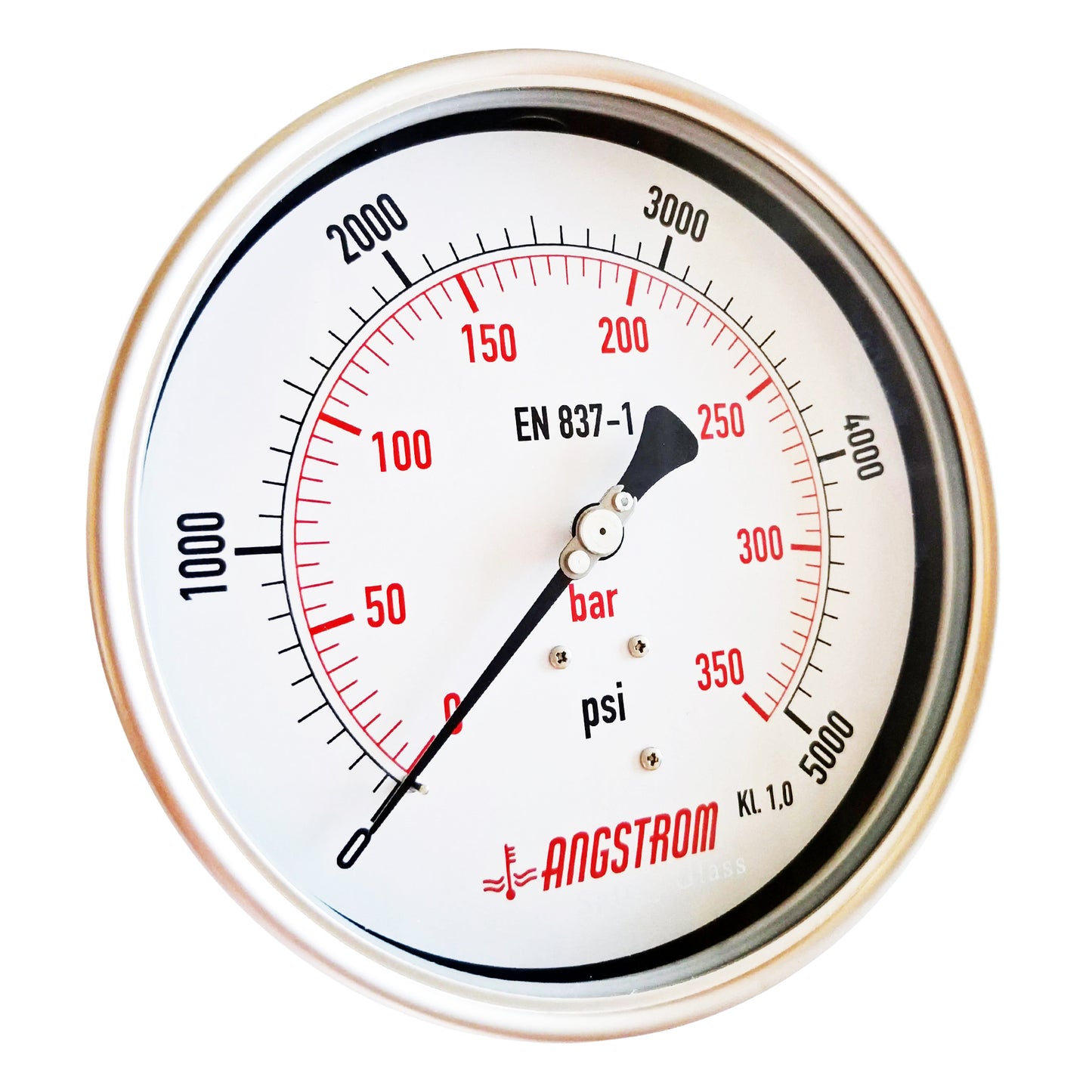

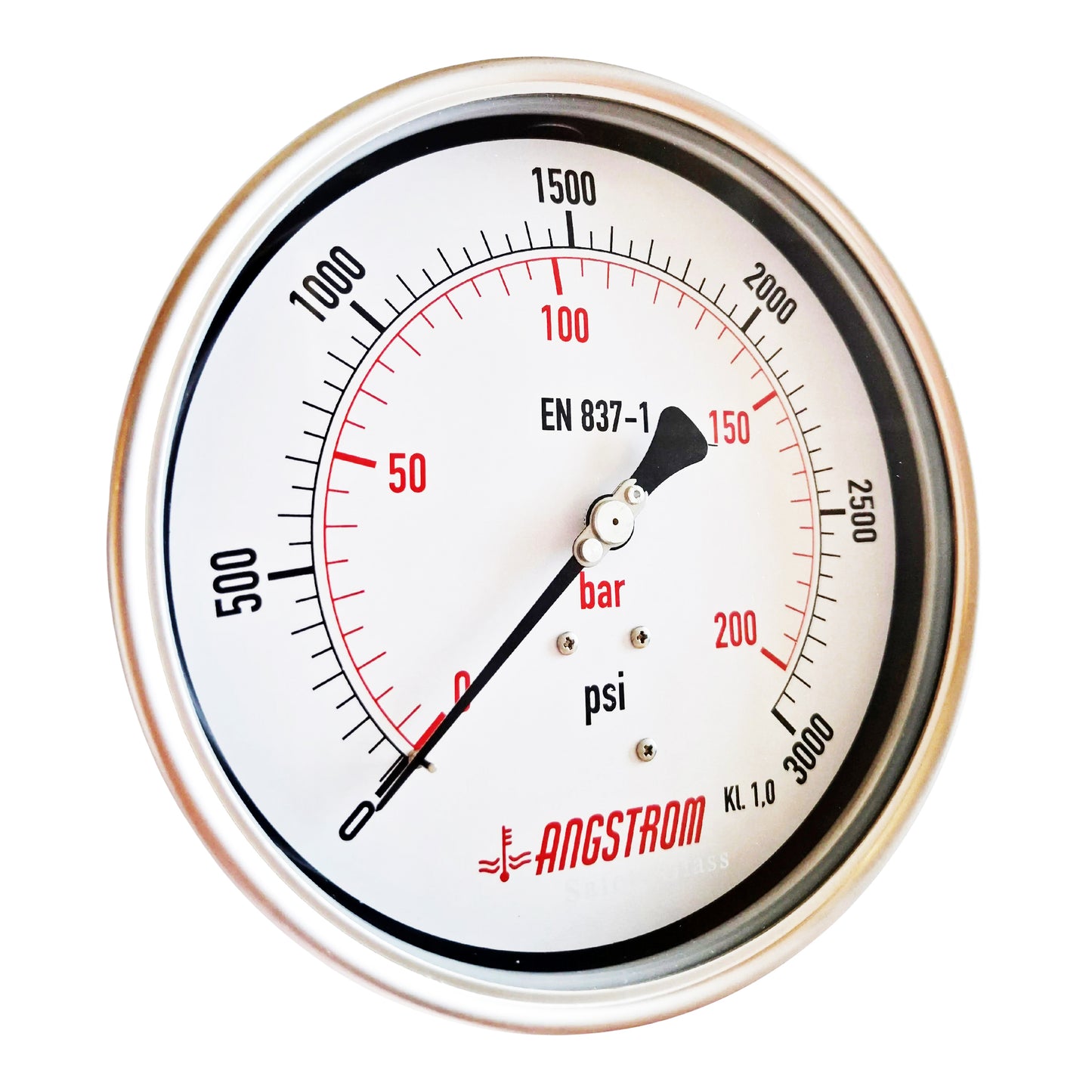

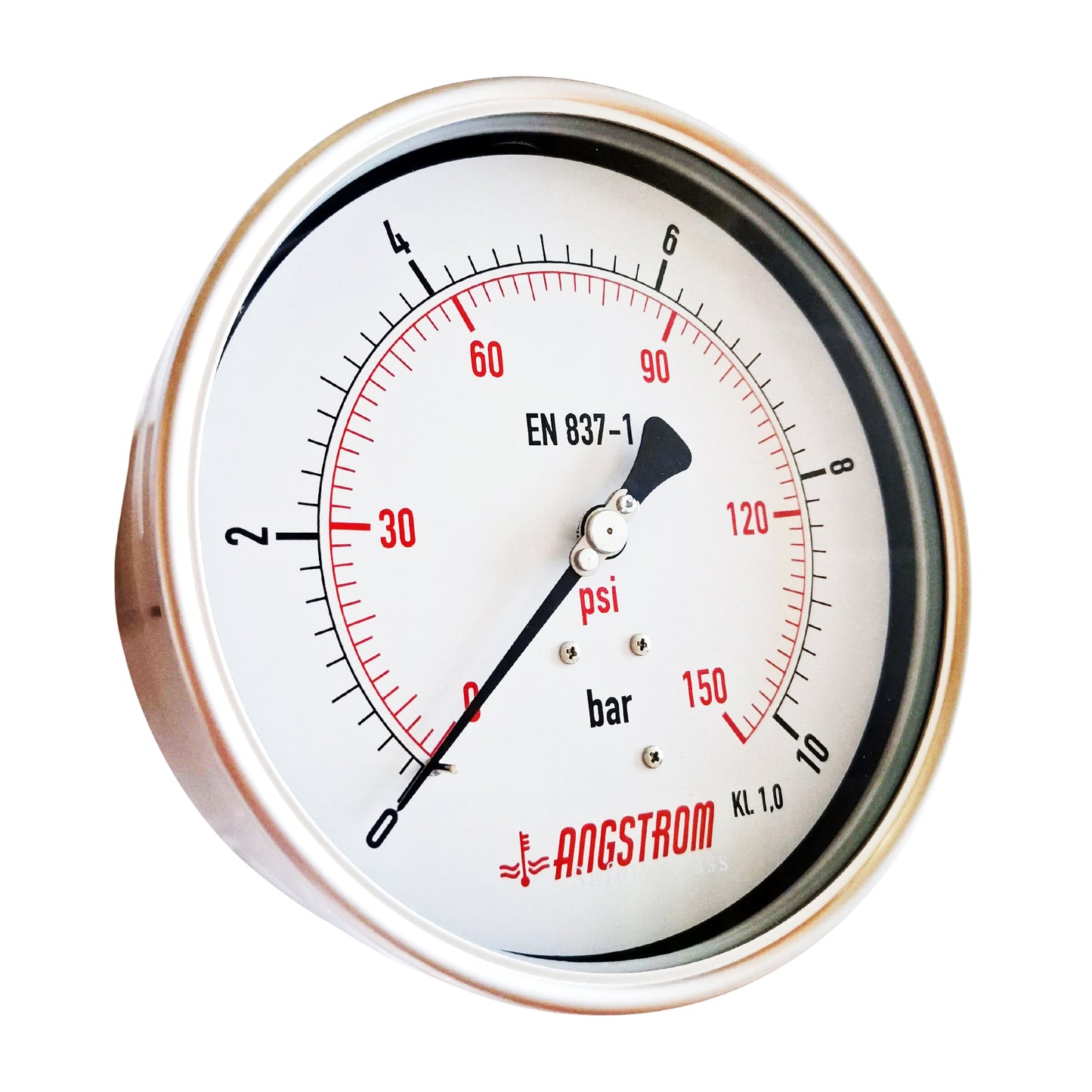

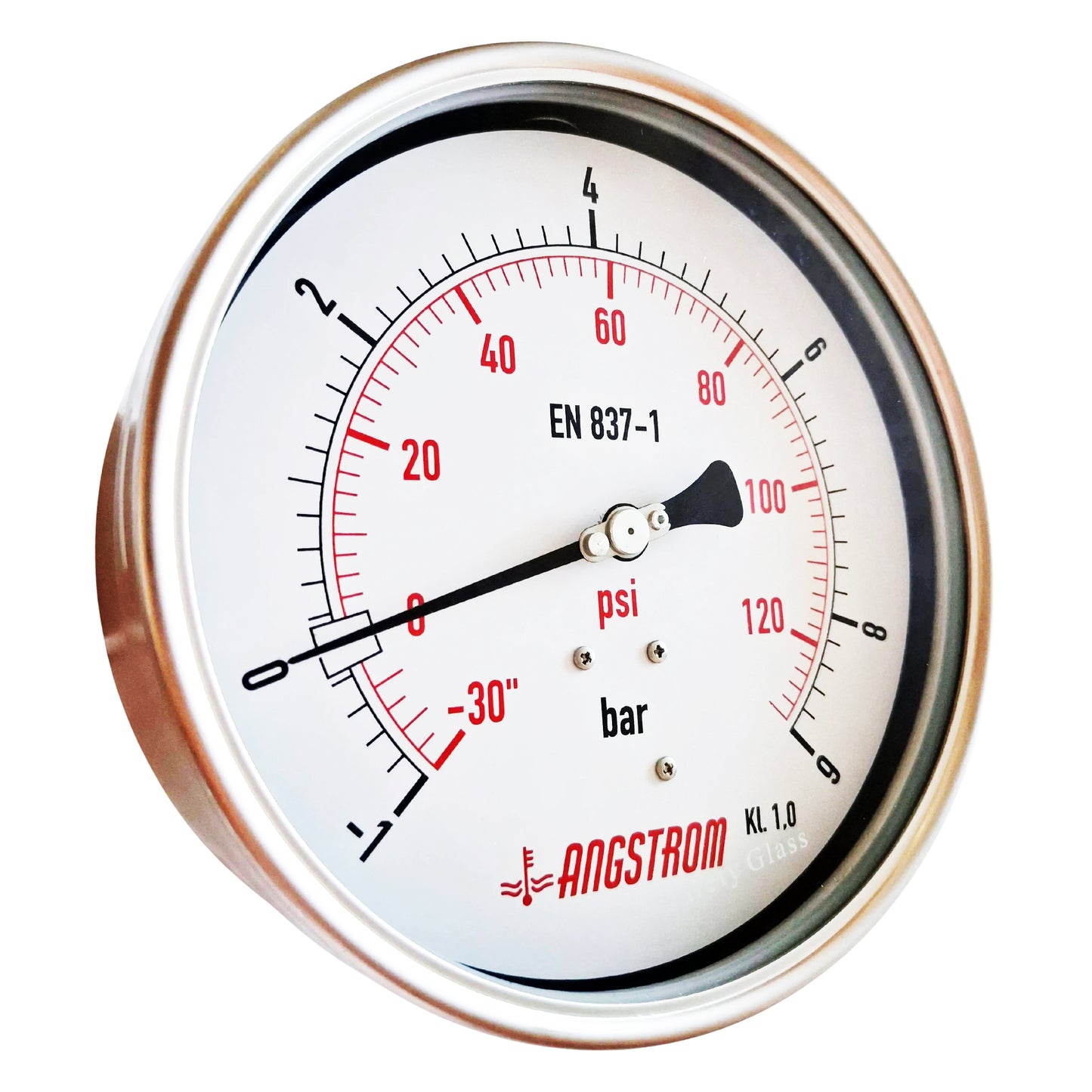

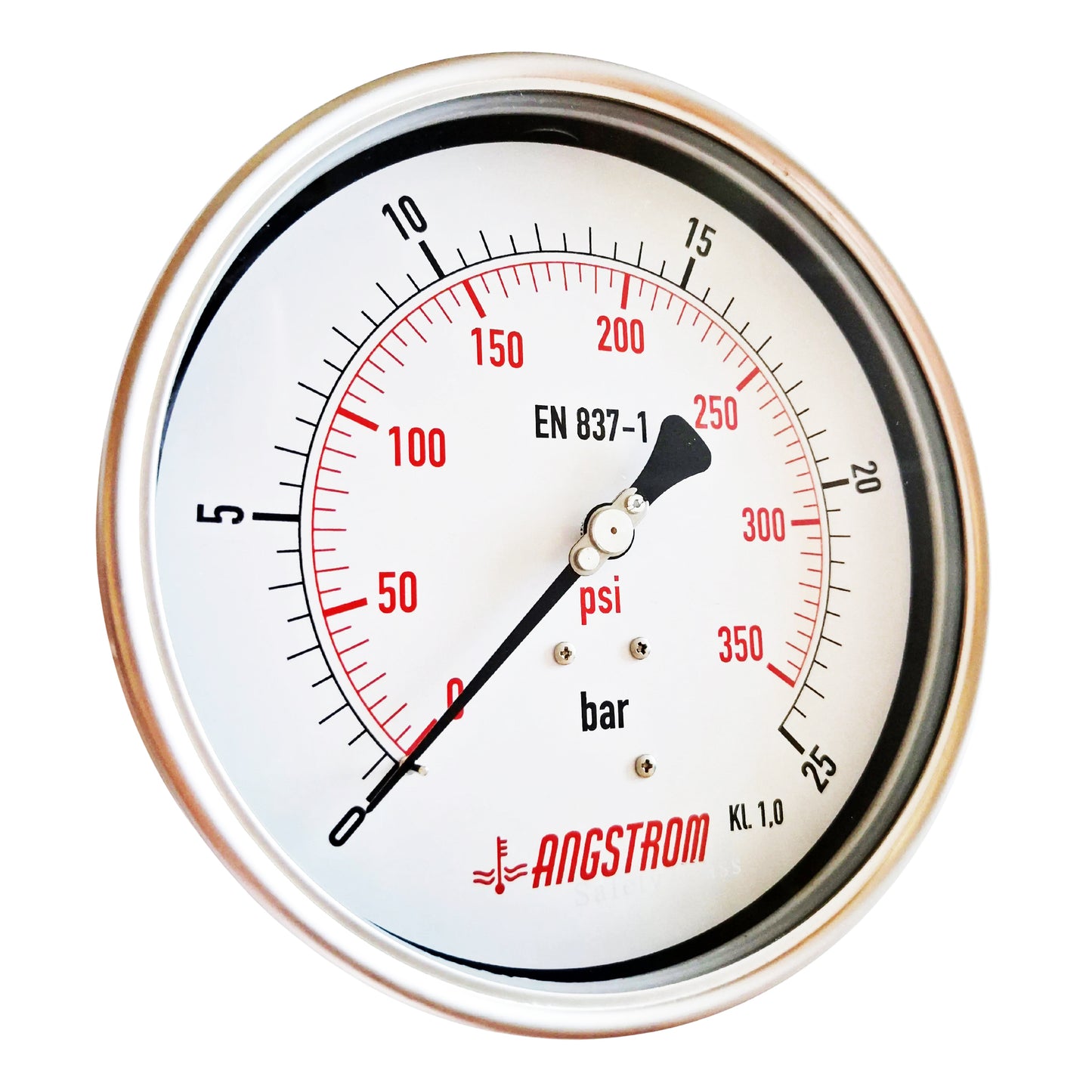

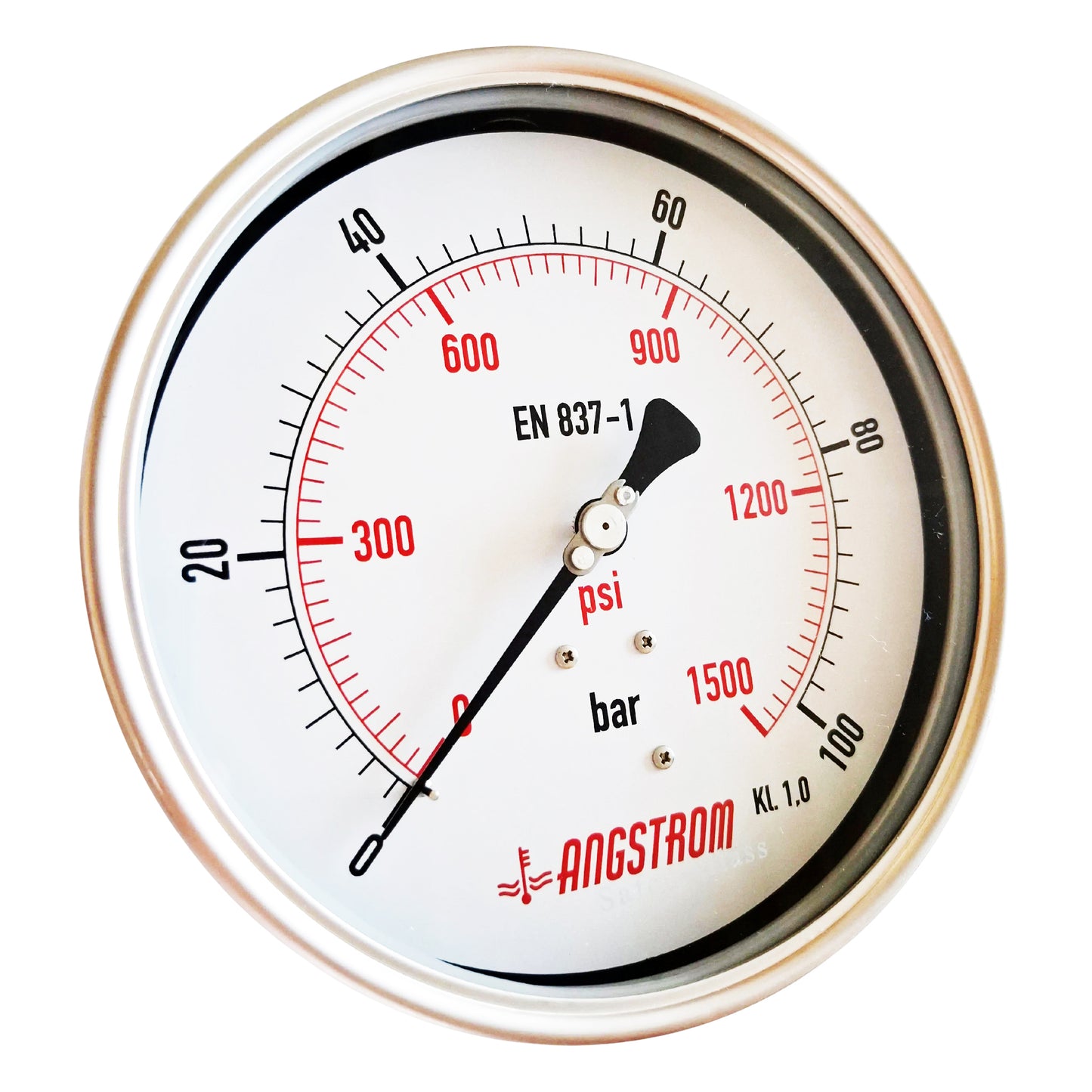

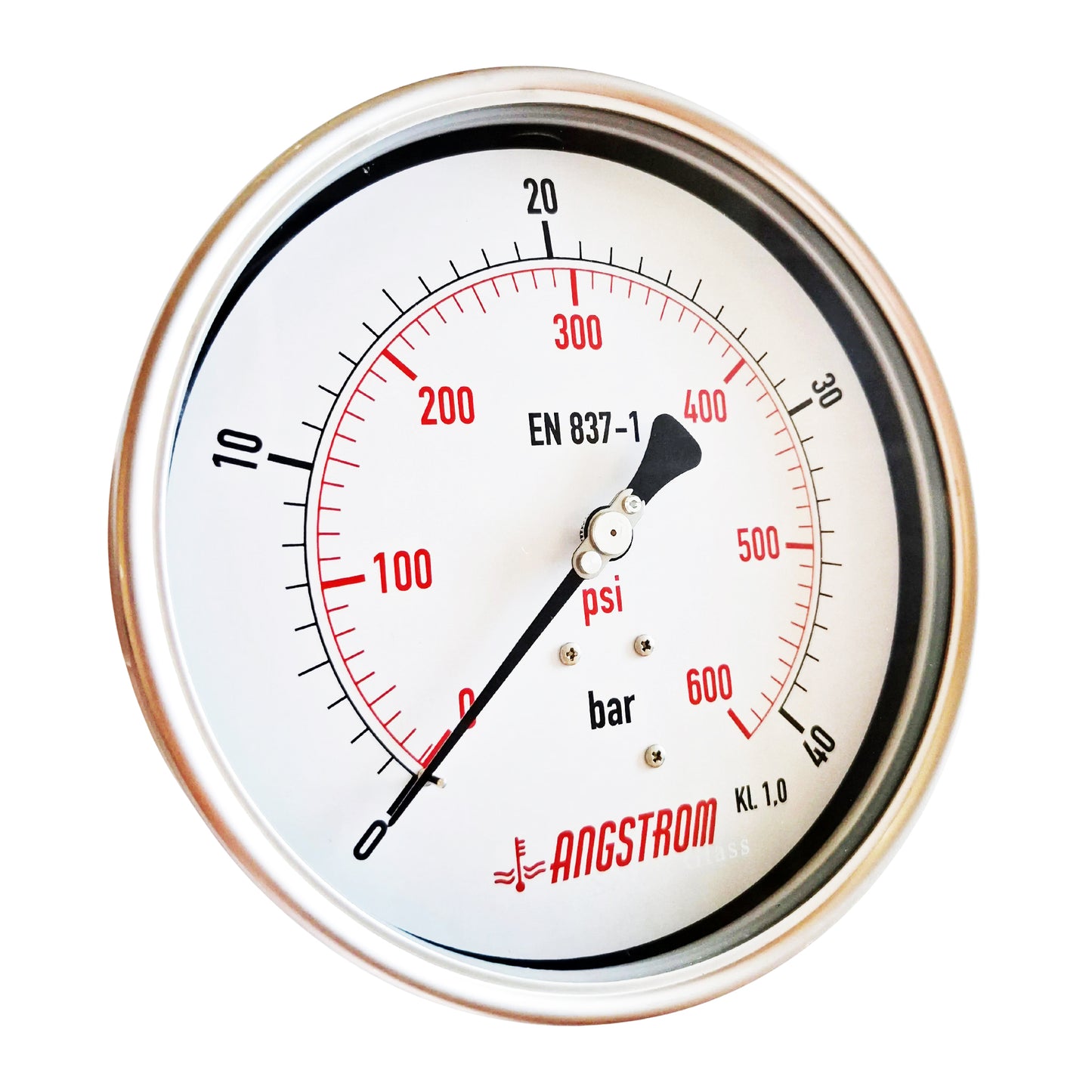

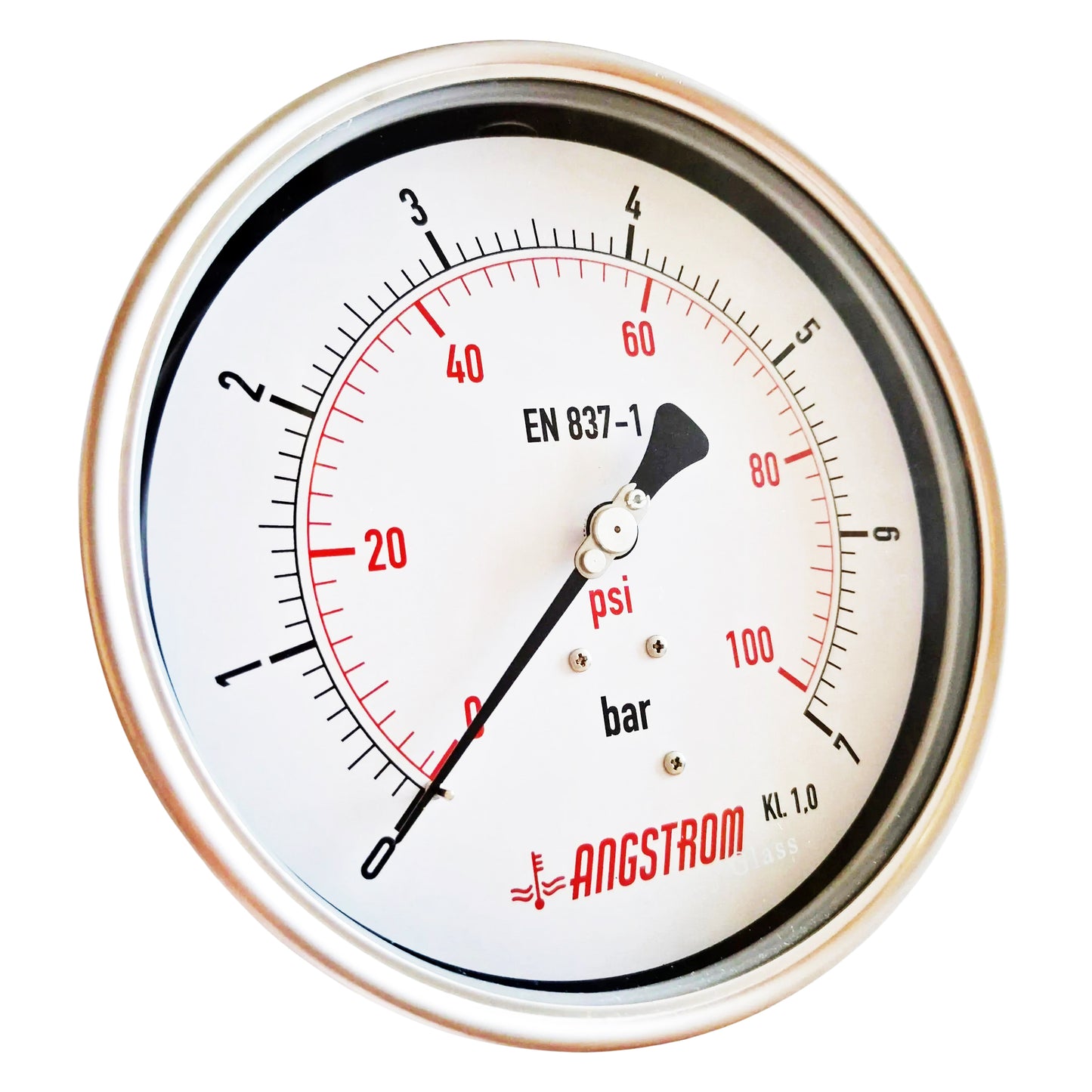

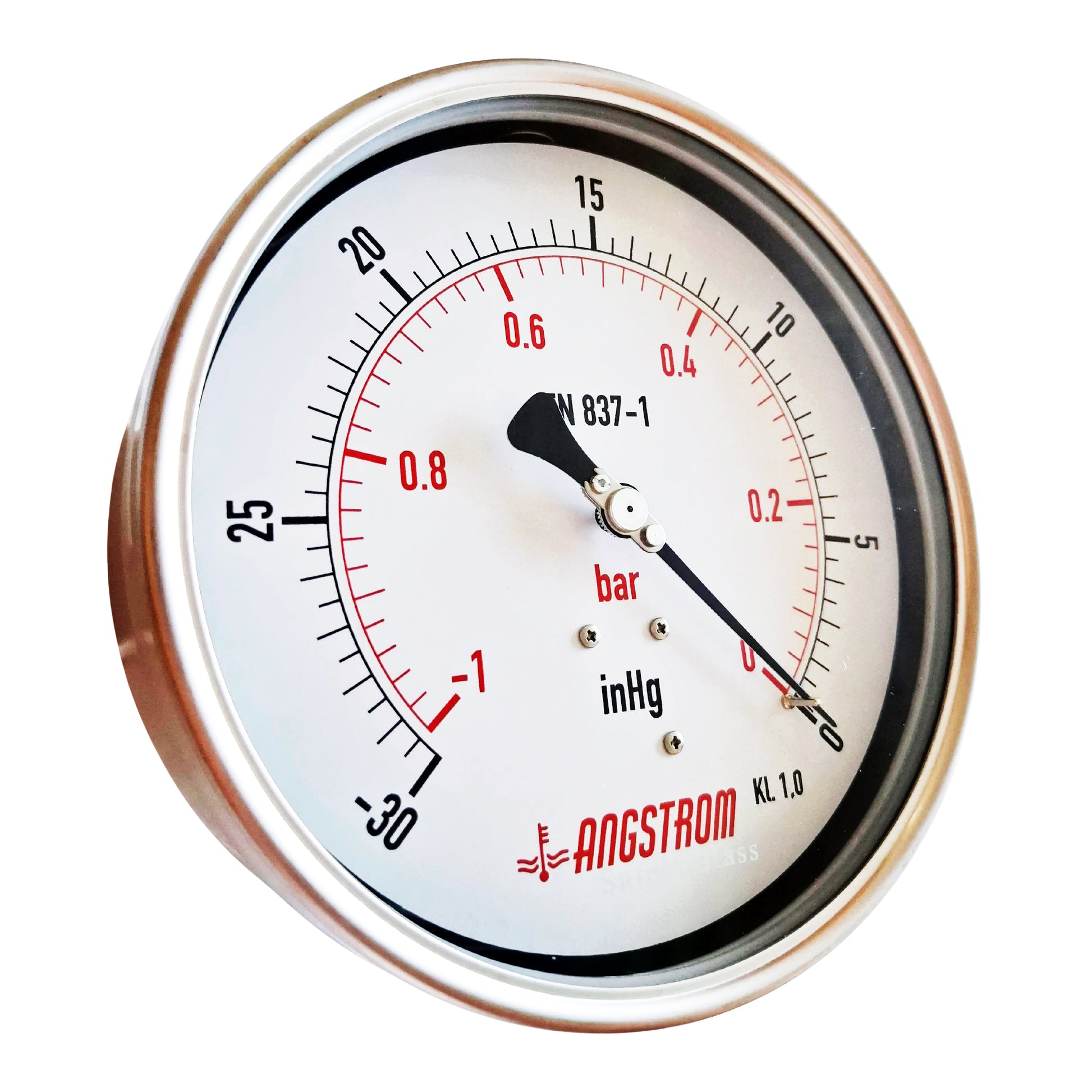

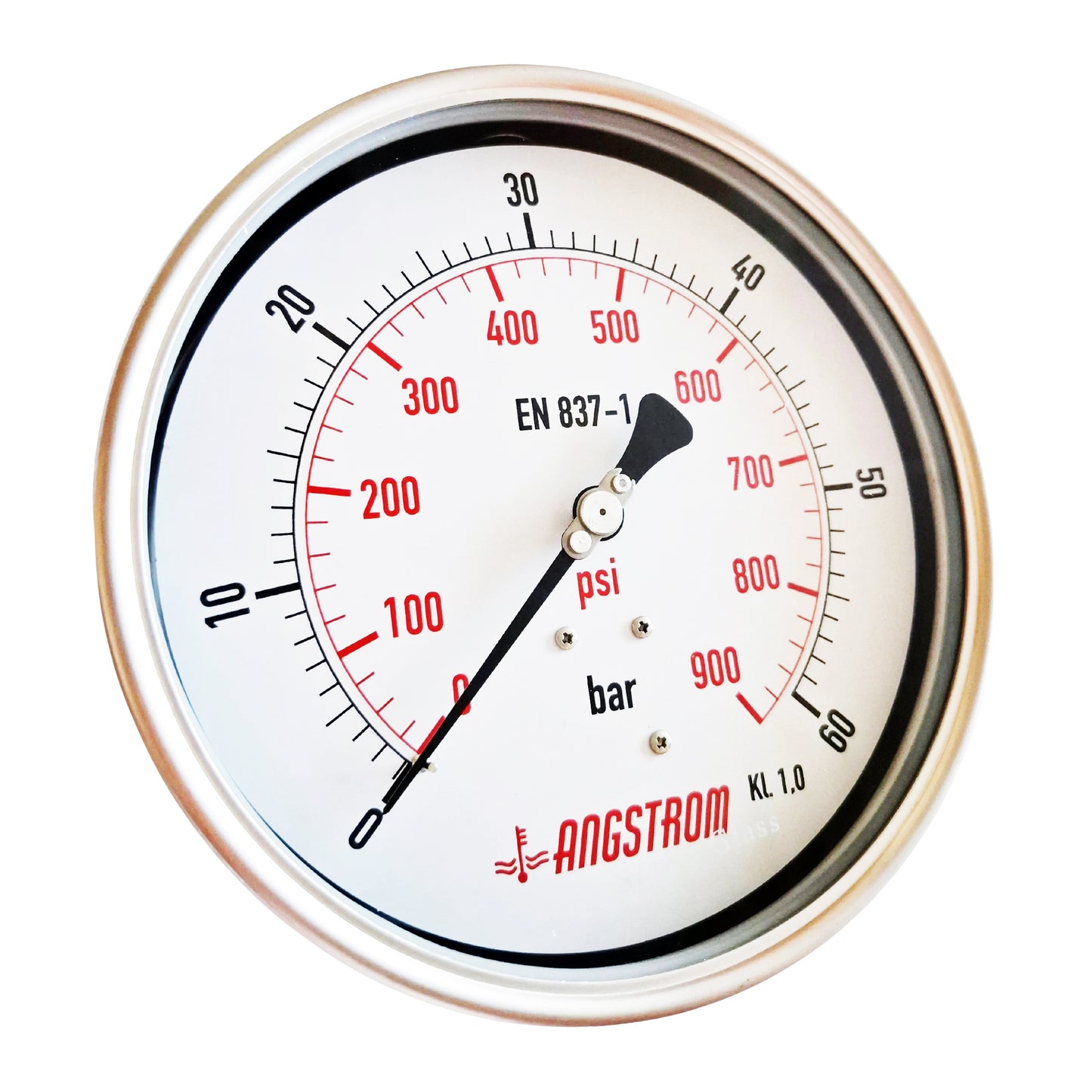

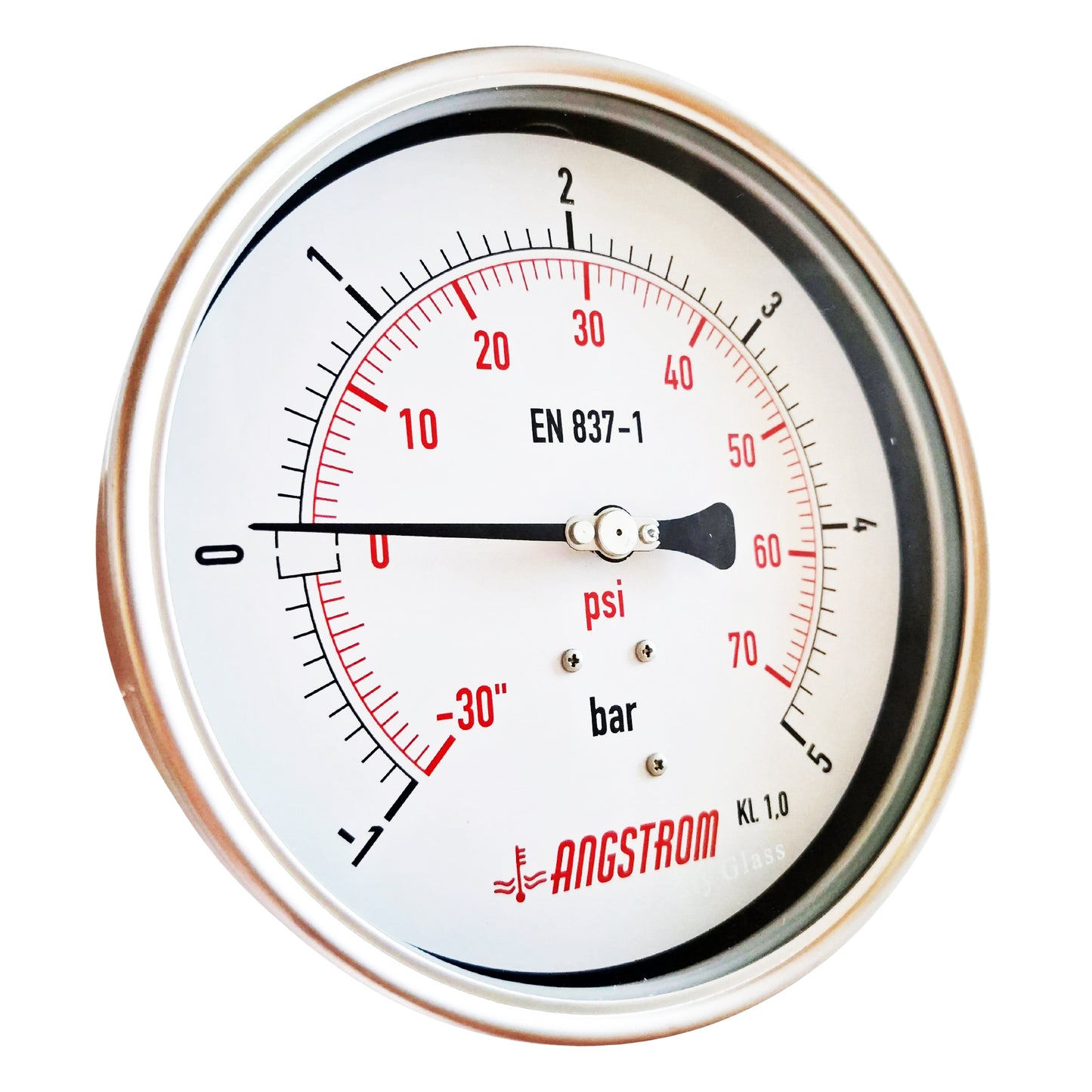

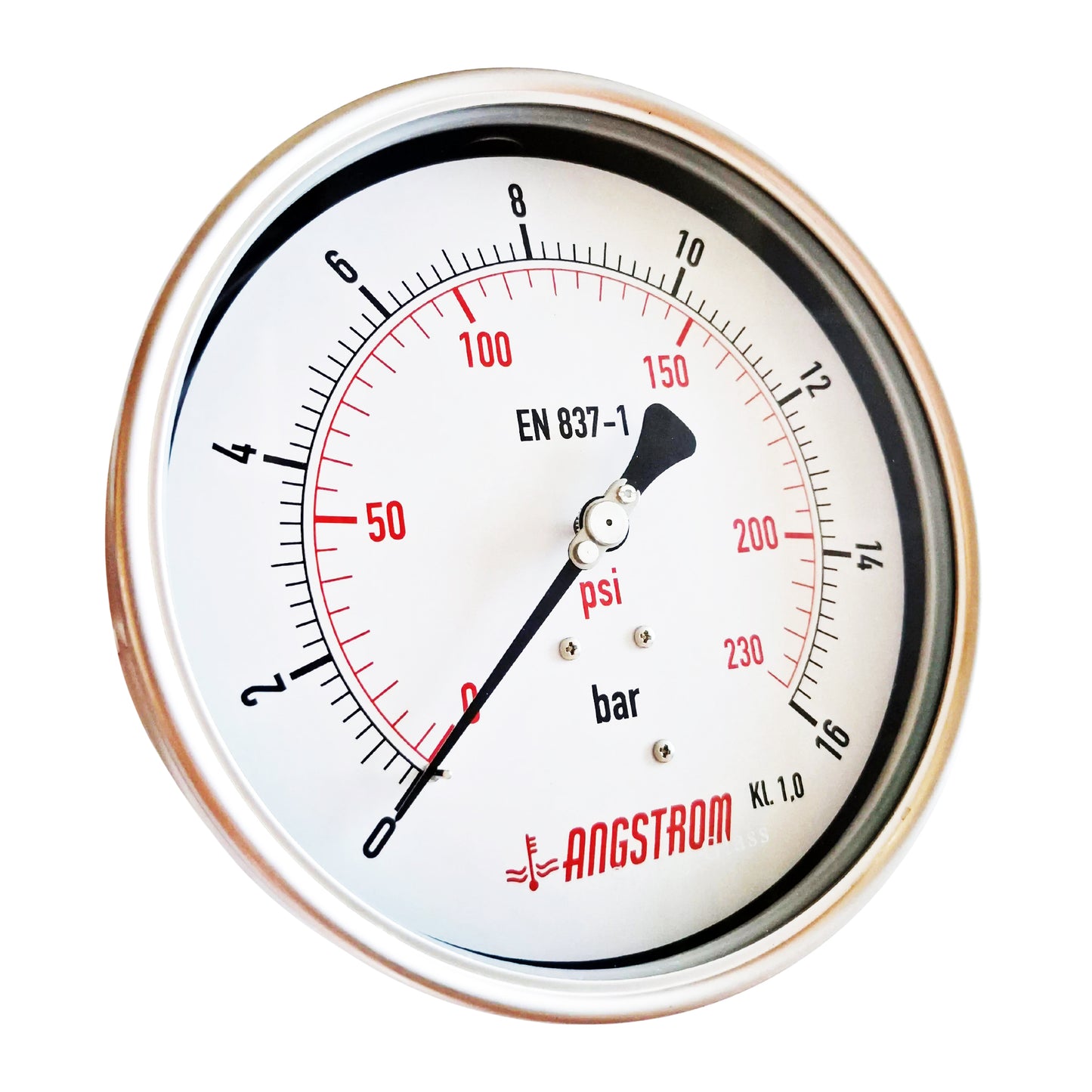

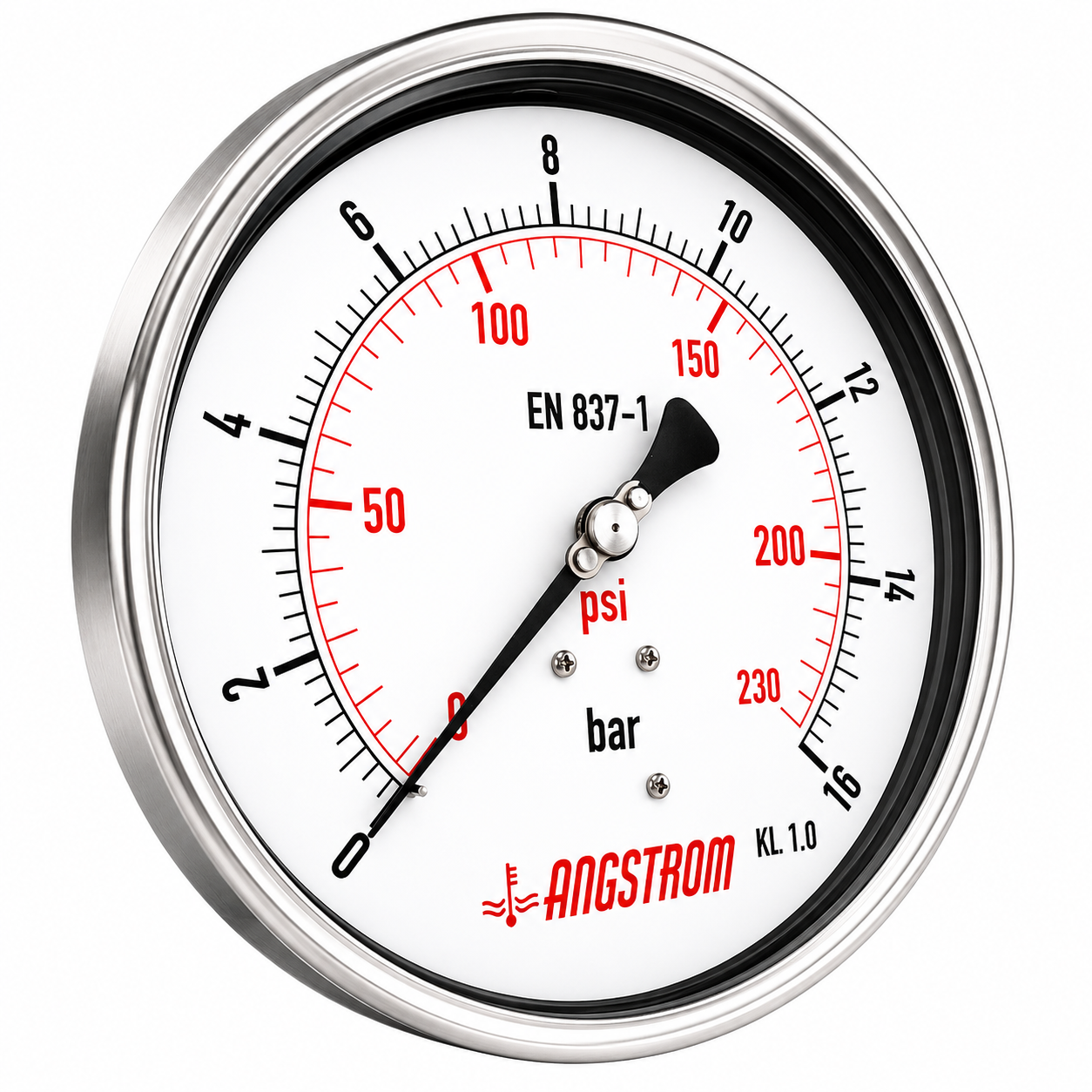

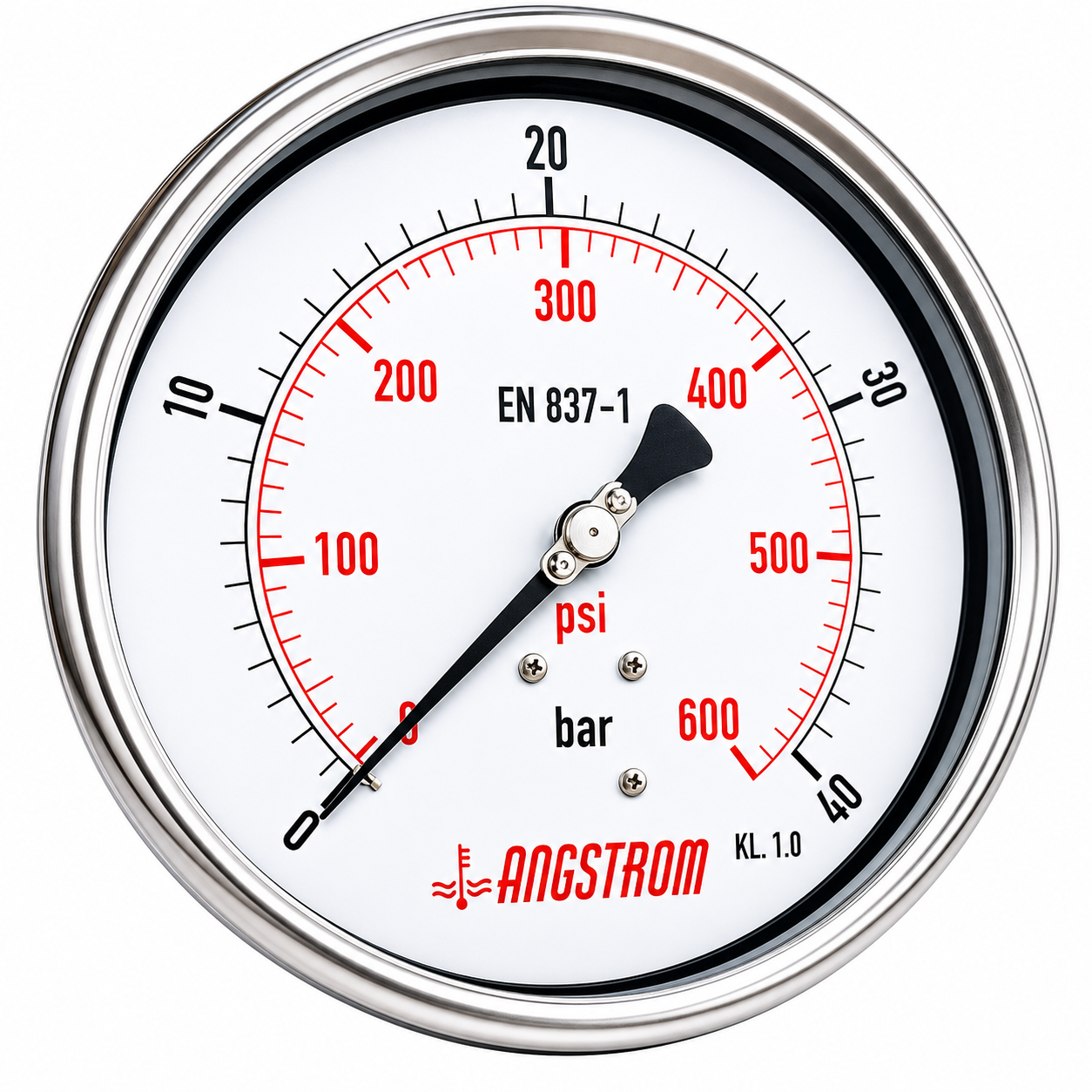

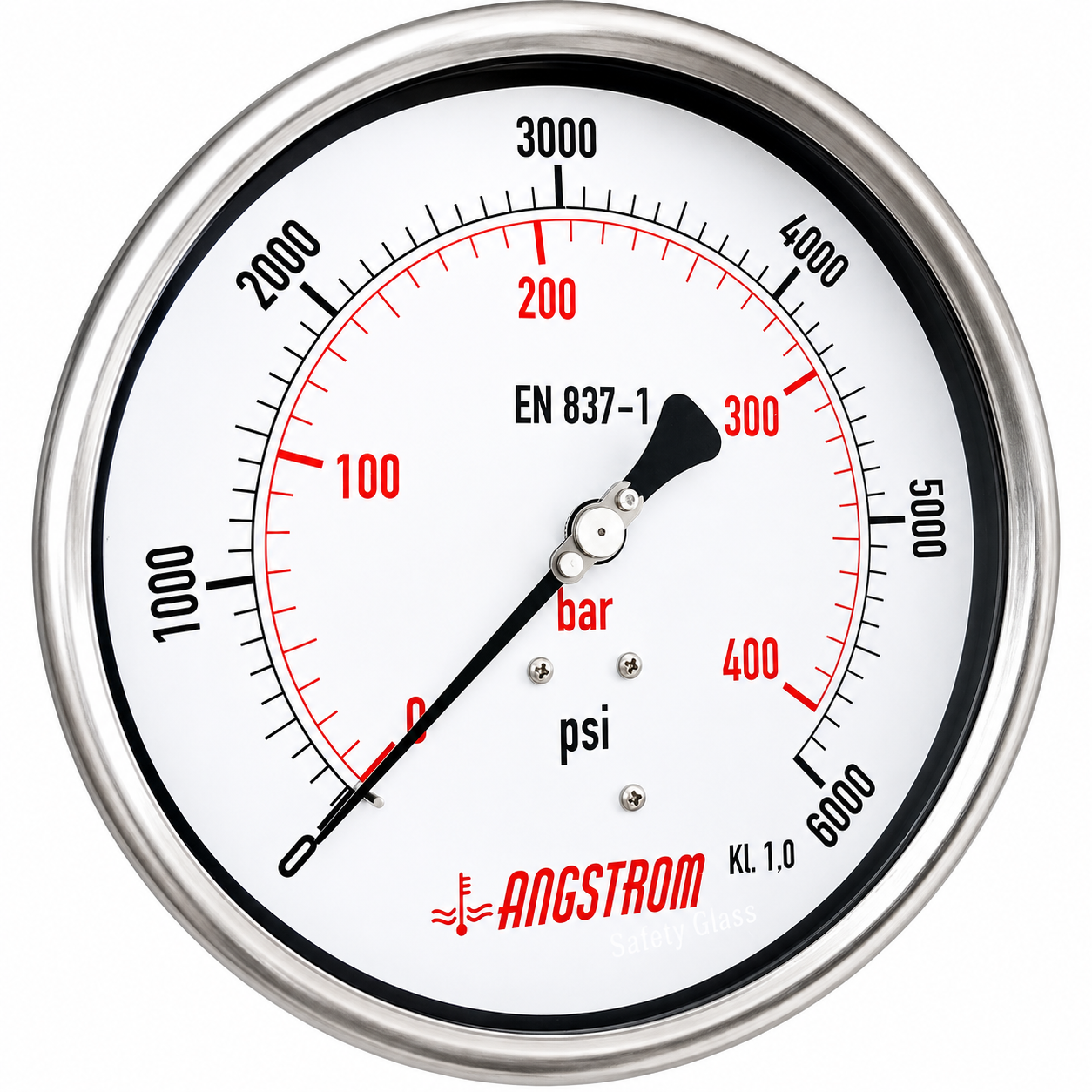

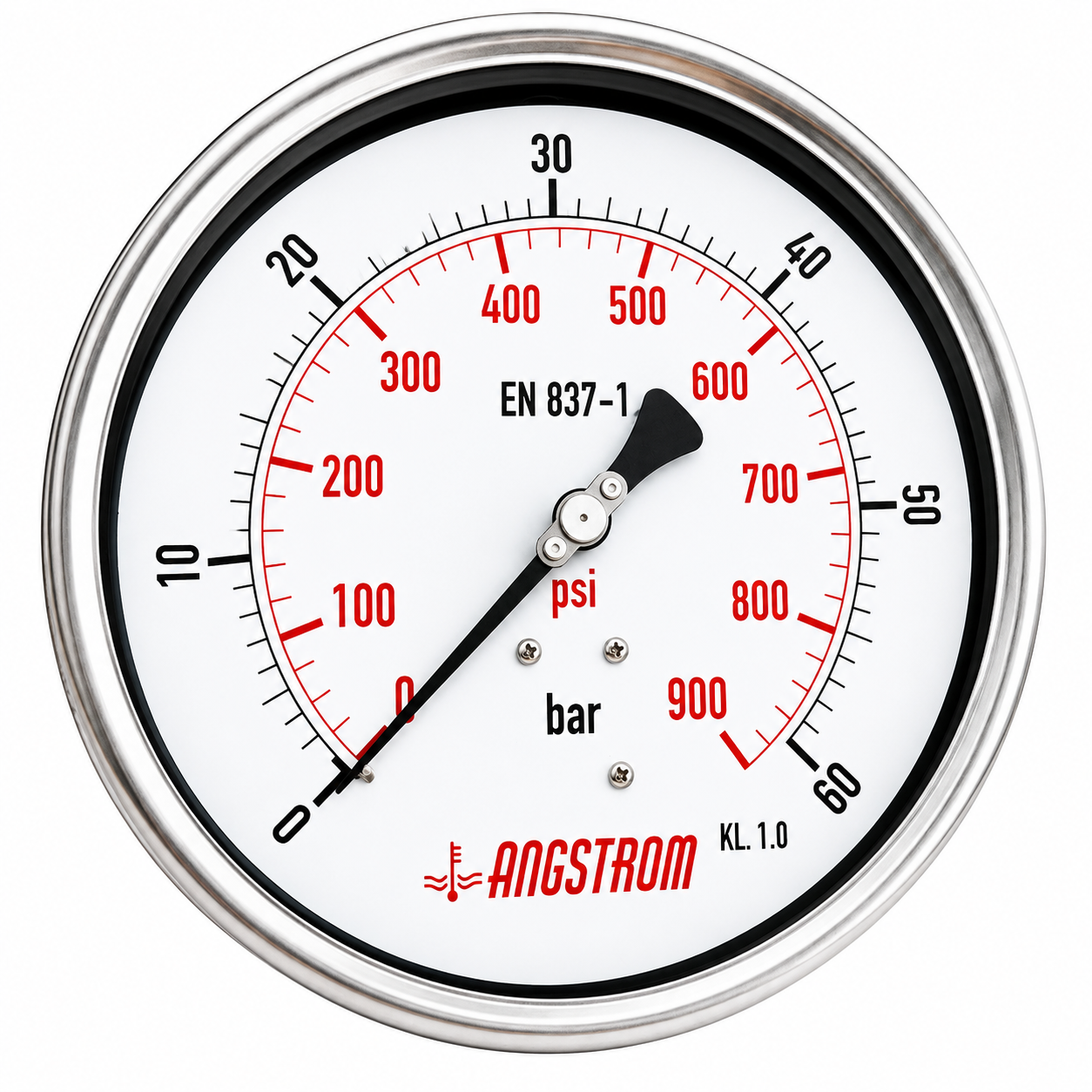

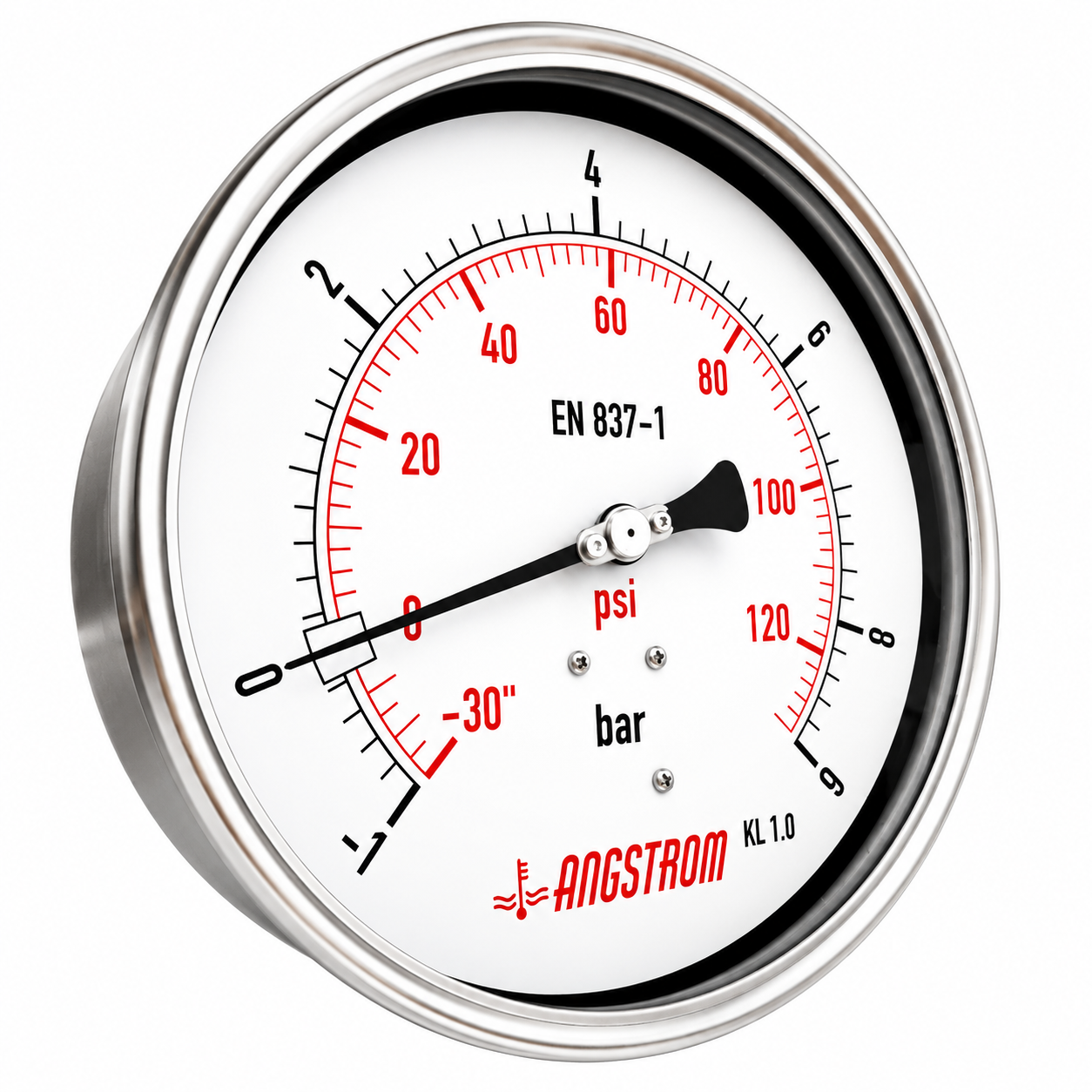

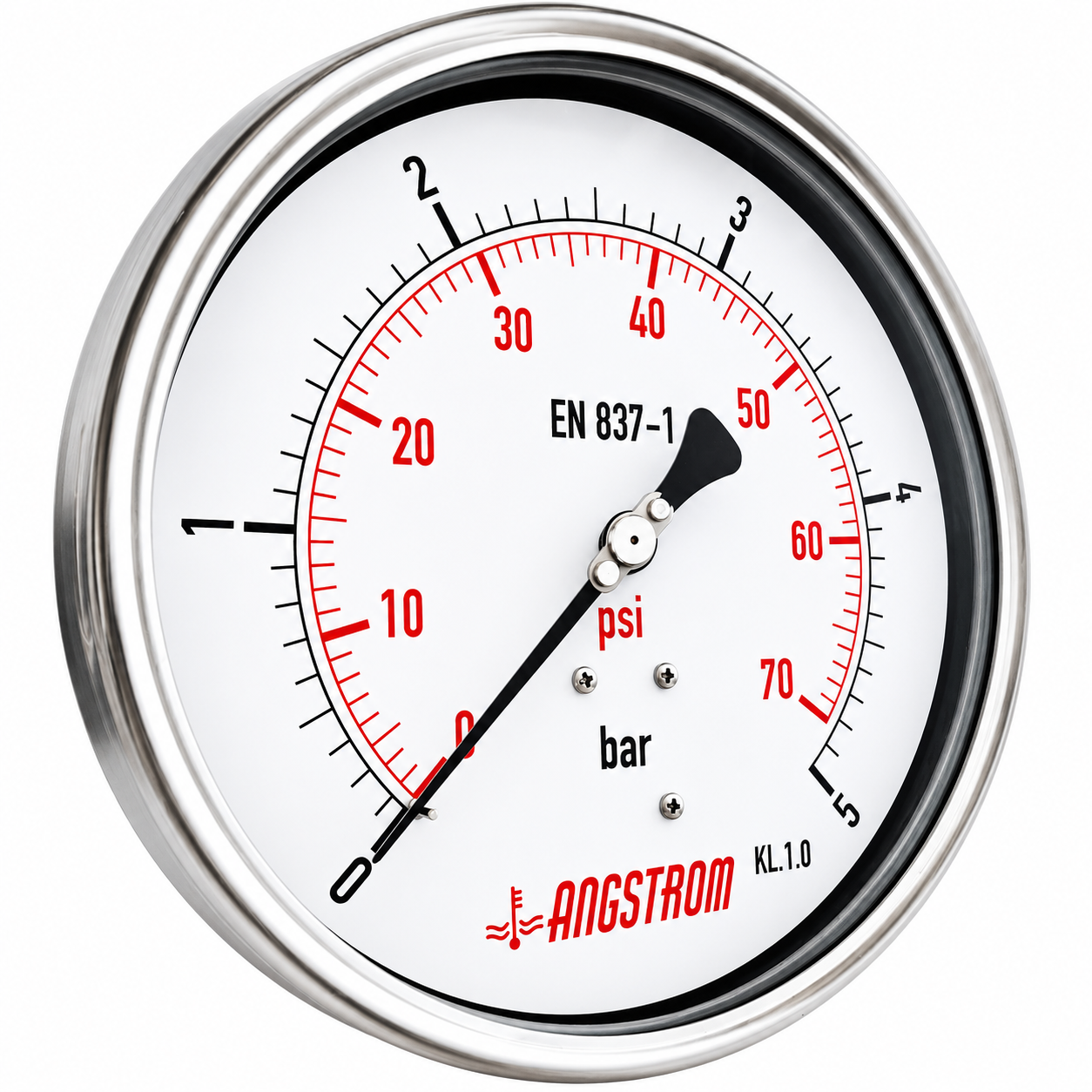

This Angstrom stainless steel pressure gauge (-1 to 400 bar range) is designed for hydraulic systems, industrial machinery, and high-pressure applications where accuracy, durability, and long-distance readability are required.
With a large 160mm (6") dial for excellent visibility from distance, it delivers ±1% accuracy (EN 837-1 standard)for reliable pressure monitoring in demanding industrial environments.
This model is widely used across the UAE in hydraulic systems, industrial plants, and high-pressure mechanical installations.

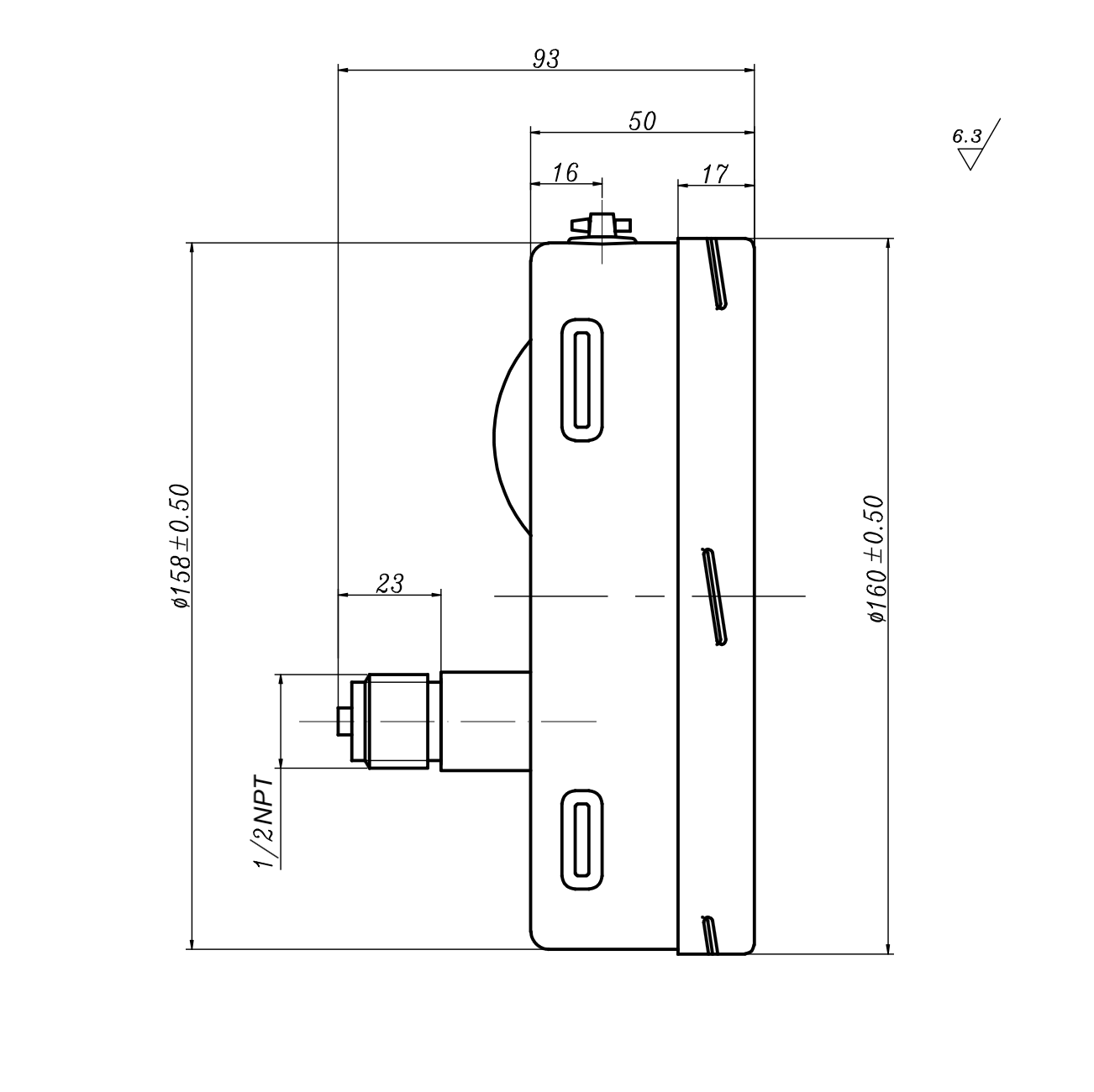

Key Specifications

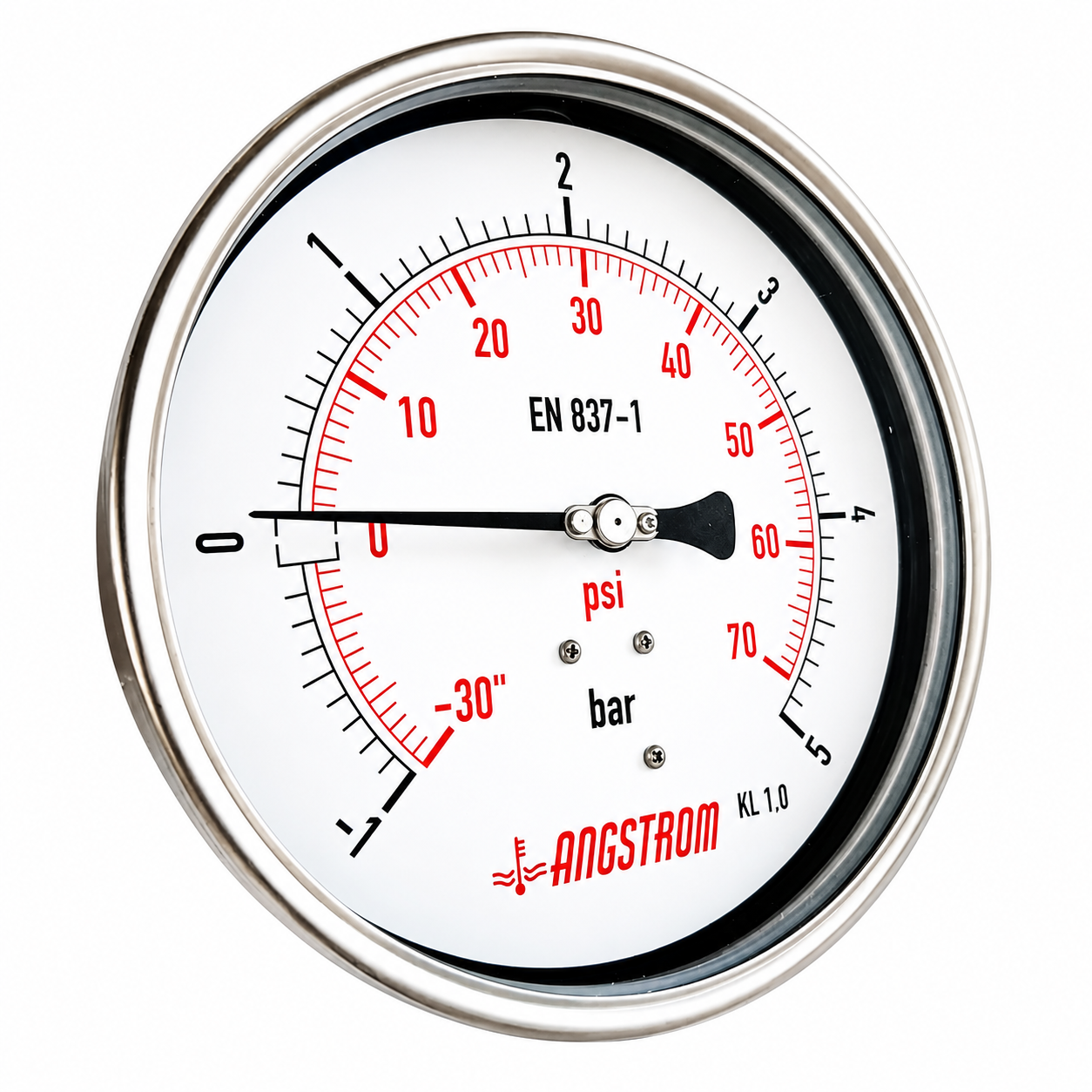

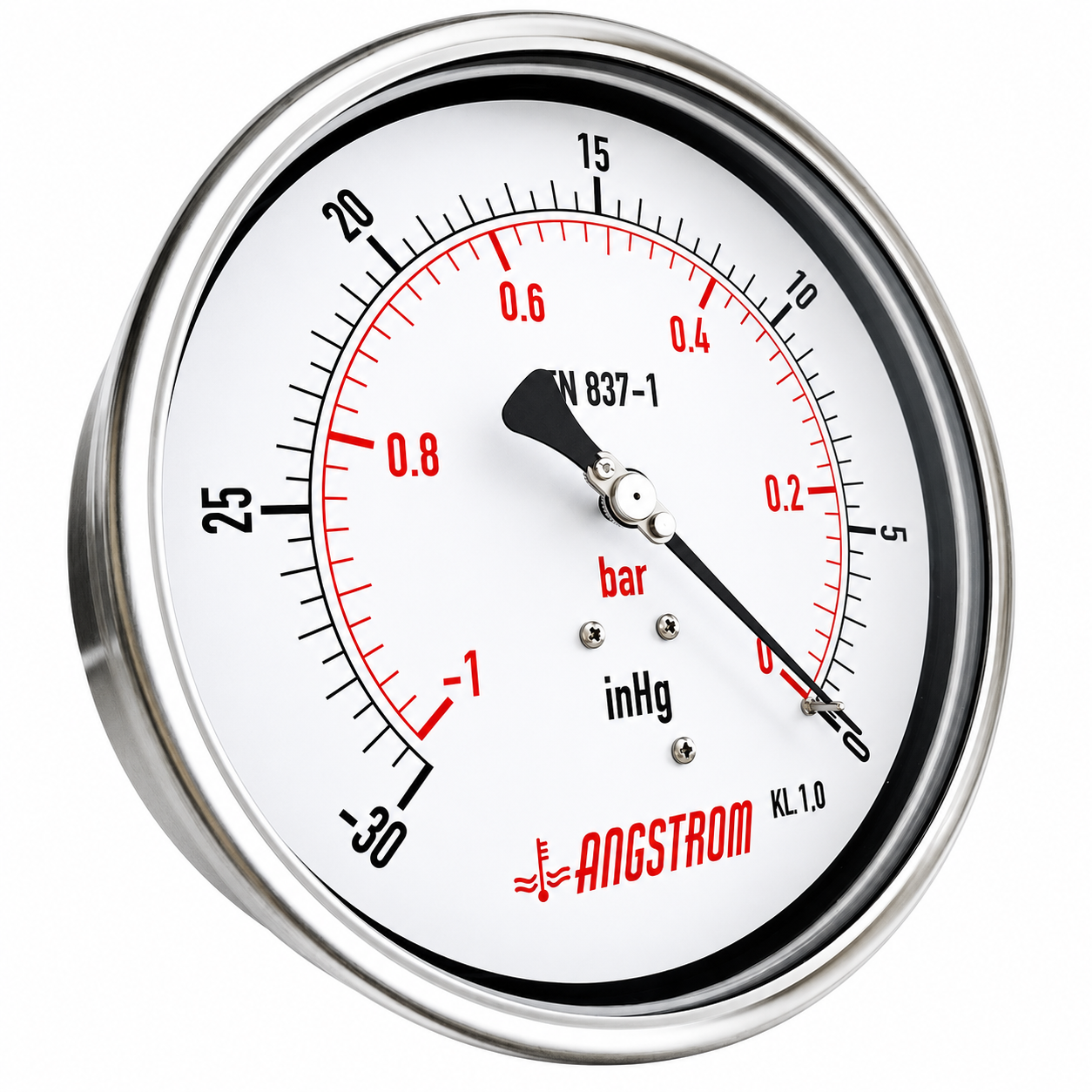

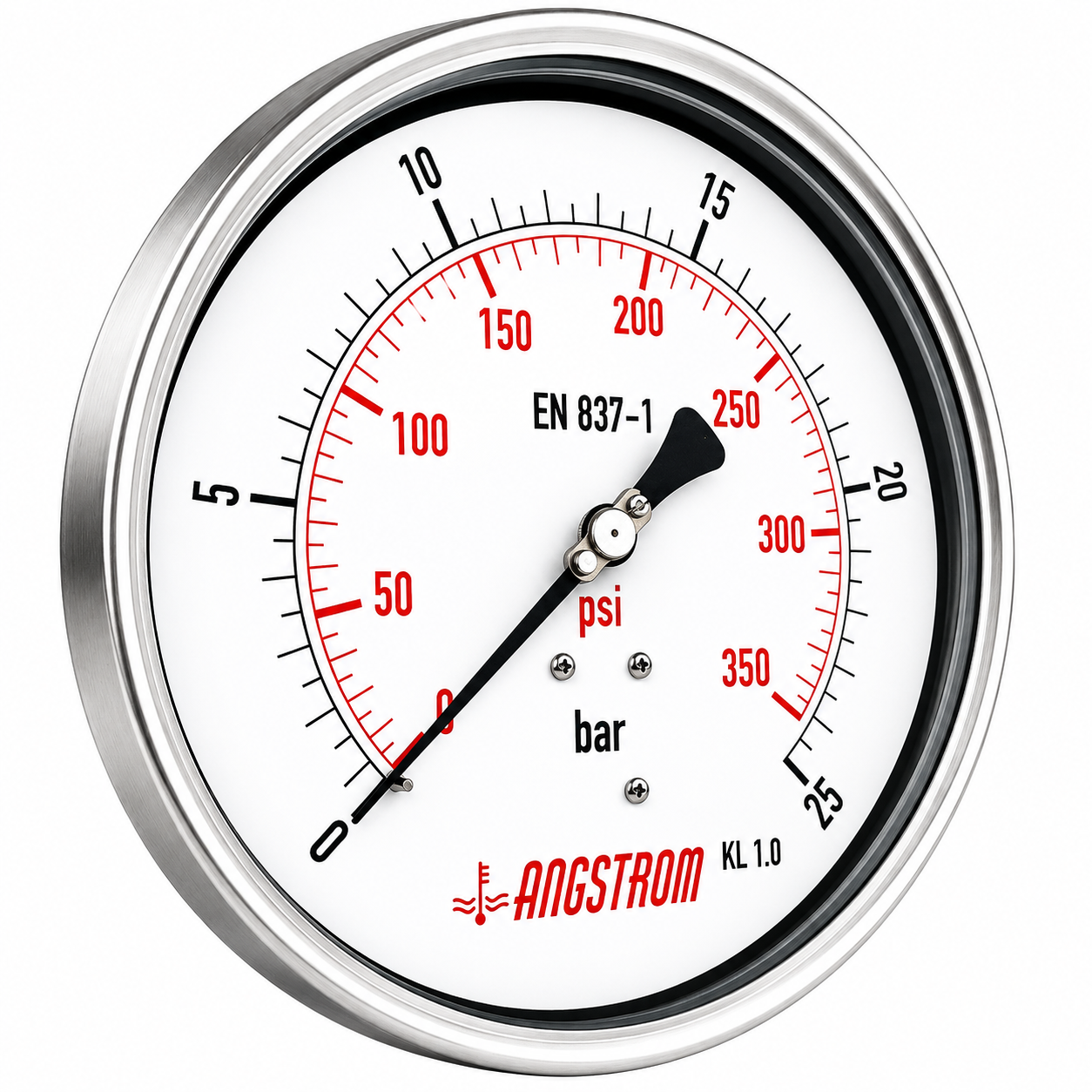

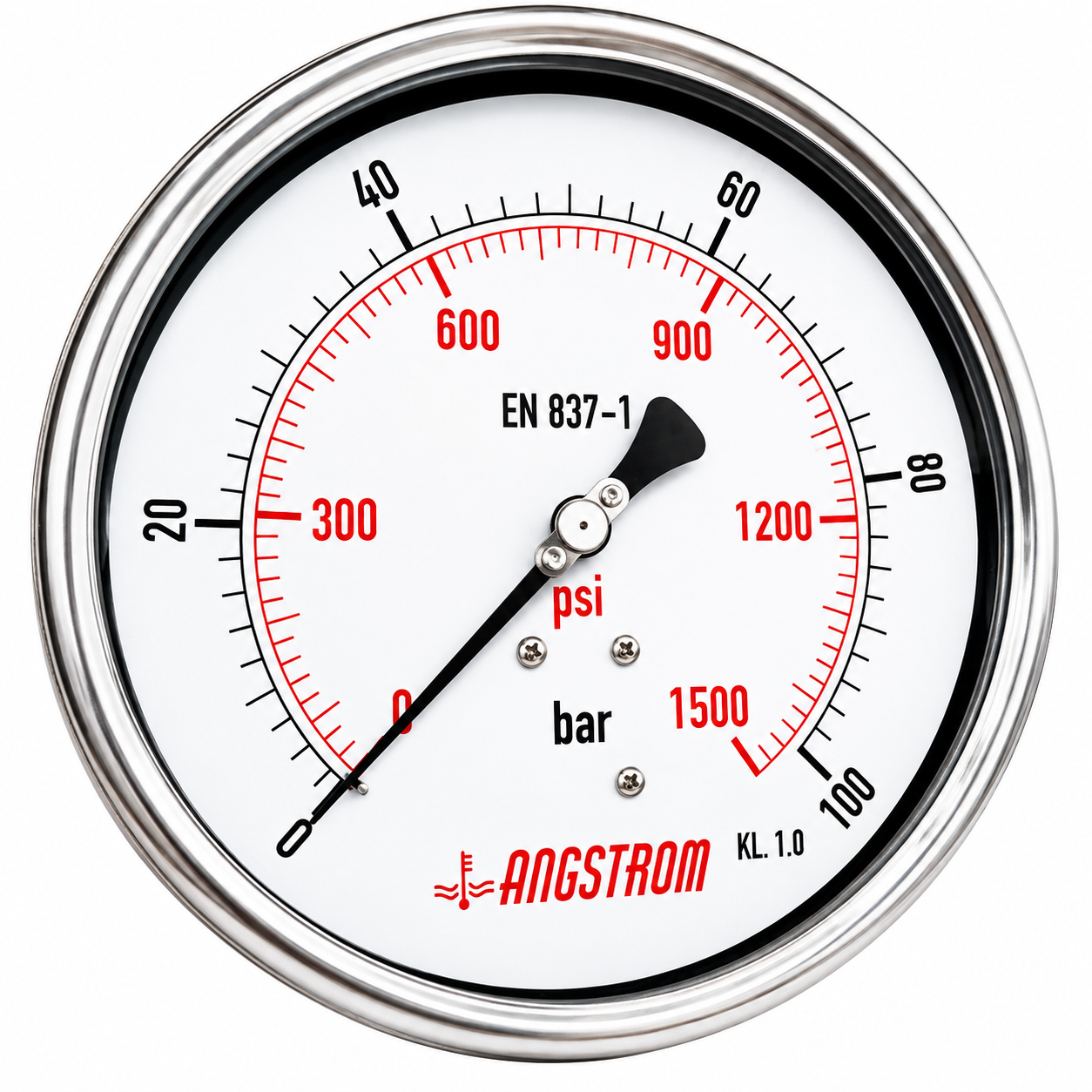

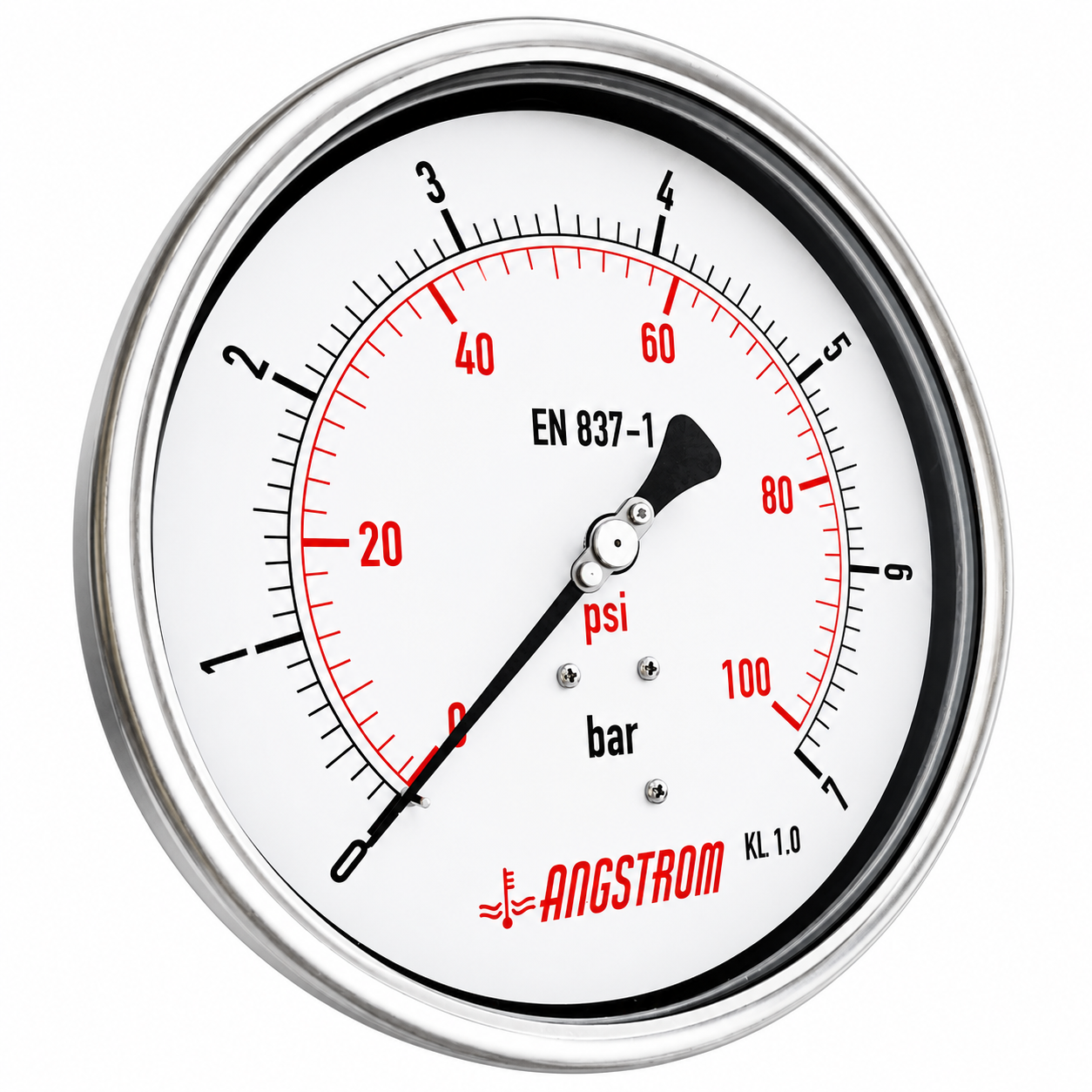

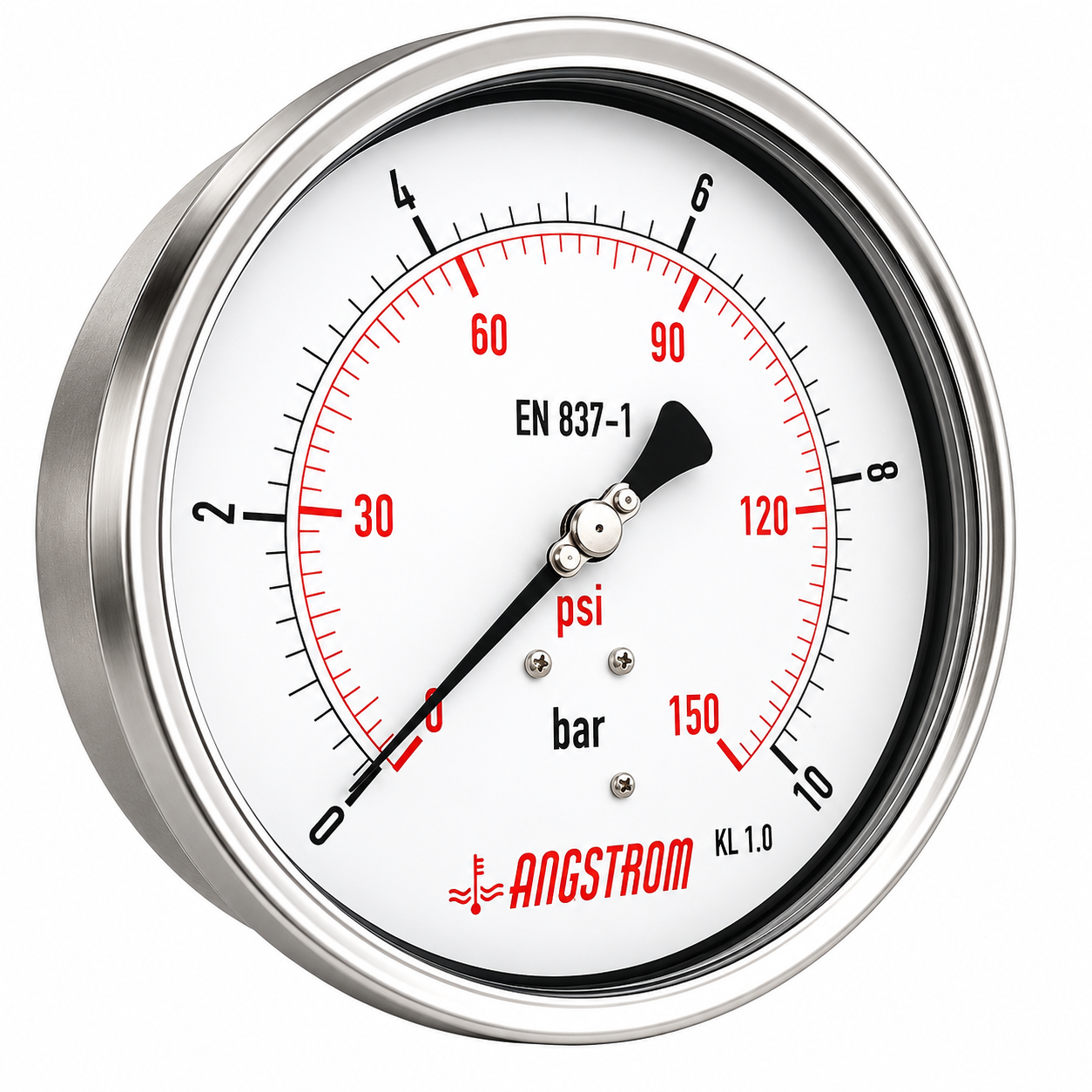

Pressure Range: -1 to 400 bar (variant dependent)
Dial Size: 160mm (6") large visibility

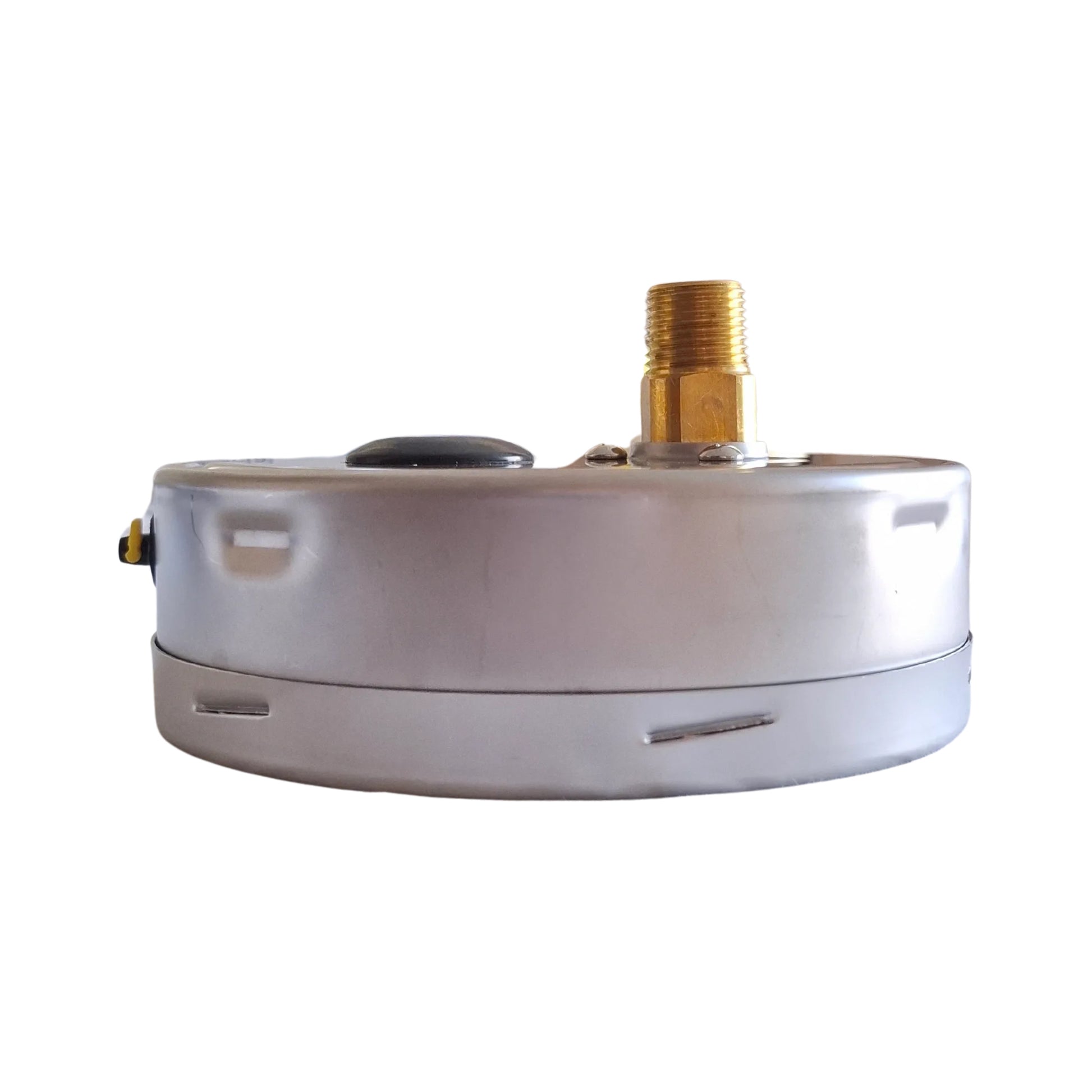

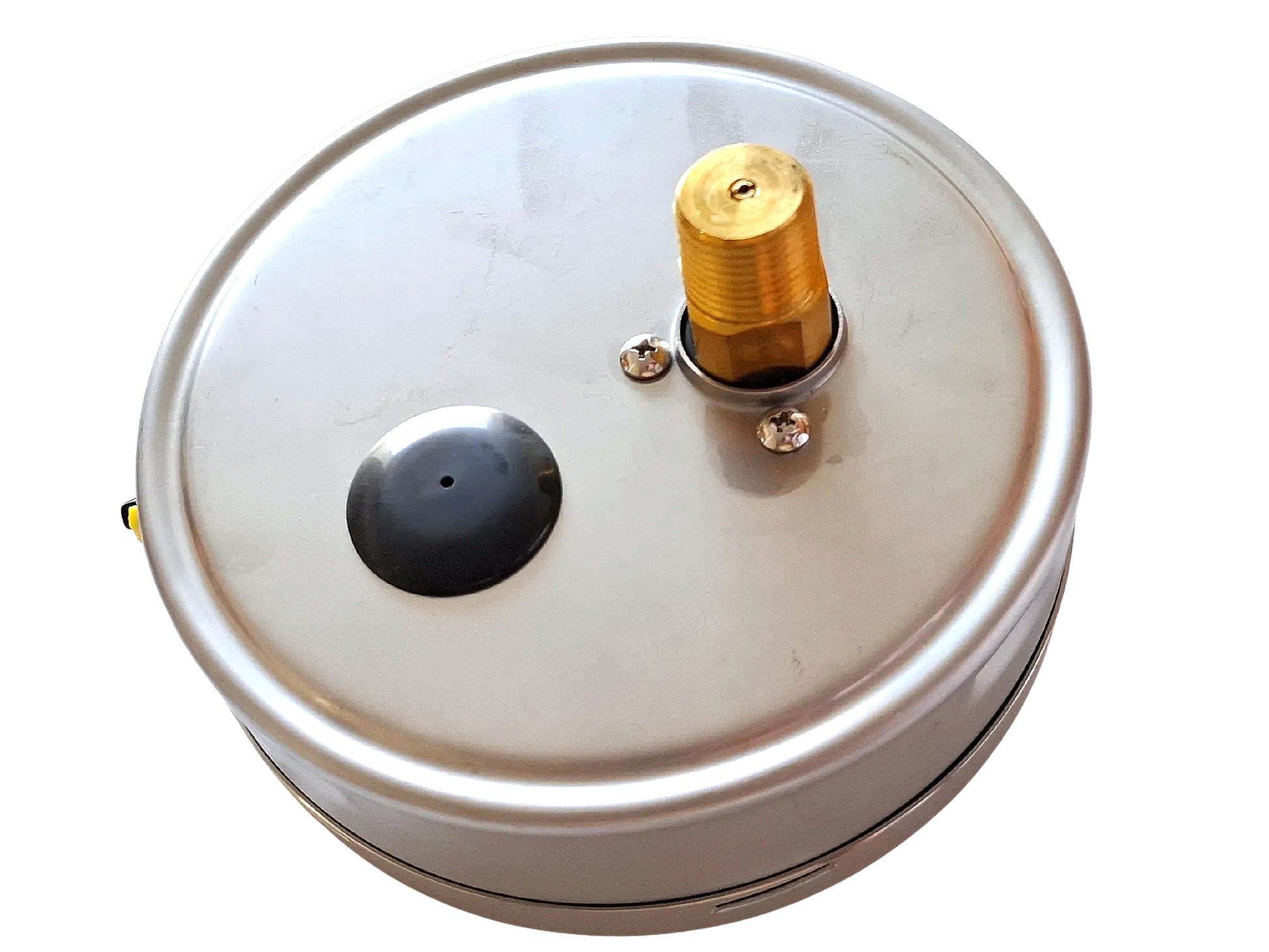

Connection Type: Lower Back Mount
Thread: 1/2" NPT (brass male)
Accuracy: ±1% (EN 837-1)
Case: 304 stainless steel
Movement: Brass bourdon tube
Filling: Glycerin filled (anti-vibration)
Applications
Hydraulic systems and presses
Industrial machinery and manufacturing plants
High-pressure pipelines
Marine and offshore environments
HVAC industrial systems (booster pumps, ETS rooms, high-pressure circuits)
When to Use This vs Other Gauges
Choose this 160mm stainless steel gauge:
Industrial and hydraulic systems
High-pressure environments
Marine and corrosive applications
Installations requiringlong-distance visibility
Industrial HVAC systems (booster/ETS/high-pressure loops)
Choose 100mm gauge:
Standard industrial installations with moderate visibility needs
Choose 63mm gauge:
Compact installations and space-limited panels
Commercial Note
Stocked in UAE warehouse for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
