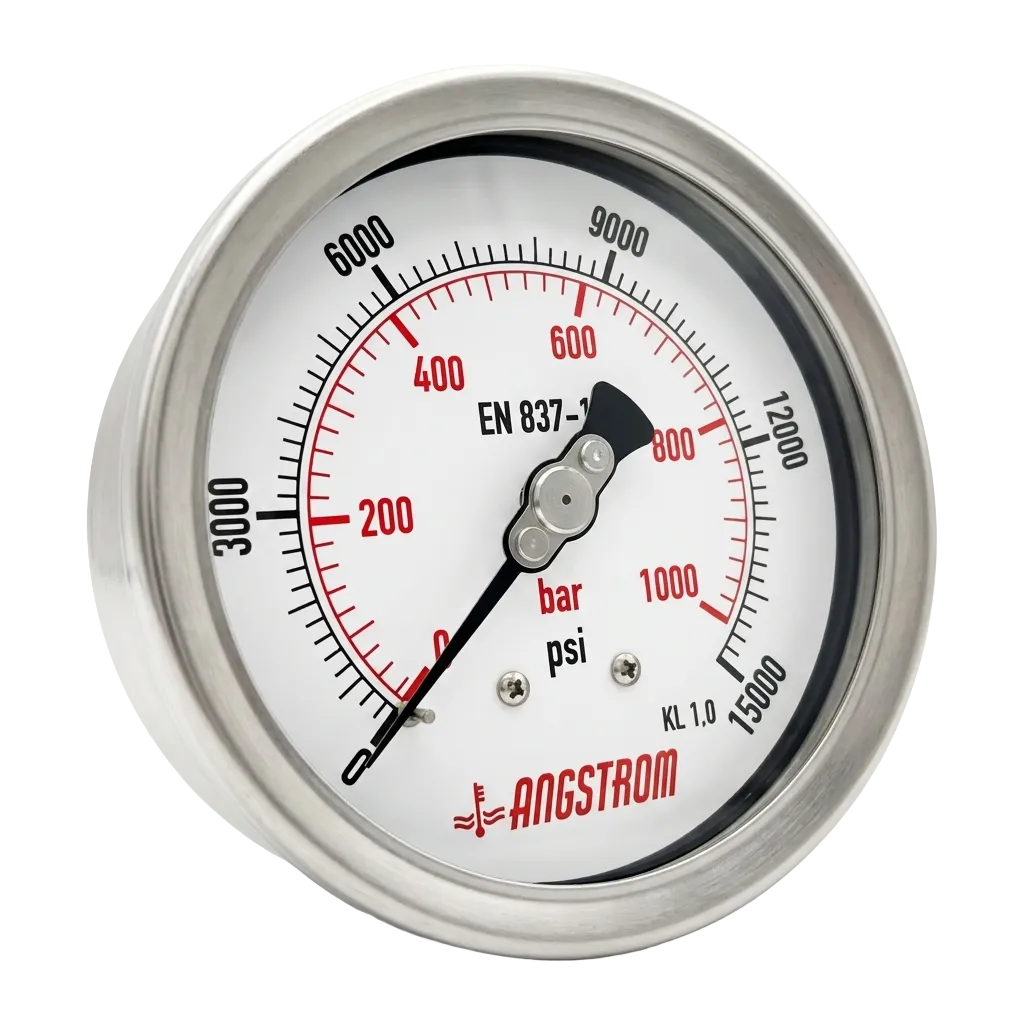

Angstrom Pressure Gauge - 100mm (4") - 10,000-15,000psi - Lower Back Mount - Stainless Steel for Hydraulic UAE

Overview

This Angstrom full stainless steel pressure gauge 700 and 1000 bar (10,000 and 15,000psi) pressure range, is designed for hydraulic systems, industrial machinery, and high-pressure applications.

With a 100mm (4") dial for clear visibility, while maintaining ±1% accuracy for reliable pressure monitoring in demanding environments. Suitable for suitable for panel-mounted hydraulic and industrial pressure systems requiring higher pressure ranges.

Key Specifications

• Pressure Range: 700 and 1000 bar
• Dial Size: 100mm (4")
• Connection Type: Lower Back Mount
• Thread: 1/2" NPT (316 Stainless Steel male)
• Accuracy: ±1% (EN 837-1)
• Case: 304 Stainless Steel
• Movement: 316 stainless steel bourdon tube
• Filling: Glycerin

Applications

• Hydraulic systems and presses
• Industrial machinery
• High-pressure pipelines

• Marine and corrosive environments

When to Use This vs Other Gauges

Choose Stainless Steel Pressure Gauge:

• Demanding and harsh environments
• System with hydraulic pulsation

• Shipbuilding and marine
• Vibrating machines

Commercial Note

Stocked in UAE warehouse for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
