Angstrom Pressure Gauge - 100mm (4") - 10,000-15,000psi - Lower Back Entry - Stainless Steel for Hydraulic UAE

Overview

This full stainless steel pressure gauge 700 and 1000 bar (10,000 and 15,000psi) pressure range, is designed for hydraulic systems, industrial machinery, and high-pressure applications.

With a 100mm (4") dial for clear visibility, while maintaining ±1% accuracy for reliable pressure monitoring in demanding environments. Suitable for suitable for panel-mounted hydraulic and industrial pressure systems requiring higher pressure ranges.

Key Specifications

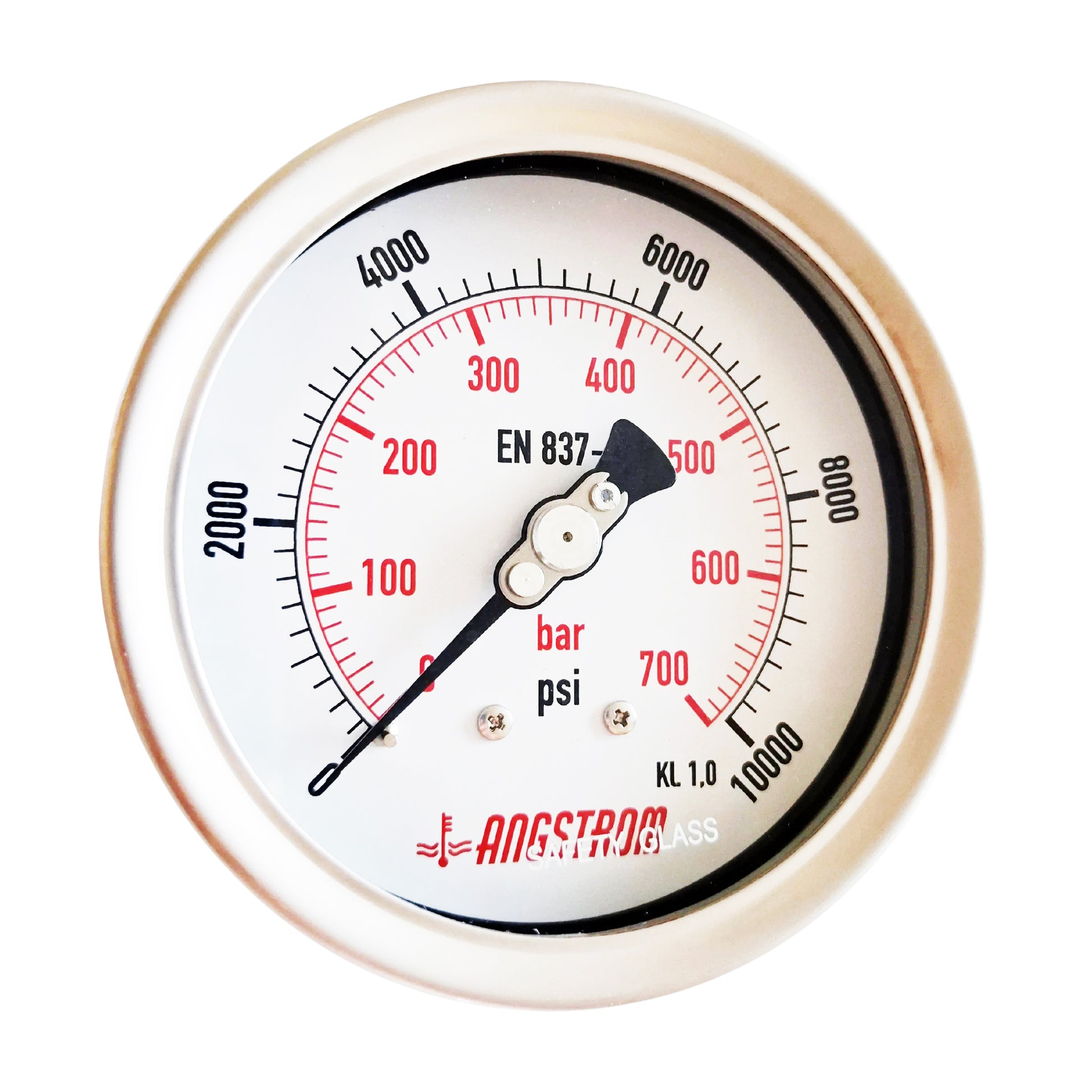

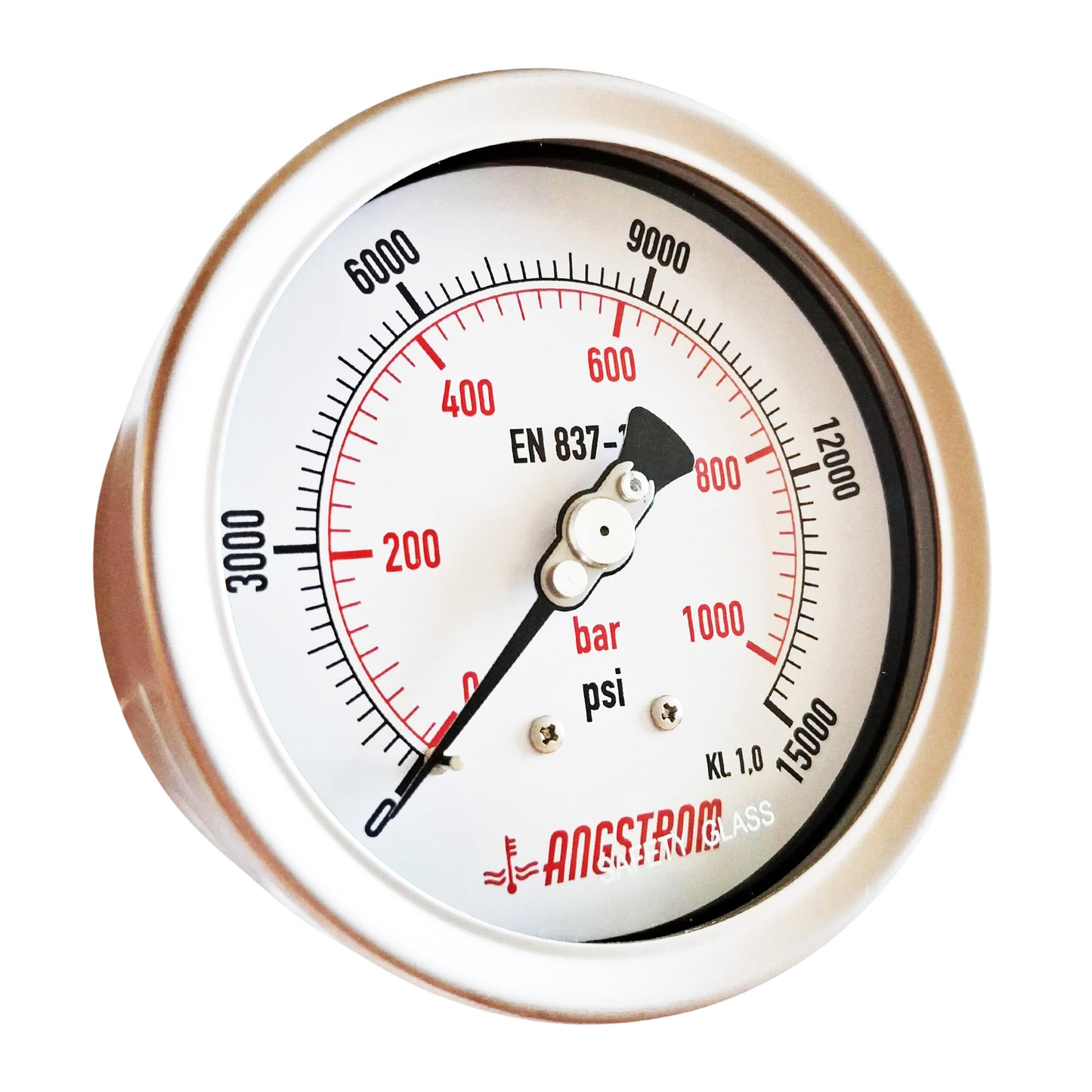

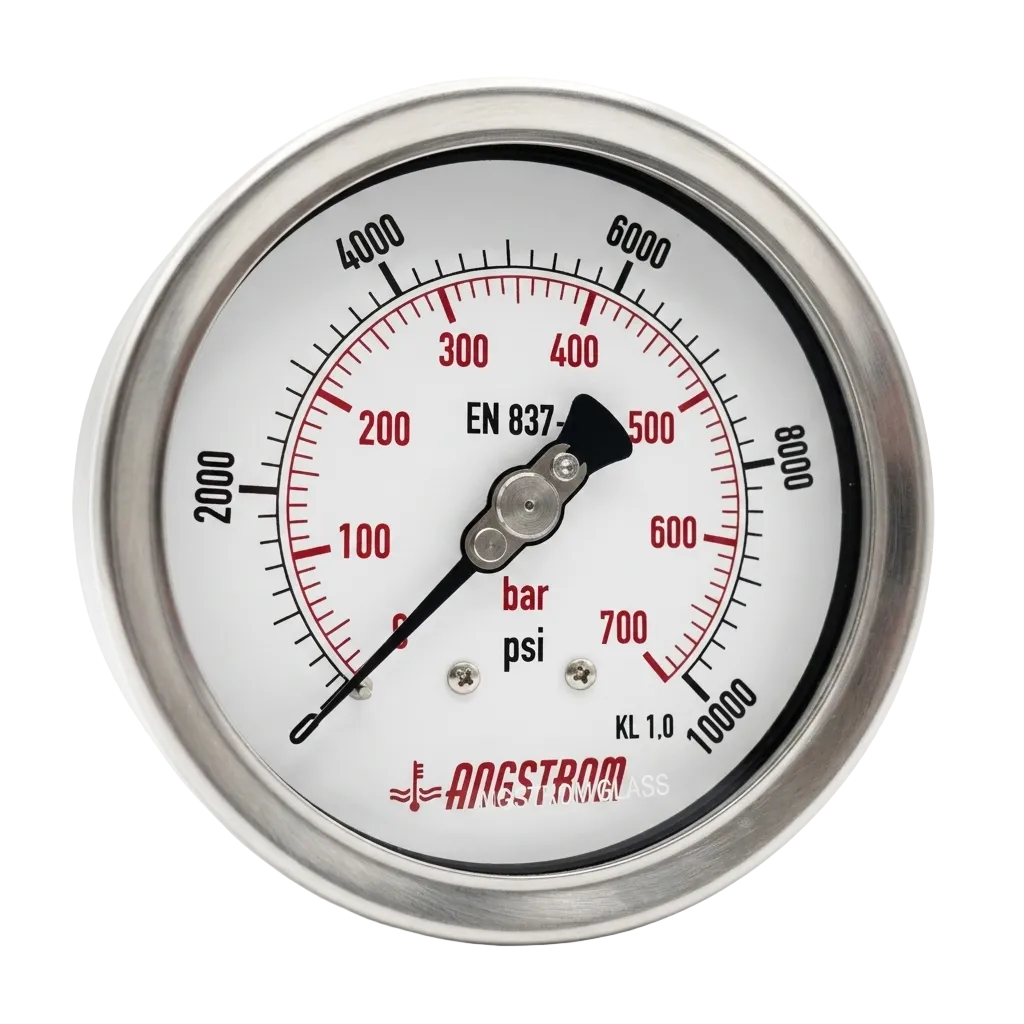

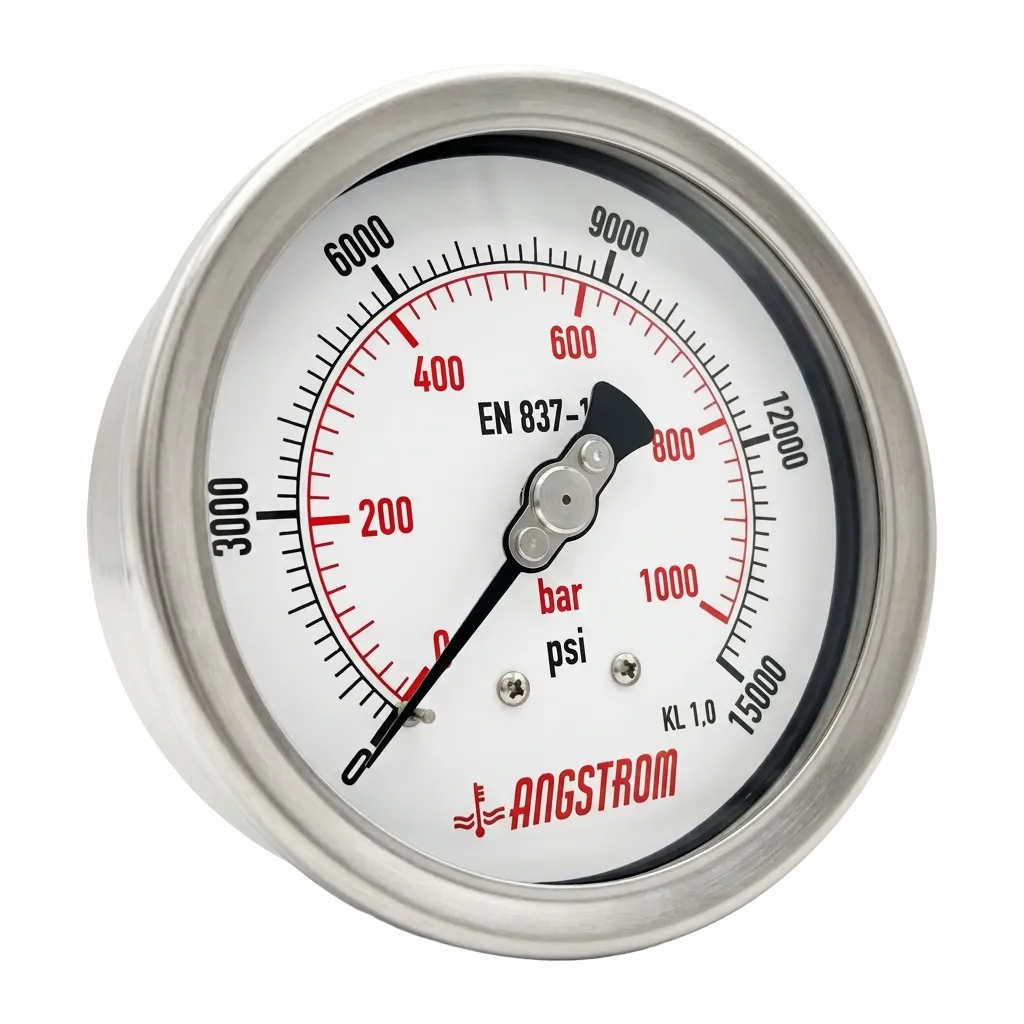

• Pressure Range: 700 and 1000 bar
• Dial Size: 100mm (4")

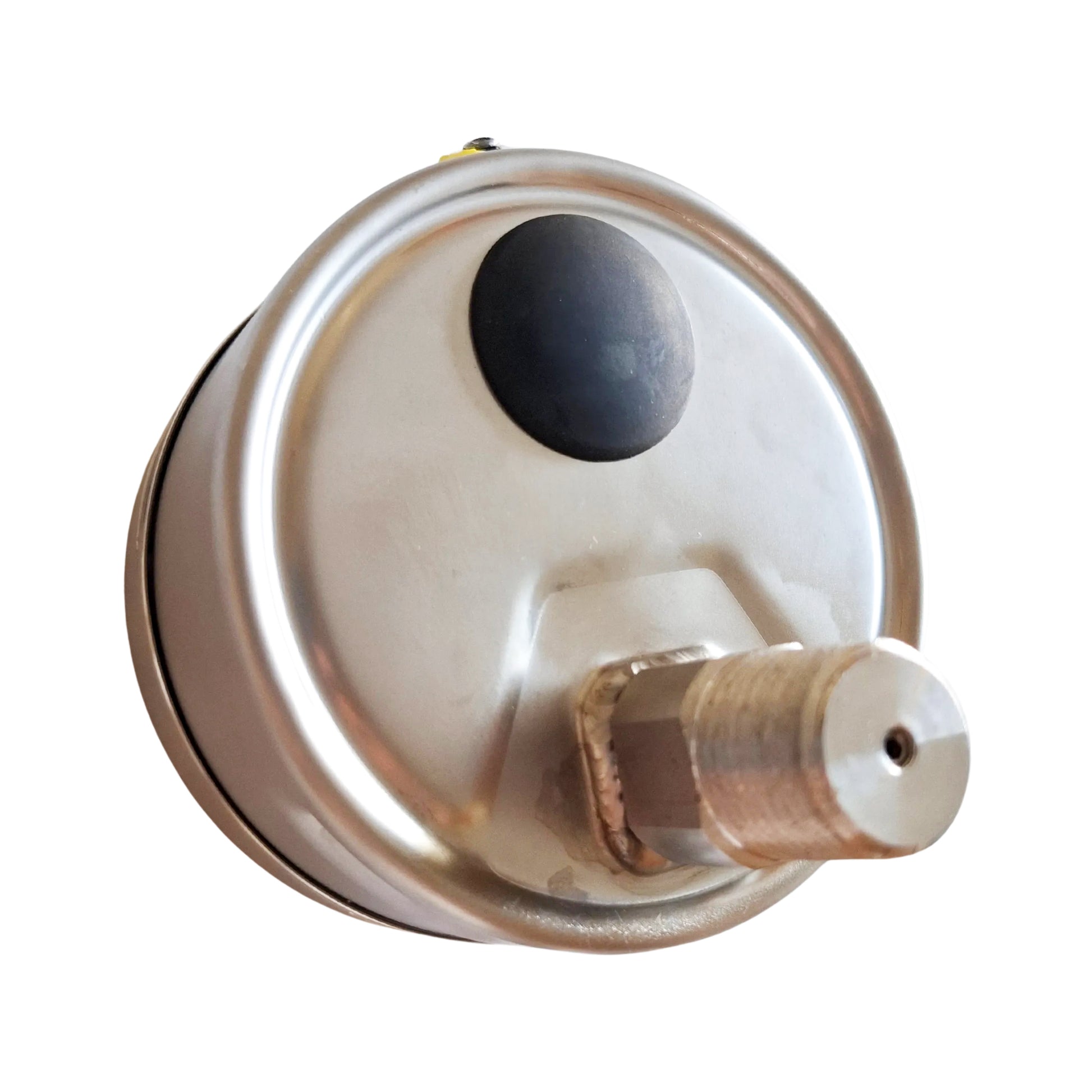

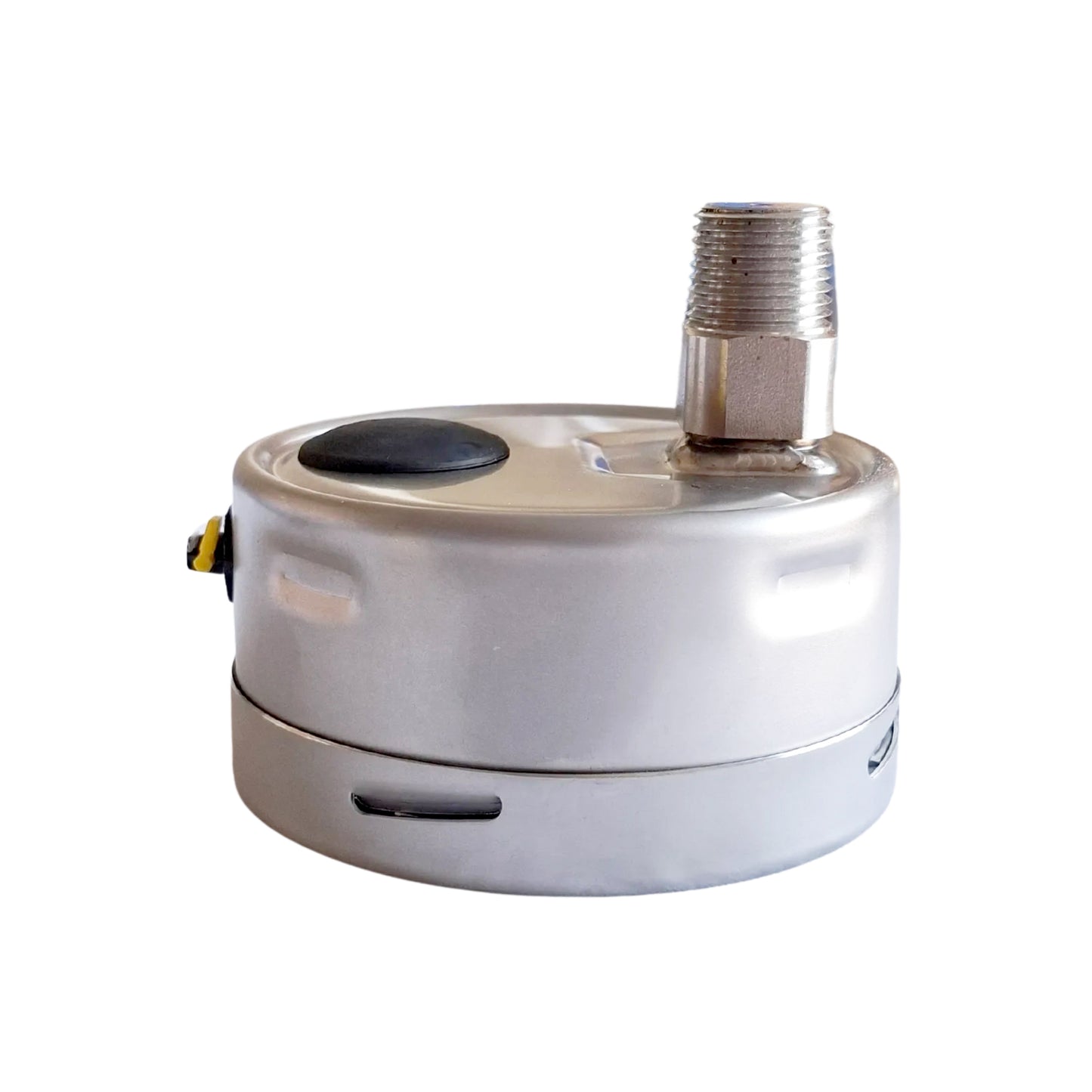

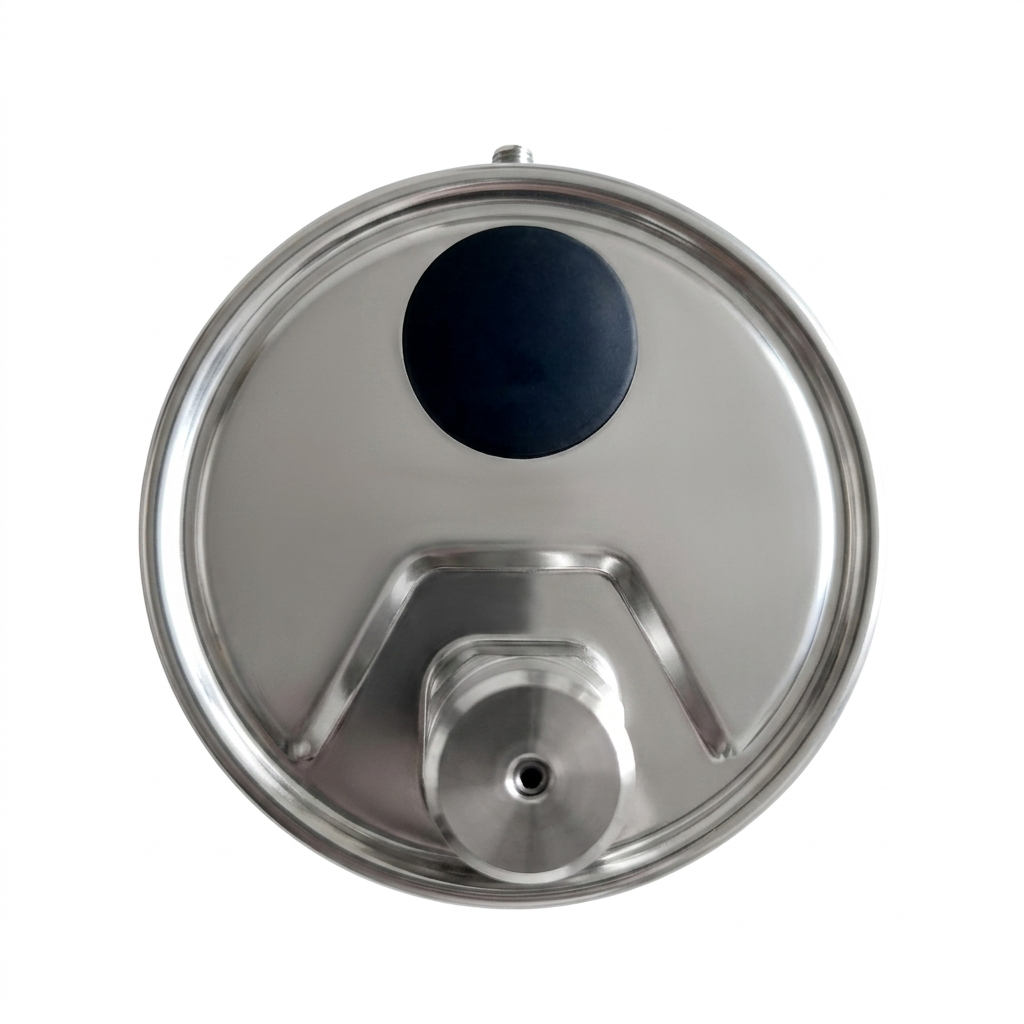

• Connection Type: Lower Back Entry
• Thread: 1/2" NPT (316 Stainless Steel male)
• Accuracy: ±1% (EN 837-1)
• Case: 304 Stainless Steel
• Movement: 316 stainless steel bourdon tube
• Filling: Glycerin

Applications

• Hydraulic systems and presses
• Industrial machinery
• High-pressure pipelines

• Marine and corrosive environments

Why Choose This Gauge

• Stainless steel construction for corrosion resistance
• Suitable for high-pressure and harsh environments
• 100mm design for better visibility
• Reliable for industrial and hydraulic applications

When to Use This vs Other Gauges

Choose Stainless Steel Pressure Gauge:

• Demanding and harsh environments
• System with hydraulic pulsation

• Shipbuilding and marine
• Vibrating machines

Choose Stainless Steel Glycerin-Filled Gauge:

• Corrosive or outdoor environments
• Systems with vibration or pressure pulsation
• High pressure systems

Commercial Note

Commonly used across Dubai and the UAE, this gauge is a practical choice for projects requiring reliable performance at competitive pricing, with fast local availability.
