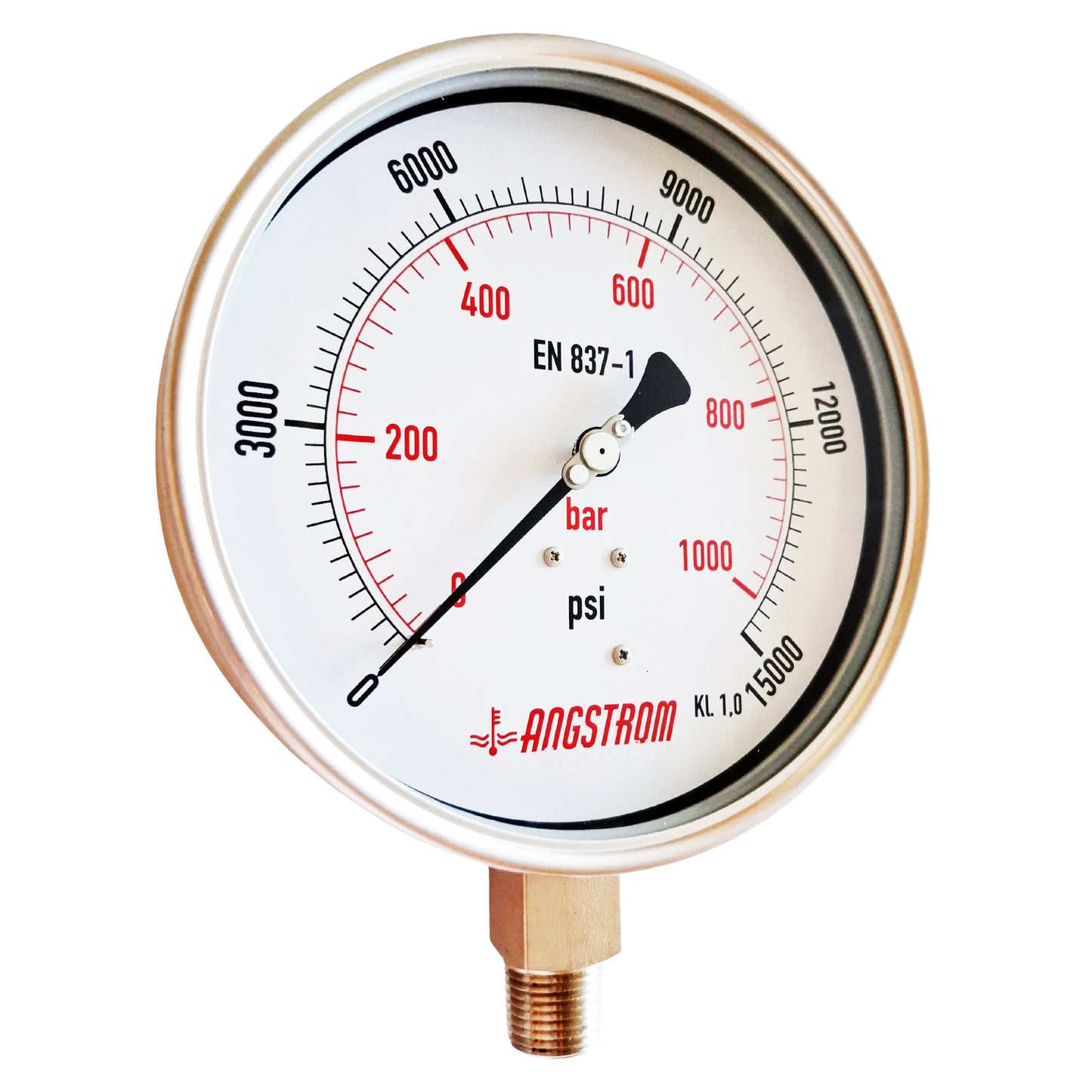

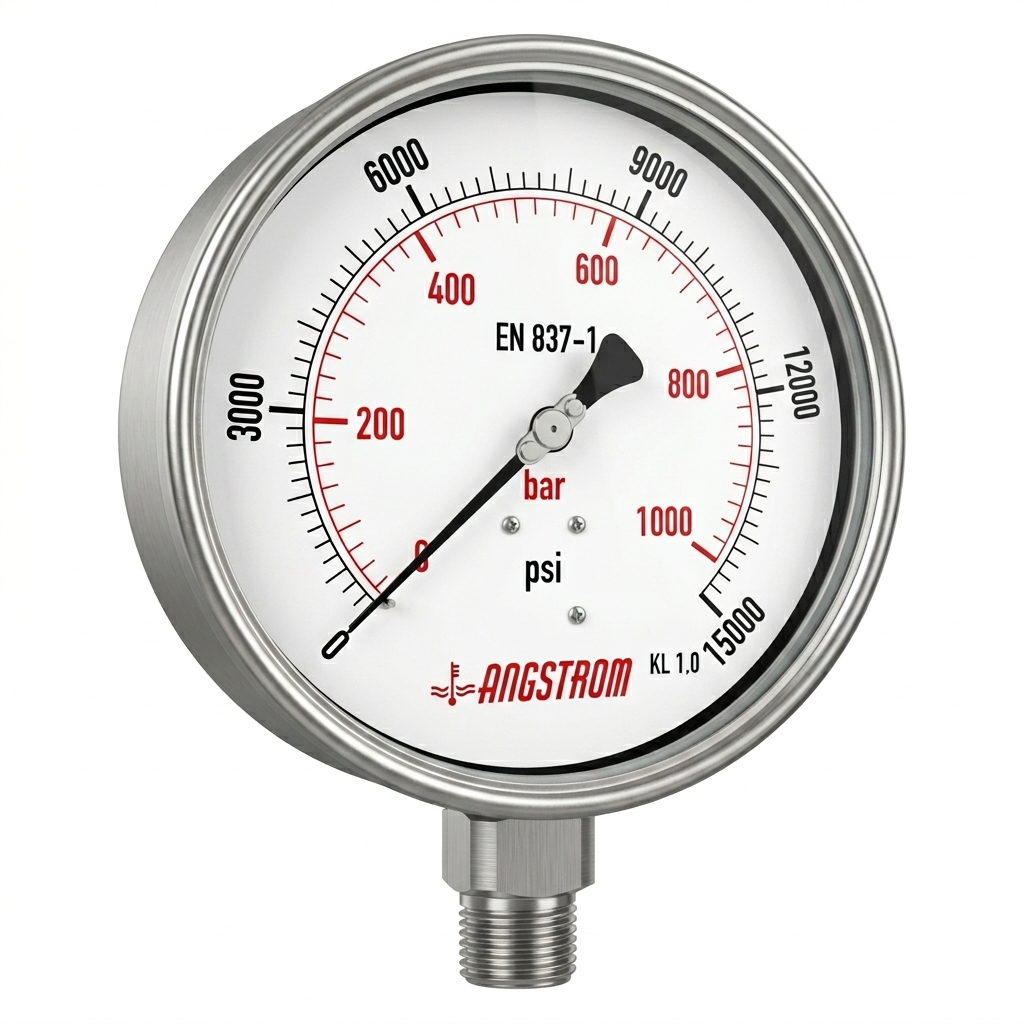

Angstrom Pressure Gauge - 160mm (6") - 10,000-15,000psi - Lower Mount - Stainless Steel for Hydraulic UAE

Overview

This Angstrom stainless steel pressure gauge 700 - 1000 bar (10,000 and 15,000psi) is designed for hydraulic systems, industrial machinery, and high-pressure applications where accuracy, durability, and long-distance readability are required.

With a large 160mm (6") dial for excellent visibility from distance, it delivers ±1% accuracy (EN 837-1 standard)for reliable pressure monitoring in demanding industrial environments.

This model is widely used across the UAE in hydraulic systems, industrial plants, and high-pressure mechanical installations.

Key Specifications

• Pressure Range: 700 and 1000 bar
• Dial Size: 160mm (6") large visibility

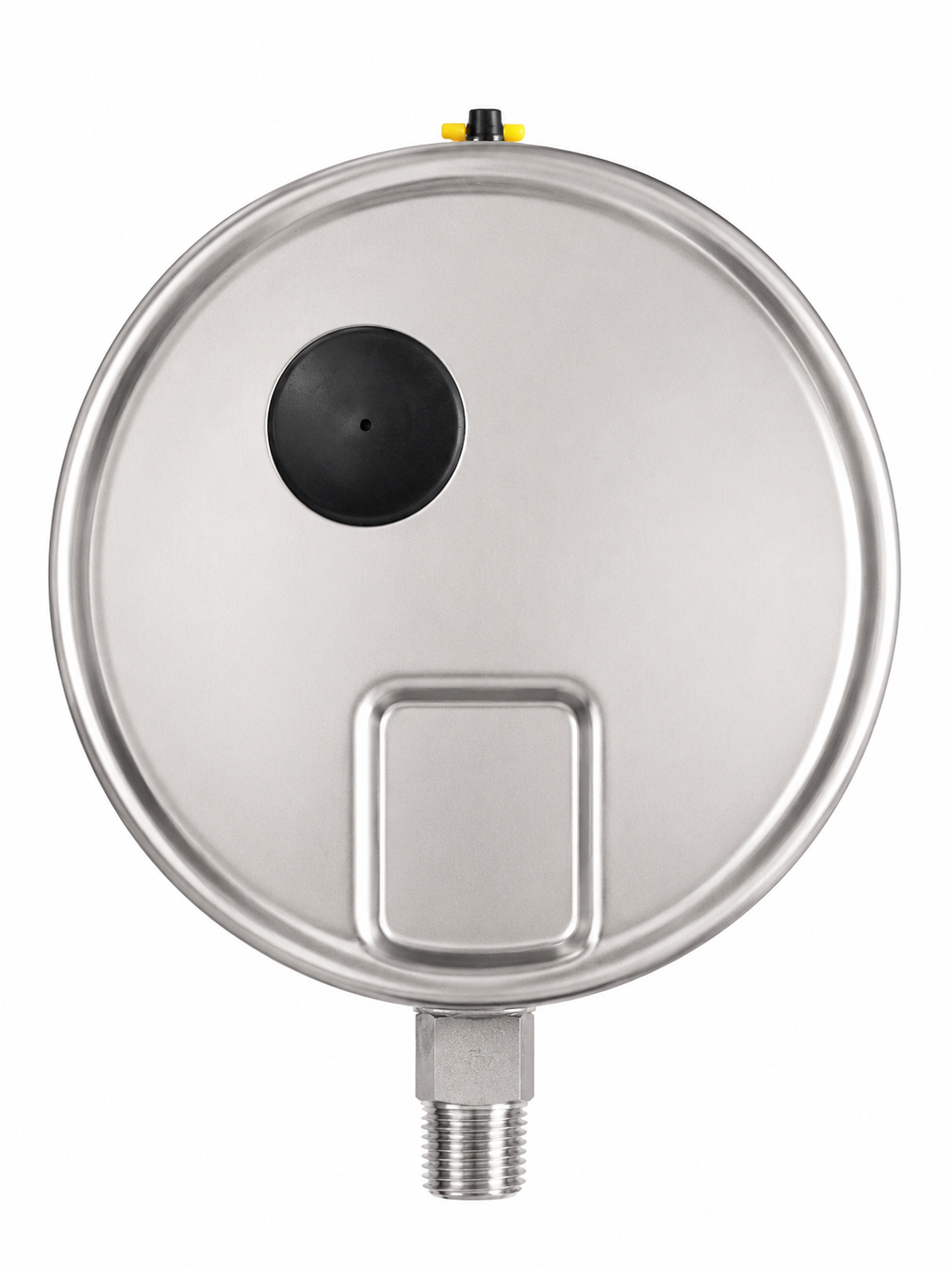

• Connection Type: Lower Mount
• Thread: 1/2" NPT (316 stainless steel male)
• Accuracy: ±1% (EN 837-1)
• Case: 304 stainless steel
• Movement: 316 Stainless Steel bourdon tube
• Filling: Glycerin filled (anti-vibration)

Applications

• Hydraulic systems and presses
• Industrial machinery and manufacturing plants


When to Use This vs Other Gauges

Choose this 160mm stainless steel gauge:

• Industrial and hydraulic systems
• High-pressure environments
• Marine and corrosive applications
• Installations requiring long-distance visibility


Choose 100mm gauge:

• Standard industrial installations with moderate visibility needs

Choose 63mm gauge:

• Compact installations and space-limited panels

Commercial Note

Stocked in UAE warehouse for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
