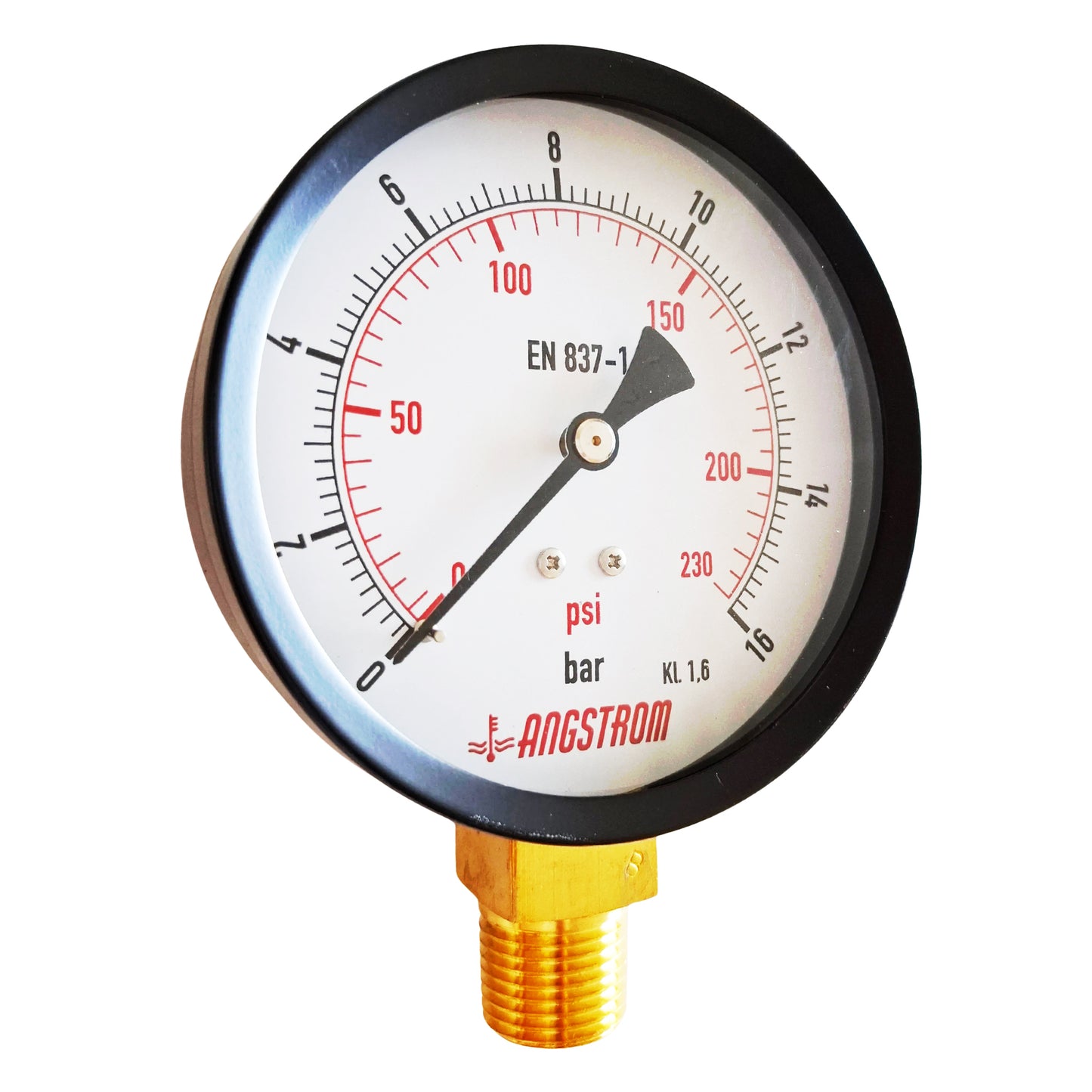

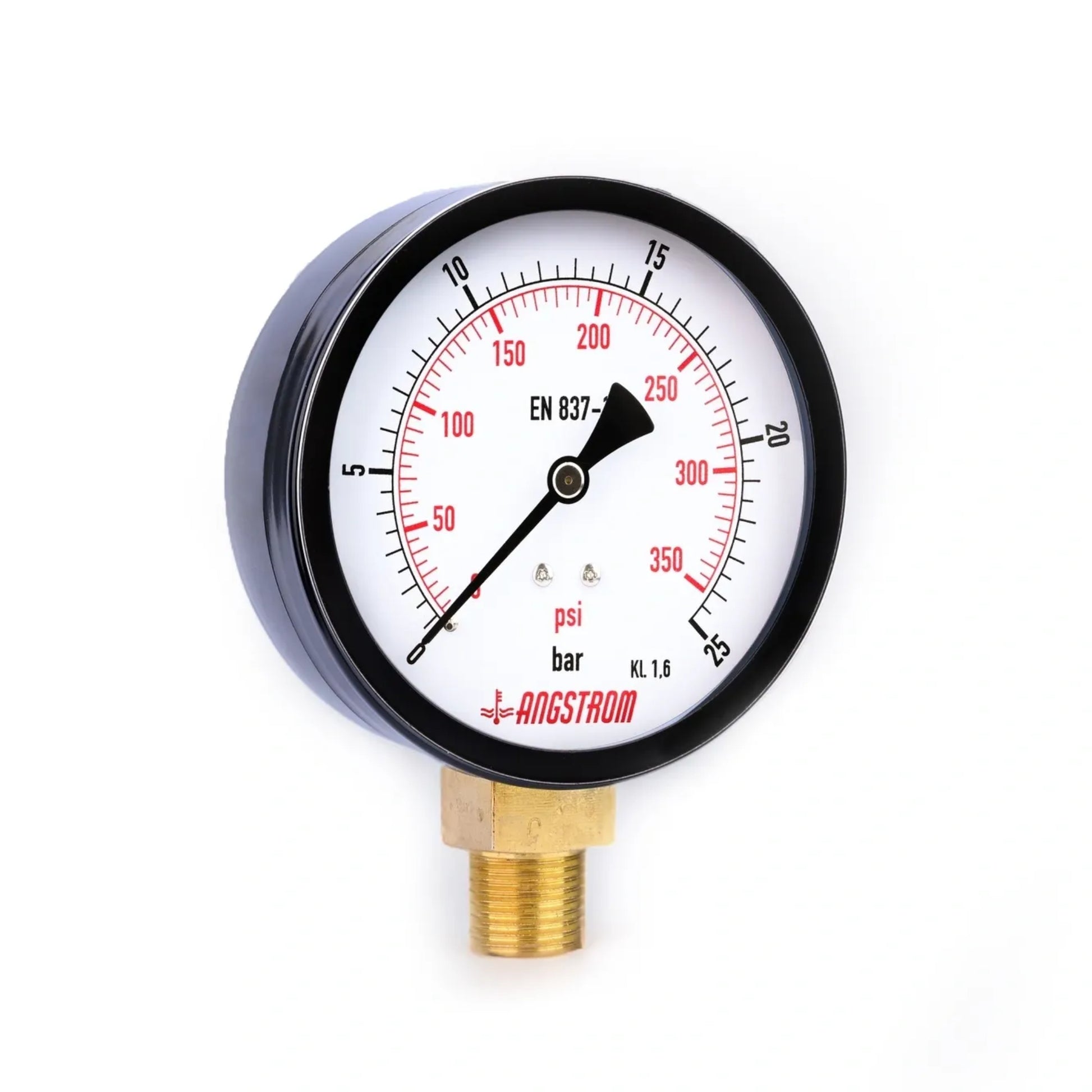

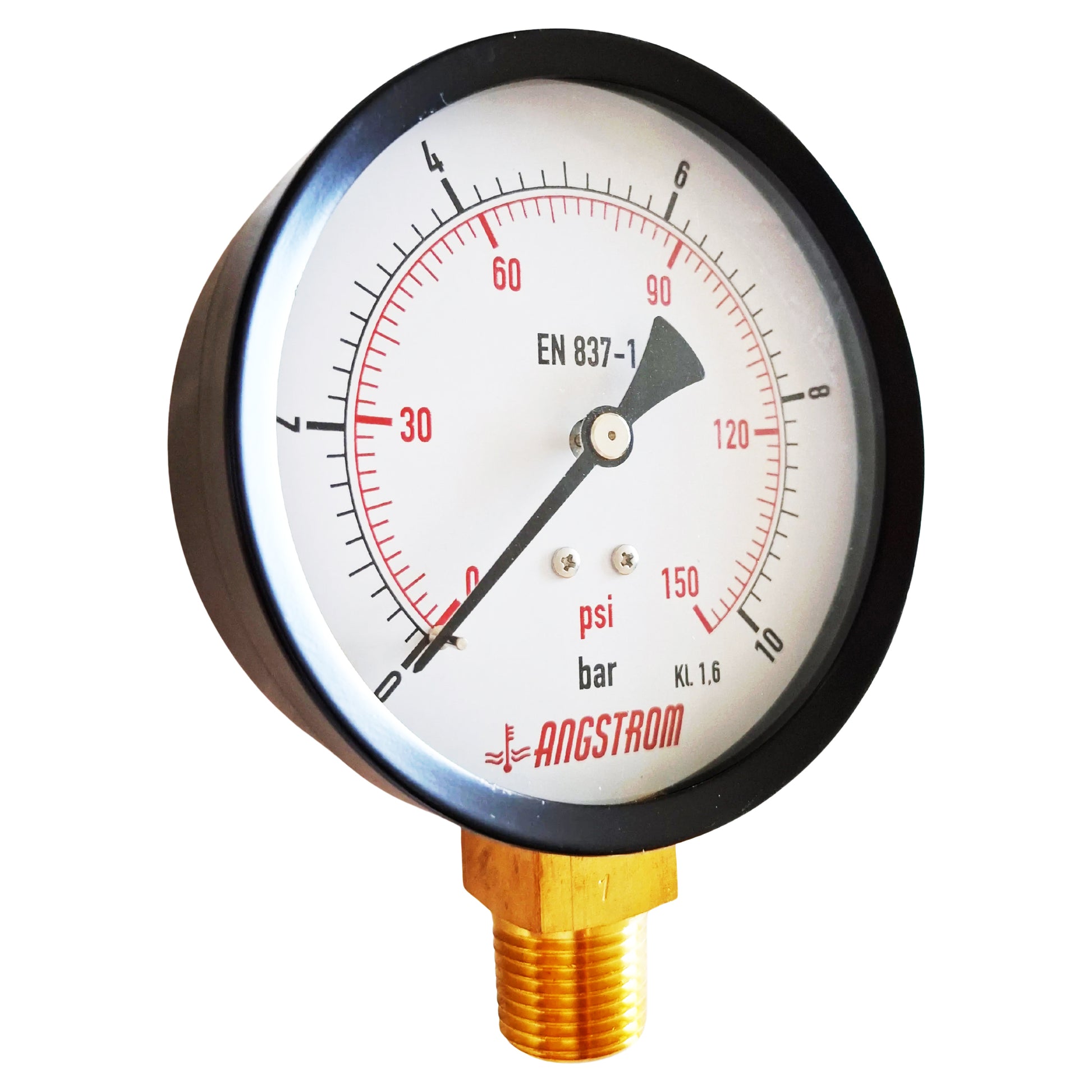

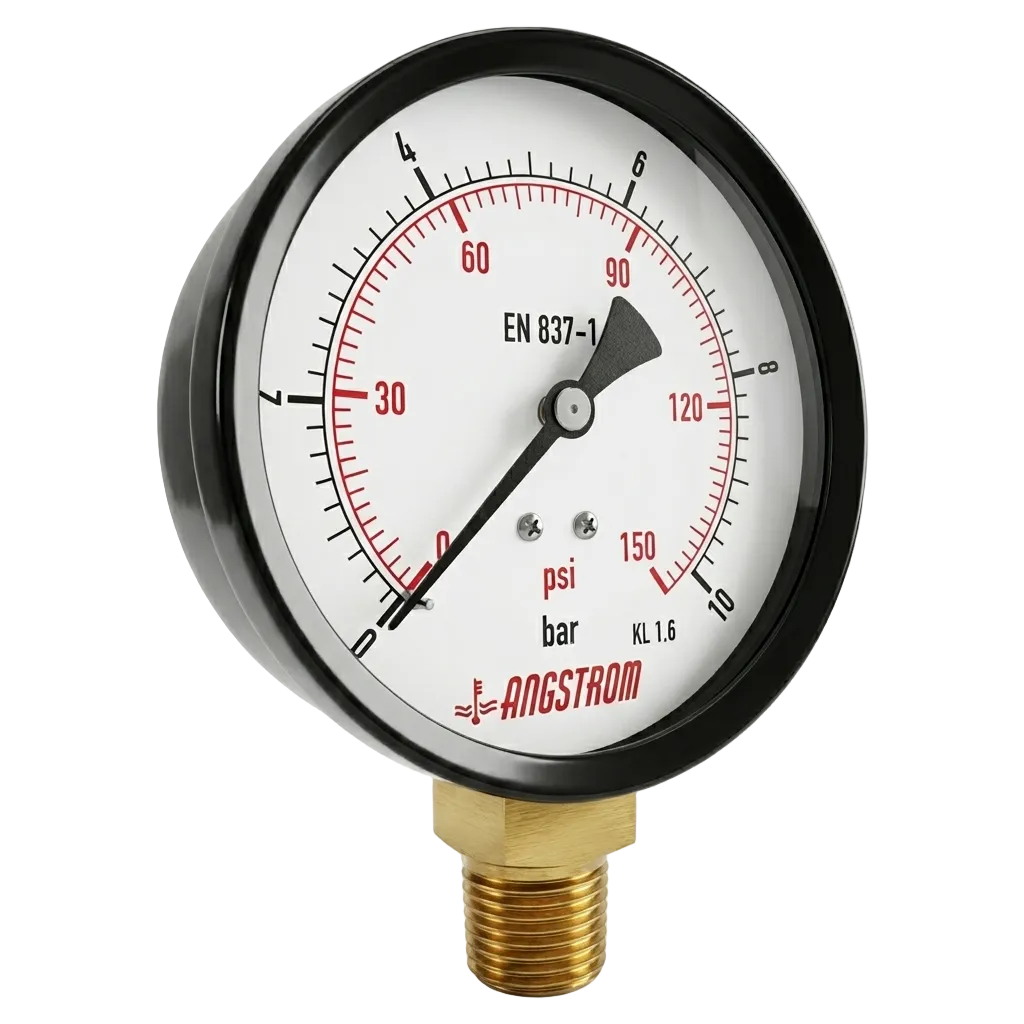

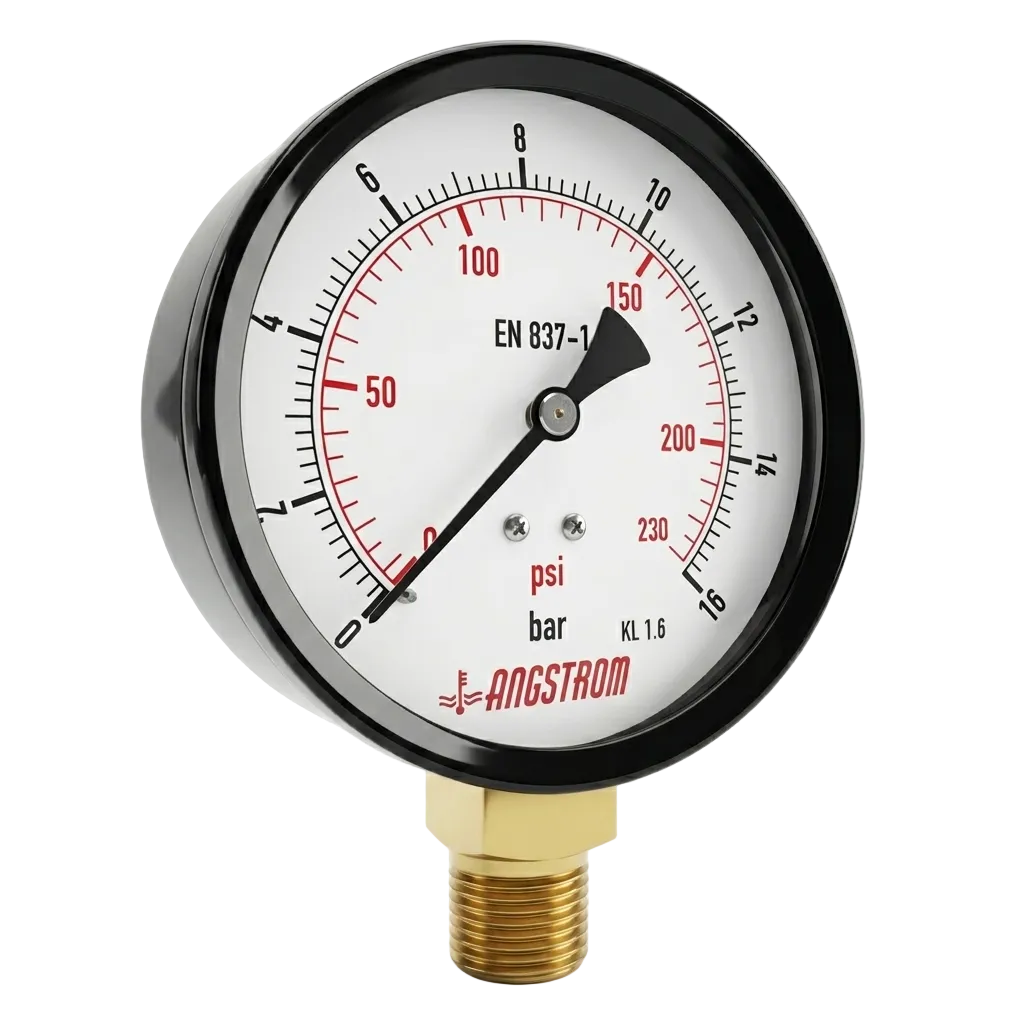

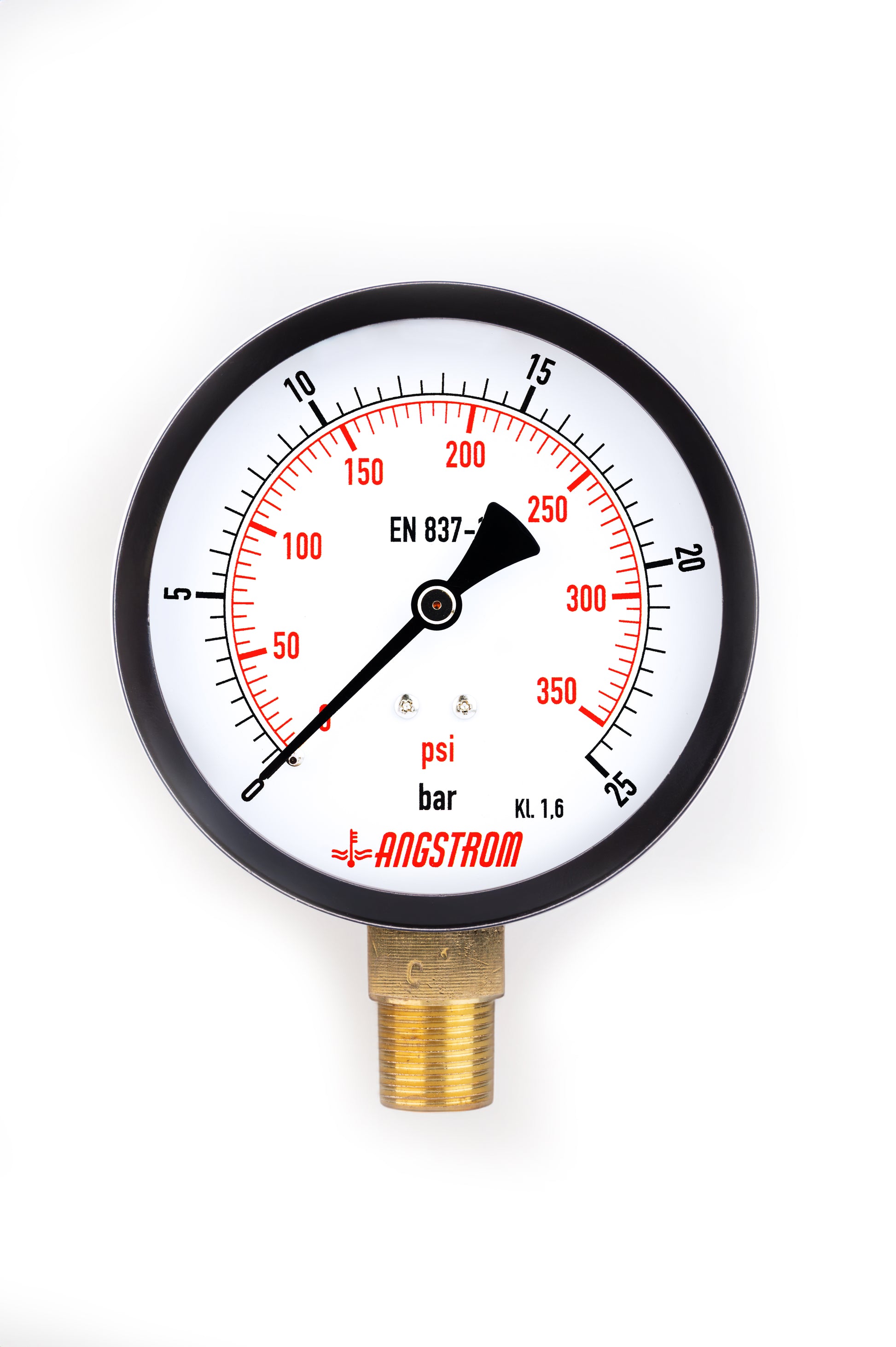

Angstrom Pressure Gauge - 100mm (4") - 10–25 Bar - Bottom Entry - Black Steel for HVAC & Plumbing UAE

Overview

This black steel pressure gauge (10–25 bar range) is a cost-effective and reliable solution for HVAC chilled water systems, plumbing networks, and general industrial applications.

With a 100mm (4") dial for clear visibility and ±1.6% accuracy, it is widely used by MEP contractors and maintenance teams across the UAE for monitoring pressure in non-corrosive environments.

Key Specifications

• Pressure Range: 10 / 16 / 25 bar (up to 350 psi)

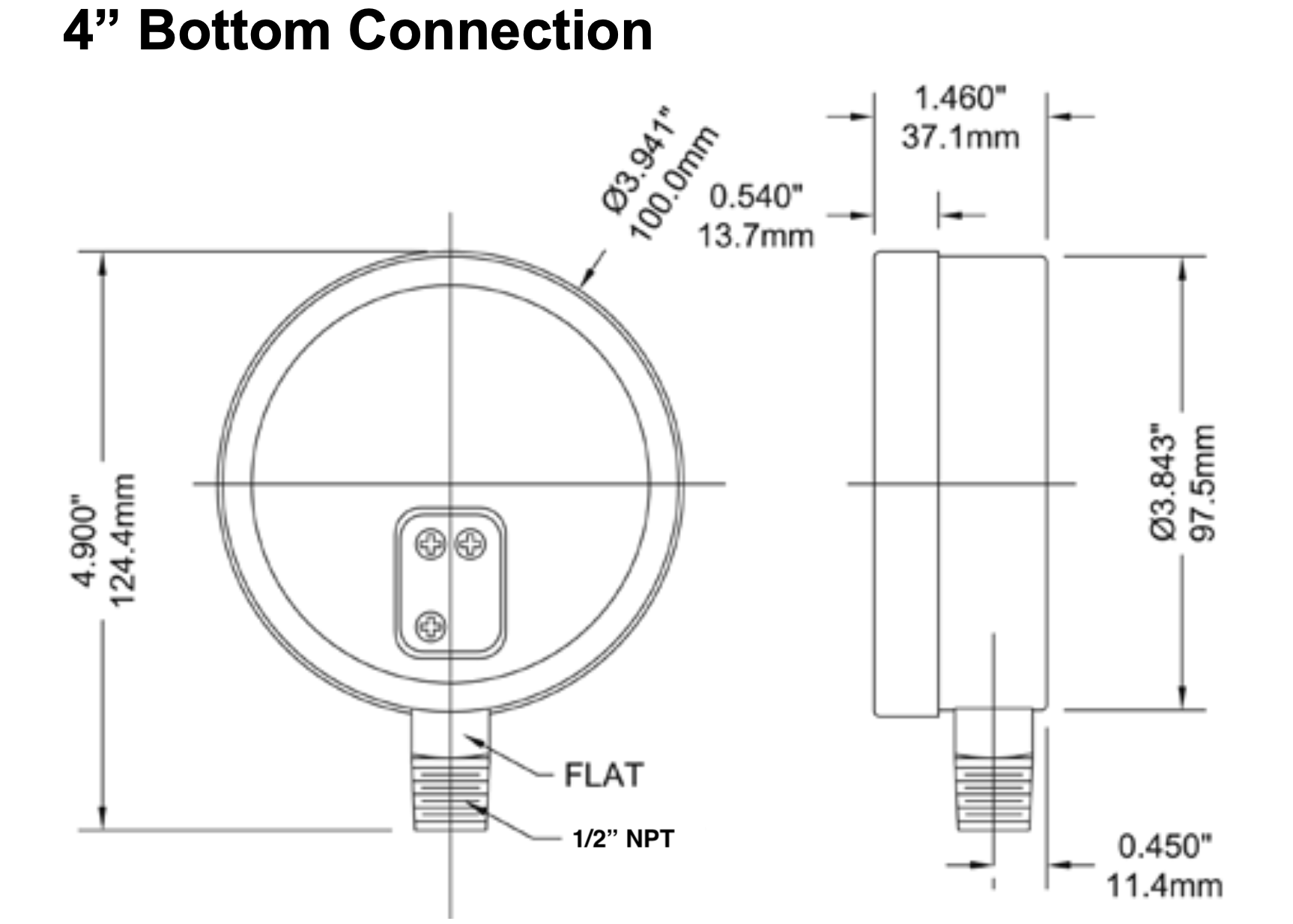

• Dial Size: 100mm (4")
• Connection Type: Bottom entry
• Thread: 1/2" NPT (brass male)
• Accuracy: ±1.6% (EN 837-1)
• Case: Painted black steel
• Movement: Brass bourdon tube
• Filling: Dry (no glycerin)

Applications

• HVAC chilled water systems
• Plumbing and water supply networks
• Pump and pipeline pressure monitoring
• General industrial use (non-corrosive environments)

Why Choose This Gauge

• Cost-effective alternative to stainless steel gauges
• Large 100mm dial for easy on-site reading
• Reliable for standard water and air systems
• Suitable for most MEP applications in UAE projects

When to Use This vs Other Gauges

Choose Black Steel Pressure Gauge:

• Non-corrosive environments
• Budget-sensitive projects
• Standard HVAC and plumbing systems

Choose Stainless Steel Glycerin-Filled Gauge:

• Corrosive or outdoor environments
• Systems with vibration or pressure pulsation

Commercial Note

Commonly used across Dubai and the UAE, this gauge is a practical choice for projects requiring reliable performance at competitive pricing, with fast local availability.
