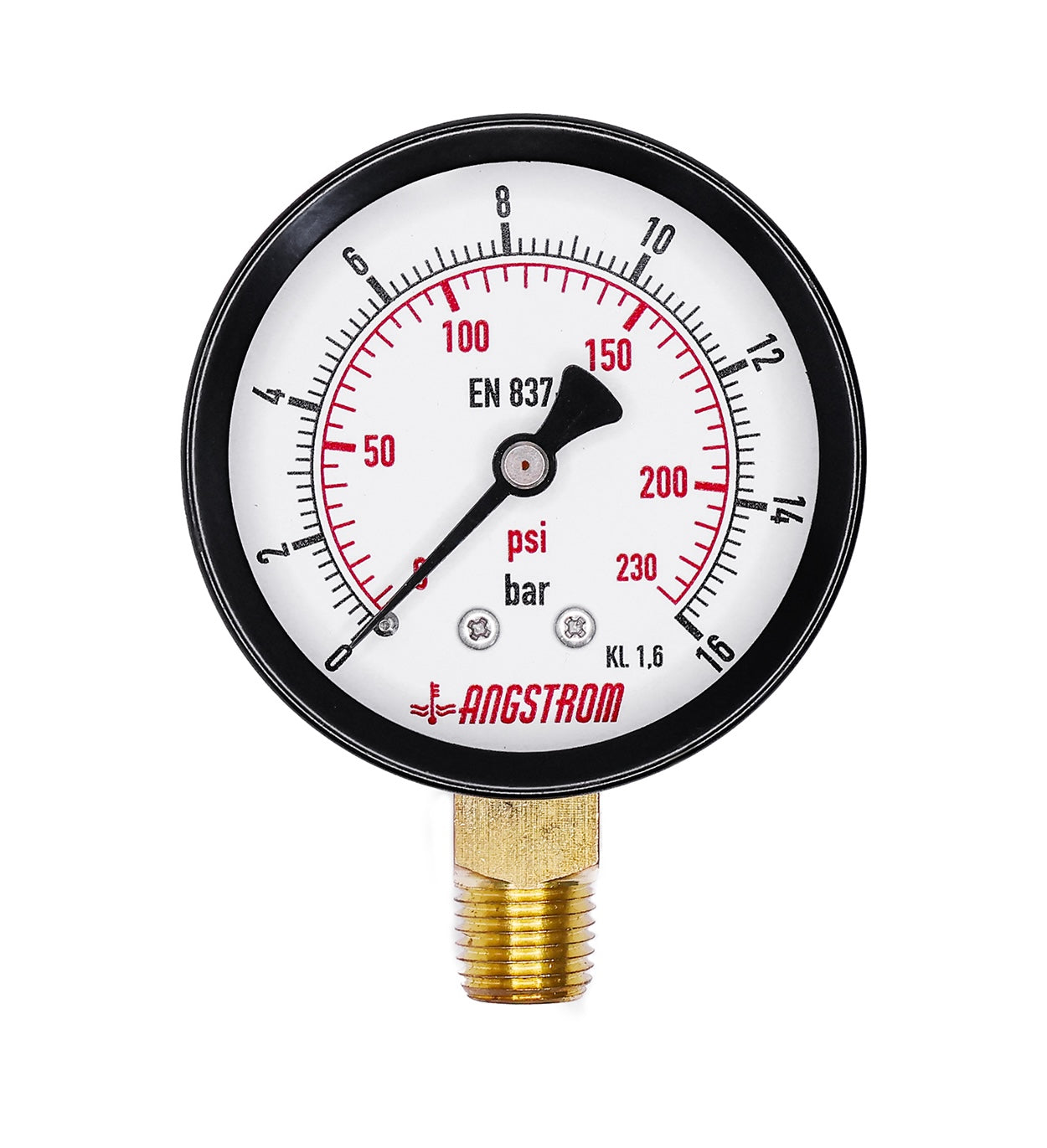

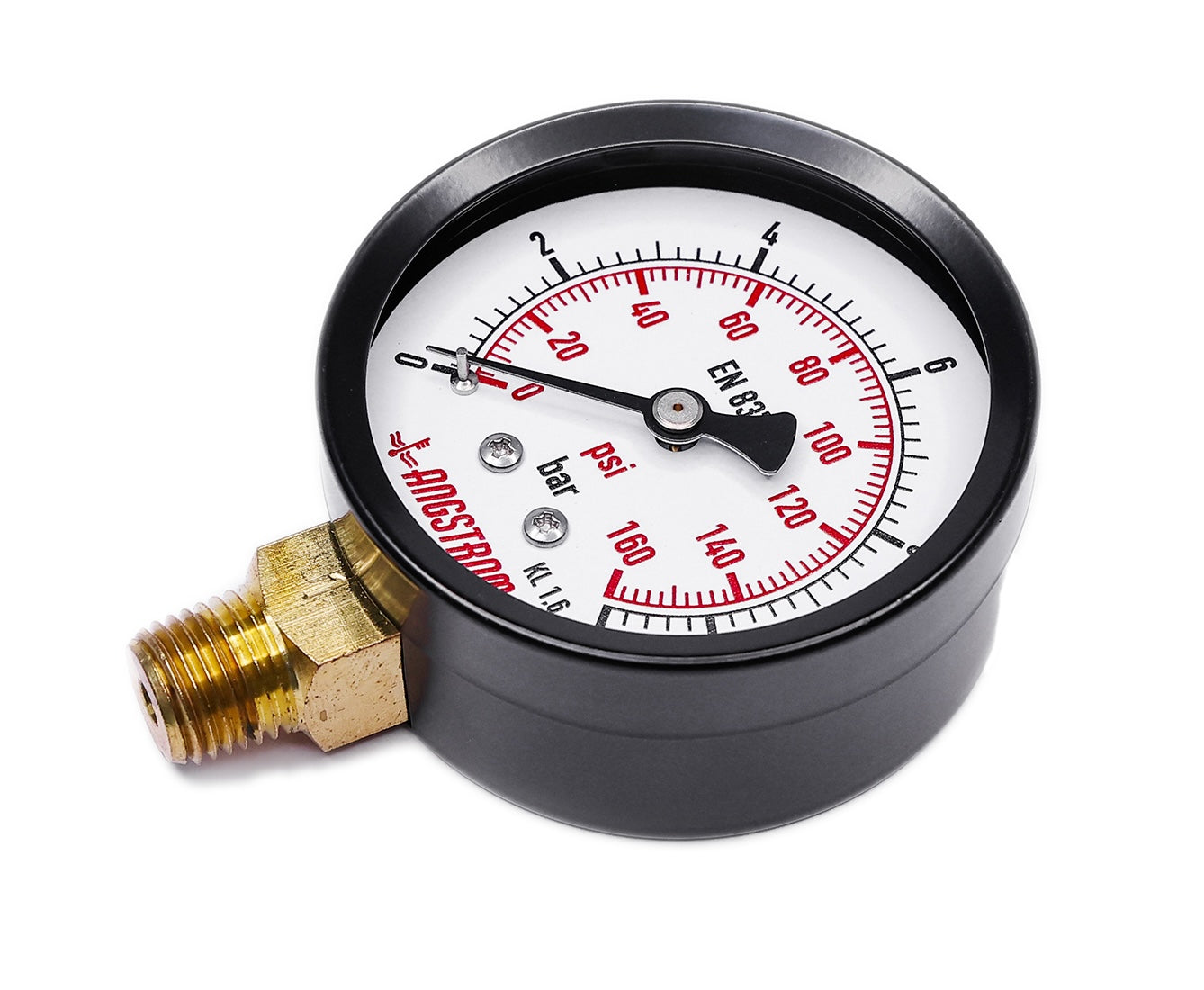

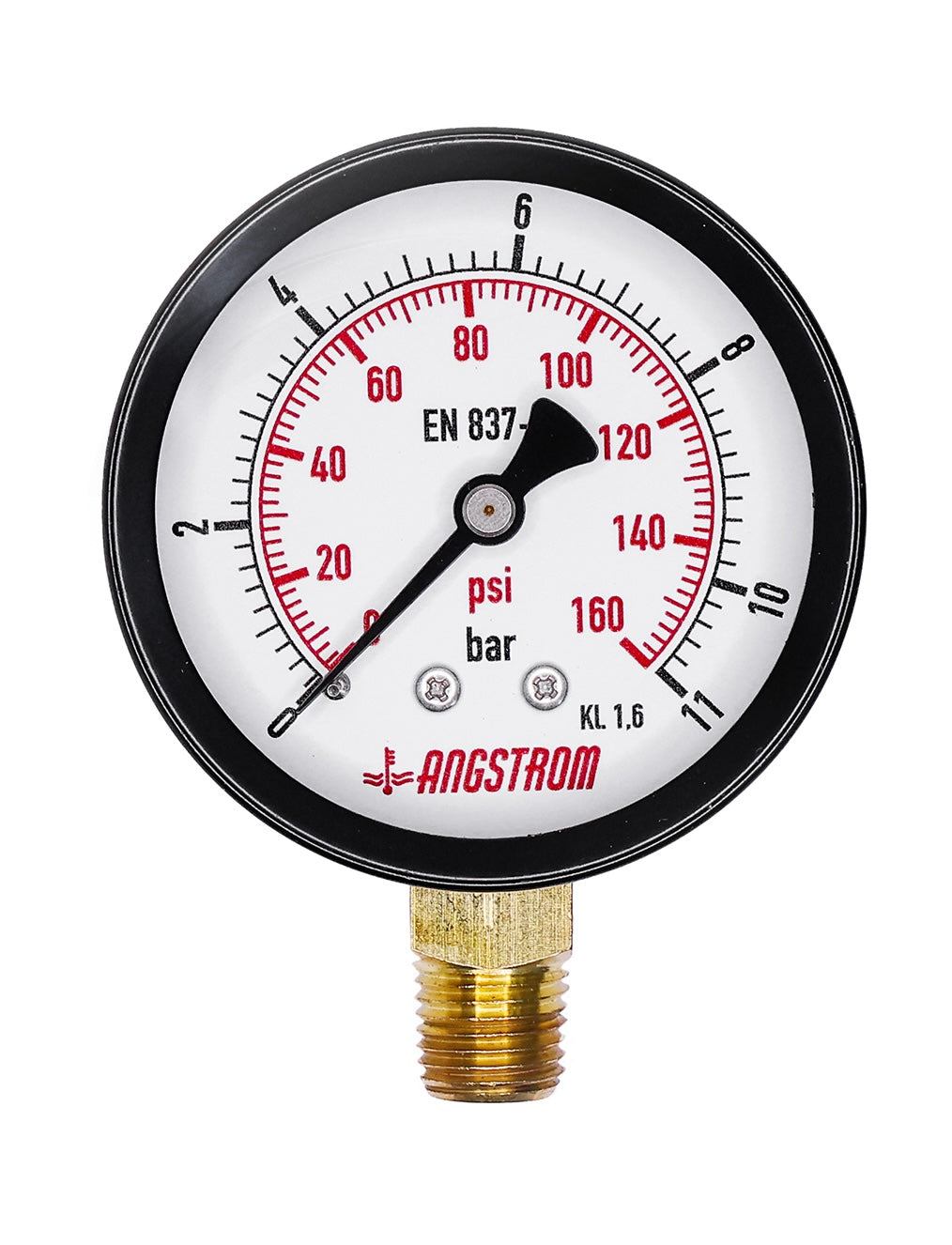

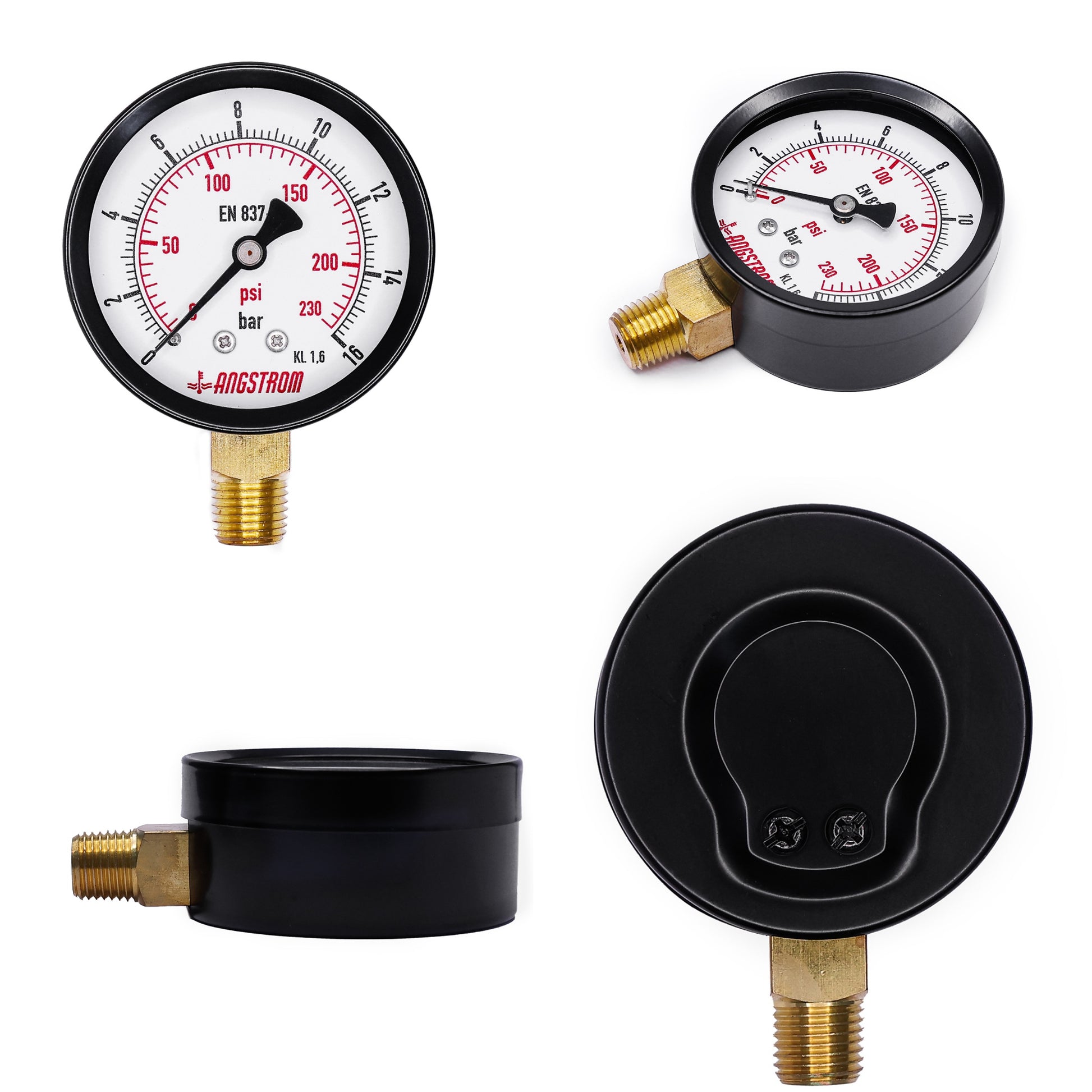

This Angstrom black steel pressure gauge (160–230 psi range) is a cost-effective and reliable solution for HVAC chilled water systems, plumbing networks, and general industrial applications.
With a compact 63mm dial for space-limited installations and ±1.6% accuracy, it is widely used by MEP contractors and maintenance teams across the UAE for monitoring pressure in non-corrosive environments.
Key Specifications
Pressure Range: 160 / 230 psi (up to 230 psi)

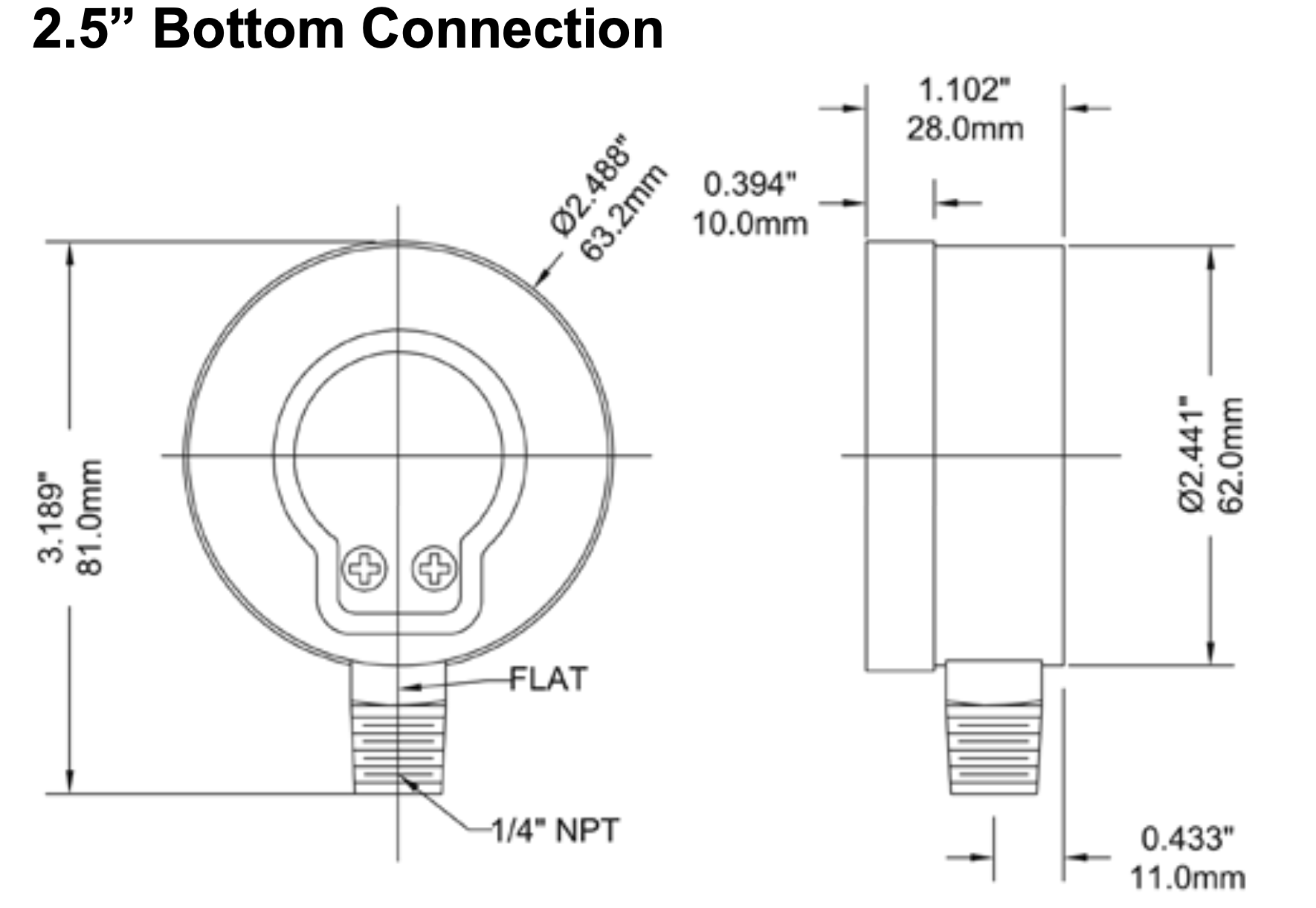

Dial Size: 63mm (2.5")

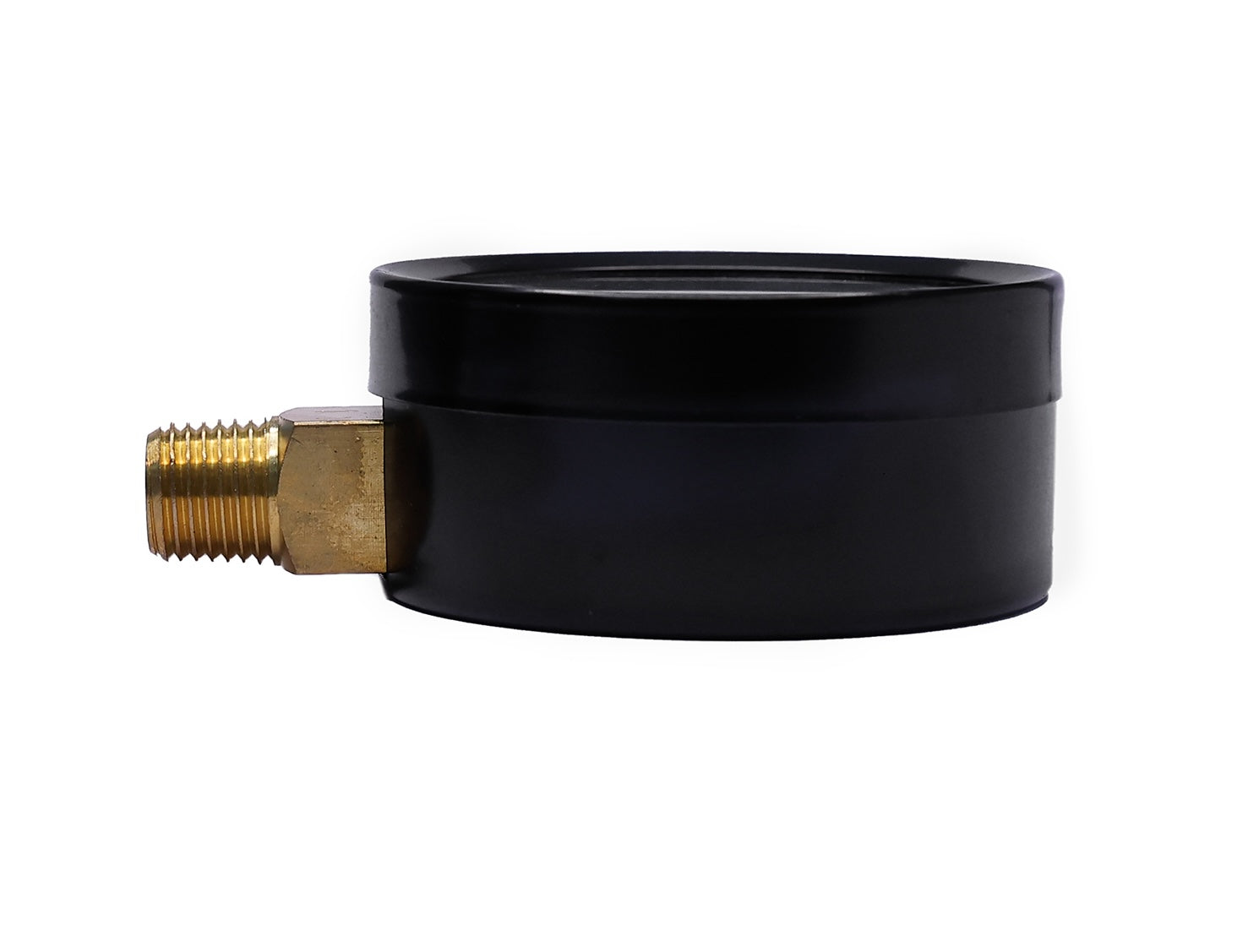

Connection Type: Lower Mount
Thread: 1/4" NPT (brass male)
Accuracy: ±1.6% (EN 837-1)

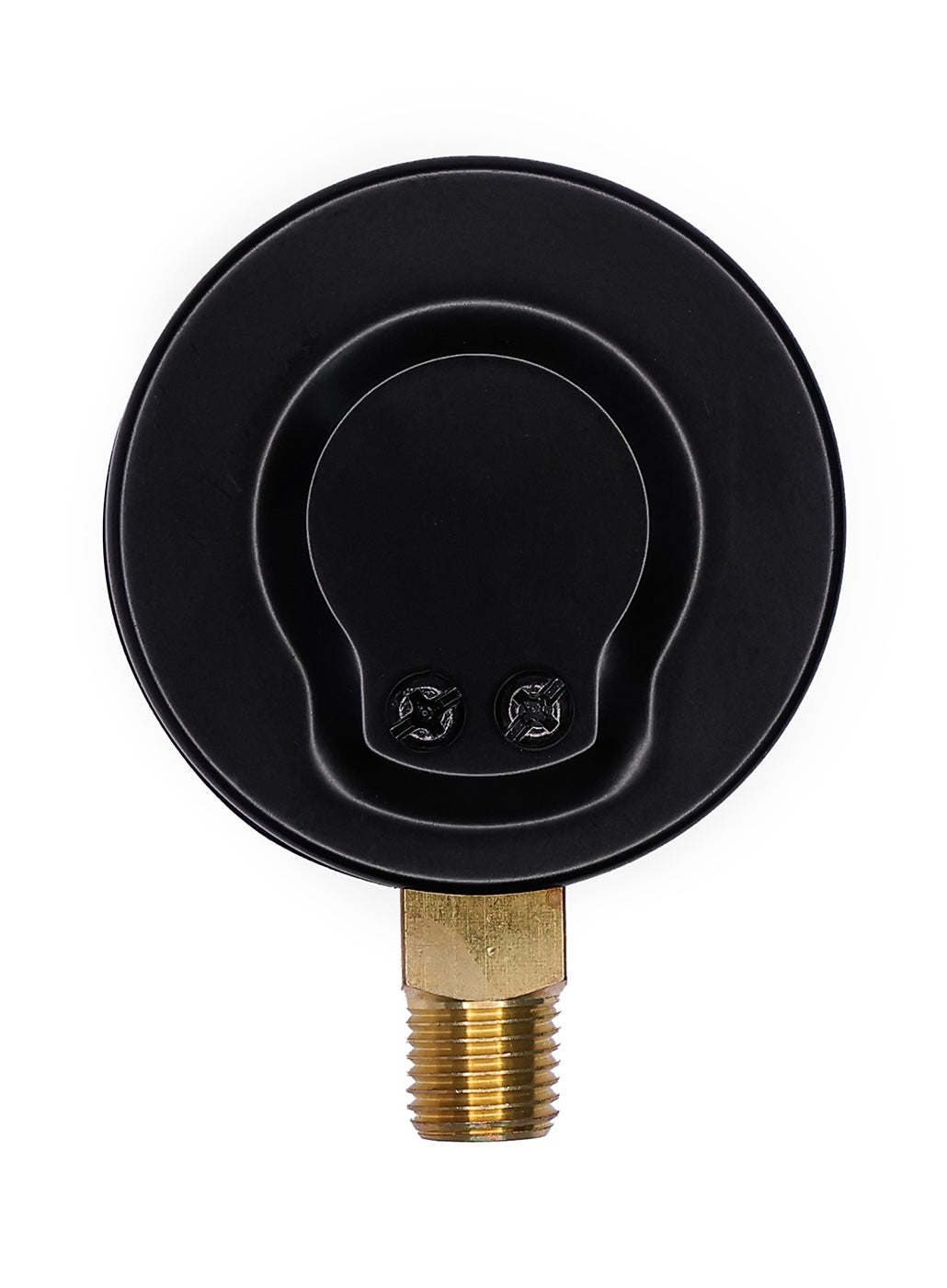

Case: Painted black steel
Movement: Brass bourdon tube
Filling: Dry (no glycerin)
Applications
HVAC chilled water systems
Plumbing and water supply networks
Pump and pipeline pressure monitoring
General industrial use (non-corrosive environments)
When to Use This vs Other Gauges
Choose Black Steel Pressure Gauge:
Non-corrosive environments
Budget-sensitive projects
Standard HVAC and plumbing systems
Choose Stainless Steel Glycerin-Filled Gauge:
Corrosive or outdoor environments
Systems with vibration or pressure pulsation
Commercial Note
Stocked in UAE warehouse for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
