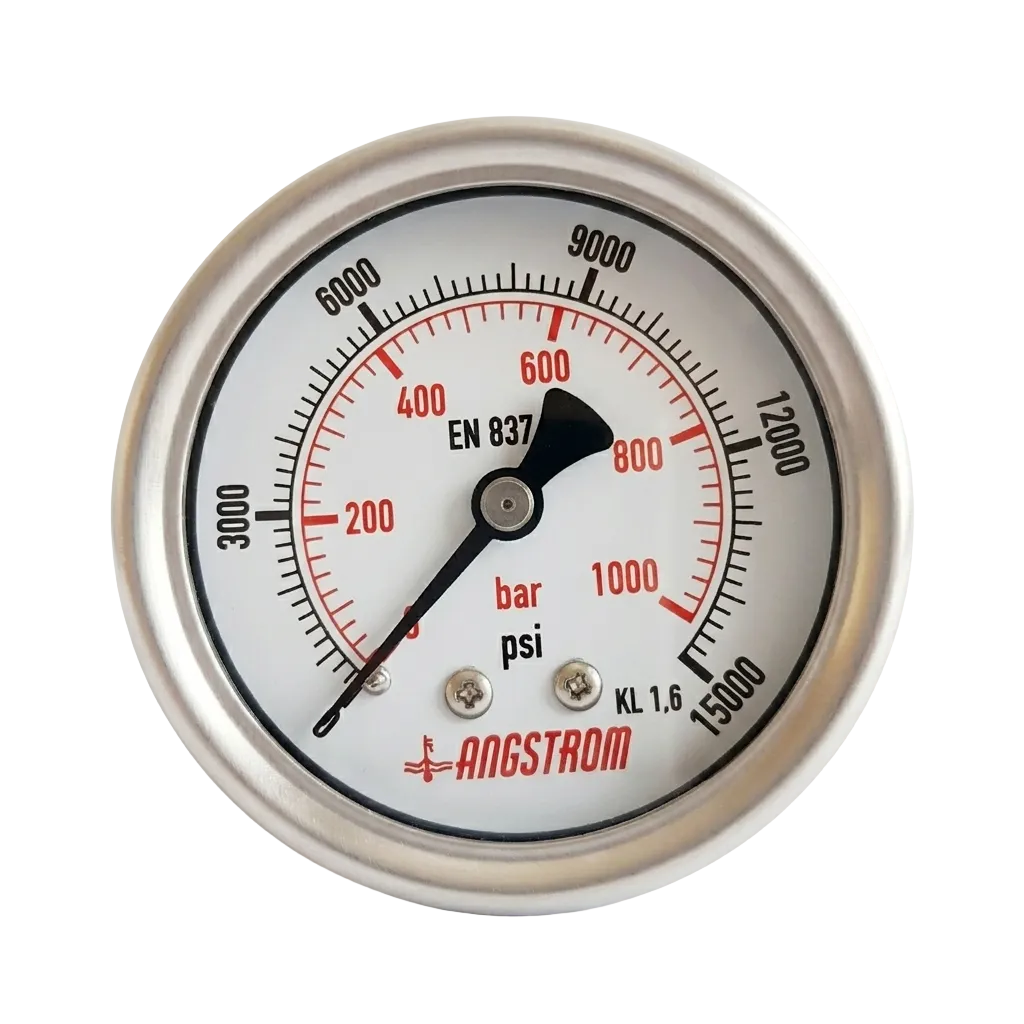

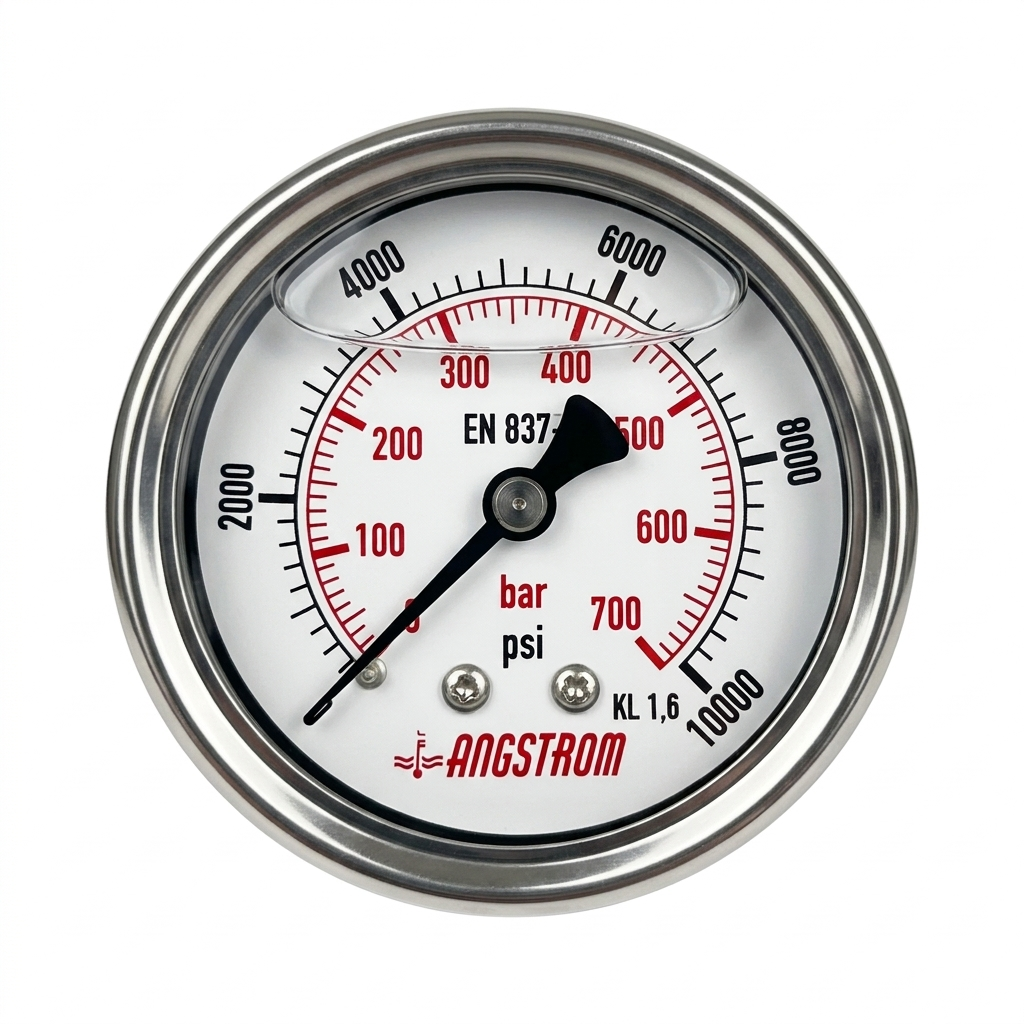

Angstrom Pressure Gauge - 63mm (2.5") - 10,000-15,000psi - Center Back Mount - Stainless Steel for Hydraulic UAE

Overview

This Angstrom full stainless steel pressure gauge 700 and 1000bar (10,000 and 15,000psi) range is designed for hydraulic systems, industrial machinery, and high-pressure applications.

The compact 63mm (2.5") dial makes it suitable for panel-mounted and equipment installations where space is limited, while maintaining ±1.6% accuracy for reliable pressure monitoring in demanding environments.

Key Specifications

• Pressure Range: 700 and 1000bar
• Dial Size: 63mm (2.5")
• Connection Type: Center Back Mount
• Thread: 1/4" NPT (316 stainless steel male)
• Accuracy: ±1.6% (EN 837-1)
• Case: 304 Stainless Steel
• Movement: 316 stainless steel bourdon tube
• Filling: Glycerin

Applications

• Hydraulic systems and presses
• Industrial machinery

• Marine / corrosive environments

When to Use This vs Other Gauges

Choose Stainless Steel Pressure Gauge:

• Demanding and harsh environments
• System with hydraulic pulsation

• Vibrating machines

Commercial Note

Stocked in UAE warehouse for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
