Angstrom Capsule Pressure Gauge - 63mm (2.5") - 60–400mbar Bottom Entry for Low-Pressure HVAC & Gas Systems UAE

Overview:

The 63mm capsule pressure gauge measures ultra-low pressures from 60 to 400mbar using a dual-disc capsule element — purpose-built for applications where bourdon tube gauges lose accuracy. Lower mount (bottom entry) connection suits direct pipe or manifold installation. Stocked in Dubai for MEP contractors, HVAC engineers, and gas system integrators across UAE.

Key Specifications:

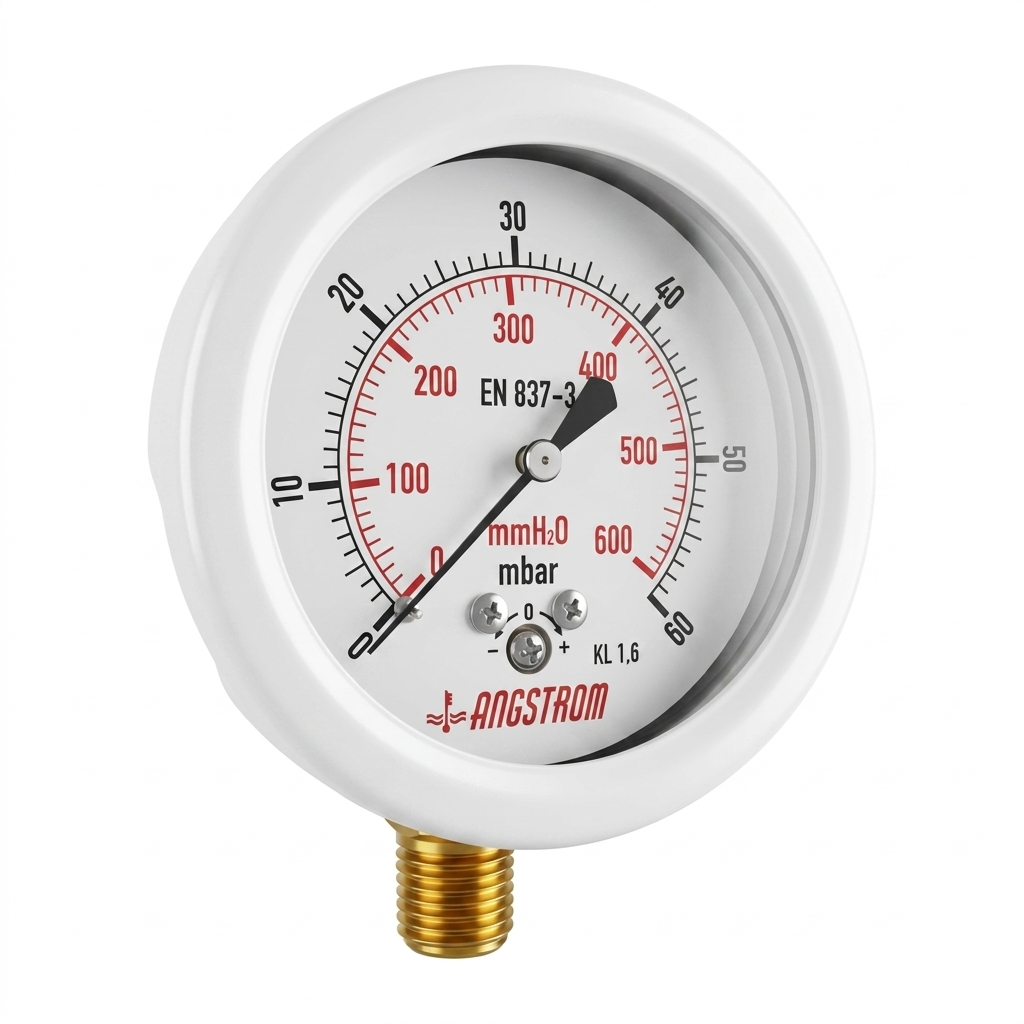

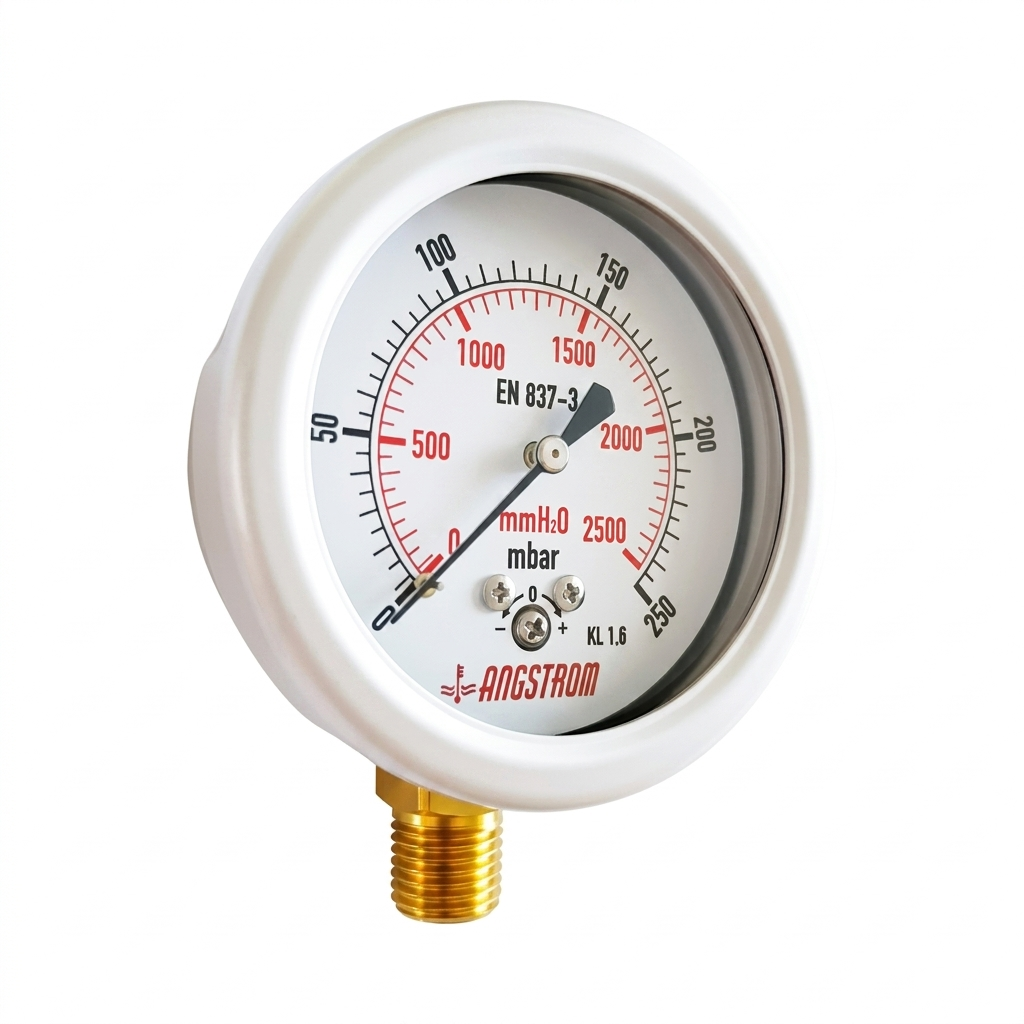

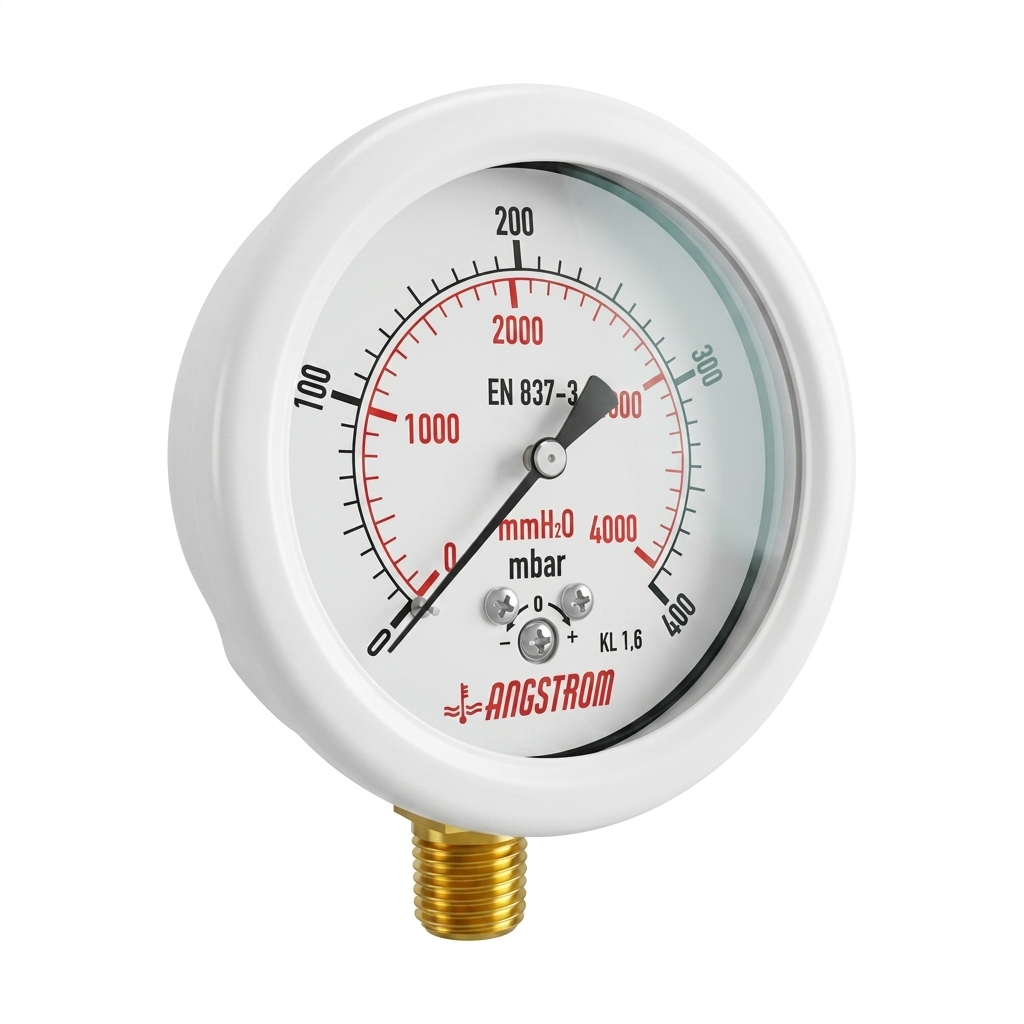

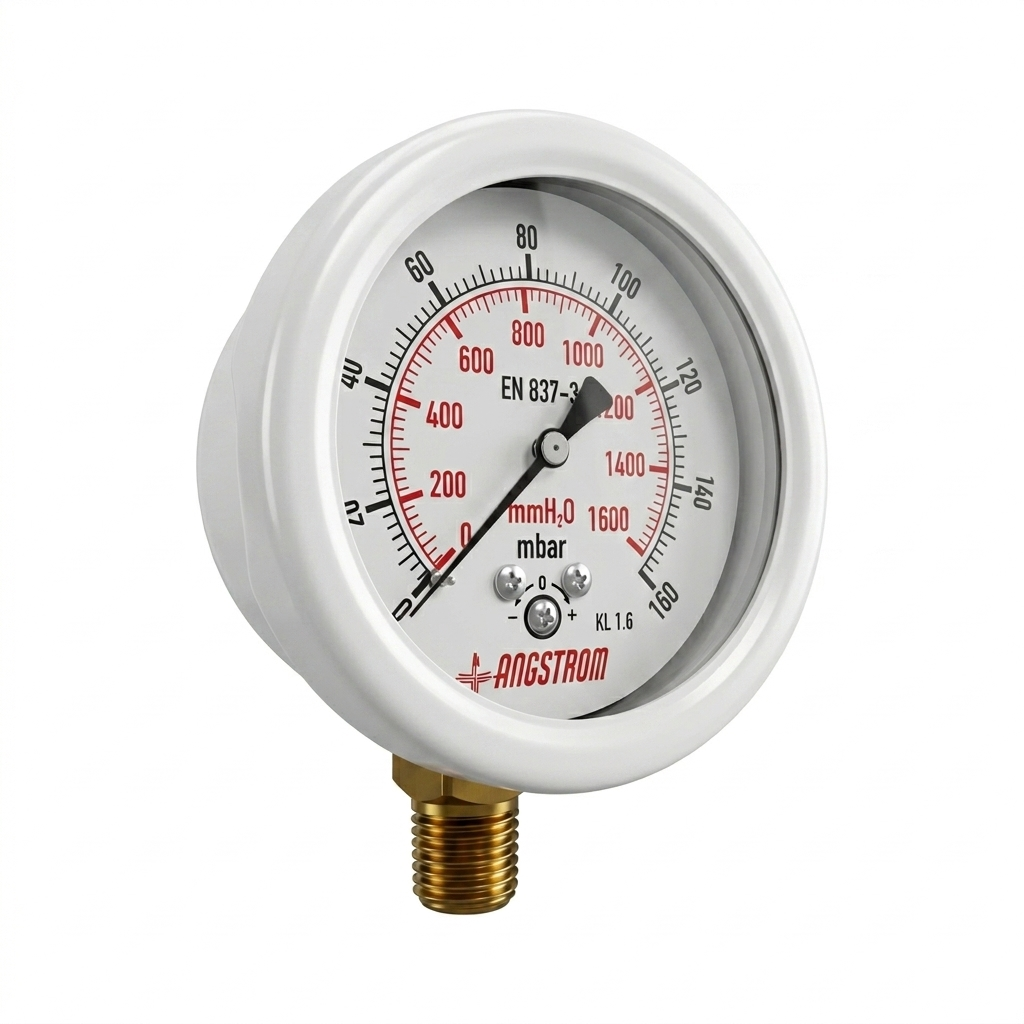

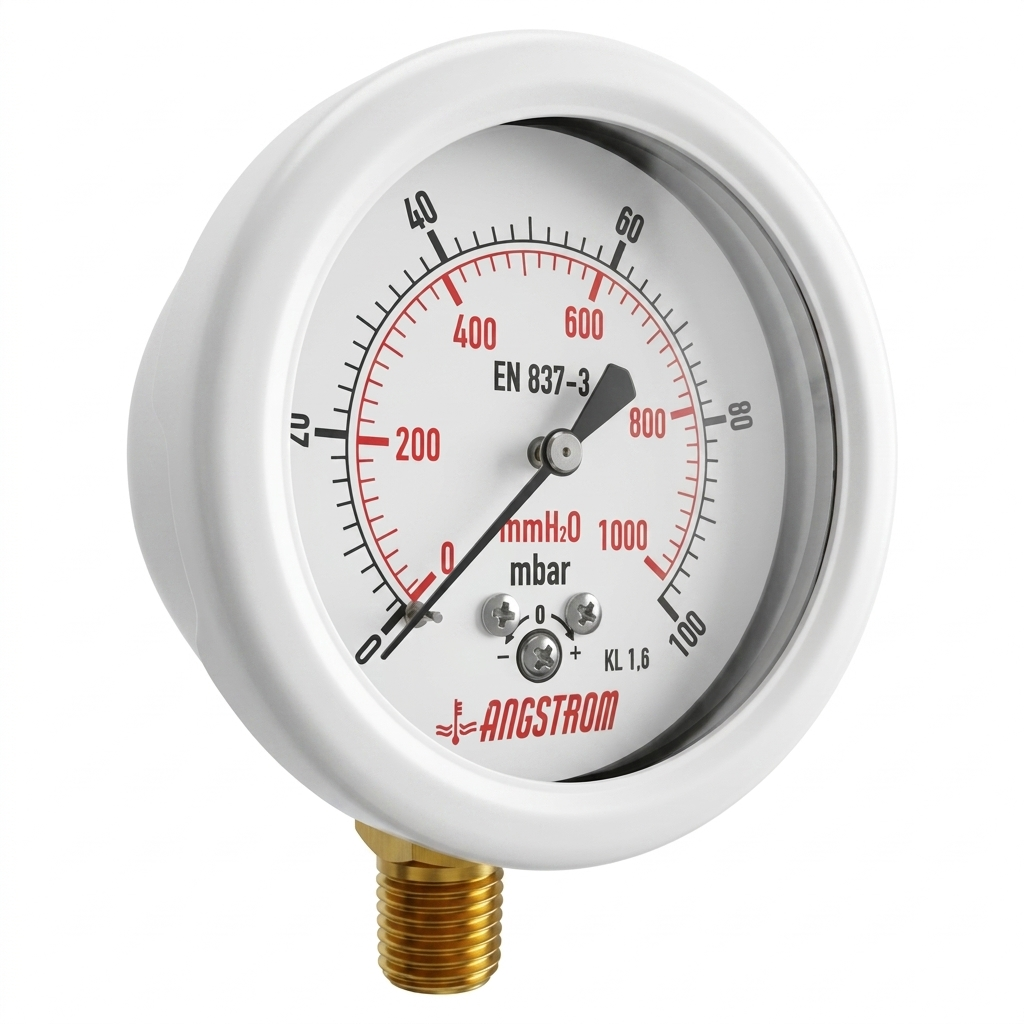

• Pressure Range: 60 / 100 / 160 / 250 / 400mbar (select variant)
• Dial Size: 63mm (2.5")

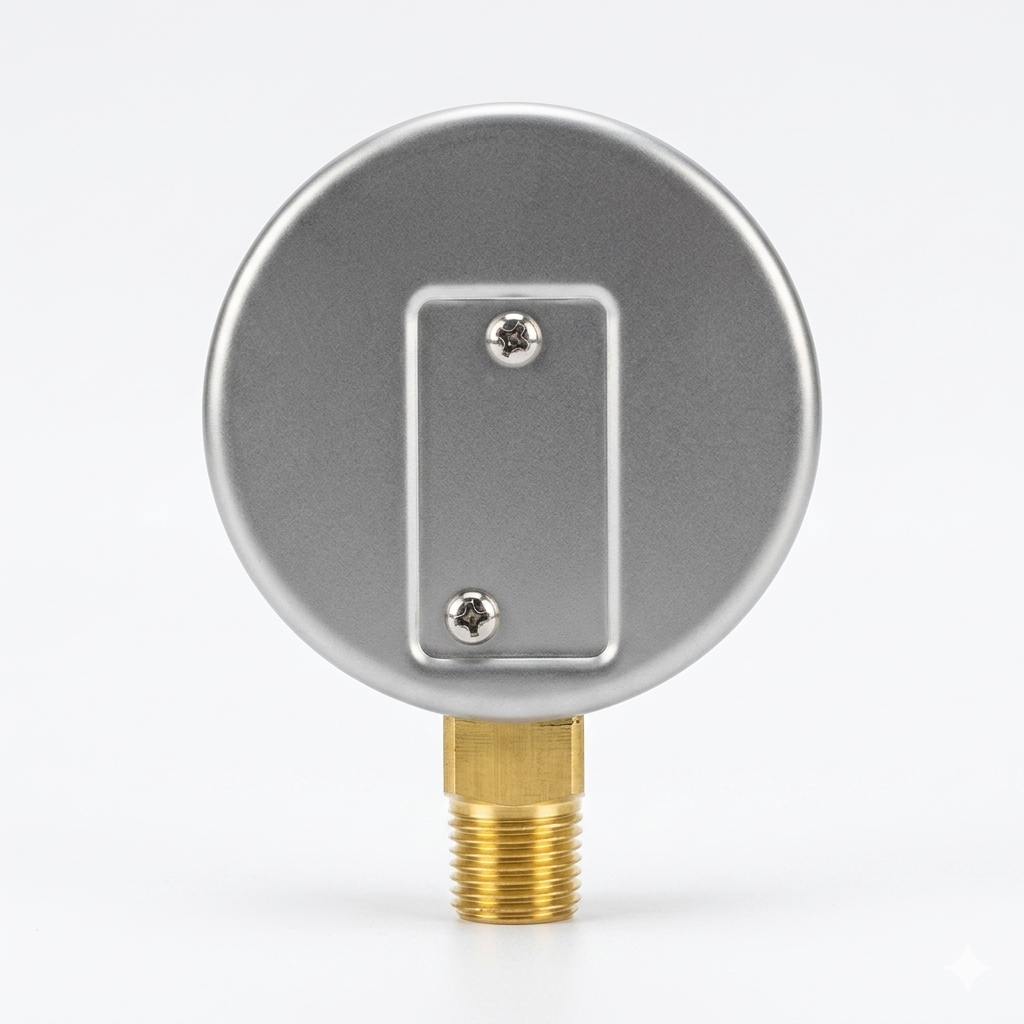

• Connection: Lower Mount (Bottom Entry), 1/4" NPT Male
• Accuracy: ±1.6% FS (EN 837-3)
• Case: 304 Stainless Steel
• Movement: Brass Capsule Element
• Dial: White aluminum, black markings
• Protection: IP66
• Filling: Dry (standard)

Applications:

• Natural gas and LPG distribution networks
• HVAC air handling unit pressure monitoring
• Pneumatic control systems and instrumentation panels
• Cleanroom and laboratory low-pressure circuits
• Biogas and compressed air systems

Why Choose This Gauge:

• Capsule element outperforms bourdon tube below 600mbar — no accuracy loss at low ranges
• IP66 rated — suitable for outdoor and humid UAE environments
• 304 SS case resists corrosion in coastal and industrial sites
• Compact 63mm dial fits tight installations without sacrificing readability
• Available in 5 pressure ranges from a single local stock point

When to Use vs Other Types:

• Choose this if: measuring gas or air pressure below 1 bar where a standard bourdon gauge would be inaccurate
• Choose stainless steel bourdon gauge if: pressure exceeds 1 bar or liquid media is involved
• Choose glycerin-filled gauge if: high vibration or pulsation is present alongside higher pressure ranges

Commercial Note:

Targeted at MEP contractors, HVAC consultants, and facility management teams specifying low-pressure instrumentation for UAE projects. Fast local availability from Dubai stock — same-week delivery across UAE.
