Angstrom Bimetal Thermometer - 150mm (6") -20/+60°C +120°C +300°C - Adjustable Angle - Stainless Steel for HVAC & Industrial UAE

Overview

This Angstrom stainless steel bimetal thermometer with 150mm (6") dial and adjustable angle connection is designed for maximum-visibility temperature measurement in large industrial facilities, process plants, and outdoor HVAC installations across the UAE.

The 150mm dial is the largest standard industrial thermometer size — readable from across a room or in outdoor environments where smaller dials are impractical. The adjustable angle swivel connection allows the dial to be rotated to any position after installation for optimal visibility. Mechanical bimetal sensing requires no external power. 304 SS case with IP65 protection and 316 SS 1/2" NPT connection. Available in three scale ranges (-20/+60°C, 0–120°C, 0–300°C) and five stem lengths from 100mm to 300mm.

Widely used across Dubai and the UAE by MEP contractors, instrumentation engineers, and industrial maintenance teams in large-scale process plants, outdoor pipelines, and critical monitoring applications where temperature must be visible from a distance.

Key Specifications

• Dial Size: 150mm (6")
• Connection Type: Adjustable angle (swivel)
• Connection Thread: 1/2" NPT
• Connection Material: 316 Stainless Steel
• Case Material: 304 Stainless Steel

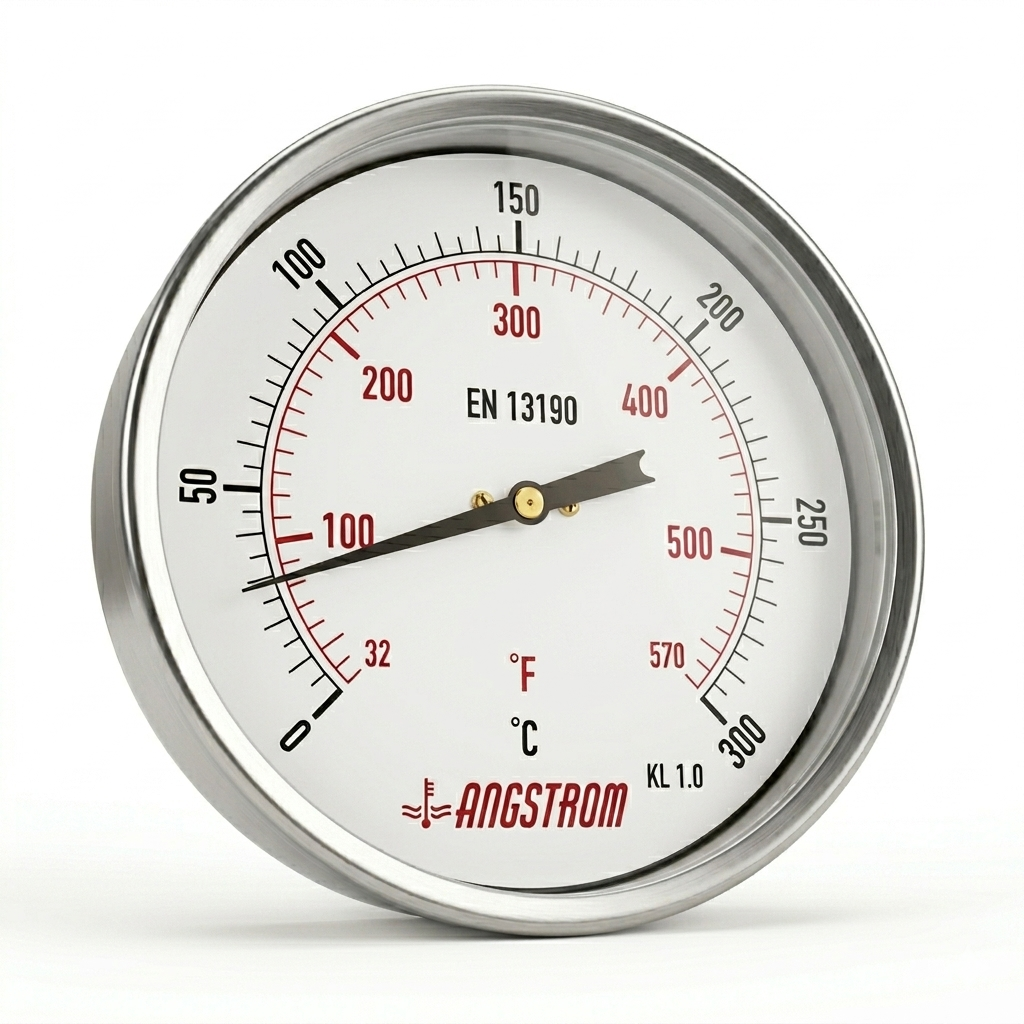

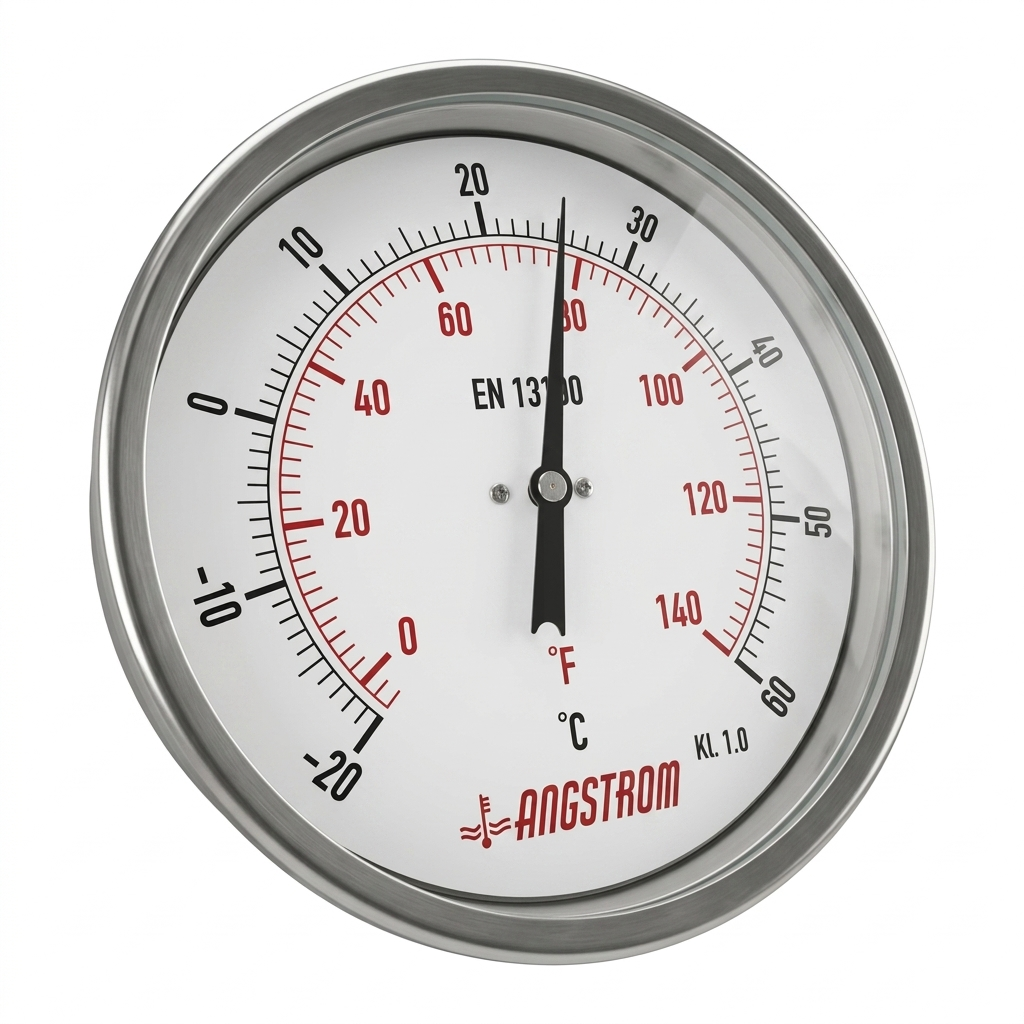

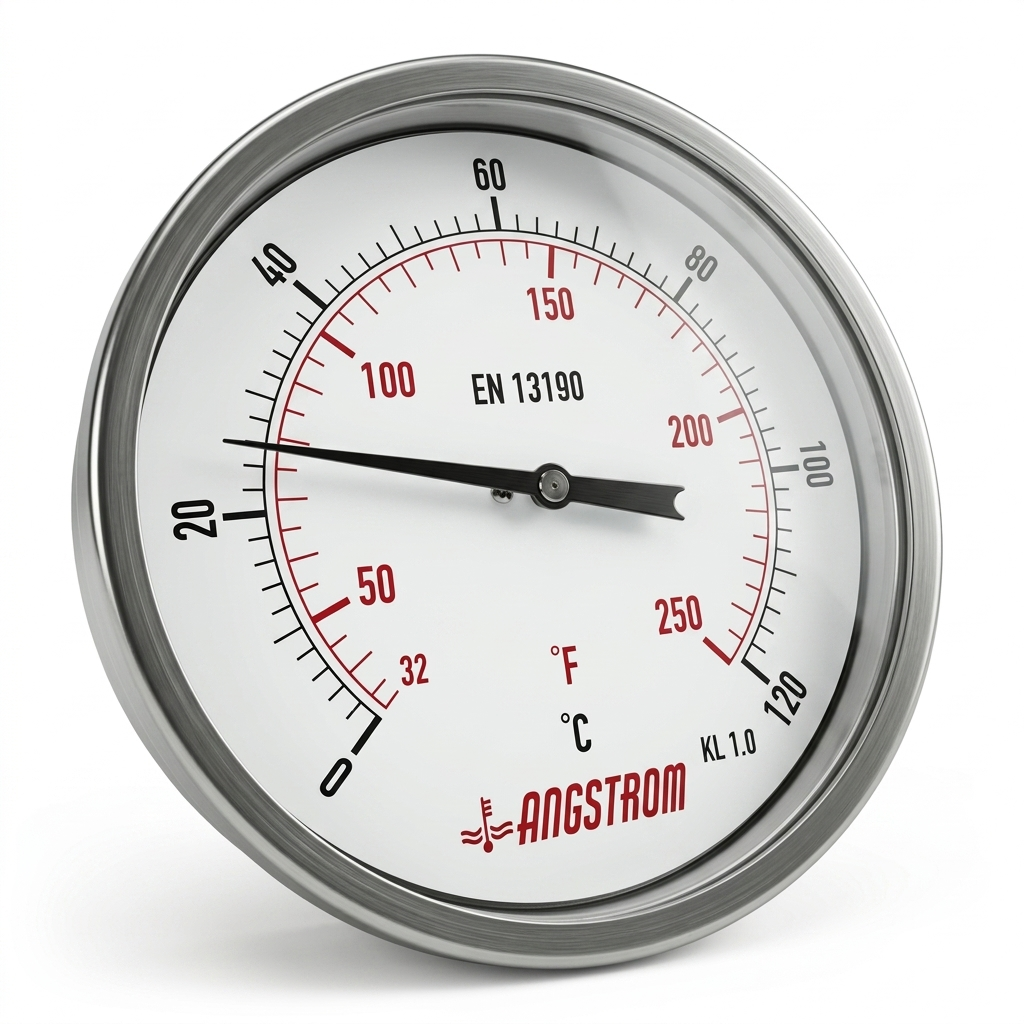

• Scale Range: -20/+60°C, 0–120°C, or 0–300°C (variant dependent)
• Stem Length: 100mm, 150mm, 200mm, 250mm, 300mm (variant dependent)
• Accuracy: ±1%
• Protection Rating: IP65 (dust and moisture resistant)
• Power Required: None (mechanical bimetal operation)

Applications

• Large-scale industrial process plants requiring maximum dial visibility
• Outdoor pipeline temperature monitoring in UAE industrial zones
• HVAC systems in large commercial and industrial buildings
• Oil & gas and petrochemical facilities with distance monitoring requirements
• Steam and high-temperature process monitoring (0–300°C range)
• Critical monitoring applications where temperature must be readable from across a room

Why Choose This Thermometer

• 150mm dial — maximum visibility, readable from distance in large facilities and outdoor installations
• Adjustable angle swivel — rotate dial to optimal reading position after installation
• 0–300°C range available — suitable for steam, boiler, and high-temperature process monitoring
• Five stem lengths — 100mm to 300mm for large-diameter pipes and deep vessels
• No power required — fully mechanical, maintenance-free operation
• IP65 rated — dust and moisture resistant for UAE outdoor and industrial environments

When to Use 150mm Dial vs Smaller Dials

Choose 150mm Adjustable Angle (this product):

• Large facilities where temperature must be read from a distance
• Outdoor installations requiring maximum dial size
• Critical process monitoring where visibility cannot be compromised
• Only available with adjustable angle connection

Choose 100mm Adjustable Angle or Center Back Mount:

• Standard industrial and HVAC installations with normal viewing distances
• Control panel installations (center back mount)

Choose 63mm Dial:

• Compact installations, space-constrained panels, or where smaller footprint is required

How to Select the Right Stem Length

• 63mm stem: pipe diameter 63mm to 125mm
• 100mm stem: pipe diameter 100mm to 200mm
• 150mm stem: pipe diameter 150mm to 300mm
• 200mm stem: pipe diameter 200mm to 400mm
• 250mm stem: pipe diameter 250mm to 500mm
• 300mm stem: pipe diameter 300mm to 600mm

Commercial Note

Stocked in UAE warehouse in multiple scale ranges and stem lengths for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
