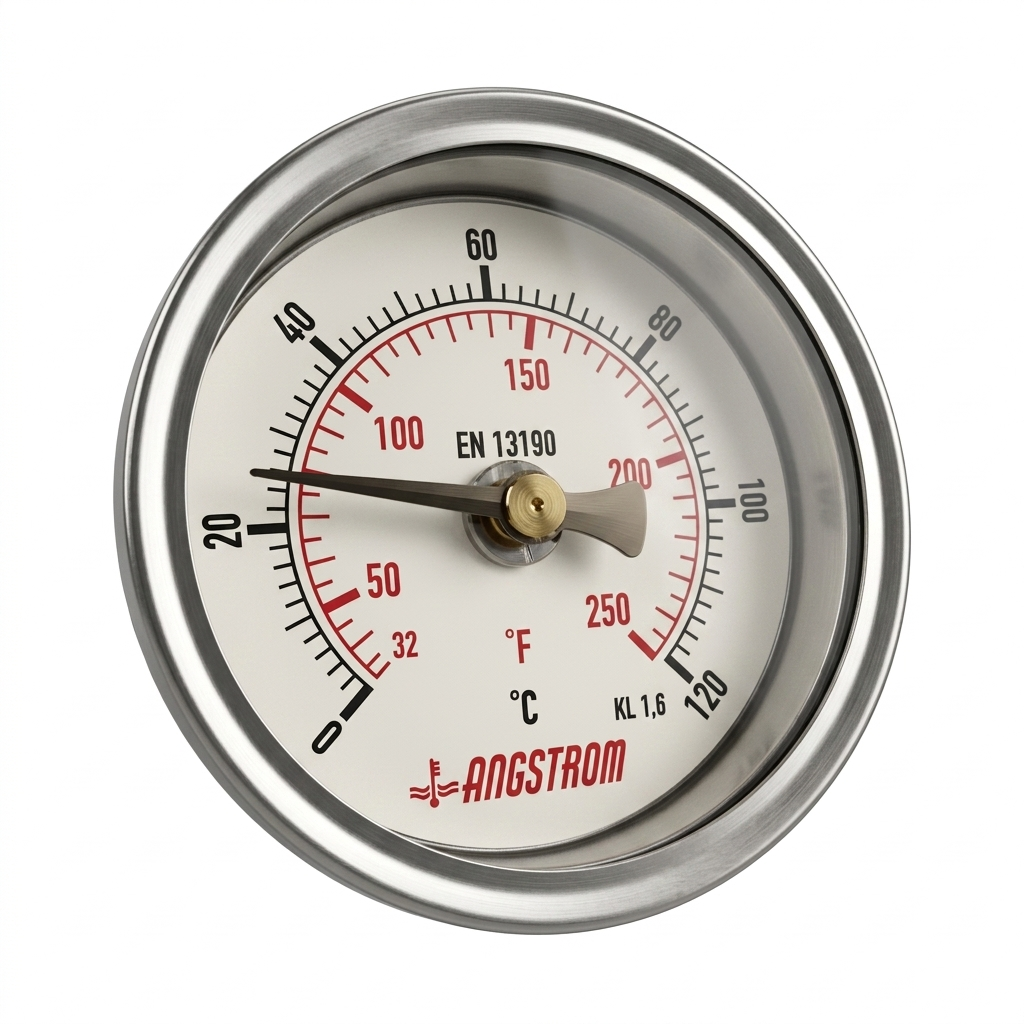

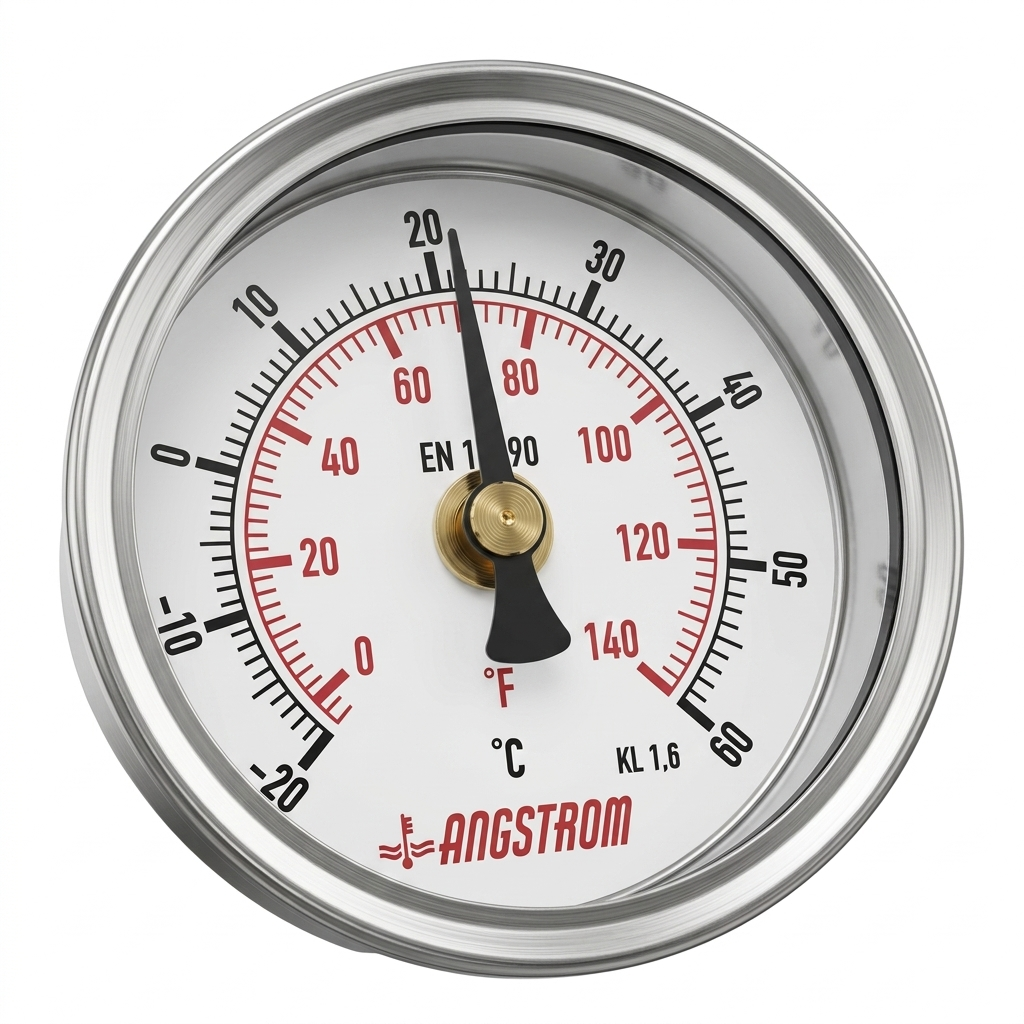

Bimetal Thermometer - 63mm (2.5") Dial - Center Back Mount - Stainless Steel

A 63mm (2.5") center back mount bimetal thermometer is a compact, panel-mounted mechanical temperature measurement instrument that uses a coiled bimetallic strip to indicate temperature without requiring external power. This professional thermometer features 304 stainless steel case with IP65 protection, 316 SS NPT connection, 63mm stem length, and 1% accuracy, designed for UAE's space-critical control panels, compact equipment dashboards, and monitoring stations across Dubai and the Emirates where flush mounting, space efficiency, and maintenance-free temperature monitoring are essential.

What is a 63mm center back mount bimetal thermometer and when do I need one in the UAE?

This is the most compact professional panel-mount thermometer available, combining a 2.5" dial with center back mounting for flush installation in tight control panels and equipment dashboards. Center back mount design positions the connection port at the back center of the case, allowing the thermometer to sit flush against the panel face. Bimetal technology uses two different metals bonded together that expand at different rates when heated, moving a pointer across the dial without batteries, power supply, or electronics. The 304 stainless steel case with IP65 protection resists dust and moisture, while the 316 SS NPT connection provides superior corrosion resistance. When your Dubai control panel or equipment dashboard has limited space but requires professional temperature monitoring with flush-mount appearance and maintenance-free operation, this compact thermometer is the solution.

What are the key features of this 63mm center back mount bimetal thermometer?

- Ultra-Compact 2.5" (63mm) Dial: Space-efficient for tight UAE control panels
- Center Back Mount: Professional flush panel installation for Dubai facilities
- Bimetal Sensing Technology: Accurate mechanical measurement without external power required
- 304 Stainless Steel Case: Rugged construction for harsh UAE industrial environments
- 316 SS NPT Connection: Superior corrosion resistance for Emirates' conditions
- IP65 Protection: Complete dust and moisture resistance for Dubai facilities
- Clear Glass Dial: Easy-to-read temperature monitoring
- 1% Accuracy: Precise and reliable readings for industrial applications
- 63mm Stem Length: Adequate immersion for accurate measurement
- Dual Scale: 0-120°C / 0-250°F for versatile application
- Maintenance-Free: No batteries, no calibration, no power required

What industries and applications use compact center back mount bimetal thermometers in the UAE?

- Space-critical control panels in Dubai industrial facilities
- Compact equipment dashboards and machinery interfaces
- HVAC control panels in tight installations across UAE
- Process control panels with limited panel space
- Manufacturing equipment requiring compact temperature monitoring
- Portable equipment and field instrumentation dashboards
- Any panel installation where space is limited but professional monitoring is required

Installation Guidelines

Cut appropriate size hole in panel according to thermometer specifications. Insert thermometer into panel cutout from front with center back mount positioned at rear. Secure thermometer to panel. Thread NPT connection to process pipe or vessel from rear of panel. Ensure adequate stem immersion for accurate measurement. No power connection or calibration required—ready to use immediately.

Technical Specifications

| Specification | Details |
|--------------|---------|
| Dial Size | 63mm (2.5 inches) - compact |
| Sensing Technology | Bimetal (mechanical) |
| Case Material | 304 Stainless Steel |
| Connection Material | 316 Stainless Steel |
| Connection Type | 1/2" NPT |
| Mount Type | Center back mount (panel installation) |
| Stem Length | 63mm |
| Temperature Range | 0-120°C / 0-250°F |
| Accuracy | 1% (high precision) |
| Protection Rating | IP65 (dust and moisture resistant) |
| Power Required | None (mechanical operation) |
| Region | UAE (Dubai, Abu Dhabi, Emirates) |

Perfect for control panels, industrial machinery, HVAC systems, pipelines, process plants, and general temperature monitoring requiring compact panel-mounted installation. Delivers accurate, reliable temperature measurement without power requirements or maintenance complexity in the smallest professional panel-mount footprint. Ideal for Dubai's space-constrained industrial environments.
