Bimetal Thermometer - 100mm (4") Dial - Center Back Mount - Stainless Steel

A 100mm (4") center back mount bimetal thermometer is a mechanical temperature measurement instrument with a large dial and panel-mounting configuration that uses a coiled bimetallic strip to indicate temperature without requiring external power. This professional thermometer features 304 stainless steel case with IP65 protection, 316 SS NPT connection, 63mm stem length, and 1% accuracy, designed for UAE's control panels, industrial machinery, and monitoring stations across Dubai and the Emirates where superior visibility, flush mounting, and maintenance-free temperature monitoring are essential.

What is a center back mount bimetal thermometer and when do I need one in the UAE?

Center back mount thermometers are designed for panel installation where the thermometer sits flush against a control panel or equipment face, with the connection port at the back center of the case. The large 4" dial provides superior visibility from distance—ideal for control rooms and monitoring stations where operators need to read temperature from across the room. Bimetal technology uses two different metals bonded together that expand at different rates when heated, moving a pointer across the dial without batteries, power supply, or electronics. The 304 stainless steel case with IP65 protection resists dust and moisture, while the 316 SS NPT connection provides superior corrosion resistance. When your Dubai control panel or monitoring station requires large dial visibility with professional flush-mount appearance and maintenance-free operation, this thermometer is the solution.

What are the key features of this 100mm center back mount bimetal thermometer?

- Large 4" (100mm) Dial: Superior visibility for easy reading from distance in UAE control rooms
- Center Back Mount: Professional flush panel installation capability for Dubai facilities
- Bimetal Sensing Technology: Accurate mechanical measurement without external power required
- 304 Stainless Steel Case: Rugged construction for harsh UAE industrial environments
- 316 SS NPT Connection: Superior corrosion resistance for Emirates' conditions
- IP65 Protection: Complete dust and moisture resistance for Dubai facilities
- 1% Accuracy: Precise and reliable readings for industrial applications

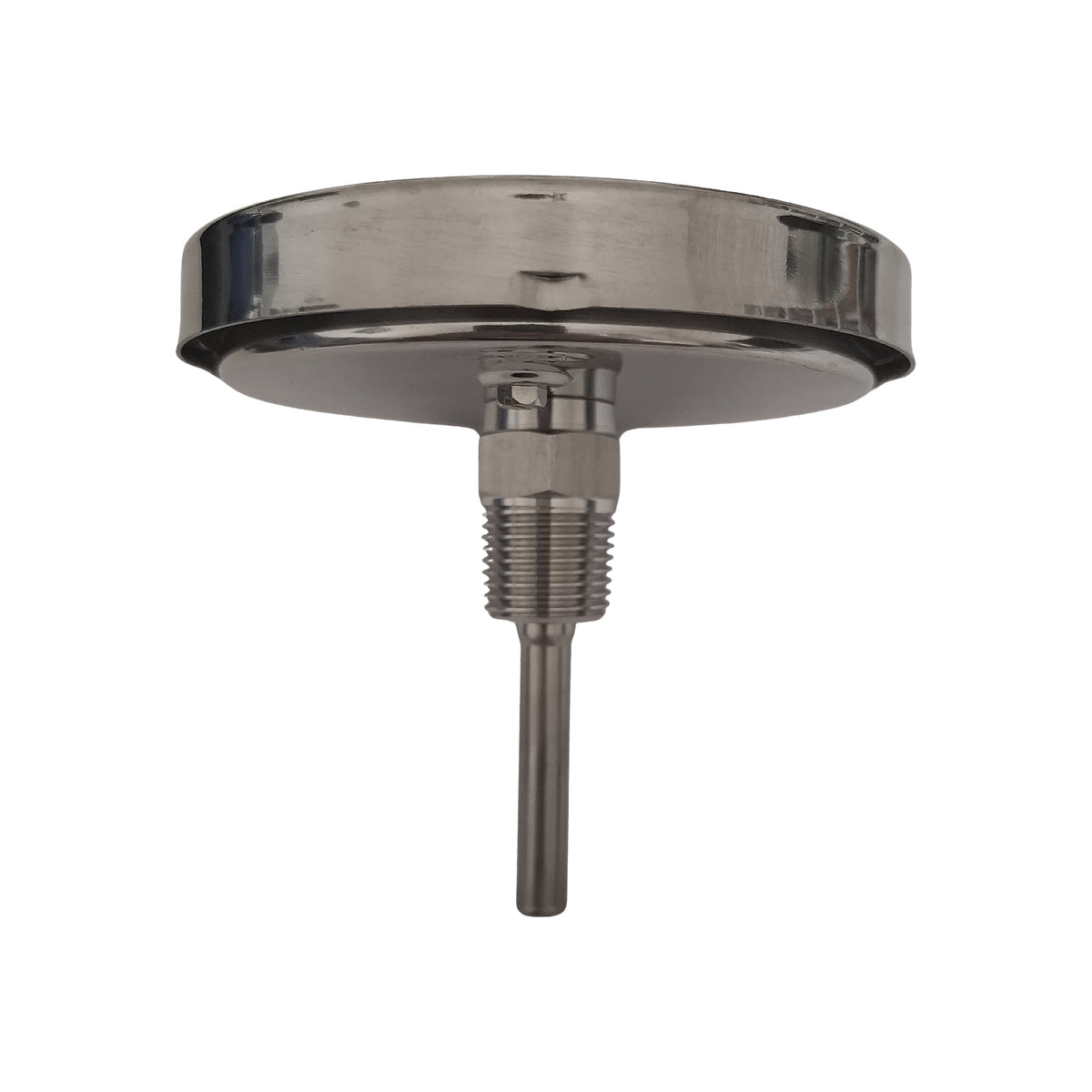

- 63mm Stem Length: Adequate immersion for accurate measurement

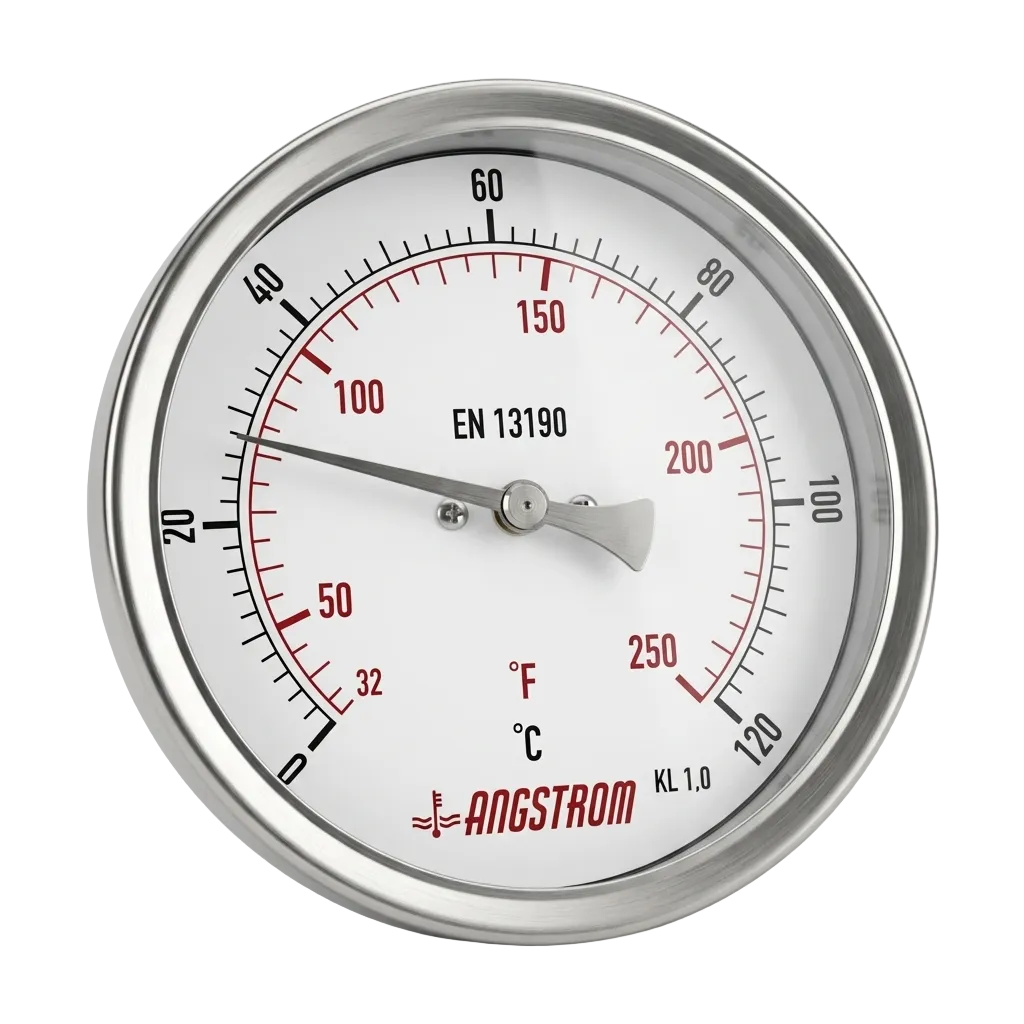

- Dual Scale: 0-120°C / 0-250°F for versatile application
- Maintenance-Free: No batteries, no calibration, no power required

What industries and applications use center back mount bimetal thermometers in the UAE?

- Control panels and monitoring stations in Dubai industrial facilities
- Industrial machinery dashboards and equipment interfaces
- HVAC control systems and mechanical room panels across UAE
- Process plant control panels in oil & gas and petrochemical facilities
- Pipeline monitoring stations throughout Emirates
- Manufacturing equipment control interfaces requiring temperature visibility
- Any panel installation requiring large dial visibility and maintenance-free operation

Installation Guidelines

Cut appropriate size hole in panel according to thermometer specifications. Insert thermometer into panel cutout from front with center back mount positioned at rear. Secure thermometer to panel. Thread NPT connection to process pipe or vessel from rear of panel. Ensure adequate stem immersion for accurate measurement. No power connection or calibration required—ready to use immediately.

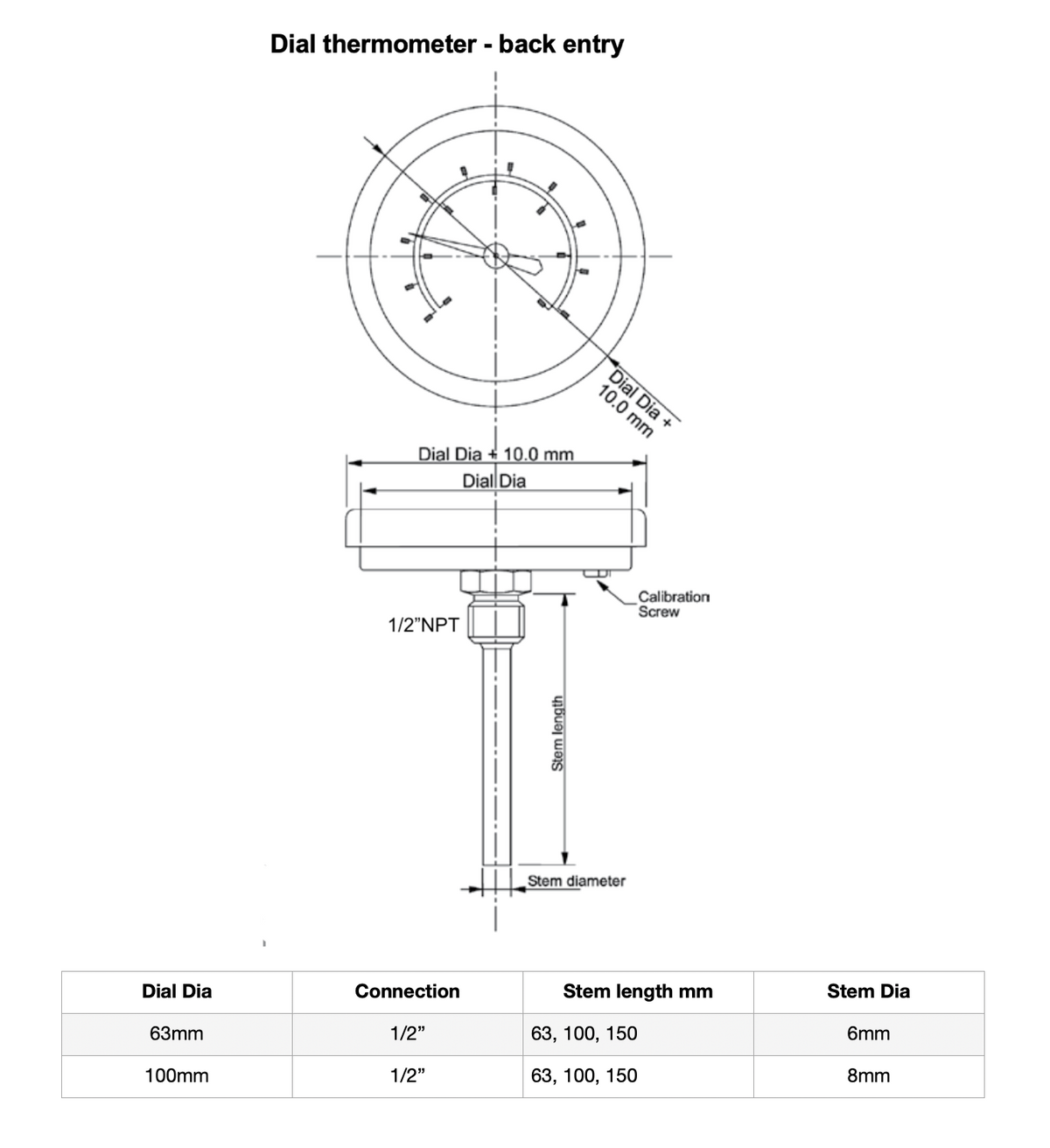

Technical Specifications

| Specification | Details |
|--------------|---------|
| Dial Size | 100mm (4 inches) - large |
| Sensing Technology | Bimetal (mechanical) |
| Case Material | 304 Stainless Steel |
| Connection Material | 316 Stainless Steel |
| Connection Type | 1/2" NPT |
| Mount Type | Center back mount (panel installation) |
| Stem Length | 63mm |
| Temperature Range | 0-120°C / 0-250°F |
| Accuracy | 1% (high precision) |
| Protection Rating | IP65 (dust and moisture resistant) |
| Region | UAE (Dubai, Abu Dhabi, Emirates) |

Perfect for control panels, industrial machinery, HVAC systems, pipelines, process plants, and general temperature monitoring requiring panel-mounted installation with superior visibility. Delivers accurate, reliable temperature measurement without power requirements or maintenance complexity in Dubai's demanding industrial environments.
