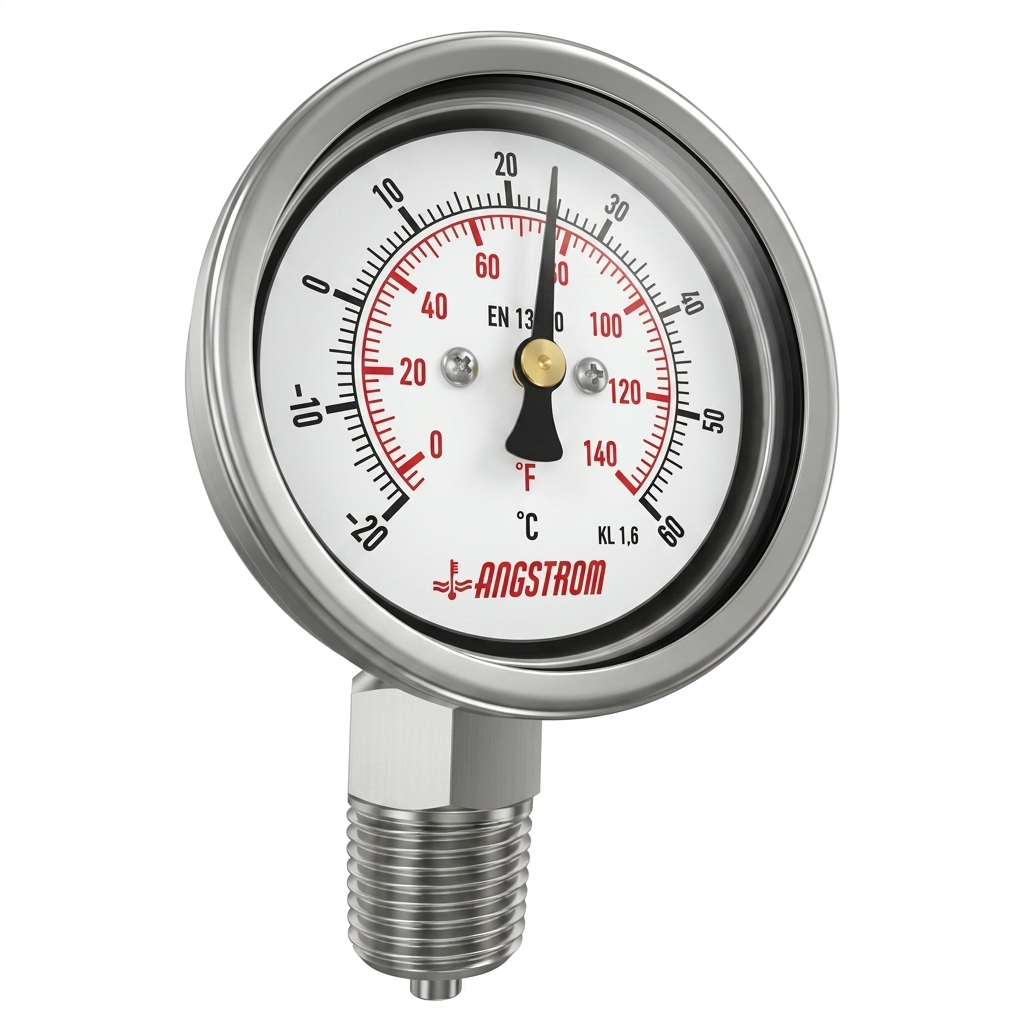

Angstrom Bimetal Thermometer - 63mm (2.5") -20/+60°C +120°C - Lower Mount - Stainless Steel for HVAC & Industrial UAE

Overview

This Angstrom stainless steel bimetal thermometer with 63mm dial and bottom entry connection is designed for accurate, maintenance-free temperature measurement in HVAC, pipeline, and industrial applications across the UAE.

Mechanical bimetal sensing requires no external power — the 304 SS case with IP65 protection and 316 SS 1/2" NPT bottom entry connection delivers reliable performance in harsh and humid environments. Available in two scale ranges (-20/+60°C and 0–120°C) with six stem lengths from 63mm to 300mm to suit a wide range of pipe diameters and installation depths.

Widely used across Dubai and the UAE by MEP contractors, HVAC technicians, and industrial maintenance teams for chilled water systems, pipelines, machinery, and process equipment.

Key Specifications

• Dial Size: 63mm (2.5")
• Connection Type: Lower Mount
• Connection Thread: 1/2" NPT
• Connection Material: 316 Stainless Steel
• Case Material: 304 Stainless Steel
• Scale Range: -20/+60°C or 0–120°C (variant dependent)
• Stem Length: 63mm, 100mm, 150mm, 200mm, 250mm, 300mm (variant dependent)
• Accuracy: ±1%
• Protection Rating: IP65 (dust and moisture resistant)
• Power Required: None (mechanical bimetal operation)

Applications

• HVAC chilled water and heating systems in commercial buildings
• Pipeline temperature monitoring in industrial facilities
• Industrial machinery and equipment temperature measurement
• Oil & gas and petrochemical process plants
• Pump and compressor monitoring
• Hazardous areas where electronic instruments are not permitted

Why Choose This Thermometer

• No power required — fully mechanical, maintenance-free operation
• IP65 rated — dust and moisture resistant for UAE industrial environments
• 316 SS NPT connection — corrosion-resistant for chilled water and process fluids
• Six stem lengths — 63mm to 300mm for any pipe diameter or installation depth
• Two scale ranges — -20/+60°C for chilled water, 0–120°C for hot water and steam

When to Use Bottom Entry vs Other Connections

Choose Bottom Entry (this product):

• Horizontal pipes where the thermometer mounts vertically from below
• Tank and vessel side wall installations
• Standard pipeline temperature tapping points

Choose Center Back Mount:

• Vertical pipes or panel-mounted installations where dial faces forward

Choose Adjustable Angle (100mm & 160mm dial):

• Installations requiring dial orientation adjustment after fitting

How to Select the Right Stem Length

• 63mm stem: pipe diameter 63mm to 125mm
• 100mm stem: pipe diameter 100mm to 200mm
• 150mm stem: pipe diameter 150mm to 300mm
• 200mm stem: pipe diameter 200mm to 400mm
• 250mm stem: pipe diameter 250mm to 500mm
• 300mm stem: pipe diameter 300mm to 600mm

Commercial Note

Stocked in UAE warehouse in multiple scale ranges and stem lengths for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
