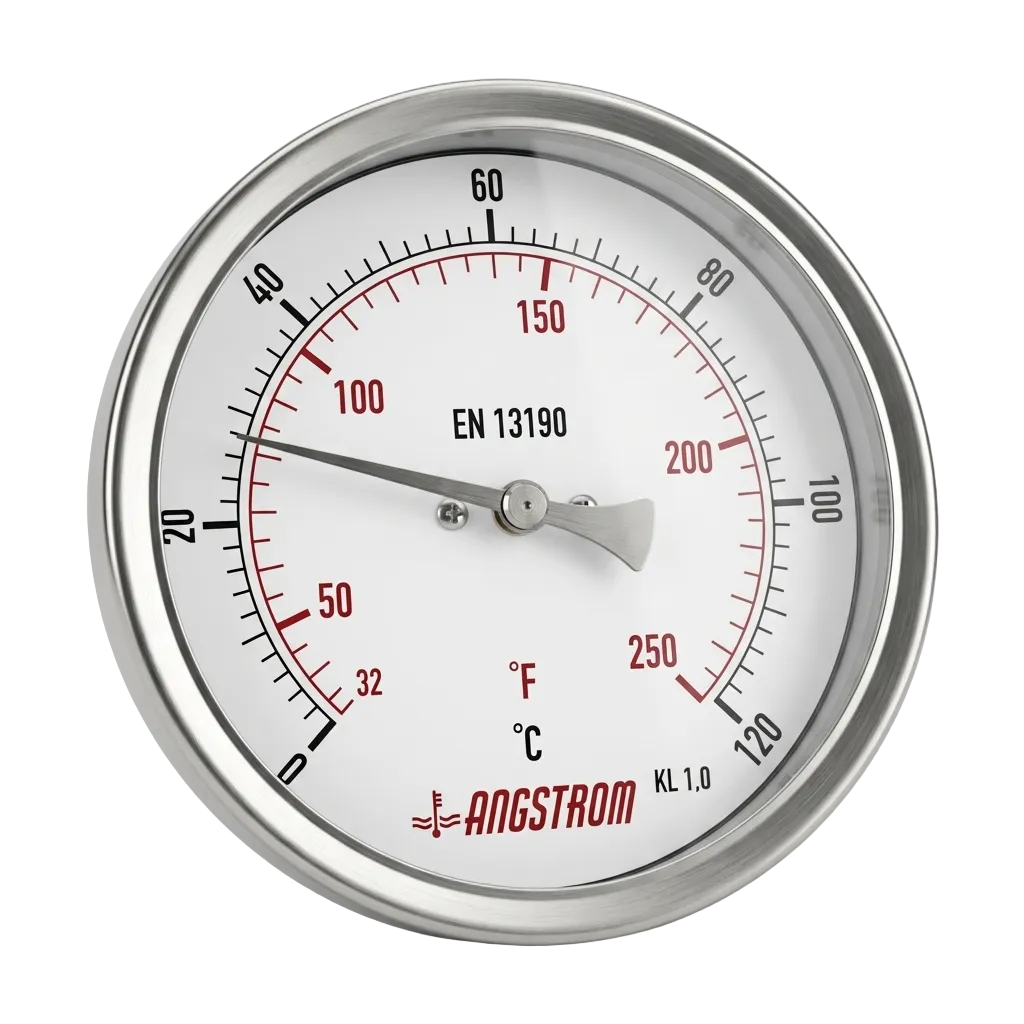

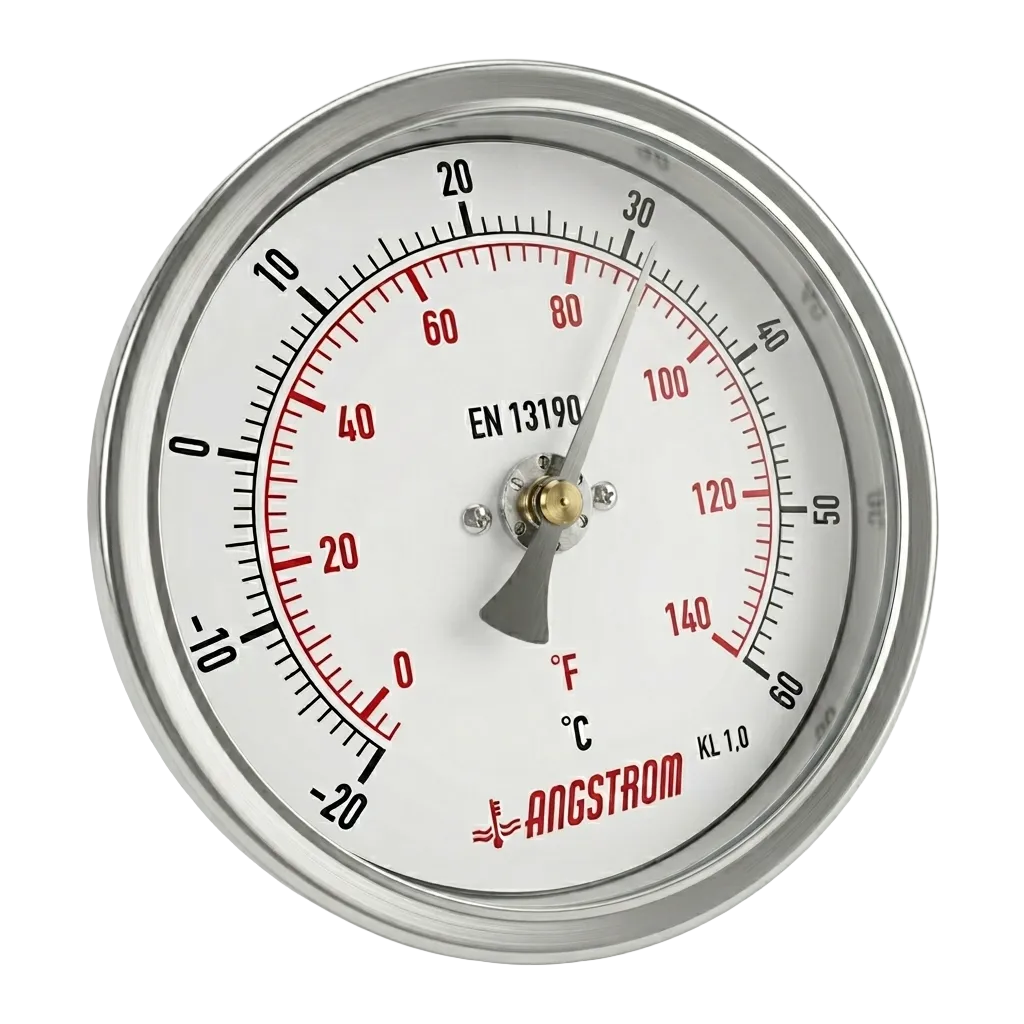

Angstrom Bimetal Thermometer - 100mm (4") -20/+60°C +120°C - Adjustable Angle - Stainless Steel for HVAC & Industrial UAE

Overview

This Angstrom stainless steel bimetal thermometer with 100mm dial and adjustable angle connection is designed for flexible-position temperature measurement in HVAC, pipeline, and industrial applications across the UAE.

The adjustable angle swivel connection allows the dial to be rotated to any position after installation — solving visibility problems where fixed-angle thermometers cannot be read easily. Mechanical bimetal sensing requires no external power. 304 SS case with IP65 protection and 316 SS 1/2" NPT connection. Available in three scale ranges (-20/+60°C, 0–120°C) and six stem lengths from 63mm to 300mm.

Widely used across Dubai and the UAE by MEP contractors, instrumentation engineers, and industrial maintenance teams where pipe orientation or installation constraints make fixed-angle thermometers impractical.

Key Specifications

• Dial Size: 100mm (4")
• Connection Type: Adjustable angle (swivel)
• Connection Thread: 1/2" NPT
• Connection Material: 316 Stainless Steel
• Case Material: 304 Stainless Steel
• Scale Range: -20/+60°C, 0–120°C (variant dependent)
• Stem Length: 63mm, 100mm, 150mm, 200mm, 250mm, 300mm (variant dependent)
• Accuracy: ±1%
• Protection Rating: IP65 (dust and moisture resistant)
• Power Required: None (mechanical bimetal operation)

Applications

• HVAC chilled water and heating pipelines with awkward mounting positions
• Industrial machinery and equipment with constrained viewing angles
• Oil & gas and petrochemical process pipelines
• Steam and high-temperature process monitoring (0–120°C range)
• Tank and vessel installations requiring dial repositioning
• Any installation where fixed-angle thermometers cannot be read easily

Why Choose This Thermometer

• Adjustable angle swivel — rotate dial to optimal reading position after installation
• 100mm dial — superior visibility from distance in industrial environments
• 0–120°C range available — suitable for steam, boiler, and high-temperature process monitoring
• Six stem lengths — 63mm to 300mm for any pipe diameter or installation depth
• No power required — fully mechanical, maintenance-free operation
• IP65 rated — dust and moisture resistant for UAE industrial environments

When to Use Adjustable Angle vs Other Connections

Choose Adjustable Angle (this product):

• Pipe orientation makes dial hard to read with fixed-angle thermometers
• Space-constrained installations requiring post-fit dial positioning
• Available in 100mm and 160mm dial sizes

Choose Center Back Mount (100mm dial):

• Control panel and monitoring station flush installations
• Where forward-facing dial visibility is required

Choose Bottom Entry (63mm dial):

• Standard horizontal pipeline installations
• Compact installations where space is limited

How to Select the Right Stem Length

• 63mm stem: pipe diameter 63mm to 125mm
• 100mm stem: pipe diameter 100mm to 200mm
• 150mm stem: pipe diameter 150mm to 300mm
• 200mm stem: pipe diameter 200mm to 400mm
• 250mm stem: pipe diameter 250mm to 500mm
• 300mm stem: pipe diameter 300mm to 600mm

Commercial Note

Stocked in UAE warehouse in multiple scale ranges and stem lengths for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
