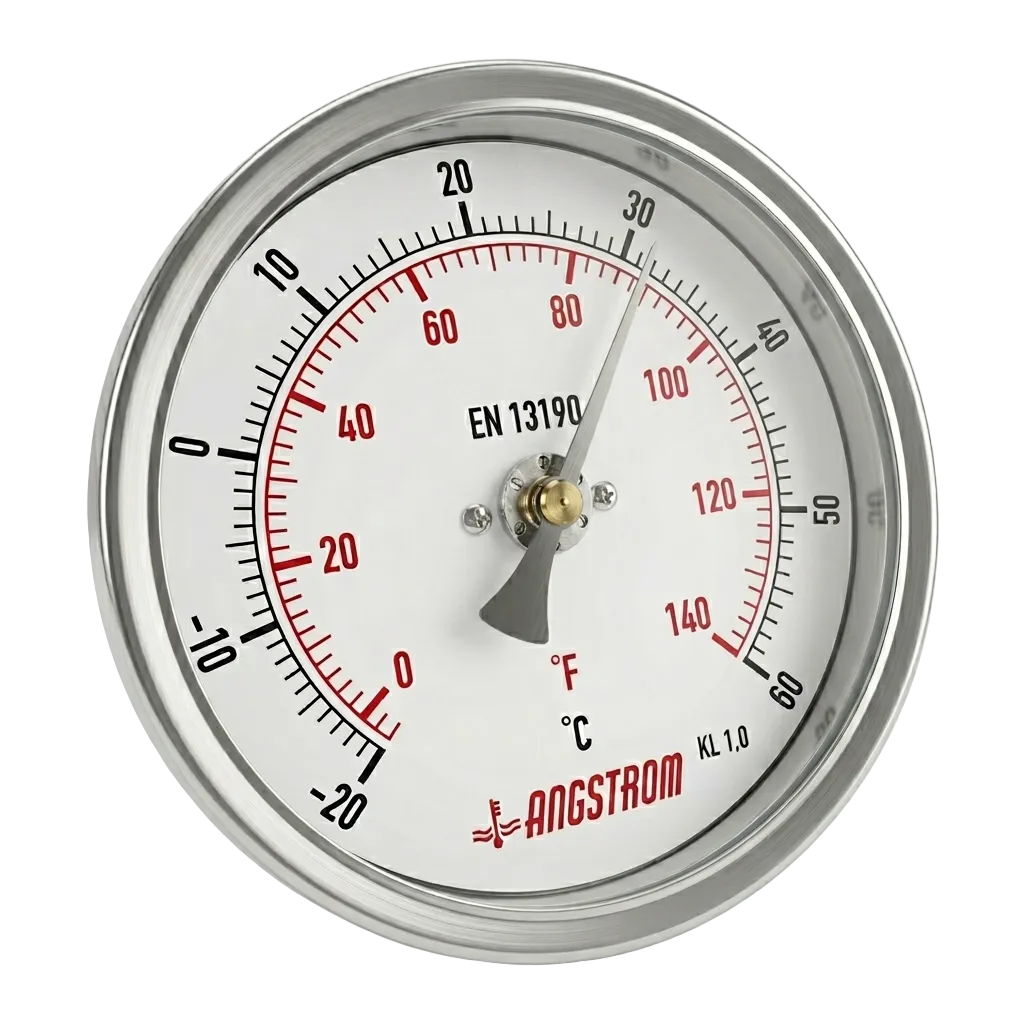

Bimetal Thermometer - 100mm (4") Dial - Adjustable Angle - Stainless Steel

A 100mm (4") adjustable angle bimetal thermometer is a mechanical temperature measurement instrument with a large dial and versatile mounting configuration that uses a coiled bimetallic strip to indicate temperature without requiring external power. This professional thermometer features 304 stainless steel case with IP65 protection, 316 SS NPT connection, 63mm stem length, adjustable angle capability, and 1% accuracy, designed for UAE's industrial machinery, pipelines, and process plants across Dubai and the Emirates where superior visibility, flexible installation positioning, and maintenance-free temperature monitoring are essential.

What is an adjustable angle bimetal thermometer and when do I need one in the UAE?

Adjustable angle thermometers feature a swivel connection that allows the dial to be rotated and positioned at any angle for optimal visibility after installation—critical when the process connection location doesn't naturally position the dial for easy reading. The large 4" dial provides superior visibility from distance, while bimetal technology uses two different metals bonded together that expand at different rates when heated, moving a pointer across the dial without batteries, power supply, or electronics. The 304 stainless steel case with IP65 protection resists dust and moisture, while the 316 SS NPT connection provides superior corrosion resistance. When your Dubai facility has pipelines, tanks, or equipment where the mounting location makes dial visibility difficult with fixed-angle thermometers, adjustable angle models solve the problem.

What are the key features of this 100mm adjustable angle bimetal thermometer?

- Large 4" (100mm) Dial: Superior visibility for easy reading from distance in UAE facilities
- Adjustable Angle Design: Versatile installation positioning for optimal dial visibility
- Bimetal Sensing Technology: Accurate mechanical measurement without external power required
- 304 Stainless Steel Case: Rugged construction for harsh UAE industrial environments
- 316 SS NPT Connection: Superior corrosion resistance for Emirates' conditions
- IP65 Protection: Complete dust and moisture resistance for Dubai facilities
- 1% Accuracy: Precise and reliable readings for industrial applications
- 63mm Stem Length: Adequate immersion for accurate measurement
- Dual Scale: 0-120°C / 0-250°F for versatile application
- Maintenance-Free: No batteries, no calibration, no power required

What industries and applications use adjustable angle bimetal thermometers in the UAE?

- Industrial machinery and equipment with challenging viewing angles across UAE
- Pipeline temperature measurement where fixed angles limit visibility
- HVAC systems and mechanical rooms in Dubai commercial buildings
- Process plants and chemical processing throughout Emirates
- Tank and vessel installations requiring dial repositioning
- Manufacturing operations with space-constrained installations
- Any application where process connection location makes dial reading difficult
- Field installations requiring flexible positioning for operator visibility

Installation Guidelines

Thread NPT connection into process connection (pipe, tank, vessel). Ensure adequate stem immersion for accurate measurement. After installation, rotate dial housing to desired angle for optimal visibility. Tighten adjustment mechanism to lock dial position. No power connection or calibration required—ready to use immediately upon installation.

Technical Specifications

| Specification | Details |
|--------------|---------|
| Dial Size | 100mm (4 inches) - large |
| Sensing Technology | Bimetal (mechanical) |
| Case Material | 304 Stainless Steel |
| Connection Material | 316 Stainless Steel |
| Connection Type | 1/2" NPT |
| Mount Type | Adjustable angle (swivel positioning) |
| Stem Length | 63mm |
| Temperature Range | 0-120°C / 0-250°F |
| Accuracy | 1% (high precision) |
| Protection Rating | IP65 (dust and moisture resistant) |
| Power Required | None (mechanical operation) |
| Region | UAE (Dubai, Abu Dhabi, Emirates) |

Perfect for industrial machinery, HVAC systems, pipelines, process plants, and general temperature monitoring requiring flexible installation angles for optimal visibility. Delivers accurate, reliable temperature measurement without power requirements or maintenance complexity in Dubai's demanding industrial environments.
