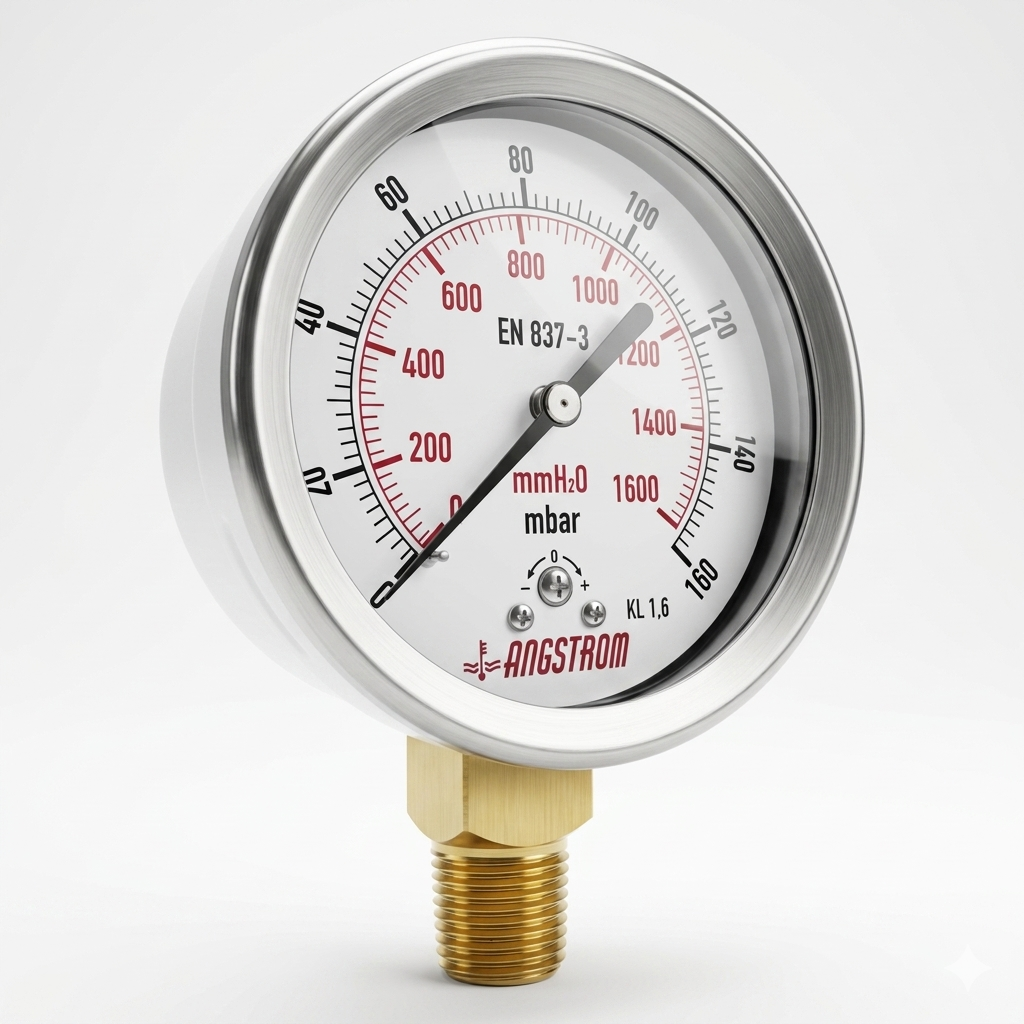

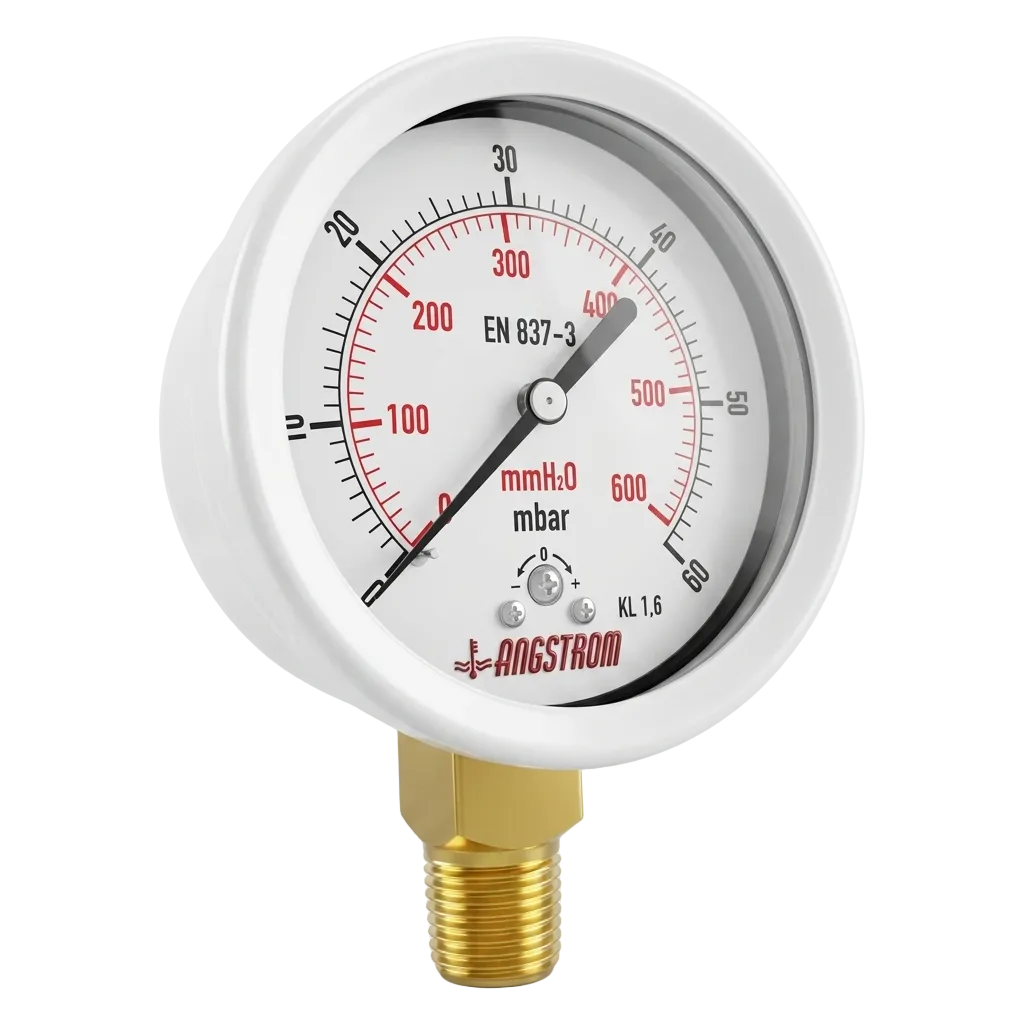

Angstrom Capsule Pressure Gauge - 100mm (4") - 60–400mbar - Lower Mount for Low-Pressure HVAC & Gas Systems UAE

Overview:

The Angstrom 100mm capsule pressure gauge delivers high-visibility low-pressure measurement from 60 to 400mbar via lower mount connection. The larger 4" dial improves readability at distance — critical for plant floor and mechanical room installations. Capsule element maintains accuracy at sub-1-bar ranges where standard gauges lose resolution. Stocked in Dubai for UAE industrial and HVAC projects.

Key Specifications:

• Pressure Range: 60 / 100 / 160 / 250 / 400mbar (select variant)
• Dial Size: 100mm (4")
• Connection: Lower Mount, 1/2" NPT Male
• Accuracy: ±1.6% FS (EN 837-3)
• Case: 304 Stainless Steel
• Movement: Brass Capsule Element
• Dial: White aluminum, black markings
• Protection: IP66
• Filling: Dry (standard)

Applications:

• Gas pipeline pressure monitoring at distribution points
• HVAC plant rooms and mechanical floors
• Pneumatic systems requiring remote-readable gauges
• Water treatment and filtration low-pressure circuits
• Industrial process lines with sub-1-bar operating pressure

When to Use vs Other Types:

• Choose this if: low-pressure measurement is needed with high dial visibility at distance
• Choose 63mm lower mount if: space is constrained and close-range reading is acceptable
• Choose 100mm bourdon gauge if: pressure exceeds 1 bar on the same line

Commercial Note:

Stocked in UAE warehouse for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
