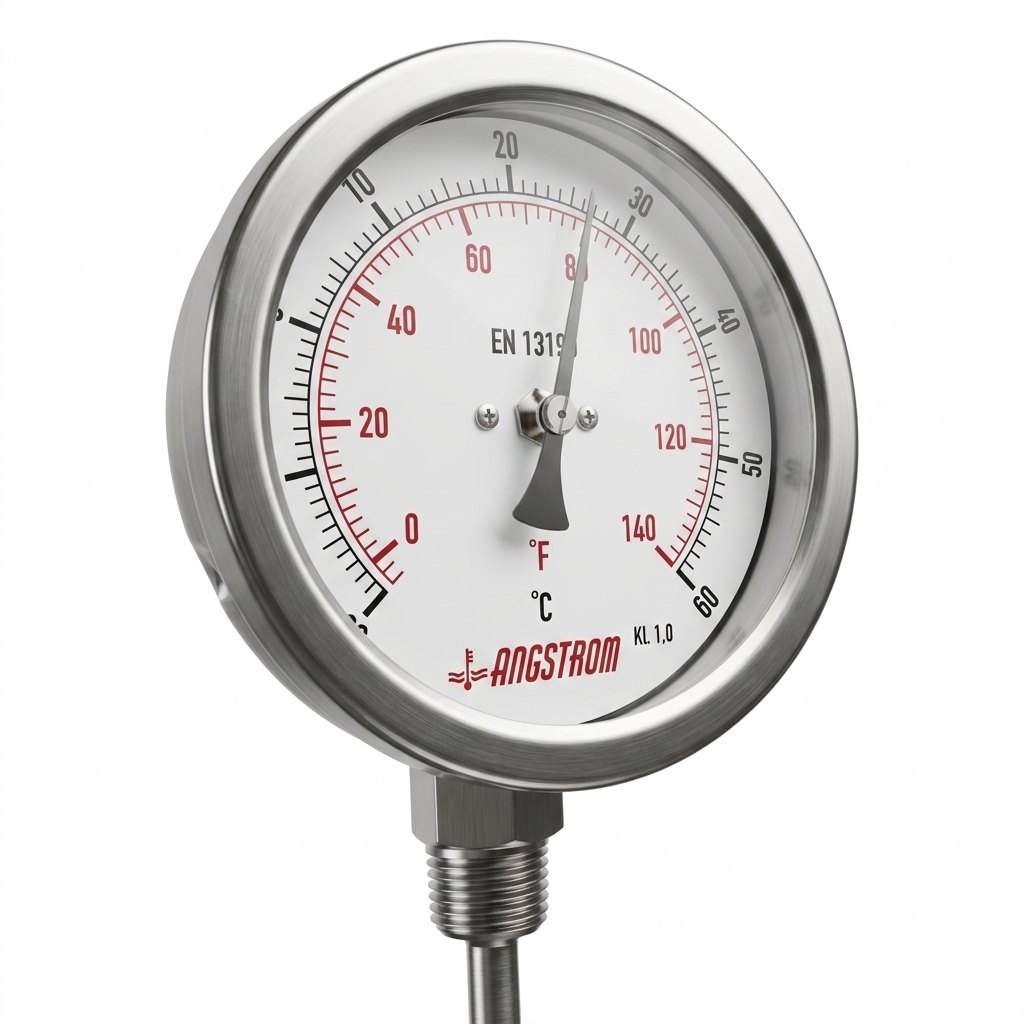

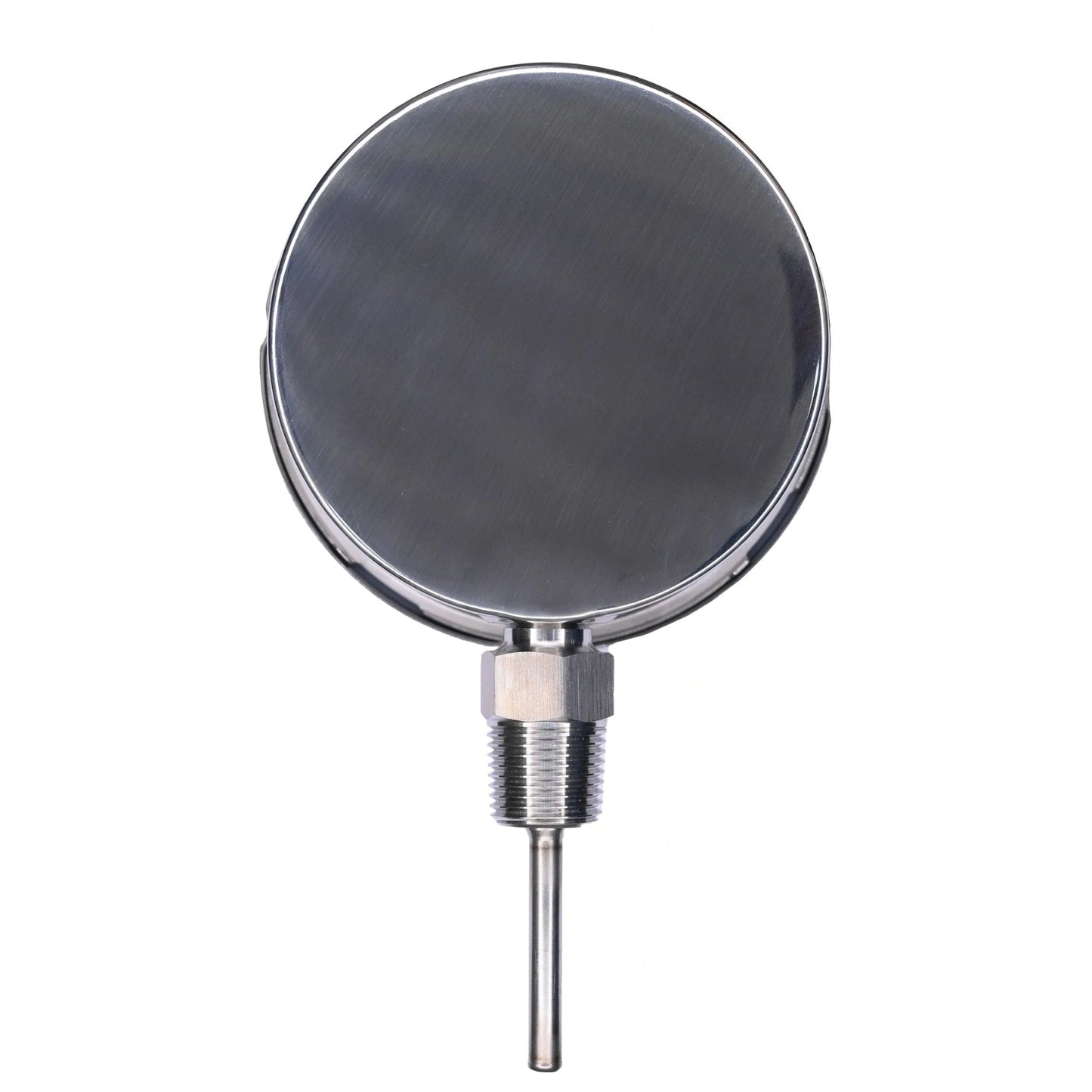

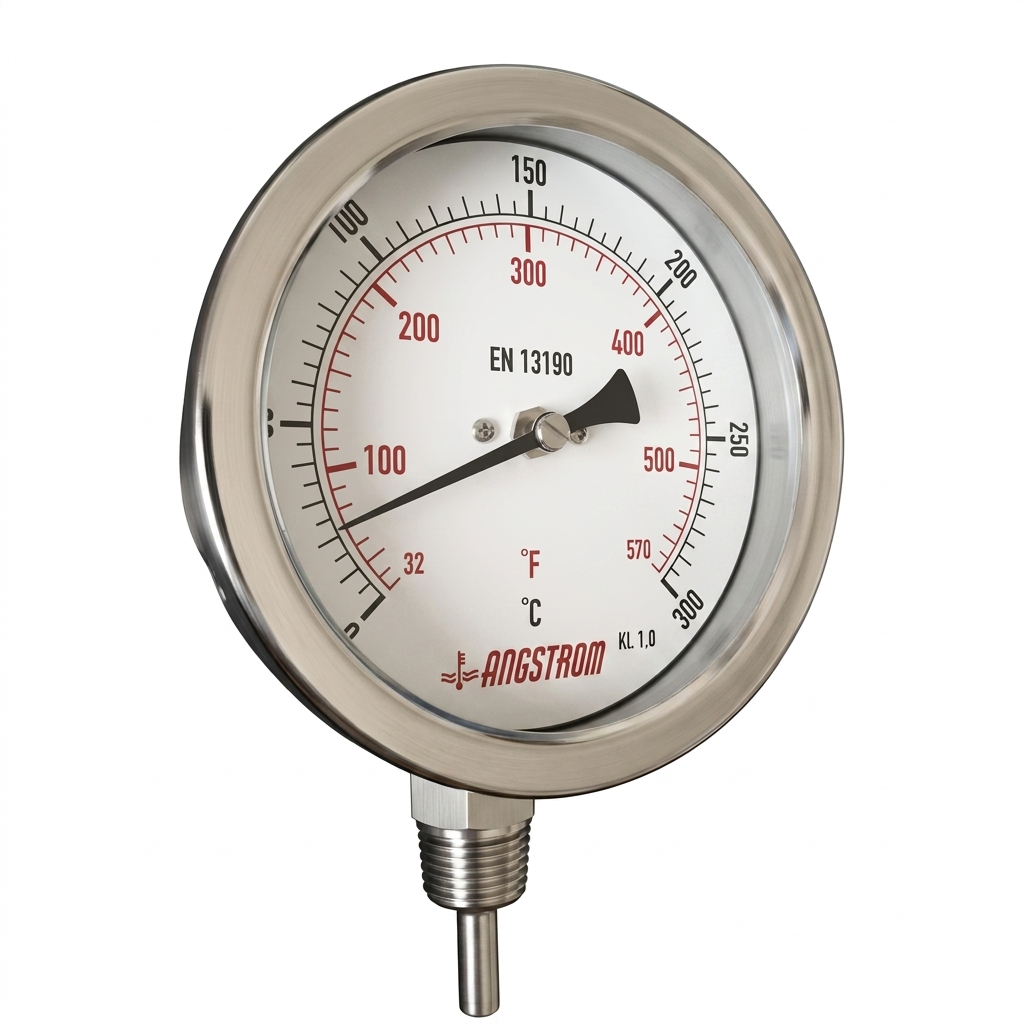

Angstrom Bimetal Thermometer - 100mm (4") -20/+60°C +120°C +300°C - Lower Mount - Stainless Steel for HVAC & Industrial UAE

Overview

This Angstrom industrial-grade bimetal thermometer with 100mm (4") dial and bottom entry connection is a mechanical temperature measurement instrument that uses a coiled bimetallic strip to indicate temperature without requiring external power. Featuring a 304 stainless steel case, 316 SS connection, 1% accuracy, and maintenance-free operation, it is designed for UAE oil & gas facilities, HVAC systems, manufacturing plants, and process control applications across Dubai and the Emirates where reliable temperature monitoring, corrosion resistance, and no electrical dependencies are essential.

Key Specifications

• Dial Size: 100mm (4")
• Connection Type: Lower Mount
• Connection Material: 316 Stainless Steel
• Case Material: 304 Stainless Steel
• Sensing Technology: Bimetal (mechanical)
• Accuracy: ±1%
• Mount Type: Direct mount
• Power Required: None (mechanical operation)
• Maintenance: Maintenance-free
• Climate Resistance: Extreme heat and humidity resistant

Applications

• Oil & gas facilities and petrochemical plants across UAE
• HVAC systems in commercial and industrial buildings throughout Dubai
• Manufacturing plants and production facilities in Emirates
• Process control systems requiring reliable temperature monitoring
• Remote locations where power isn’t available or reliable
• Hazardous areas where electrical instruments aren’t permitted

Why Choose This Thermometer

• No power required — fully mechanical, maintenance-free operation ideal for UAE remote and hazardous locations
• Large 100mm (4") dial — excellent visibility for operators in UAE industrial facilities
• 304 SS case with 316 SS connection — withstands extreme Gulf heat, humidity, and corrosive conditions
• 1% accuracy — reliable precision for critical UAE industrial applications
• No calibration required — ready to use immediately upon installation
• Proven reliability — mechanical design eliminates electronic failure modes

When to Use Bottom Entry vs Other Connections

Choose 100mm Bottom Entry (this product):

• Direct pipeline, tank, or vessel installations requiring bottom connection
• Applications needing maximum dial visibility from a distance
• Oil & gas and industrial process lines where no power is available

Choose 100mm Center Back Entry:

• Control panels and monitoring stations requiring flush rear connection
• Installations where the connection must exit from the back of the panel

Choose 63mm Bottom Entry:

• Compact installations where a smaller dial footprint is required

Choose Adjustable Angle (100mm):

• Installations requiring dial orientation adjustment after fitting

How to Select the Right Stem Length

• 63mm stem: pipe diameter 63mm to 125mm
• 100mm stem: pipe diameter 100mm to 200mm
• 150mm stem: pipe diameter 150mm to 300mm
• 200mm stem: pipe diameter 200mm to 400mm
• 250mm stem: pipe diameter 250mm to 500mm
• 300mm stem: pipe diameter 300mm to 600mm

Commercial Note

Stocked in UAE warehouse in multiple scale ranges and stem lengths for immediate dispatch across Dubai, Abu Dhabi, and all emirates.
