A mechanical test plug is a temporary sealing device designed to isolate sections of pipelines during testing, maintenance, or construction activities by creating a reliable seal within pipes using an expandable rubber sealing element and expansion mechanism. These robust tools are essential for UAE's oil & gas facilities, water infrastructure, and construction projects across Dubai, Abu Dhabi, and the Emirates where pipeline integrity testing, pressure testing, leak detection, and system commissioning must be conducted safely and efficiently.
What is a mechanical test plug and when do I need one in the UAE?
A mechanical test plug is a reusable pipeline isolation tool that creates a temporary seal inside pipes to enable safe pressure testing, leak detection, and maintenance without permanent modifications to the pipeline system. The plug consists of an expandable rubber sealing element mounted on a central mandrel with an expansion mechanism (pneumatic or mechanical), pressure monitoring connections, and safety bypass systems. When inserted into a pipe and expanded, it creates a pressure-tight seal that isolates a section of pipeline for testing or maintenance work. In the UAE's rapidly growing industrial landscape—from oil and gas facilities in Abu Dhabi to water treatment plants in Dubai and construction projects across the Emirates—mechanical test plugs are indispensable for pipeline commissioning, hydrostatic testing, maintenance shutdowns, emergency leak containment, and system validation. When your UAE project requires temporary pipeline isolation for testing without cutting or welding permanent modifications, mechanical test plugs provide the safe, cost-effective, and reusable solution.
What are the key features and benefits of mechanical test plugs?
Key Components and Design Features:
- Expandable Rubber Sealing Element: Creates pressure-tight seal against pipe walls
- Central Mandrel or Body: Structural support and expansion mechanism housing
- Pressure Monitoring Connections: Real-time pressure and leak detection capability
- Safety Bypass Systems: Emergency pressure relief and controlled depressurization
What industries and applications use mechanical test plugs in the UAE?
Water Infrastructure Applications:
- Municipal water system maintenance in Dubai, Abu Dhabi, and other Emirates
- Wastewater treatment facility operations and commissioning
Construction & Development Applications:
- Building services testing in UAE's construction boom projects
Installation and safety procedures for mechanical test plugs
Pre-Installation Checklist:
- Verify pipe condition, cleanliness, diameter, and wall thickness
- Confirm plug size matches pipe and pressure rating meets requirements
- Check all safety equipment and emergency procedures
- Review manufacturer's installation guidelines and communication protocols
Technical specifications and selection criteria
| Specification | Details |
|---|---|
| Pressure Ratings | Low: 0-10 bar (municipal water), Medium: 10-40 bar (industrial), High: 40-100+ bar (oil & gas) |
| Temperature Range | Standard: -20°C to +80°C, High-temp variants: up to +200°C for UAE extreme conditions |
| Materials | Corrosion-resistant, UV-stable, sand/dust protected for Emirates climate |
| Compliance Standards | ASME B31.3 (Process Piping), API standards, UAE Fire and Life Safety Code, ISO 9001 |
| Sealing Element | Expandable rubber, chemical-compatible, pressure-rated |
| Expansion Type | Pneumatic or mechanical actuation |
| Monitoring | Pressure connections, optional IoT/remote sensing capability |
| Safety Features | Bypass systems, emergency pressure relief, controlled depressurization |
| Application | Pipeline testing, commissioning, maintenance isolation, leak detection |
| Region | UAE (Dubai, Abu Dhabi, Emirates) - desert climate optimized |
Replacement Indicators:
Replace mechanical test plugs showing cracking or deterioration of seals, corrosion of metal components, pressure loss during testing, or difficulty in expansion/retraction mechanisms.

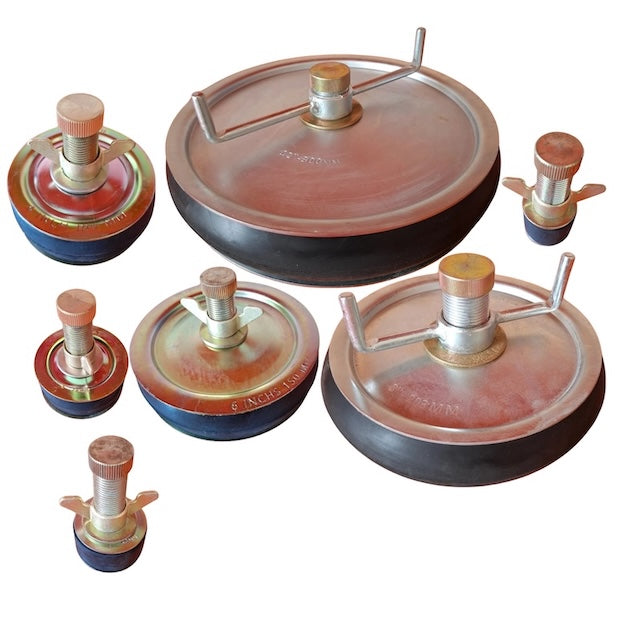

Crystal brand mechanical test plugs are stocked in UAE warehouse in sizes 1.5" to 16" for immediate dispatch across Dubai, Abu Dhabi, and all emirates. Supply available up to 72" for large diameter pipeline projects — contact us for sizing and availability.
