The Complete Guide to Pressure Gauge Snubbers: Protecting Your Equipment Investment

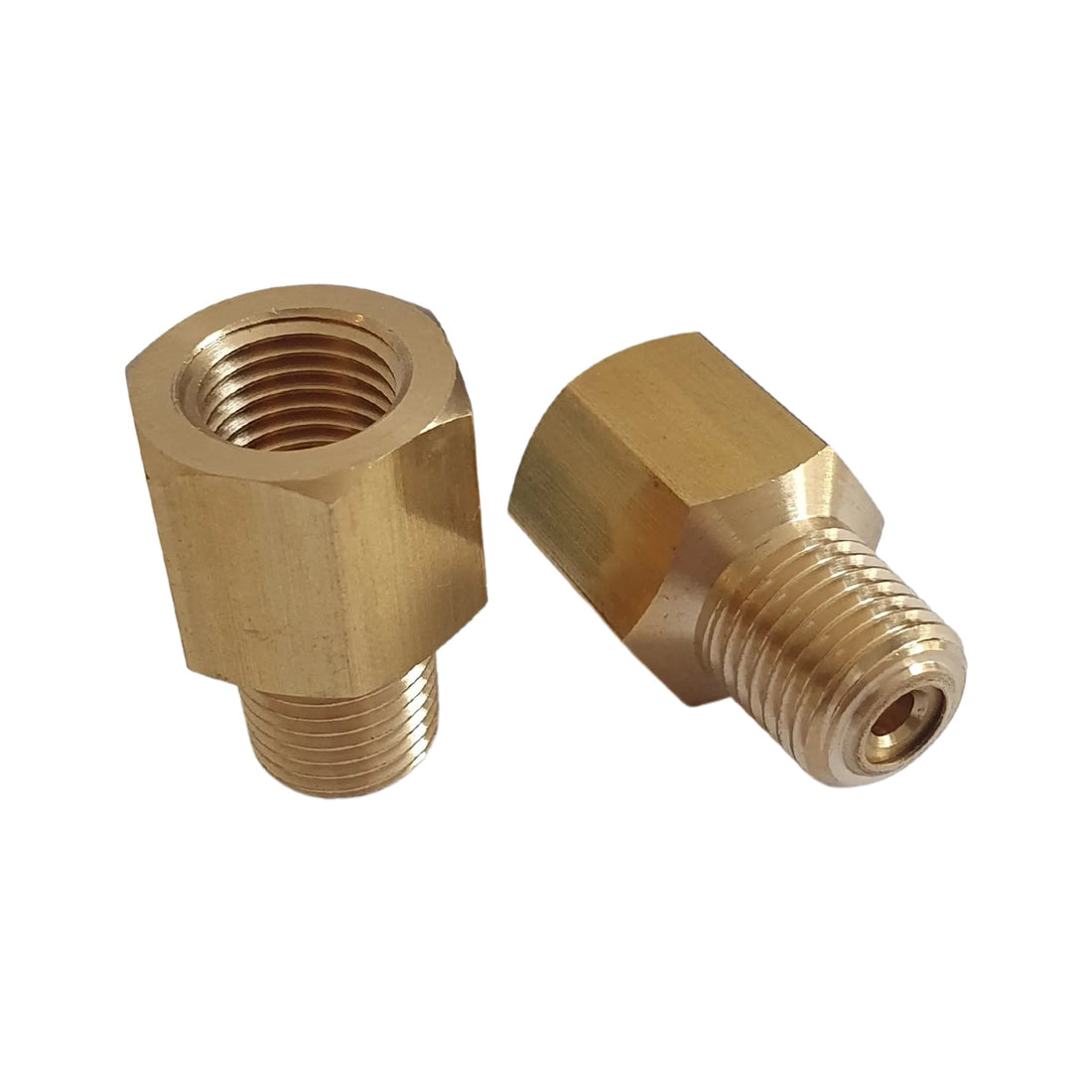

A pressure gauge snubber is a flow restriction device made from brass that installs between the pressure source and the gauge to dampen pressure fluctuations, protect delicate internal mechanisms from sudden pressure surges, prevent needle flutter, and extend gauge life. Angstrom pressure snubbers are crafted from high-quality brass rated to 3000 PSI, available in 1/4" and 1/2" male x female NPT connections for UAE industrial applications across Dubai, Abu Dhabi, and the Emirates including pumps, compressors, hydraulic systems, and any application with pressure pulsation that would otherwise damage expensive gauges and compromise measurement accuracy.

What is a pressure gauge snubber and when do you need one in UAE applications?

A pressure gauge snubber is a small brass fitting with a precisely sized internal orifice that restricts flow to the pressure gauge, acting as a shock absorber for pressure waves. Industrial processes rarely provide steady, consistent pressure—pumps cycle on and off, valves open and close rapidly, and system dynamics create pressure waves that travel through piping. These rapid pressure fluctuations cause gauge needle oscillation (making readings difficult or impossible), accelerate wear on internal gauge components (gears, linkages, Bourdon tube), lead to premature gauge failure and costly replacements, and compromise measurement accuracy and system reliability. The snubber dampens these pressure spikes by restricting the rate at which pressure changes reach the gauge, allowing the gauge to respond to actual system pressure while filtering out destructive pulsations. You need a pressure gauge snubber in any UAE application with reciprocating pumps, compressors, hydraulic systems, quick-closing valves, pulsating pressure from process equipment, or any system where the gauge needle bounces or vibrates excessively. In Dubai's oil and gas facilities, Abu Dhabi's industrial operations, and Emirates' manufacturing plants, snubbers are essential protection that costs 20-30 dirhams but saves replacing 500+ dirham gauges every few months.

What are the key features and benefits of Angstrom pressure snubbers?

Material Excellence - Why Brass Matters:

Angstrom pressure gauge snubbers are crafted from high-quality brass, chosen for exceptional properties:

• Corrosion Resistance: Brass naturally resists corrosion from most industrial fluids, water, steam, and chemicals common in UAE applications
• Durability: Excellent mechanical properties ensure long service life in Emirates' harsh conditions
• Machinability: Precise threading and smooth internal passages for consistent flow restriction
• Temperature Stability: Maintains performance across wide temperature ranges (-20°C to +200°C)
• 3000 PSI Rating: Handles high-pressure UAE industrial applications

Performance Benefits:

• Pressure Spike Protection: Dampens rapid pressure fluctuations that damage gauge mechanisms
• Extended Gauge Life: Gauges last 10 times longer with snubbers in pulsating applications
• Improved Readability: Steady needle for accurate pressure readings
• Cost Savings: 20-30 dirham investment prevents 500+ dirham gauge replacements
• Reduced Maintenance: Fewer gauge failures mean less downtime in UAE operations

Connection 1/4" and 1/2"

1/4" Male x Female Connections:

Perfect for smaller gauge applications and systems where space is at a premium in UAE facilities. The 1/4" size is ideal for:

• Instrument panels and control systems in Dubai control rooms
• Laboratory and test equipment
• Light industrial applications with 63mm (2.5") gauges
• Compact installations in tight spaces
• Pneumatic systems and compressed air applications

1/2" Male x Female Connections:

The robust choice for heavy-duty industrial applications across UAE. The 1/2" size handles:

• High-pressure systems in oil & gas facilities
• Large industrial processes in Abu Dhabi
• Applications requiring maximum flow capacity
• 100mm (4") and 150mm (6") pressure gauges
• Hydraulic systems with severe pulsation

Installation best practices for UAE applications

Proper installation ensures optimal performance from your pressure gauge snubber:

1. Install Close to Gauge: Mount the snubber as close to the gauge as possible for maximum protection
2. Thread Sealant: Ensure proper thread engagement using appropriate sealant (PTFE tape or pipe dope)
3. Orientation: Orient the snubber to allow any condensate to drain back to the system (important for steam applications)
4. Avoid Over-Tightening: Hand-tight plus 1-2 turns with wrench—over-tightening can damage threads or restrict flow
5. Combination Protection: For severe pulsation, use snubber with siphon for maximum gauge protection

What industries and applications use pressure gauge snubbers in UAE?

Oil & Gas Sector:

• Reciprocating pumps and compressors in Abu Dhabi facilities
• Wellhead pressure monitoring with pulsation
• Pipeline pressure control systems
• Refinery and processing plant instrumentation

Hydraulic Systems:

• Mobile hydraulic equipment in UAE construction
• Industrial hydraulic presses and machinery
• High-pressure hydraulic systems with rapid cycling

Manufacturing & Industrial:

• Compressed air systems in Sharjah and Ajman facilities
• Reciprocating compressors across UAE
• Pump discharge pressure monitoring
• Process equipment with pulsating pressure

Water Treatment:

• Desalination plant pump systems
• Municipal water distribution with pump cycling
• Wastewater treatment facility operations

HVAC Systems:

• Boiler and chiller systems in Dubai commercial buildings
• Pump discharge monitoring
• District cooling network pressure control

Maintenance and longevity in UAE climate

While pressure gauge snubbers are relatively maintenance-free, periodic inspection ensures continued reliability in UAE conditions:

Regular Inspection:

• External Condition: Check for corrosion or damage (more frequent in UAE coastal areas)
• Connection Tightness: Verify connections remain tight and leak-free
• Response Time: Monitor gauge response time—excessive delay may indicate blockage from debris or scale
• Replacement Indicators: Replace if internal restriction becomes compromised or blocked

Troubleshooting:

• Slow Gauge Response: May indicate snubber orifice is too small or partially blocked
• Continued Needle Flutter: Snubber may be undersized for application or damaged
• Leaking Connections: Check thread sealant and tightness

Choosing the right snubber for your UAE application

Selecting the appropriate pressure gauge snubber involves considering:

Size Selection:

• 1/4" Snubber: For 63mm (2.5") gauges and light industrial applications
• 1/2" Snubber: For 100mm (4") and 150mm (6") gauges and heavy-duty applications

Application Factors:

• System Pressure Range: Ensure 3000 PSI rating is adequate for UAE application
• Pulsation Severity: Severe pulsation may require combination of snubber and siphon
• Fluid Compatibility: Brass construction compatible with water, steam, oil, air, most chemicals
• Required Response Time: Balance dampening with acceptable gauge response speed
• Available Space: Consider connection size and installation clearance

Technical specifications

Specification	1/4" Snubber	1/2" Snubber
Material	High-quality brass	High-quality brass
Connection Type	Male x Female NPT	Male x Female NPT
Pressure Rating	3000 PSI	3000 PSI
Temperature Range	-20°C to +200°C	-20°C to +200°C
Function	Flow restriction / pressure dampening	Flow restriction / pressure dampening
Typical Gauge Size	63mm (2.5")	100mm (4"), 150mm (6")
Applications	Light industrial, pneumatic, control panels	Heavy industrial, hydraulic, high-pressure
Maintenance	Maintenance-free, periodic inspection recommended
Region	UAE (Dubai, Abu Dhabi, Emirates)



Angstrom brass pressure snubbers stocked in 1/4" and 1/2" NPT, rated to 3000 PSI, for immediate dispatch across UAE. View pressure gauge accessories
